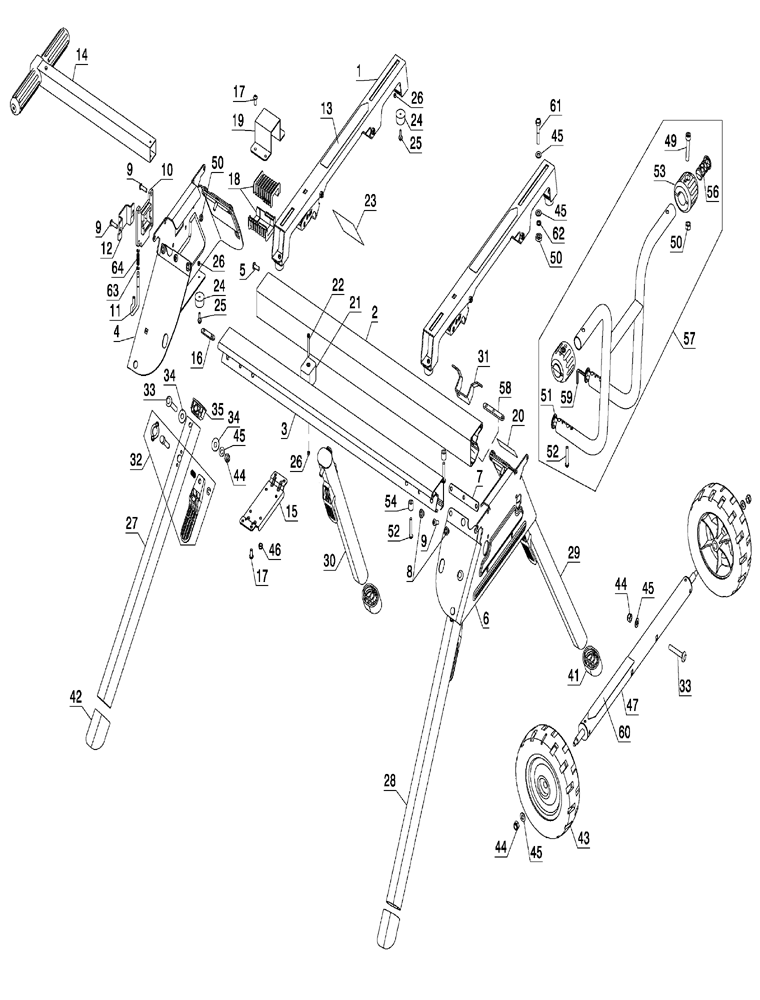

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	A23620	BRACKET ASSEMBLY	$75.32
2	A23233	BEAM	$68.20
3	A23712	BEAM	$68.20
4	A23327	BRACKET	$68.20
5	330045-23	SCREW, TAPTITE	$1.21
6	A23328	BRACKET	$52.76
7	A23227	PLATE	$12.38
8	A24630	SCREW	$2.25
9	A24629	SCREW	$1.36
10	A23887	SLEEVE	$14.49
11	A23888	PIN	$26.07
12	A23889	COVER	$6.33
13	654720-00	WARNING LABEL	$6.33
14	A24638	HANDLE	$49.33
15	A23862	BRACE	$31.67
16	A24736	PLATE	$9.37
17	A24636	SCREW	$1.36
18	A23859	BUSHING	$10.41
19	A23861	BRACKET	$3.67
20	654719-00	ID LABEL	$12.09
21	A23925	STOP	$11.42
22	A23906	SCREW	$1.36
23	654717-00	WARNING LABEL	$12.09
24	A23477	BUMPER	$8.70
25	A24624	SCREW	$1.21
26	A24625	NUT	$1.21
27	A23312	LEG	$31.67
28	A23313	LEG	$31.67
29	A23315	LEG	$31.67
30	A23314	LEG	$31.67
31	A23867	LOCATOR	$24.00
32	A24637	ADJUSTER	$31.67
33	A23890	CARRIAGE BOLT	$6.33
34	A24632	WASHER	$1.36
35	A23345	CAP	$6.33
41	A23330	FOOT	$13.13
42	A24912	FOOT	$13.13
43	A23234	WHEEL	$59.55
44	A24631	LOCK NUT	$1.36
45	330016-24	WASHER	$1.21
46	330021-01	NUT, STOP	$1.21
47	A23352	AXLE	$31.67
49	5140032-88	CAP SCREW	$1.21
50	330015-03	NUT, HEX	$1.36
51	A25281	PLUG	$15.50
52	A25268	SCREW	$2.58
53	5140032-87	FEET	$7.68
54	A25564	BUSHING	$4.23
56	A25282	PLUG	$11.02
57	A25226	STAND ASSY	$92.94
58	A25267	PLATE	$10.41
59	98000-09	WRENCH, HEX-4MM	$7.34
60	659960-00	WARNING LABEL	$6.33
61	A26254	SCREW	$4.23
62	098197-09	LOCKWASHER	$1.21
63	A22506	RETAINING RING	$1.21
64	A26601	SPRING	$1.36
