DeWalt DW735X Planer Parts

DeWalt DW735X Parts

Download Schematic

Time to buy a new tool?

DeWalt DW735X

13 Inch Three Knife,...

$629.00

Page-1

Page-2

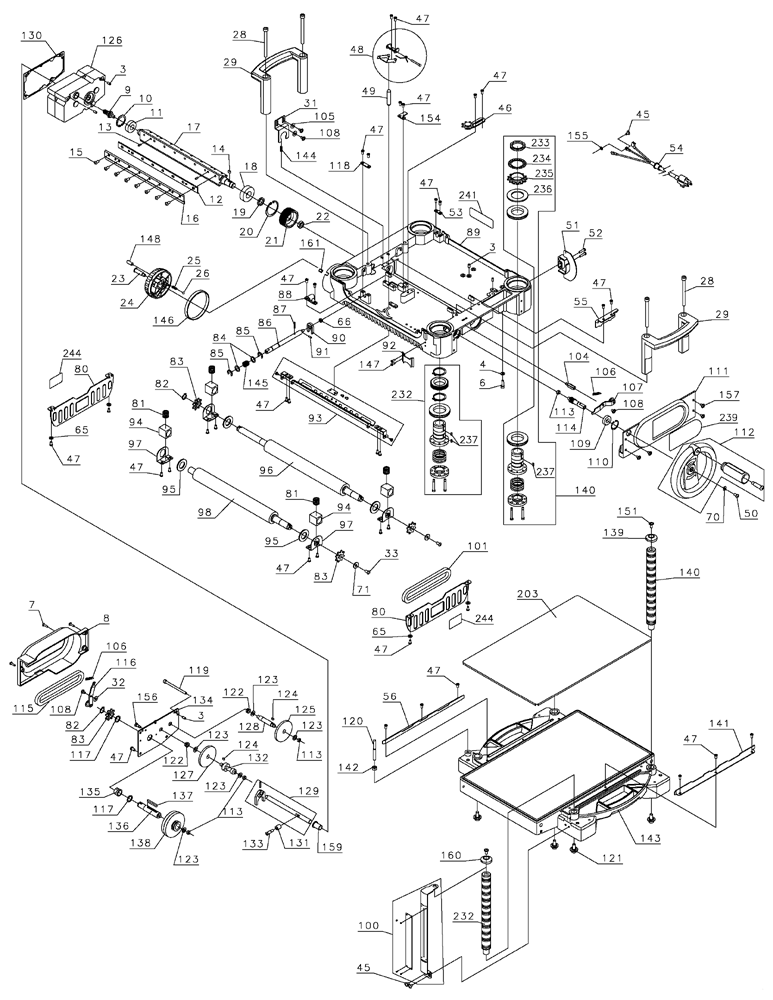

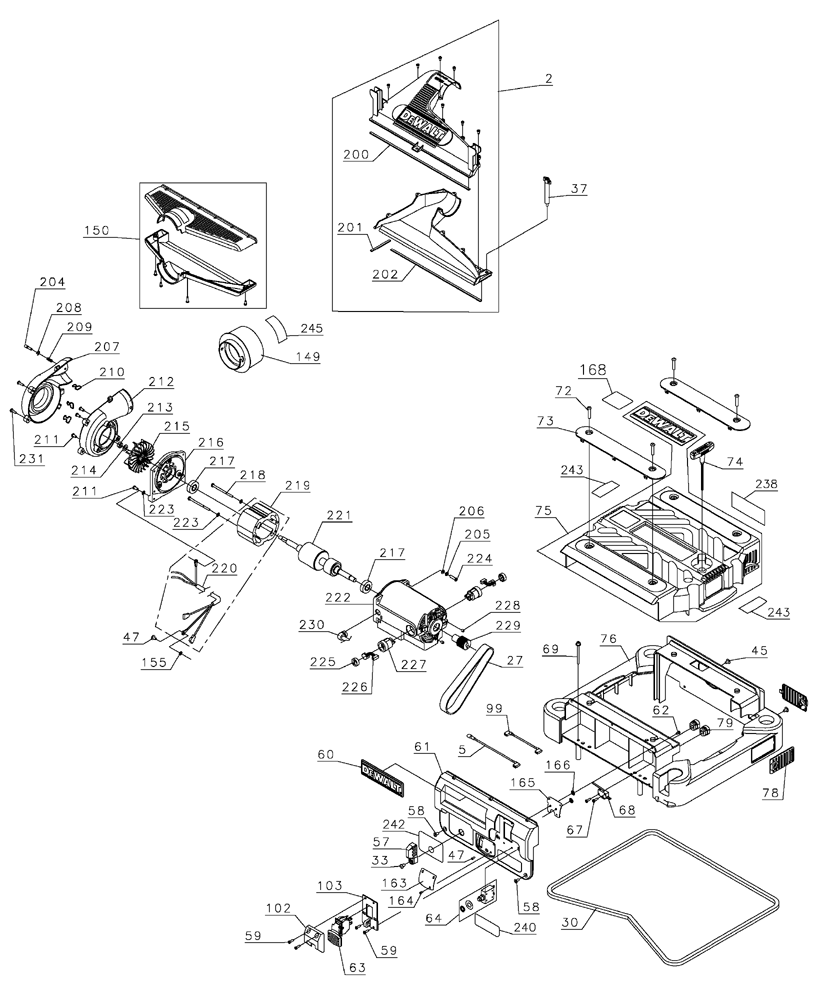

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
2	5140010-00	DUST SHROUD	$22.84
3	5140010-04	PIN	$2.20
4	5140010-05	LOCK WASHER	$1.18
5	5140010-06	LEAD	$3.61
6	5140010-07	SCREW	$1.33
7	5140071-78	SCREW	$1.16
8	5140010-09	COVER	$8.86
9	5140010-10	SHAFT & GEAR	$26.07
10	5140010-11	RETAINING RING	$1.33
11	285934-00	BEARING, BALL	$8.18
12	5140071-50	BLADE	$26.72
13	5140010-14	PIN	$1.33
14	5140010-15	KEY	$1.33
15	5140067-11	HARDWARE BAG	$20.86
15	5140067-12	SCREW	$1.03
16	5140010-17	BLADE HOLDER	$15.85
17	5140010-18	CUTTER HEAD	$107.97
18	5140010-19	BALL BEARING	$17.58
19	5140010-20	BUSHING	$1.87
20	5140010-21	RETAINING RING	$2.40
21	5140010-22	PULLEY	$12.36
22	5140010-23	NUT	$2.40
23	5140010-24	SHAFT	$3.61
24	5140010-25	TURRET	$27.66
25	5140011-69	SPRING	$1.18
26	5140010-27	BALL	$1.18
27	5140010-28	V BELT	$32.52
28	5140010-29	SCREW	$2.85
29	5140010-30	HANDLE	$21.07
30	5140010-31	CHAIN	$22.84
31	5140010-32	BRACKET	$4.57
32	5140010-33	WASHER	$1.18
33	5140010-16	SCREW	$1.18
37	5140010-38	BOLT	$8.10
45	5140010-46	SCREW	$1.18
46	5140010-47	WHEEL ASSEMBLY	$7.10
47	5140010-48	SCREW	$1.18
48	5140010-49	INDICATOR	$5.36
49	5140010-50	PIN	$3.25
50	5140054-60	SCREW	$1.16
51	5140010-52	BRACKET	$4.57
52	5140010-53	SCREW	$1.18
53	5140010-54	CORD CLAMP	$1.18
54	5140011-91	CORD & PLUG	$32.52
55	5140010-55	BRACKET	$2.85
56	5140010-56	PLATE	$4.57
57	5140010-57	LEVER	$2.85
58	5140010-58	SCREW	$1.18
59	5140010-59	SCREW	$1.18
60	5140010-60	ID LABEL	$10.58
61	5140010-61	FRONT COVER	$17.58
62	5140010-62	SCREW	$1.18
63	5140010-63	SWITCH	$26.07
64	5140000-19	CIRCUIT BREAKER	$9.36
65	5140011-65	LOCK WASHER	$1.18
66	429989-07	NUT	$1.23
67	5140010-66	SCREW	$1.18
68	5140010-67	MICRO SWITCH	$8.86
69	5140010-68	CAP SCREW	$2.40
70	5140010-69	WASHER	$1.18
71	5140010-70	WASHER	$1.18
72	5140078-32	SCREW	$1.03
73	5140010-72	PLATE	$12.36
74	5140010-73	WRENCH	$12.36
74	5140067-13	WRENCH	$6.56
75	5140010-74	TOP COVER	$45.48
76	5140010-75	COVER ASSEMBLY	$24.58
78	5140010-76	COVER PLATE	$6.33
79	5140010-77	STRAIN RELIEF	$1.87
80	5140010-78	COVER	$7.10
81	5140010-79	SPRING	$1.94
82	5140010-80	RETAINING RING	$1.18
83	5140010-81	SPROCKET	$4.57
84	5140010-82	WASHER	$1.18
85	5140010-83	RETAINING RING	$1.18
86	5140010-84	ROD	$17.58
87	5140010-85	PIN	$1.18
88	5140010-86	HOLDER	$3.61
89	5140010-87	CARRIAGE	$207.46
90	5140010-88	PAWL	$2.85
91	5140010-89	PIN	$1.18
92	5140010-90	INDICATOR	$4.13
93	5140010-91	PLATE	$12.36
94	5140010-92	BUSHING	$7.10
95	5140010-93	FELT	$4.13
96	5140010-94	REAR ROLLER	$52.55
97	5140019-90	BRACKET	$2.33
98	5140010-96	ROLLER	$52.55
99	5140010-97	LEAD	$3.61
100	5140010-98	SCALE PLATE	$13.30
101	5140010-99	CHAIN	$7.10
102	5140011-00	SWITCH COVER	$3.70
103	5140011-01	SWITCH PLATE	$3.61
104	5140011-02	SHAFT	$5.36
105	5140011-03	WASHER	$1.18
106	5140011-04	SPRING	$1.18
107	5140011-05	IDLER SHAFT	$5.36
108	5140011-06	SCREW	$1.18
109	5140011-07	BALL BEARING	$12.36
110	5140011-08	RETAINING RING	$1.18
111	5140011-09	COVER	$10.58
112	5140011-10	CRANK HANDLE	$26.07
113	5140011-11	BUSHING	$1.51
114	5140011-12	GEAR	$22.84
115	5140011-13	CHAIN	$6.16
116	5140011-14	IDLER SHAFT	$5.36
117	5140011-15	WASHER	$1.18
118	5140011-16	PLATE	$1.87
119	5140011-17	CAP SCREW	$1.87
120	5140011-18	SHAFT	$2.85
121	5140011-19	CAP SCREW	$1.87
122	5140011-20	BUSHING	$1.33
123	5140011-21	WASHER	$1.33
124	5140011-22	KEY	$1.33
125	5140011-23	GEAR	$27.66
126	5140011-24	GEAR CASE	$55.71
127	5140011-25	GEAR	$32.52
128	5140011-26	GEAR	$24.58
129	5140011-27	PAWL	$21.07
130	5140011-28	SHIM	$5.89
131	5140011-29	SPACER	$1.18
132	5140011-30	GEAR	$32.52
133	5140011-31	SCREW	$1.18
134	5140011-32	GEAR CASE COVER	$8.86
135	5140011-33	BUSHING	$2.85
136	5140011-34	ROD	$24.58
137	5140011-35	KEY	$1.87
138	5140011-36	GEAR	$63.65
139	5140011-37	CAP	$1.33
140	5140011-93	POST	$86.46
141	5140011-39	PLATE	$4.57
142	429989-57	NUT	$1.24
143	5140014-58	BASE	$177.36
144	5140011-43	SPRING	$1.33
145	5140011-44	SPRING	$1.33
146	5140011-45	SCALE	$5.36
147	5140011-46	SCREW	$1.18
148	5140011-47	SET SCREW	$1.41
149	5140011-48	ADAPTER	$8.86
150	5140011-49	DUST CHUTE	$17.58
151	5140011-50	SCREW	$1.87
154	5140011-51	PLATE	$1.18
155	5140011-52	LOCK WASHER	$1.18
156	5140011-53	SCREW	$1.18
157	5140011-54	SCREW	$1.18
159	5140011-55	BUSHING	$1.94
160	5140011-56	CAP	$1.18
161	5140011-57	INDICATOR	$1.18
163	5140011-59	SCALE PLATE	$1.18
164	5140011-60	SCREW	$1.18
165	5140011-61	PLATE	$2.85
166	5140011-62	RETAINING RING	$1.18
168	611732-00	NAME PLATE	$3.86
200	5140010-01	PAD	$1.33
201	5140010-02	PAD	$1.18
202	5140010-03	PAD	$1.18
203	5140014-58	BASE	$177.36
204	5140011-64	PIN	$1.33
205	5140011-65	LOCK WASHER	$1.18
206	5140011-66	WASHER	$1.18
207	5140103-77	FAN HOUSING	$37.92
208	5140011-68	RETAINING RING	$1.18
209	5140011-69	SPRING	$1.18
210	5140011-70	SPRING CLIP	$1.33
211	5140010-48	SCREW	$1.18
212	5140103-77	FAN HOUSING	$37.92
213	5140011-72	NUT	$1.18
214	5140011-73	WASHER	$1.18
215	5140011-74	FAN	$12.36
216	5140011-75	CAP	$27.66
217	5140011-76	BALL BEARING	$12.36
218	5140011-77	SCREW	$1.18
219	5140011-78	FIELD	$48.73
220	5140011-79	MOTOR CORD	$12.36
221	5140011-80	ARMATURE	$123.38
222	5140011-81	MOTOR HOUSING	$27.34
223	5140011-52	LOCK WASHER	$1.18
224	5140011-83	SCREW	$1.18
225	5140011-84	BRUSH CAP	$1.33
226	5140011-85	BRUSH	$7.10
227	5140011-86	BRUSH HOLDER	$6.33
228	5140011-87	SET SCREW	$1.18
229	5140011-88	PULLEY	$15.85
230	5140011-89	STRAIN RELIEF	$1.87
231	5140071-78	SCREW	$1.16
232	5140011-92	POST	$100.36
233	5140010-34	NUT	$5.36
234	5140010-35	LOCK WASHER	$1.33
235	5140010-36	SPROCKET	$7.10
236	5140011-58	PLATE	$1.33
237	5140010-39	KEY	$1.51
238	615694-00	WARNING LABEL	$3.09
239	615697-00	WARNING LABEL	$2.69
240	615699-00	WARNING LABEL	$1.84
241	615702-00	WARNING LABEL	$1.10
242	615700-00	LABEL	$1.84
243	618911-00	LABEL	$1.10
244	615698-00	WARNING LABEL	$3.25
245	615504-00	WARNING LABEL	$1.84
