DeWalt DW716-Type-2 Electric Saw Parts

DeWalt DW716-Type-2 Electric Saw Parts Image

DeWalt DW716-Type-2 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

Page-1

Page-2

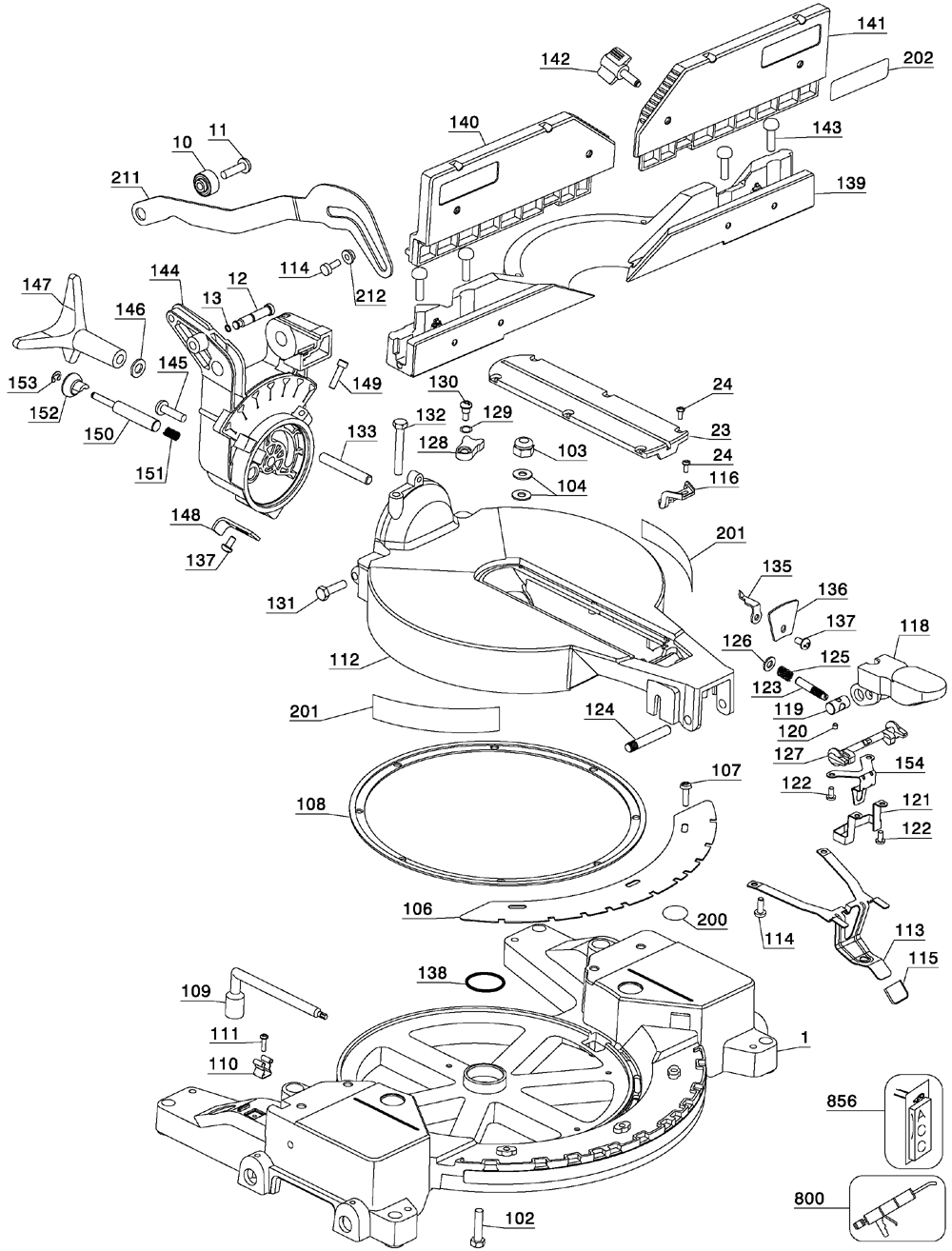

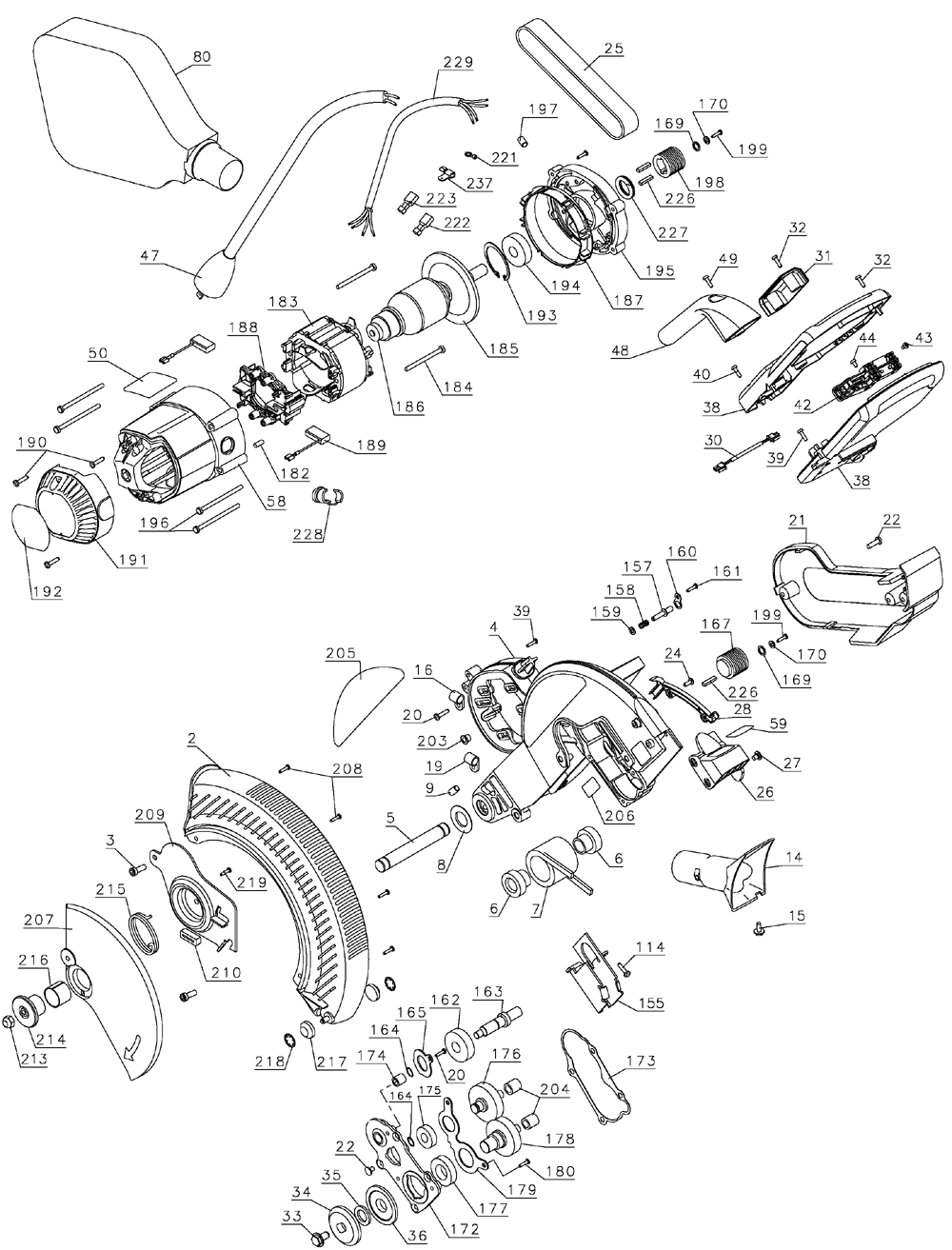

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	626389-00SV	BASE ASSEMBLY	$96.49
2	630062-00SV	LOWER GUARD ASSY	$38.61
2	618230-00	LOWER GUARD	$15.85
3	394589-01	SCREW	$1.84
4	626402-00SV	ARM	$68.09
5	146751-00	SHAFT, PIVOT	$14.82
6	146732-00	SPACER	$3.01
7	N039405	TORSION SPRING	$16.10
8	148296-00	WASHER, SPRING	$1.24
9	150075-00	SCREW, SET	$1.24
10	385756-01	BUSHING	$1.18
11	330045-32	SCREW	$1.24
12	387130-00	LOCKING PIN	$1.88
13	034158-00	O RING	$1.95
14	391336-00	DUCT, DUST	$5.02
15	153460-00	SCREW	$1.23
16	153669-00	CLAMP, CABLE	$1.24
19	398443-00	CABLE CLAMP	$1.23
20	330045-49	SCREW	$1.24
21	623355-00	BELT COVER	$10.09
22	330045-14	SCREW, M5 X 16MM	$1.24
23	146726-02	PLATE, KERF	$7.61
24	330045-05	LOCK SCREW	$1.24
25	153555-00	BELT	$20.75
26	N026930	COVER	$2.69
27	385915-02	SHOULDER SCREW	$1.28
28	618269-00	COVER	$1.28
30	618213-00	JUMPER	$3.51
31	618270-00	COVER	$2.69
32	330019-32	SCREW	$1.23
33	145344-01	BOLT	$1.40
34	151962-01	CLAMP, OUTER	$6.40
35	152636-00	ADAPTOR, BLADE	$3.16
36	644999-00	BUSHING, ARBOR	$5.46
38	624730-00	HANDLE SET	$13.38
39	330045-15	SCREW, M5X20	$1.24
40	330045-18	SCREW	$1.24
42	606056-00	SWITCH	$23.41
43	384127-01	SCREW	$1.24
44	330019-12	SCREW	$1.24
47	330079-98	CORD/10FT/14-2SJ	$18.37
47	EC142	Power Tools Replacement Electical Cords (SJO) 14...	$16.19
48	N083060	HANDLE	$4.64
49	330019-22	SCREW	$1.24
50	642356-00	NAMEPLATE	$1.23
58	391317-00	FIELD CASE	$21.06
59	631013-00	LABEL	$1.10
80	147734-06	BAG, DUST	$19.09
102	098025-35	SCREW	$1.10
103	N044739	LOCK NUT	$1.28
104	153792-00	WASHER	$1.24
106	391292-01	DETENT PLATE	$24.92
107	604410-00	SCREW	$1.23
108	391353-00	PLATE, WEAR	$19.15
109	608563-01	WRENCH	$5.52
110	391358-01	WRENCH HOLDER	$1.21
111	330045-06	SCREW	$1.24
112	648091-00SV	TABLE	$153.00
113	651508-00	DETENT SPRING	$5.65
114	330045-23	SCREW, TAPTITE	$1.21
115	148611-00	COVER, TIP	$1.24
116	398693-00	POINTER, MITER	$3.08
118	626629-00	LEVER	$5.13
119	5140063-30	COLLAR KIT	$2.25
120	5140110-47	SET SCREW	$6.12
121	630693-00	PLATE	$3.51
122	330045-13	SCREW, TAPTITE	$1.23
123	626610-00	MITER LOCK ROD	$1.84
124	626611-00	DRIVE PIN	$1.84
125	58698-00	SPRING	$1.24
126	330016-03	WASHER, PLAIN	$1.24
127	N014058	CAMSHAFT	$1.29
128	391347-00	PAWL	$2.04
129	153655-00	WASHER, WAVY	$1.24
130	153639-00	SCREW, SHOULDER	$1.24
131	153797-01	SCREW	$1.23
132	153797-02	SCREW	$1.69
133	146760-02	STUD	$2.04
135	391345-00	POINTER	$3.08
136	393570-00	DEFLECTOR, DUST	$2.04
137	330045-55	SCREW	$1.23
138	049787-00	O RING	$2.59
139	626395-01	FENCE	$57.86
140	626396-03SV	LEFT FENCE	$41.43
141	626397-02SV	RIGHT FENCE	$27.69
142	147107-02	KNOB	$4.47
143	098105-03	SCREW	$1.10
144	5140103-70	TRUNNION	$35.87
145	330045-33	SCREW	$1.24
146	330016-04	WASHER	$1.24
147	391344-00	BEVEL HANDLE	$11.55
148	391350-00	PLATE, STOP	$2.04
149	391346-00	SCREW, CAP	$2.04
150	391348-00	PIN	$7.78
151	167785-00	SPRING	$1.24
152	391349-00	KNOB	$2.04
153	60325-01	RING	$1.17
154	629175-00	PLATE	$2.69
155	618189-00	REAR GUARD	$3.51
157	153561-00	PIN, LOCK	$2.44
158	448176-00	SPRING	$1.24
159	153559-00	WASHER, FELT	$1.24
160	393071-00	RET. PLATE	$2.07
161	330045-45	SCREW	$1.24
162	605040-33	BEARING	$4.62
163	391277-00	PINION SHAFT	$27.53
164	153752-00	RING, RET.EXT	$1.24
165	618244-00	RETAINING PLATE	$1.28
167	153796-00	DRIVEN PULLEY	$7.04
169	153782-00	WASHER	$1.24
170	98198-05	WASHER	$1.17
172	393935-00SV	GR CASE CVR ASY	$22.91
173	391315-00	GASKET	$3.89
174	391616-00	NEEDLE BEARING	$3.89
175	330003-09	BEARING, BALL	$9.91
176	393703-00SV	GEAR-INTER.	$50.49
177	330003-66	BEARING, BALL	$19.15
178	393702-00SV	SPINDLE & GEAR	$63.90
179	391310-00	BEARING PLATE	$3.89
180	098094-13	SCREW	$1.24
182	145312-00	PLUG, RUBBER	$1.24
183	391318-00SV	FIELD	$51.98
184	330019-19	SCREW, PLASTITE	$1.24
185	N027083SV	ARMATURE ASSEMBLY	$75.32
186	330003-60	BEARING	$4.75
187	391375-00	FAN BAFFLE	$3.89
188	389512-01	BRUSH RING ASM	$25.80
189	381028-08	BRUSH & LEAD	$9.03
190	330019-13	SCREW, M4X19	$1.24
191	391933-01	END CAP	$3.31
192	391325-00	IDENT. LABEL	$1.69
193	144803-00	RING, RET.	$1.40
194	N127530	BALL BEARING REPLACES 605040-32	$7.89
195	391282-00	MOTOR MOUNT	$19.15
196	98094-55	SCREW, M5 X 55MM	$1.24
197	394034-00	SET SCREW	$1.69
198	153554-00	PULLEY, DRIVE	$7.61
199	153778-00	SCREW	$1.24
200	394976-00	LABEL, CAUTION	$1.28
201	656400-00	WARNING LABEL	$1.21
202	618279-00	WARNING LABEL	$1.10
203	148608-00	INSERT	$2.13
204	386780-00	BEARING	$2.70
205	393706-00	LABEL	$2.04
206	623788-00	WARNING LABEL	$1.28
207	630062-00SV	LOWER GUARD ASSY	$38.61
207	N020603	GUARD PLATE	$9.10
207	N020603	GUARD PLATE	$9.10
208	385915-01	SCREW	$1.23
209	630062-00SV	LOWER GUARD ASSY	$38.61
209	621037-00	PIVOT PLATE	$4.73
210	146768-00	BUMPER	$1.24
211	391314-00	GUARD LINK	$7.78
212	146740-01	SLEEVE, FLANGED	$2.21
213	385137-00	NUT, STOP	$1.24
214	614843-00	PLATE, RETAINER	$1.21
216	148295-00	SLEEVE, PIVOT	$1.40
217	625825-00	ROLLER	$1.28
218	142273-00	RING, RETAINING	$1.24
219	330045-25	SCREW, TAPTITE	$1.18
221	395716-00	TERMINAL	$1.09
222	450212-00	TERMINAL, MALE	$1.95
223	450213-00	TERMINAL, FEMALE	$1.24
226	153638-00	KEY, PULLEY	$1.24
227	153783-00	RING, RET.SPIRAL	$1.24
228	605155-00	BUSHING	$1.15
229	640056-00	MOTOR CORD	$11.27
237	145332-00	TERMINAL	$1.24
800	93488-00	GREASE	$11.93
800	429698-00	GREASE:4 LB CAN	$72.67
856	5140050-83	LENGTH STOP	$50.65
856	153650-00	MATERIAL CLAMP	$51.05
