DeWalt DW680K- Type 1 Jointer Parts

DeWalt DW680K- Type 1 Jointer Parts Image

DeWalt DW680K- Type 1 Parts

Download Schematic

Time to buy a new tool?

DeWalt DW680K- Type 1

3-1/4 Inch Heavy-Dut...

$177.33

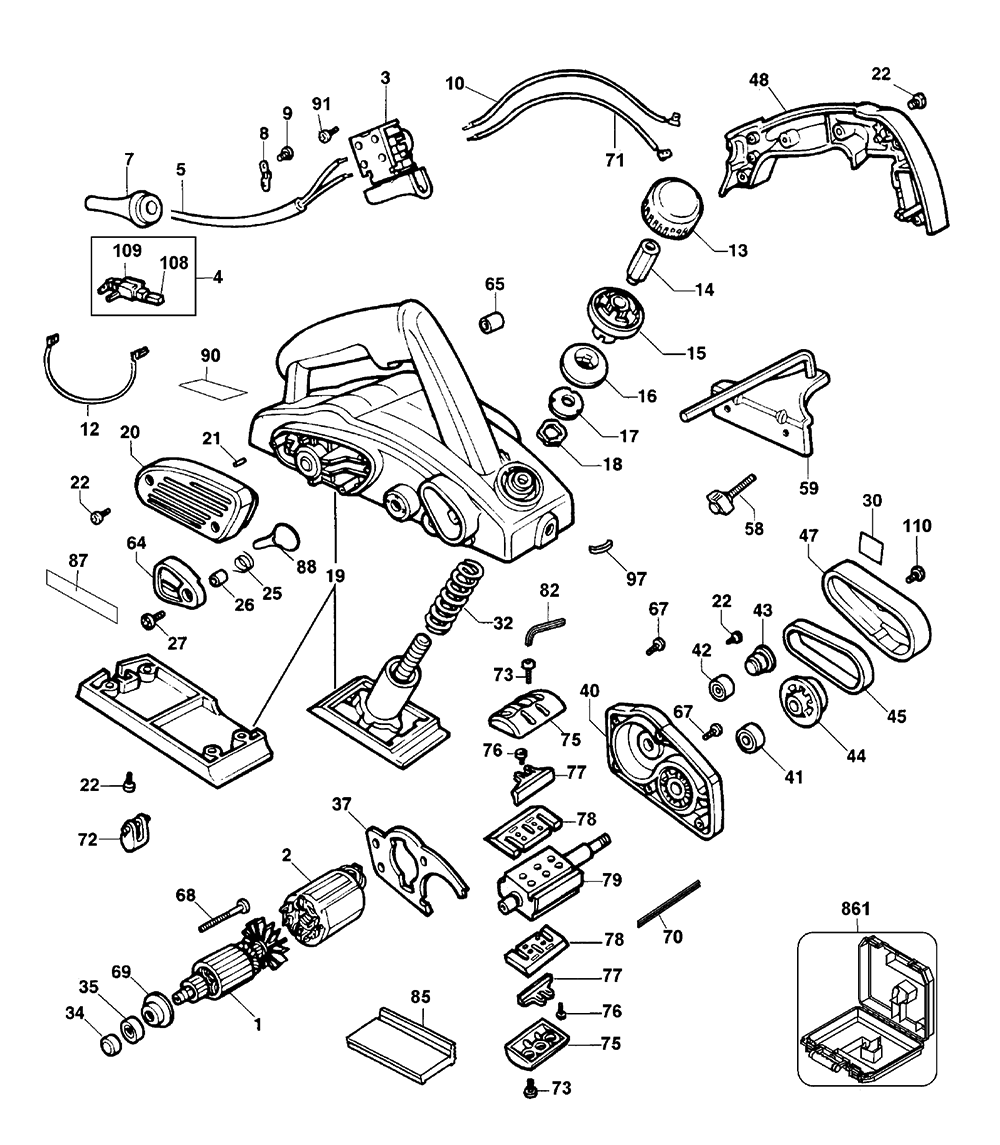

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	327403-03	ARMATURE	$55.71
2	373874-09	FIELD	$35.53
3	327383-01	SWITCH, TRIGGER	$18.20
4	575963-02	BRUSH & HOLDER	$34.50
5	330072-97	CORD/10 FT/18-2	$19.23
5	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
7	770235-00	PROTECTOR, CORD	$2.60
8	329301-00	CLAMP, CORD	$1.24
9	330065-06	SCREW	$1.24
10	320340-00	LEAD	$1.80
12	323635-16	LEAD	$1.24
13	326592-00	CAP	$7.35
14	328772-00	NUT	$1.80
15	326590-01	BASE	$4.28
16	326589-07	SCALE	$3.16
17	326381-01	RATCHET	$2.77
18	327344-00	WASHER, SPRING	$1.80
19	328509-04	MOTOR HSG/SHOE	$88.65
20	326388-00	COVER, BRUSH	$8.18
21	326636-00	POST	$1.24
22	330065-08	SCREW	$1.24
25	323722-00	SPRING	$1.24
26	326823-01	BUSHING	$1.24
27	326519-01	SCREW	$1.24
30	578758-00	IDENT. LABEL	$1.24
32	572255-00	SPRING	$1.24
34	870052-00	BEARING COVER	$1.24
35	330003-31	BEARING, BALL	$8.56
37	326389-00	BAFFLE	$6.16
40	327420-00	HOUSING, BEARING	$21.23
41	330003-21	BEARING, BALL	$8.18
42	330003-03	BEARING, BALL	$4.96
43	329142-00	PULLEY	$5.78
44	329141-00	PULLEY	$7.35
45	329140-00	BELT	$12.17
47	329273-00	BELT COVER	$7.04
48	326385-01	COVER, HANDLE	$8.18
58	326573-01	SCREW, WING	$3.16
59	326398-01	FENCE	$15.30
64	327052-00	RABBET COVER	$4.28
65	330004-25	BEARING, NEEDLE	$4.28
67	330065-04	SCREW	$1.24
68	330065-02	SCREW	$1.24
69	327417-00	INSULATOR	$1.24
70	372105-01	BLADE	$8.96
71	320867-02	LEAD, 320MM	$3.92
72	326635-01	STAND	$3.72
73	574523-00	SCREW	$1.24
75	326586-00	OUTER CLAMP	$5.22
76	574524-00	SCREW	$1.24
77	326588-01	CLAMP	$2.13
78	573732-00	RETAINER	$6.03
79	1009101-00	BLADE DRUM ASSY	$156.12
82	322929-00	HEX KEY	$2.37
82	574541-00	HEX KEY	$1.24
85	327058-01	GAUGE	$11.61
87	328496-02	NP:DW680 T1	$1.96
88	329456-00	LEVER	$2.07
90	574754-00	WARNING LABEL	$1.24
91	911026-00	SCREW	$1.24
97	571497-00	CLIP	$1.24
108	575963-02	BRUSH & HOLDER	$34.50
109	329775-49	BR.HOLDER, PAIR	$4.09
110	330065-13	SCREW	$1.24
861	578772-54	KIT BOX	$65.12
