DeWalt DW6184 Router Parts

DeWalt DW6184 Router Parts Image

DeWalt DW6184 Parts

Download Schematic

Time to buy a new tool?

DeWalt DW6184

Fixed Base for DW616...

$54.81

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Img	Part Name	Price	Qty.
100	396308-00		FIXED BASE	$43.52
101	330041-45		ROLL PIN	$1.21
102	397560-00		KNOB	$3.71
103	607395-00		SCREW	$1.21
104	098197-09		LOCKWASHER	$1.21
105	397531-00		SUB BASE	$30.80

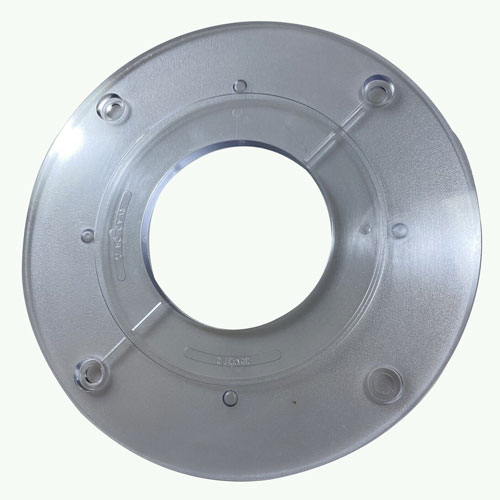

105	397531-01		SUB BASE	$30.80
106	609842-00		SCREW	$1.21
107	397503-00		CLAMP LEVER	$7.33
108	397504-00		THREADED ROD	$1.91
109	330021-01		NUT, STOP	$1.21
110	606623-00		SPACER	$1.99
111	397406-00		LATCH RELEASE	$1.91
112	397411-00		SPRING	$1.21
113	330041-44		ROLLER PIN	$1.21
114	397450-00		ID LABEL	$1.21
115	397451-00		LABEL	$1.21
116	396311-00		ADJUSTING RING	$5.50
117	612054-00		ADJUSTING RING	$1.99
