DeWalt DW272-Type-4 Electric Screwdriver Parts

DeWalt DW272-Type-4 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

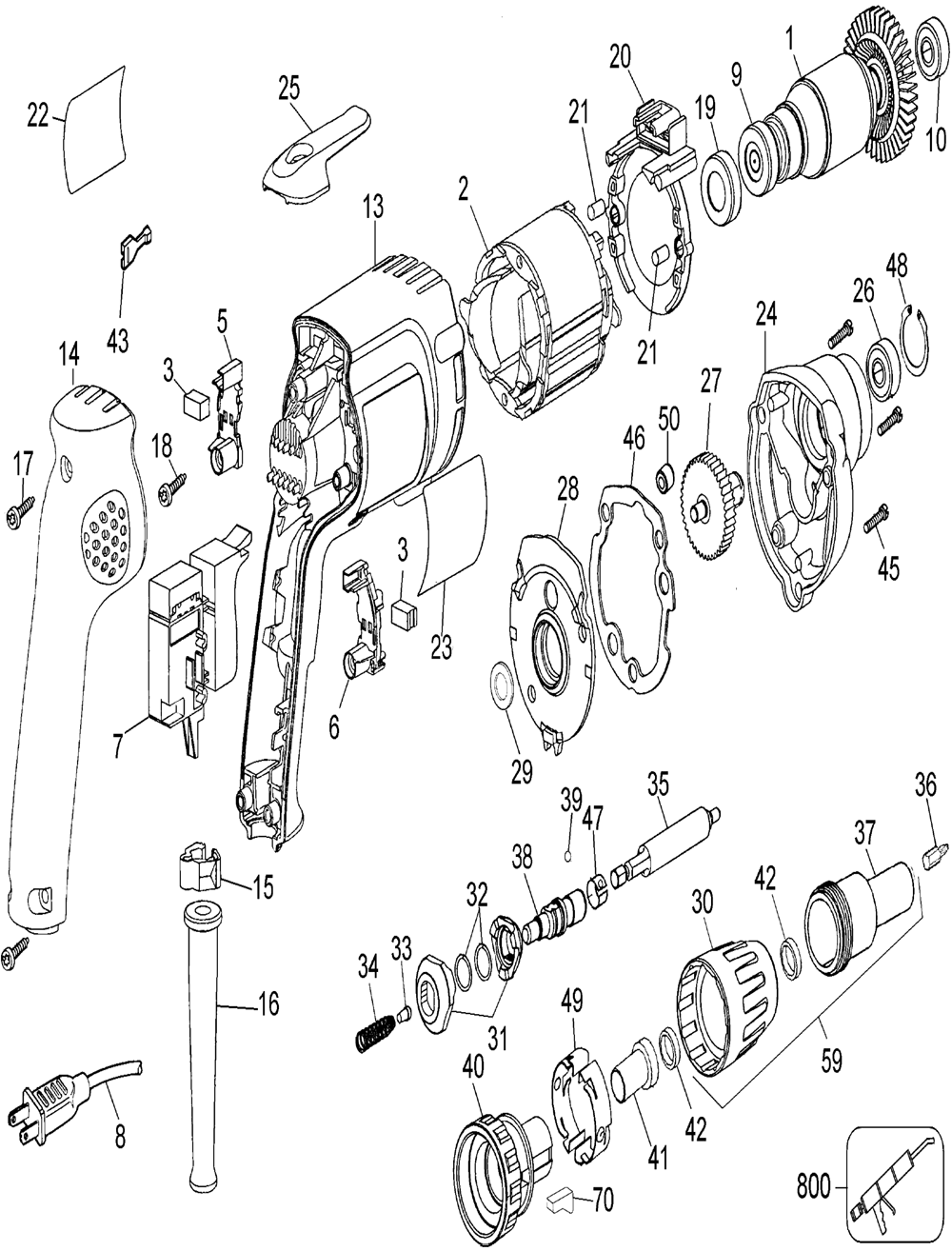

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	382299-00SV	ARMATURE & FAN	$44.96
2	620368-00SV	FIELD&LEADS	$17.16
3	176846-04	BRUSH	$3.26
3	G58	Carbon Brush Set	$8.19
5	390004-00	BR.HOLDER, L	$3.64
6	390003-00	BR.HOLDER, R	$3.64
7	5140109-63	SWITCH KIT	$23.80
8	330081-98	CORD/50'/16-2SJ	$43.93
8	330077-98	CORD/8FT/18-2S	$14.57
9	330003-04	BEARING, BALL	$9.84
10	330003-04	BEARING, BALL	$9.84
13	396969-14	FIELD CASE	$16.79
14	176816-06	HANDLE COVER	$11.24
15	603255-00	CORD CLAMP	$3.01
16	148809-00	PROTECTOR, CORD	$3.09
16	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
17	330019-13	SCREW, M4X19	$1.24
18	176951-00	SCREW	$1.24
19	389824-00	CUP	$9.08
20	176811-02	BAFFLE	$1.95
21	949638-02	PLUG, RUBBER	$1.24
22	395047-00	ID LABEL	$1.24
23	616788-00	NAME PLATE	$1.12
24	176624-00SV	CASE-GEAR	$29.92
25	N045425	BELT CLIP	$2.69
26	330003-09	BEARING, BALL	$9.91
27	638982-00SV	SPINDLE & GEAR	$16.73
28	386622-00	GEAR CASE COVER	$8.11
29	23813-00	WASHER	$1.24
30	152492-01	COLLAR, ADJUST	$5.94
31	96558-00	CLUTCH	$12.83
32	089210-00	RET RING	$1.80
33	021287-00	GUIDE	$4.47
34	86211-00	SPRING	$1.40
35	619773-02	BIT TIP HOLDER	$6.88
36	607904-22	BIT, SCREWDRIVER	$1.12
37	612001-00	LOCATOR	$11.42
38	176697-00	SPINDLE	$17.07
39	696631-00	BALL	$1.80
40	176632-00	HOUSING, CLUTCH	$14.82
41	450907-00	BEARING, SLEEVE	$5.78
42	696534-00	SEAL	$6.14
43	136086-02	TERMINAL	$1.24
45	330019-14	SCREW	$1.24
46	176655-00	GASKET	$2.44
47	094518-00	RETAINER	$3.01
48	087692-00	RET RING	$3.35
49	391436-00	DETENT SPRING	$2.44
50	093128-00	NEEDLE BEARING	$3.32
59	429561-00	NOSEPIECE, ALUM.	$17.45
70	390437-01	RUBBER PLUG	$4.75
800	284778-00	GREASE, MOLYKOTE	$50.09
800	761995-01	GREASE, 6 OZ.	$29.72
800	283484-01	GREASE, 32 OZ.	$69.49
