DeWalt DW236K-Type-1 Electric Hammer Drill Parts

DeWalt DW236K-Type-1 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

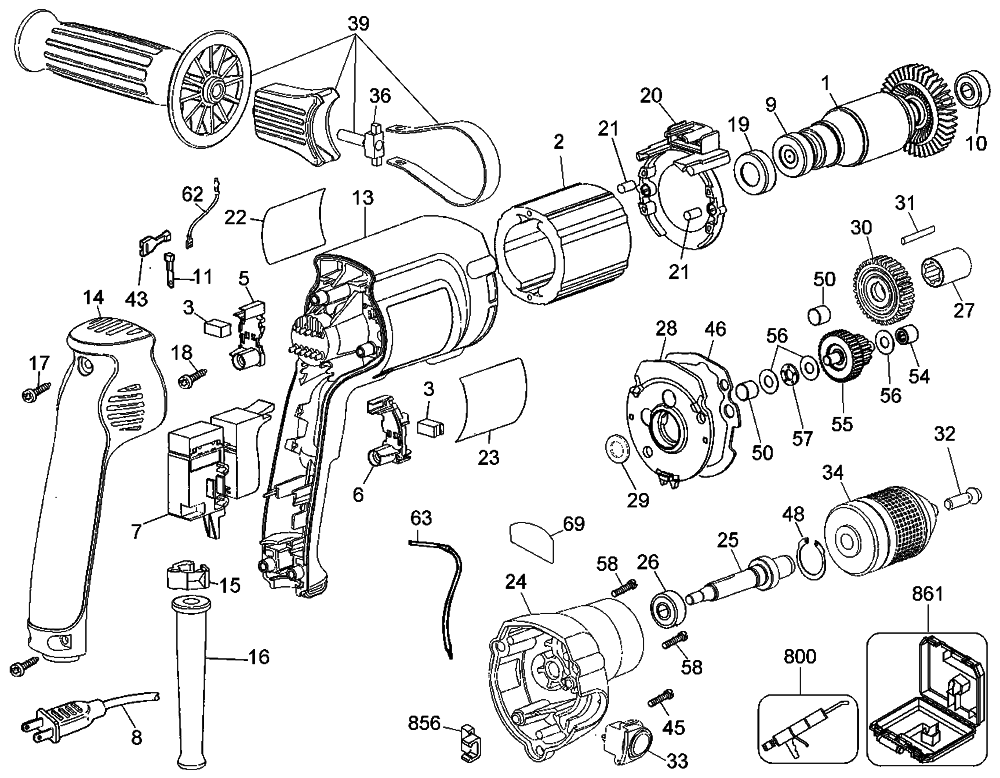

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	176850-00SV	ARMATURE & FAN	$44.96
2	176848-00SV	FIELD	$31.74
3	176846-04	BRUSH	$3.26
3	G58	Carbon Brush Set	$8.19
5	176801-02	HOLDER, LT.BRUSH	$5.49
6	176800-02	HOLDER, RT.BRUSH	$5.49
7	5140102-21	SWITCH KIT	$17.94
8	330072-98	CORD/8FT/18-2SJ	$11.53
8	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
9	330003-04	BEARING, BALL	$9.84
10	330003-04	BEARING, BALL	$9.84
11	449192-00	TERMINAL	$1.24
13	429974-03	FIELD CASE KIT	$19.23
14	610141-01	HANDLE COVER	$19.92
15	176829-00	CLAMP, CORD	$1.40
16	330005-01	PROTECTOR, CORD	$4.63
16	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
17	330019-13	SCREW, M4X19	$1.24
18	176951-00	SCREW	$1.24
19	389824-00	CUP	$9.08
19	949721-03	CUP	$1.95
20	176811-00	BAFFLE	$6.42
21	949638-02	PLUG, RUBBER	$1.24
22	395047-00	ID LABEL	$1.24
23	611756-00	NAME PLATE	$1.09
24	176634-03SV	GEAR CASE	$34.50
25	176638-00	SPINDLE, OUTPUT	$19.09
26	330003-09	BEARING, BALL	$9.91
27	176691-00	SPACER	$2.44
28	388761-00	GEAR CASE COVER	$9.94
29	23813-00	WASHER	$1.24
30	176639-00	GEAR, OUTPUT	$19.09
31	099227-05	PIN	$1.24
32	605256-01	SCREW	$1.24
33	176641-00	SPINDLE LOCK AS	$9.08
34	330075-45	KEYLESS CHUCK	$51.84
36	176718-00	BOLT, T-HEAD	$5.40
39	382272-00	HANDLE ASY, SIDE	$17.07
43	136086-02	TERMINAL	$1.24
45	330019-14	SCREW	$1.24
46	176655-00	GASKET	$2.44
48	087692-00	RET RING	$3.35
50	093128-00	NEEDLE BEARING	$3.32
54	330004-00	BEARING, NEEDLE	$2.59
55	176647-00SV	SPINDLE&GEAR	$27.55
56	091817-00	WASHER	$1.24
57	091644-00	THRUST BEARING	$5.11
58	330019-16	SCREW	$1.24
62	176860-00	LEADWIRE	$1.24
63	176834-00	LEADWIRE	$1.24
800	286436-00	GREASE	$87.14
856	176929-00	CLIP, LOCK-OUT	$1.24
861	395563-00	KIT BOX	$44.14
