DeWalt DW124-Type-2 Electric Drill & Driver Parts

DeWalt DW124-Type-2 Electric Drill & Driver Parts Image

DeWalt DW124-Type-2 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
DeWalt DW124-Type-2
1/2 Inch (13mm) Heav...
$345.62
Tool Diagram    (Click image to Zoom in) View larger Image

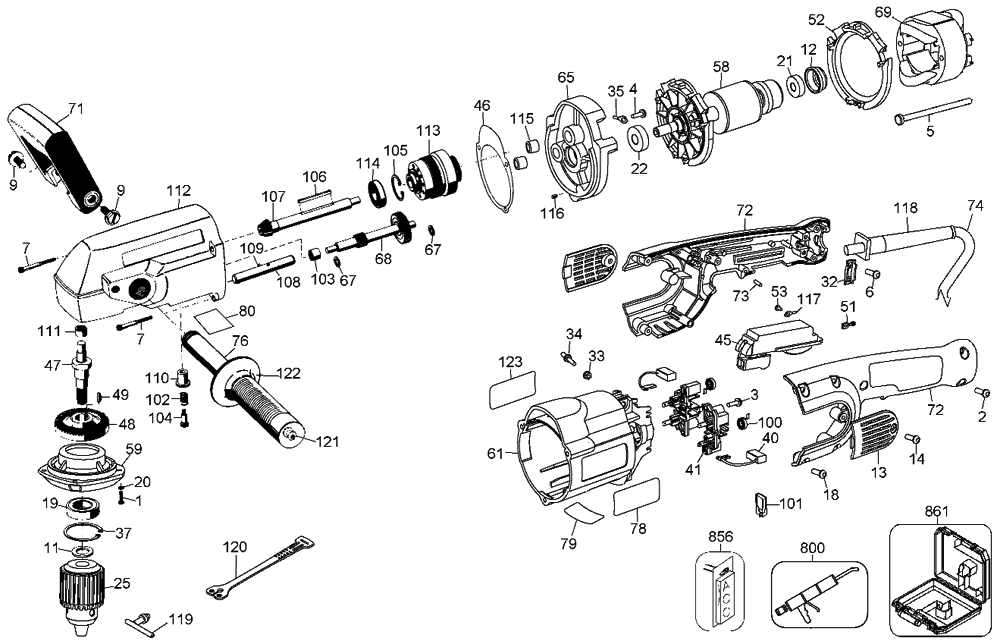

DeWalt DW124-Type-2 Electric Drill & Driver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 98119-16 SCREW, M4X16 $1.23
2 330019-32 SCREW $1.23
3 176951-00 SCREW $1.24
4 98119-08 SCREW $1.24
5 330019-30 SCREW $1.24
6 330019-11 SCREW $1.24
7 631450-00 SCREW $1.05
9 135576-00 SCREW $1.24
11 445919-00 WASHER $6.42
12 445217-02 SLEEVE $2.77
13 656362-00 BRUSH DOOR $2.30
14 330019-12 SCREW $1.24
18 330019-16 SCREW $1.24
19 330003-16 BEARING, BALL $10.38
21 330003-04 BEARING, BALL $9.84
22 330003-17 BEARING, BALL $9.84
25 5140076-71 CHUCK & KEY $64.69
32 450877-00 CORD CLAMP $2.07
33 389031-00 NUT $1.23
34 389007-00 DBL-END SCREW $1.23
35 053650-00 TERMINAL $1.24
37 046934-00 RING $2.59
40 655213-02 BRUSH $4.33
41 616857-00 BRUSH HOLDER $4.74
45 445132-00 SWITCH, ON-OFF $26.89
46 143692-00 GASKET $4.92
47 445911-00 SPINDLE $35.43
48 135517-00 GEAR $59.42
49 4123-00 KEY $1.17
51 137646-00 TERMINAL $1.24
52 135524-00 BAFFLE, FAN $4.09
53 130827-00 TERMINAL $1.40
58 642925-01SV ARMATURE $40.28
59 135526-00 BRG MOUNT $26.17
61 622583-00 FIELD CASE $13.29
65 135535-01 COVER, GR.CASE $28.46
67 135581-00 WASHER $1.24
68 135545-00SV GEAR&PINION $70.14
69 381711-00SV FIELD $21.39
71 135567-01 HANDLE $13.43
72 622672-00 HANDLE SET $13.29
73 099229-01 ROLLER $1.04
74 444518-98 CORD/10FT./16-3 $22.55
76 095957-03 HANDLE $16.02
78 626839-00 ID LABEL $1.10
79 627143-00 LABEL $1.10
80 627725-00 CAUTION LABEL $1.10
100 383387-00 SPRING, BRUSH $4.28
101 137646-02 TERMINAL $1.24
102 045550-00 SPRING $1.40
103 330004-02 BEARING, NEEDLE $4.28
104 135513-00 SCREW, SPECIAL $4.55
105 135515-00 RING, RETAINING $2.77
106 135518-00 KEY $2.77
107 135519-00 PINION & SHAFT $76.62
108 135520-00 SHIFT BAR $24.94
109 055112-00 PIN $2.07
110 N083671 SHIFT KNOB $5.28
111 135531-00 BEARING, NEEDLE $4.09
112 157376-00 GR.CASE & BRGS. $116.59
113 135538-00 CLUTCH $174.35
114 444748-00 BEARING, BALL $9.94
115 330004-06 BEARING, NEEDLE $4.09
116 701070-00 PIN $1.52
117 88667-00 TERMINAL $1.24
118 445338-00 PROTECTOR, CORD $3.79
118 Boot-B This item will be shipped Free Strain Relief fits 14/2 + 16/2 + 16/3 $4.19
119 330034-03 CHUCK KEY $6.37
120 065288-01 CH KEY HOLDER $1.87
121 088148-00 GROMMET $1.24
122 449881-00 GRIP $4.09
123 637778-00 NAME PLATE $1.23
800 286436-00 GREASE $87.14
861 609691-01 KIT BOX $49.55
