Dewalt DG6000 Generator Parts

Dewalt DG6000 Generator Parts Image

Dewalt DG6000 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Page-1
Page-2
Page-3
Page-4
Page-5
Page-6
Tool Diagram    (Click image to Zoom in) View larger Image

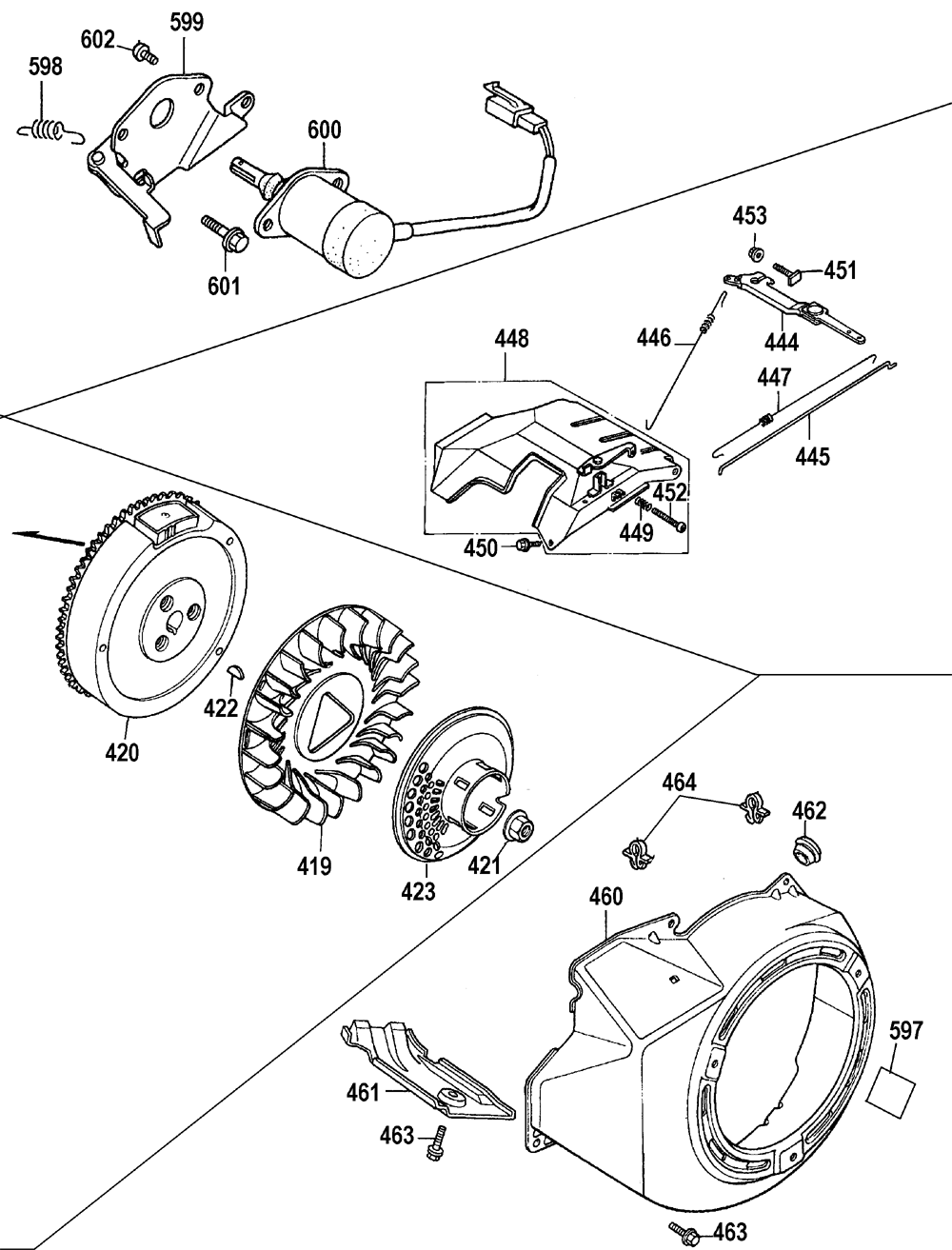

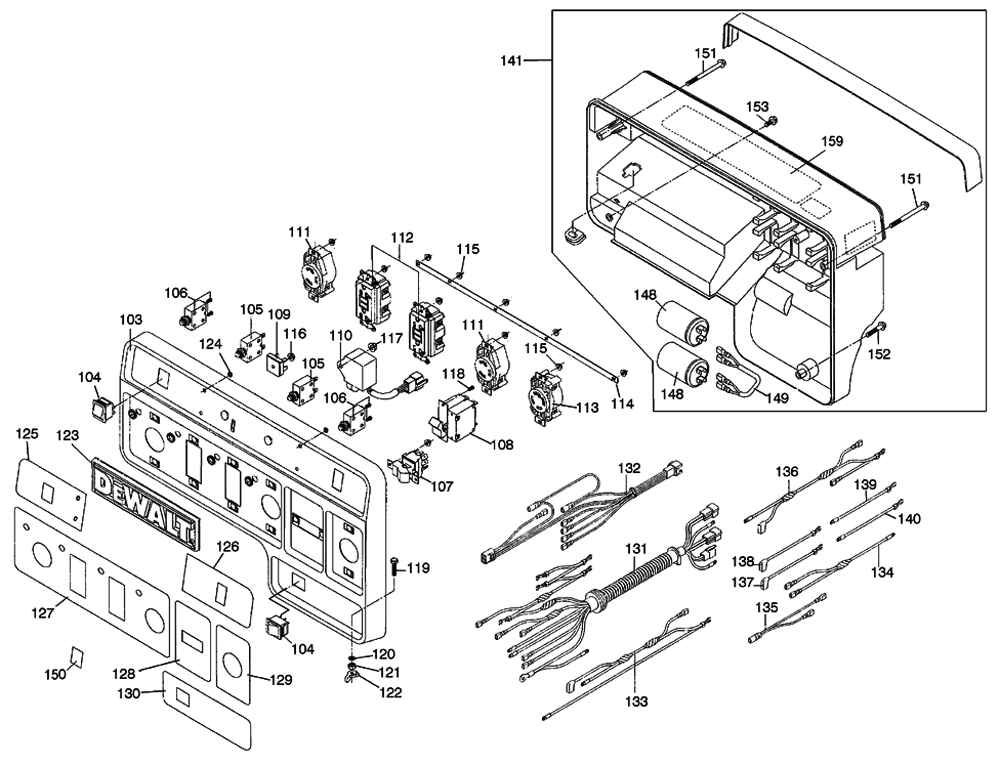

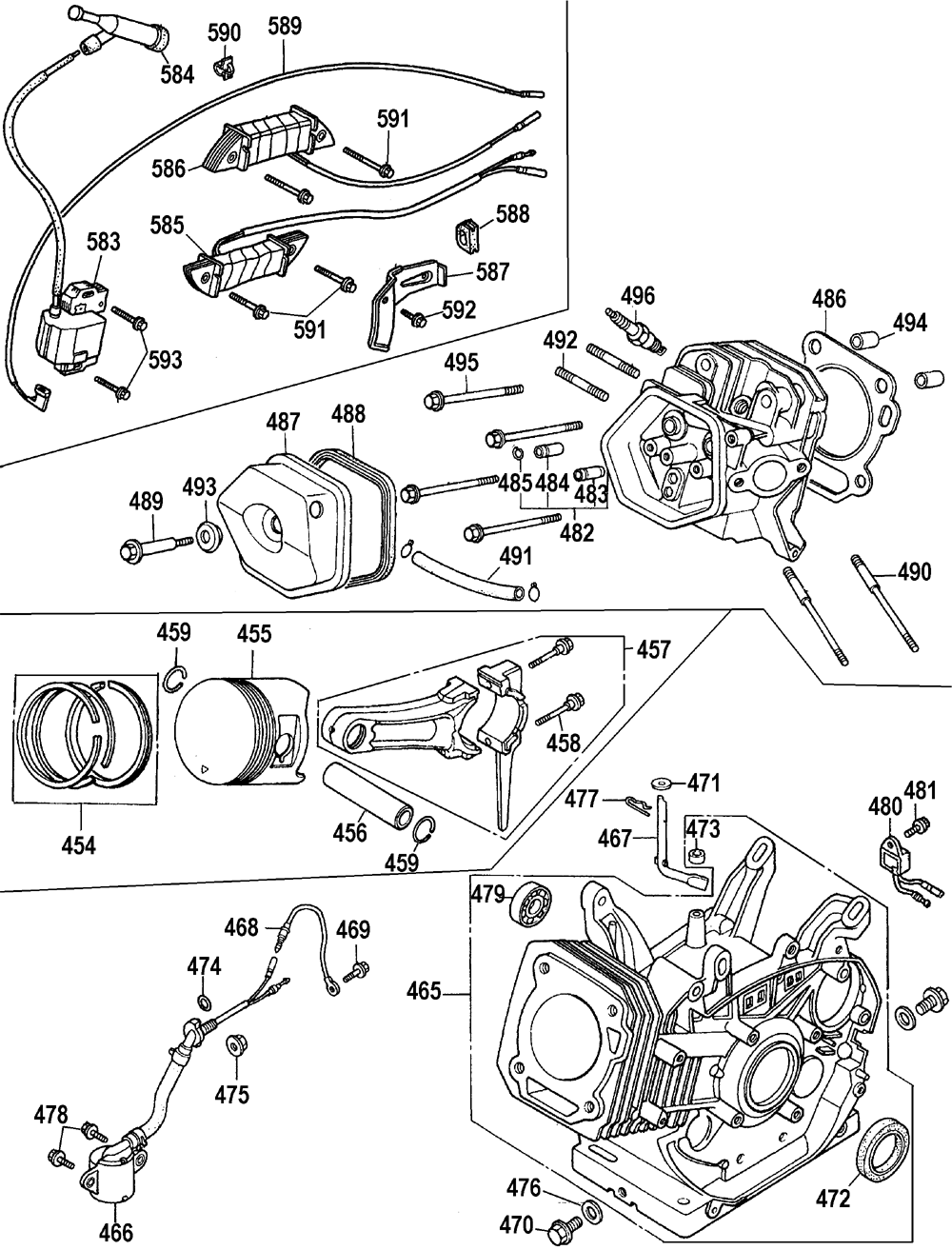

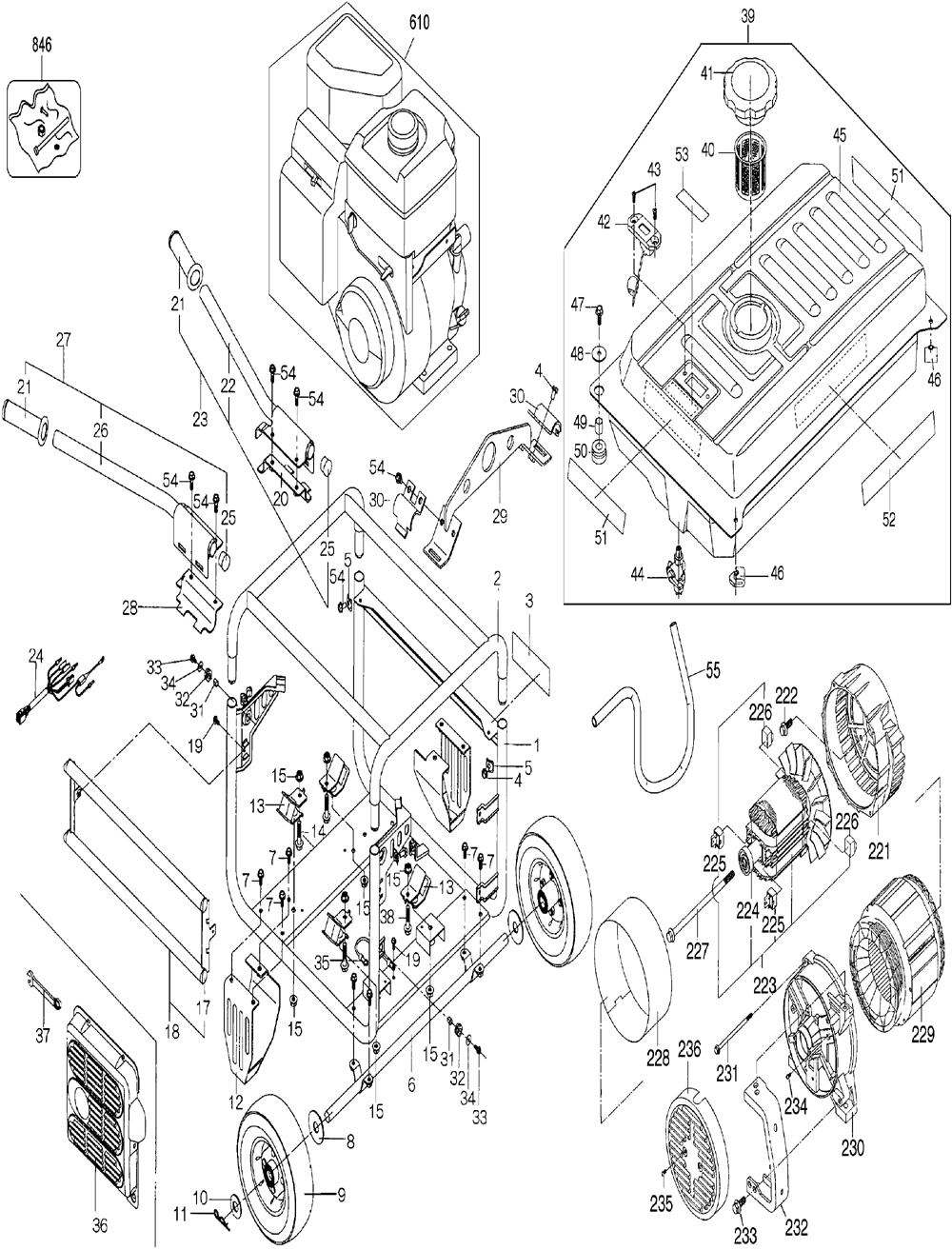

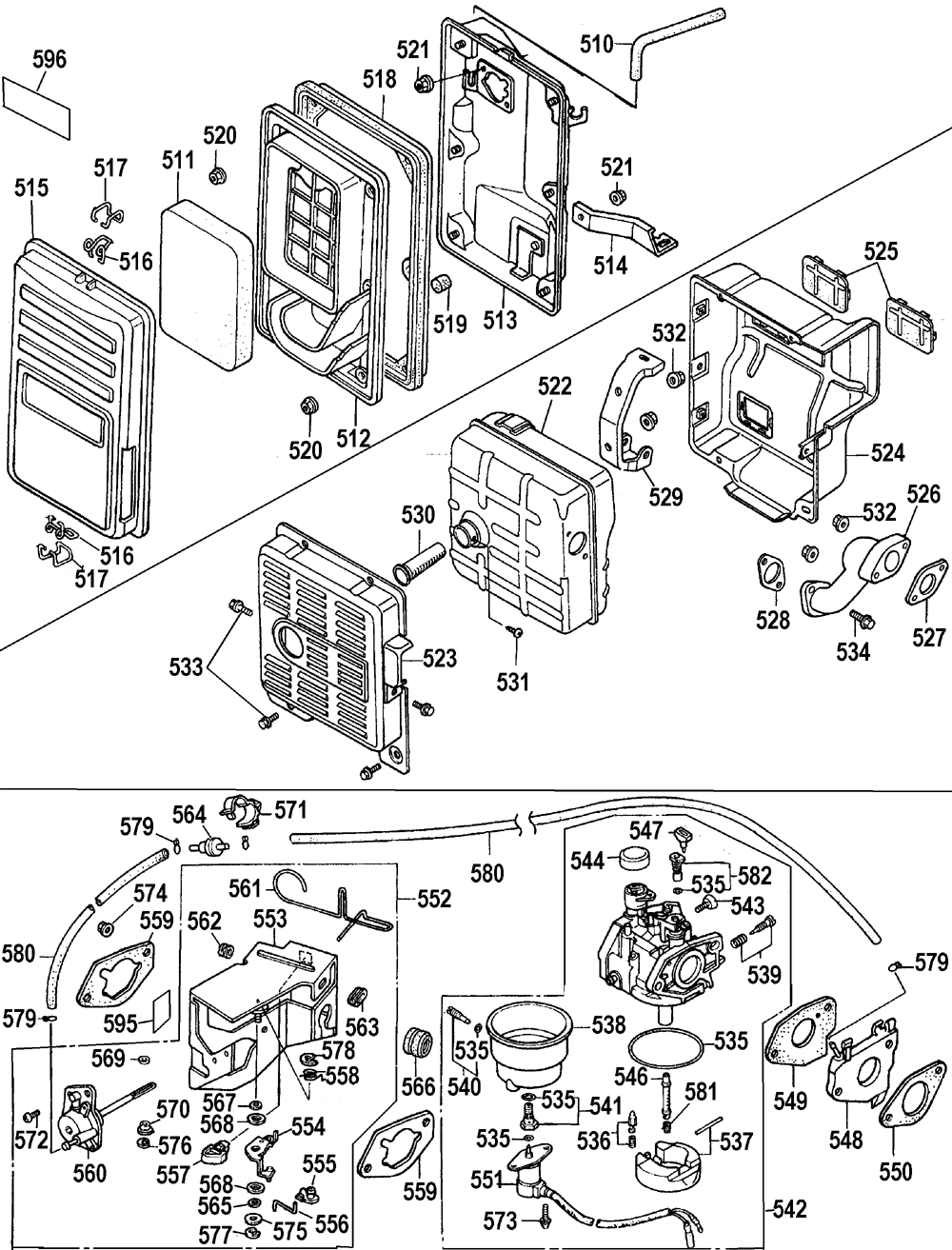

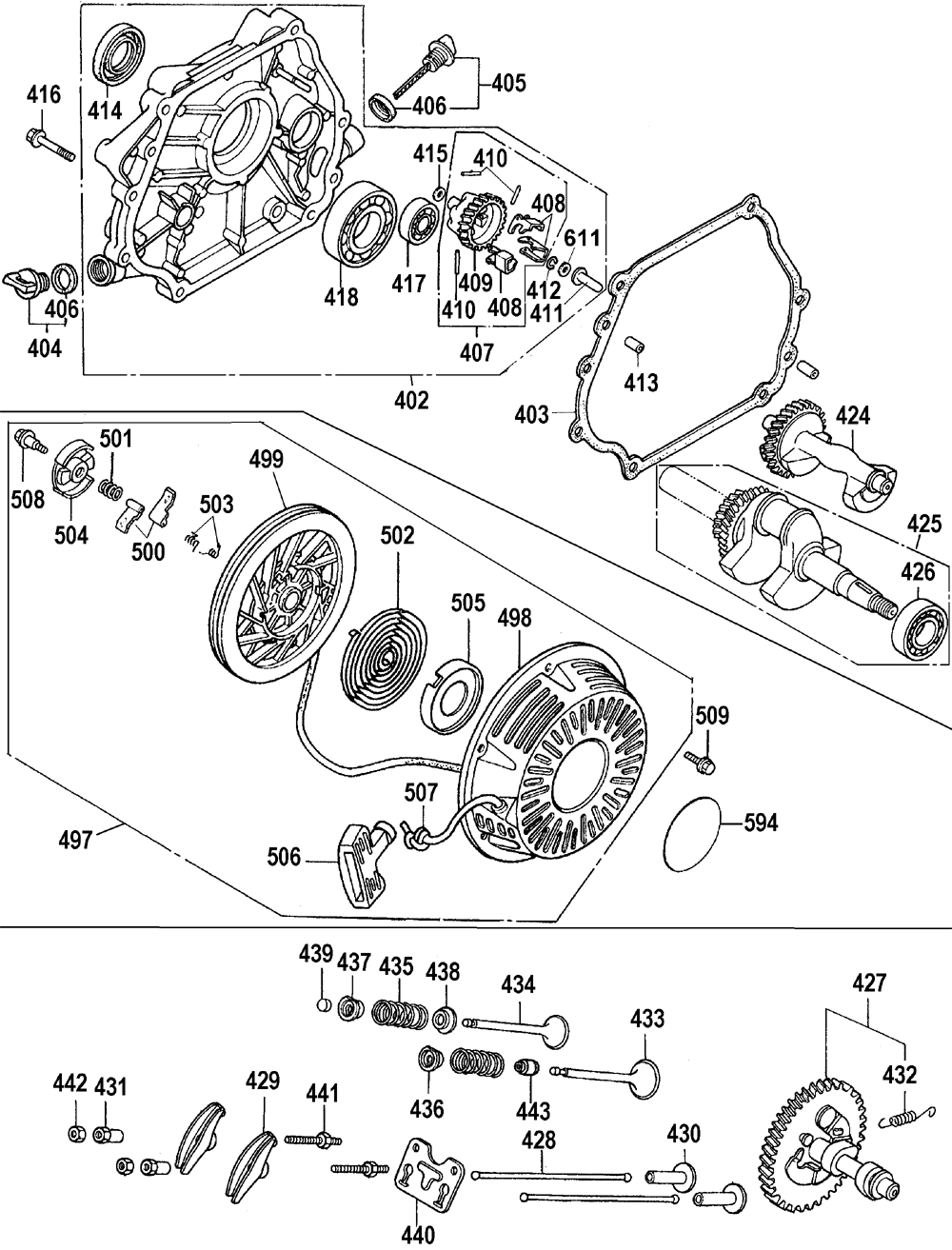

Dewalt DG6000 Generator Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 429985-01 LOWER FRAME $244.37
2 429985-02 UPPER FRAME $171.90
4 645060-00 BOLT $3.83
5 429978-05 WASHER $1.23
6 429978-06 WHEEL SHAFT $105.98
8 647128-00 WASHER $1.28
9 647122-00 WHEEL $58.63
10 647129-00 WASHER $1.12
11 647151-00 COTTER PIN $1.12
12 648587-00 FOOT $17.34
14 429978-14 HEX HEAD BOLT $1.23
15 429978-15 HEX NUT $2.74
18 429985-03 COMP. FRONT BAR $67.26
19 429978-19 HEX HEAD BOLT $2.74
20 647154-00 L. HANDLE CLAMP $6.64
21 647125-00 HANDLE GRIP $2.55
22 647734-00 LEFT HANDLE $24.48
23 647734-00 LEFT HANDLE $24.48
24 429978-24 WIRE HARNESS $35.56
25 429978-25 HANDLE CAP $3.81
26 647735-00 RIGHT HANDLE $24.48
27 647735-00 RIGHT HANDLE $24.48
28 647127-00 R. HANDLE CLAMP $6.64
29 641758-00 ASSY SKYHOOK PAINTED $26.03
30 647124-00 BRACKET $3.41
31 429978-31 COLLER $1.23
32 429978-32 GROMMET $1.23
33 429978-33 HEX HEAD BOLT $1.23
34 429978-34 WASHER $1.81
35 429978-35 COMPLETE CORD $3.25
36 429978-36 MUFFLER COVER $46.36
37 429978-37 WRENCH $17.36
42 429978-42 TANK GAUGE $33.80
43 429978-43 SCREW $1.23
45 429978-45 TANK $196.37
46 429978-46 GROMMET $3.81
47 429978-47 HEX HEAD BOLT $1.48
48 429978-48 WASHER $1.23
49 429978-49 COLLER $1.23
50 429978-50 GROMMET $3.81
54 647160-00 BOLT $5.84
55 285801-40 HOSE $33.06
103 429985-04 PANEL $97.82
105 429979-05 THERMAL BREAKER $10.12
106 429979-06 THERMAL BREAKER $11.35
107 429979-07 SELECT SWITCH $63.76
108 641521-01 CIRCUIT BREAKER $126.14
110 429979-10 IDLE CONTROL UNIT $117.91
113 429985-06 RECEPTACLE $126.44
114 429985-07 PLATE $16.33
115 429979-15 HEX NUT $1.48
116 429979-16 HEX NUT $1.23
118 429979-18 SCREW W/WASHER $1.48
119 643315-00 BOLT $1.41
121 643316-00 NUT $1.41
122 643317-00 WINGNUT $3.06
123 429979-23 LOGO PLATE $6.67
125 429979-25 LABEL $15.46
126 429979-26 LABEL $14.19
127 429985-08 LABEL $29.68
128 429979-28 LABEL $13.55
129 429979-29 LABEL $15.46
130 429985-09 NAMEPLATE $9.34
131 429985-10 WIRE HARNESS $84.05
132 429979-32 WIRE HARNESS $32.67
134 429979-34 COMPLETE CORD $18.60
135 429979-35 COMPLETE CORD $11.21
136 429985-11 WIRE HARNESS $25.12
137 429979-37 COMPLETE CORD $7.50
138 429979-38 COMPLETE CORD $7.50
139 429985-12 COMPLETE CORD $6.38
140 429979-40 COMPLETE CORD $6.38
148 429979-48 CAPACITOR $60.29
149 429979-49 COMPLETE CORD $9.41
150 5140012-48 LABEL $5.28
151 429979-51 HEX HEAD BOLT $1.23
152 429979-52 HEX HEAD BOLT $1.48
153 429978-19 HEX HEAD BOLT $2.74
221 429985-14 FRONT COVER $77.35
223 429985-15 COMPLETE ROTOR $616.72
224 429982-04 BALL BEARING $15.76
227 429985-17 BOLT $13.03
229 429985-19 STATOR $756.20
230 429985-20 REAR COVER $98.43
231 429985-21 BOLT $2.74
234 429982-14 SCREW W/WASHER $1.23
235 429982-15 SELF-TAP SCREW $1.28
236 429982-16 END COVER $24.11
402 285802-63 COVER ASSY $257.26
403 285804-36 GASKET $12.66
404 285800-77 CAP ASSY. $6.42
405 285802-74 CAP ASSY. $7.99
406 285800-78 GASKET $3.31
407 285802-64 GOVERNOR $27.62
408 285802-66 WEIGHT $5.96
409 285802-65 HOLDER $14.49
410 285802-67 PIN $1.83
411 285802-68 SLIDER $3.54
412 285801-07 CLIP $1.74
413 285802-73 DOWEL PIN $3.79
414 285802-71 OIL SEAL $10.94
415 285801-12 WASHER $0.53
416 285802-72 BOLT $1.53
417 285802-70 BEARING $10.02
418 285802-69 BEARING $32.99
419 285803-03 FAN $26.88
420 285803-04 FLYWHEEL $240.28
421 285803-05 NUT $7.68
422 285803-06 KEY $4.00
423 285804-37 PULLEY $25.46
424 285803-08 WEIGHT $136.17
425 285803-07 CRANKSHAFT $342.08
426 285802-69 BEARING $32.99
427 285803-10 CAMSHAFT $178.26
428 285803-11 PUSH ROD $12.59
429 285803-12 ARM $9.08
430 285803-13 LIFTER $15.75
431 285800-18 PIVOT $5.60
432 285800-19 SPRING $3.23
433 285803-14 INTAKE VALVE $21.69
434 285803-15 VALVE $33.71
435 285803-16 SPRING $4.99
436 285803-17 RETAINER $9.29
437 285803-18 RETAINER $9.29
438 285803-19 SEAT $3.62
439 285803-20 ROTATOR VALVE $5.51
440 285803-21 PLATE $3.93
441 285800-27 BOLT $7.93
442 285800-28 NUT $4.27
443 285803-22 SEAL $7.93
444 285803-24 ARM $23.53
445 285803-25 ROD $5.17
446 285803-26 SPRING $5.60
447 285803-27 SPRING $4.82
448 285803-28 CONTROL $26.08
449 285800-39 SPRING $4.82
450 285800-41 BOLT $2.16
451 285800-42 BOLT $3.16
452 285803-29 SCREW $1.10
453 285800-46 NUT $1.31
454 285803-32 RING SET $58.80
454 285803-33 RING SET $59.96
454 285803-30 RING SET $42.07
454 285803-31 RING SET $59.96
455 285803-34 PISTON $54.96
456 285803-35 PIN $14.38
457 285806-19 CONNECTING ROD $99.47
458 285803-37 BOLT $3.94
459 285803-38 CLIP $2.37
460 285802-99 COVER $88.46
461 285803-00 SHROUD $11.39
462 285803-01 GROMMET $4.97
463 285800-41 BOLT $2.16
464 285803-02 CLIP $5.12
465 285802-75 CYLINDER ASSY. $915.55
466 285802-76 SWITCH ASSY $58.79
467 285802-77 SHAFT $15.08
468 285802-78 GROUND WIRE $4.60
469 285800-41 BOLT $2.16
470 285804-38 BOLT $4.99
471 285802-79 WASHER $1.89
472 285802-71 OIL SEAL $10.94
473 285802-81 OIL SEAL $4.15
474 285801-10 O-RING $2.75
475 285801-11 NUT $1.44
476 285802-82 WASHER $0.93
477 285802-83 LOCK PIN $0.95
478 285801-14 BOLT $1.15
479 285802-70 BEARING $10.02
480 285801-22 OIL ALERT UNIT $58.79
481 285800-41 BOLT $2.16
482 285802-85 CYLINDER HEAD $402.41
483 285802-86 GUIDE $11.90
484 285802-87 GUIDE $14.67
485 285802-88 CLIP $2.00
486 285802-89 GASKET $18.26
487 285802-90 COVER $41.66
488 285802-91 GASKET $12.22
489 285802-92 BOLT $6.23
490 285802-93 BOLT $6.95
491 285802-94 BULK HOSE $22.09
492 285802-95 BOLT $2.07
493 285802-96 WASHER $5.67
494 285802-97 PIN $1.95
495 285804-79 BOLT $2.65
496 285800-98 SPARK PLUG $4.57
497 285803-39 STARTER ASSY. $96.06
498 285803-40 CASE $87.08
499 285803-41 PULLEY $38.06
500 285803-42 RATCHET $7.13
501 285803-43 SPRING $5.67
502 285803-44 SPRING $12.22
503 285803-45 SPRING $4.67
504 285803-46 RETAINER $12.41
505 285803-47 HOLDER $15.01
506 285803-48 GRIP $9.88
507 285803-49 ROPE $42.12
508 285803-50 SCREW $3.25
509 285801-53 BOLT $1.89
510 285803-51 TUBE $8.69
511 285803-52 ELELMENT $12.22
512 285803-53 SEPARATOR $70.10
513 285803-54 HOUSING $93.45
514 285803-55 STAY $12.85
515 285803-56 COVER $71.13
516 285803-57 CLIP $5.06
517 285803-58 CLIP $5.12
518 285803-59 SEAL $26.88
519 285803-60 FILTER $2.58
520 285803-61 NUT $1.12
521 285800-46 NUT $1.31
522 285803-62 MUFFLER $242.98
523 285803-63 PROTECTOR $72.96
524 285803-64 PROTECTOR $105.31
525 285803-65 SEAL $11.86
526 285803-66 EXHAUST PIPE $64.08
527 285803-67 GASKET $6.44
528 285803-68 GASKET $4.83
529 285803-69 STAY $32.86
530 285803-70 "ARRESTOR, SPARK" $21.27
531 285803-71 SCREW $1.23
532 285803-72 NUT $1.31
533 285803-73 BOLT $1.37
534 285803-74 2552552 BOLT $1.43
535 285803-75 GASKET SET $20.84
536 285803-76 VALVE SET $37.97
537 285803-77 FLOAT SET $41.96
538 285803-78 CHAMBER SET $55.99
539 285800-51 SET SCREW $19.48
540 285803-79 SET SCREW $14.64
541 285803-80 SET SCREW $25.25
542 285803-81 CARB ASSY $228.96
543 285800-56 SCREW $14.10
544 285803-82 CAP $6.57
546 285803-83 NOZZLE $23.69
547 285803-84 COLLAR $8.14
548 285803-85 INSULATOR $19.61
549 285803-86 GASKET $2.58
550 285803-87 GASKET $2.58
551 285803-88 VALVE ASSY $62.52
552 285803-89 STAY ASSY $173.63
553 285803-90 STAY $32.16
554 285803-91 LEVER $8.59
555 285803-92 ROD JOINT $4.92
556 285803-93 CHOKE ROD $2.00
557 285803-94 STOPPER $2.94
558 285803-95 SPRING $3.18
559 285803-96 GASKET $3.26
560 285803-97 DIAPHRAM ASSY $71.19
561 285803-98 ROD $7.46
562 285803-99 GROMMET $3.23
563 285804-00 GUIDE $4.57
564 285804-01 CHECK VALVE $35.37
565 285804-02 BUSH $7.68
566 285804-03 GROMMET $2.36
567 285804-04 WASHER $3.85
568 285804-05 SEAL $3.79
569 285804-06 WASHER $3.79
570 285804-07 COLLAR $3.71
571 285804-08 CLIP $4.97
572 285804-09 SCREW $0.81
573 285804-10 SCREW & WASHER $1.10
574 285800-46 NUT $1.31
575 285804-11 WASHER $0.77
576 285804-12 E-RING $1.82
577 285804-13 E-RING $2.60
578 285804-14 E-RING $3.18
579 285804-15 TUBE CLIP $3.35
580 285804-16 VAC. HOSE $70.30
581 285804-19 MAIN JET $5.73
581 285804-18 MAIN JET $5.73
581 285804-17 MAIN JET $5.73
582 285800-73 JET $21.44
583 285804-86 IGNITION COIL $120.04
584 285801-30 CAPACITOR ASSY $20.84
585 285804-21 1724996 COIL ASSY $63.73
586 285804-22 COIL ASSEMBLY $59.69
587 285804-23 CLAMP $5.50
588 285804-24 GROMMET $3.49
589 285804-25 WIRE $10.30
590 285804-26 HOLDER $2.60
591 285804-27 BOLT $3.47
592 285800-41 BOLT $2.16
593 285802-29 BOLT $2.88
594 285804-28 EMBLEM $9.14
595 285804-29 CHOKE MARK $1.89
596 285804-30 LABEL $3.96
597 285804-31 LABEL $4.27
598 285804-32 SPRING $2.95
599 285804-33 LEVER $25.10
600 285804-34 SOLENOID $113.80
601 285800-41 BOLT $2.16
602 285804-35 SCREW $0.77
610 5140000-95 ENGINE $2,282.46
611 285805-74 WASHER $1.89
846 5140019-96 TUNE-UP KIT $39.86
