DeWalt DG3000C Generator Parts

DeWalt DG3000C Parts

Download Schematic

Time to buy a new tool?

DeWalt DG3000C

3000 Watt Commercial...

$1,234.99

Page-1

Page-2

Page-3

Page-4

Page-5

Page-6

Page-7

Page-8

Page-9

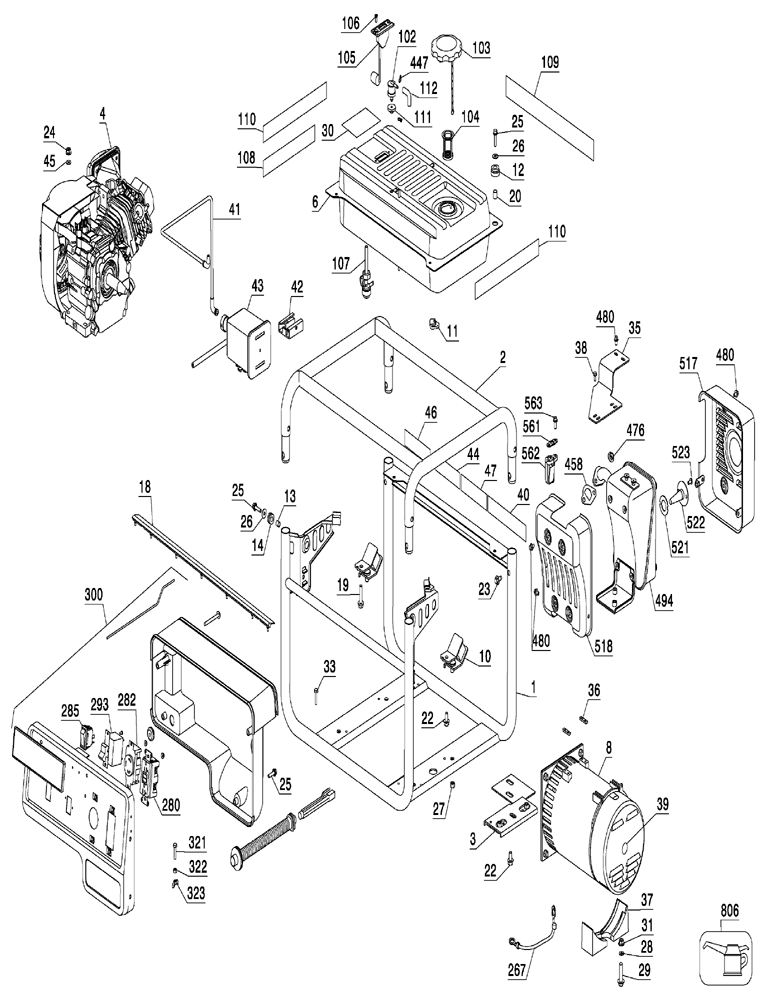

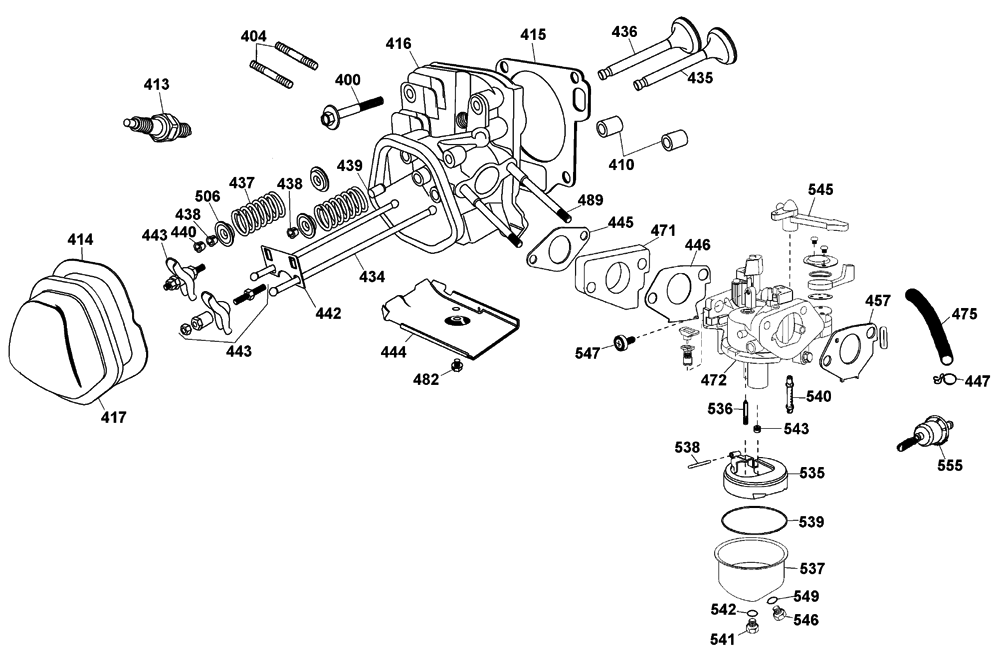

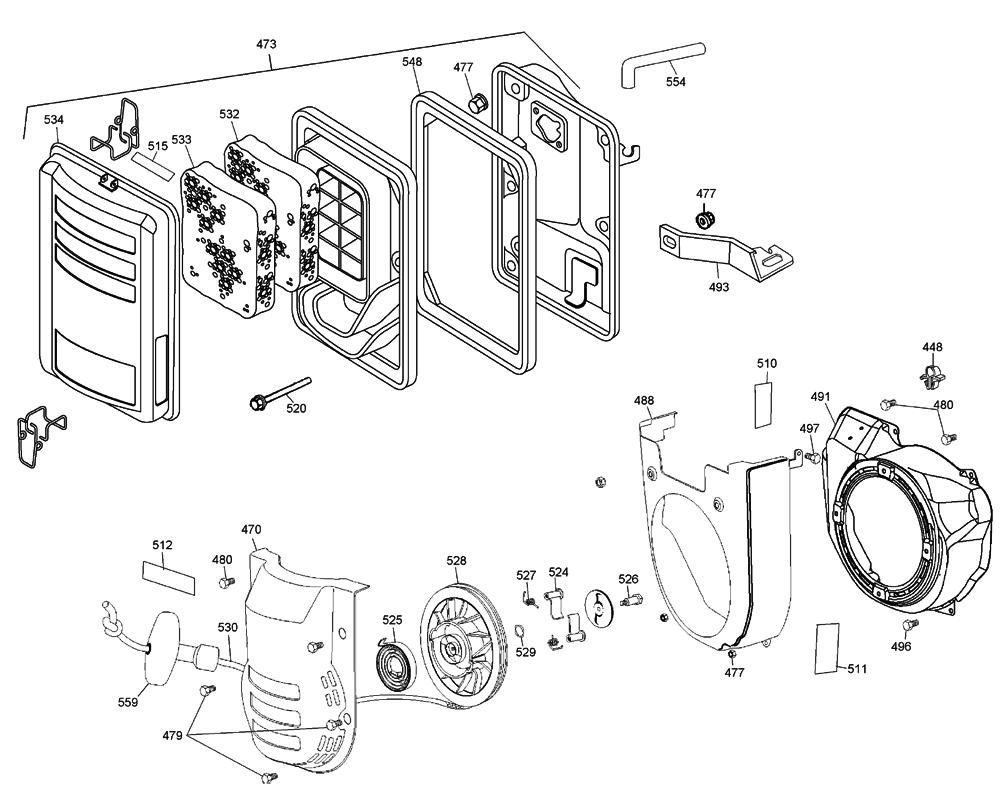

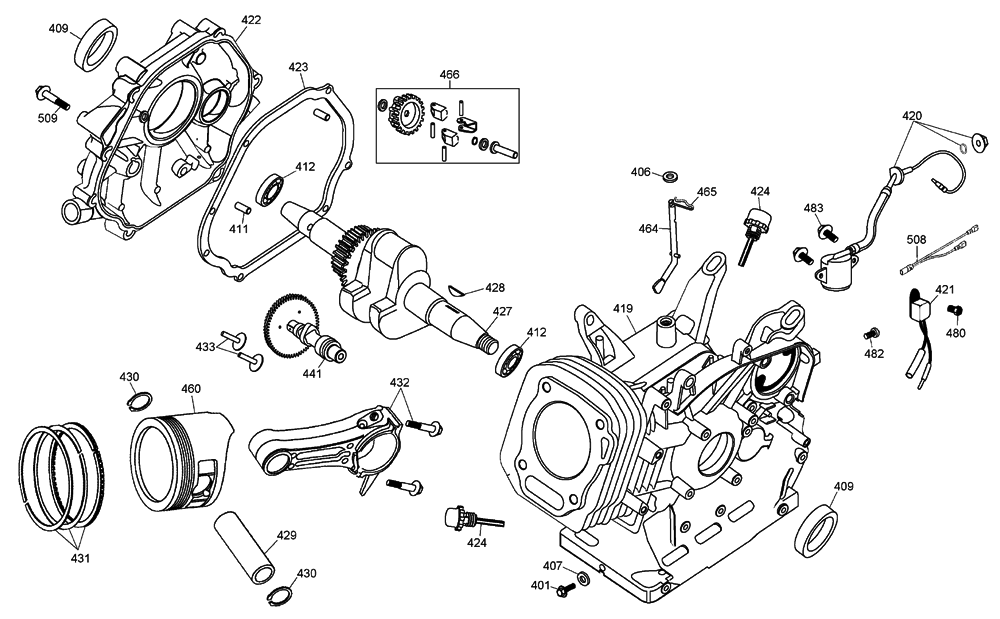

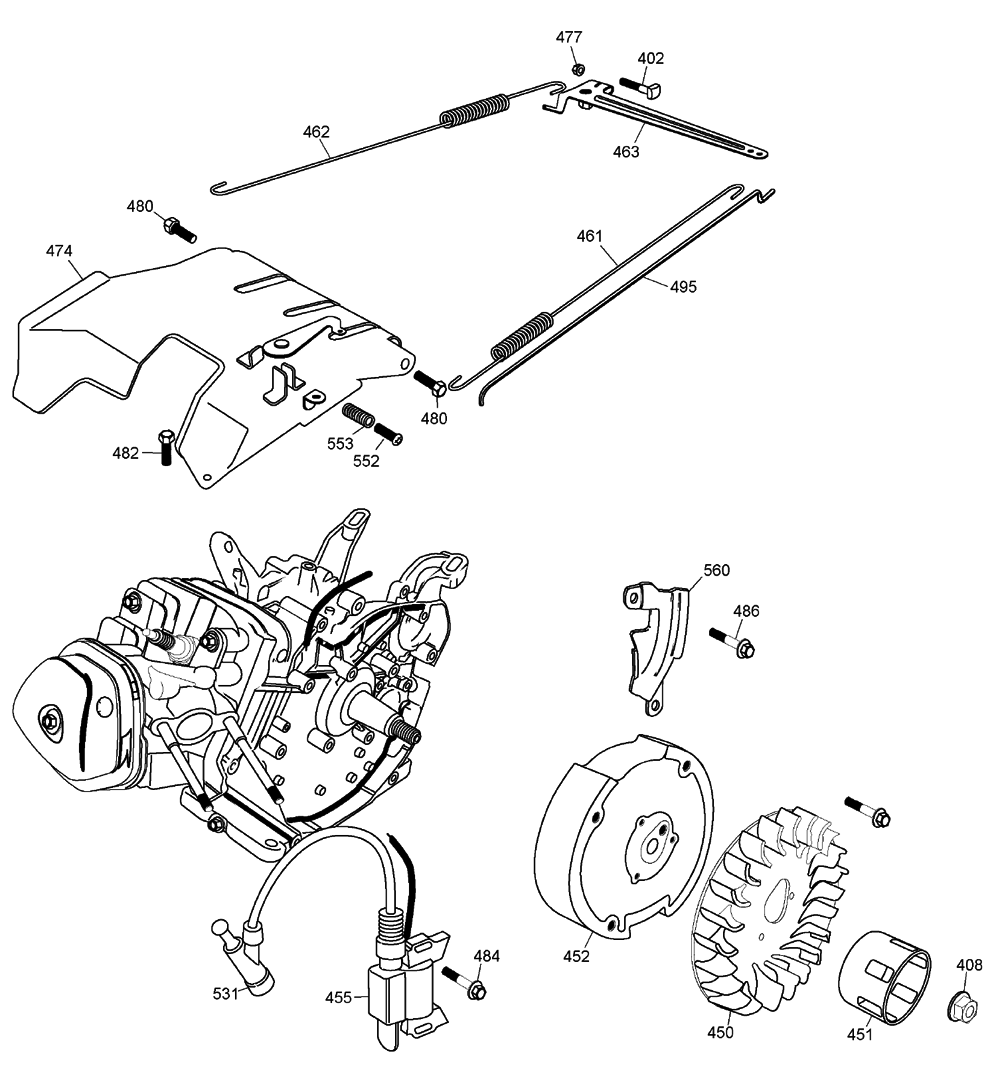

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	640043-01	LOWER FRAME	$222.10
2	640045-01	UPPER FRAME	$162.12
3	1000001830	SPREADER BAR	$17.28
4	N004227	ENGINE	$604.17
6	644286-00	FUEL TANK	$209.24
8	1000001769	ALTERNATOR	$1,139.66
10	637707-00	ISOLATOR	$23.76
11	640062-00	GROMMET	$1.12
13	640059-00	INSERT	$1.12
14	640058-00	GROMMET	$1.56
18	637767-00	RUBBER SEAL	$10.41
19	645054-00	BOLT, FLANGED	$4.96
20	640060-00	INSERT	$1.12
22	645060-00	BOLT	$3.83
23	A17233	SELF TAPPING SCREW	$2.71
25	645025-00	BOLT	$1.50
26	645033-00	WASHER	$1.41
27	645024-00	NUT	$1.46
28	330016-04	WASHER	$1.24
31	330015-08	JAM NUT	$1.24
35	1000003134	BRACKET	$19.92
36	1000003746	SUPPORT PLATE	$4.96
38	1000003747	BOLT, FLANGED	$1.09
39	5140070-25	PLUG	$8.14
40	646564-00	WARNING LABEL	$3.49
44	N004046	WARNING LABEL	$1.09
102	N000981	VALVE	$25.84
103	285816-19	FUEL CAP	$33.40
104	285816-33	FUEL FILTER	$16.54
105	285816-35	GAUGE	$12.66
106	285816-21	BOLT	$1.62
107	285818-33	FUEL VALVE	$11.34
108	285816-54	LABEL	$1.84
109	285816-56	ID LABEL	$1.41
110	285816-57	ID LABEL	$1.41
111	N000982	GROMMET	$1.56
112	N001358	TUBE	$2.86
293	641521-03	CIRCUIT BREAKER	$68.20
300	643151-00	PANEL ASSEMBLY	$617.91
321	643315-00	BOLT	$1.41
322	643316-00	NUT	$1.41
323	643317-00	WINGNUT	$3.06
400	285814-00	BOLT	$2.84
401	285814-02	DRAIN PLUG	$4.82
402	285814-03	BOLT	$3.04
404	285814-06	BOLT	$1.99
406	285814-07	WASHER	$1.12
407	285814-09	WASHER	$1.12
408	285814-11	SPECIAL NUT	$2.84
409	285814-15	OIL SEAL	$16.14
410	285814-17	DOWEL PIN	$2.09
411	285814-19	DOWEL PIN	$2.09
412	285814-21	BALL BEARING	$17.34
413	285800-98	SPARK PLUG	$4.57
414	285814-24	GASKET	$6.64
415	285814-27	GASKET	$11.60
416	285814-29	CYLINDER HEAD	$109.62
417	285820-77	COVER	$11.97
419	285814-35	CRANK CASE	$113.24
420	285820-65	SWITCH ASSEMBLY	$20.48
421	285814-40	OIL ALERT UNIT	$55.71
422	285814-41	CASE COVER	$27.52
423	285814-44	GASKET	$4.56
424	285814-47	CAP ASSEMBLY	$13.97
427	285814-52	CRANKSHAFT	$229.66
428	285817-20	WOODRUFF KEY	$1.50
429	285814-57	PIN	$14.89
430	285814-60	CLIP	$0.83
431	285814-62	RING SET	$39.62
432	285814-65	CONNECTING ROD	$113.69
433	285814-68	LIFTER	$19.45
434	285814-70	PUSH ROD	$8.13
435	285814-73	INTAKE VALVE	$30.36
436	285814-76	VALVE	$49.73
437	285814-79	VALVE SPRING	$4.68
438	285814-83	RETAINER	$8.96
439	285814-84	SEAL	$6.44
440	285814-86	ROTATOR VALVE	$5.17
441	285814-89	CAMSHAFT	$150.89
442	285814-92	PLATE ASSEMBLY	$3.78
443	285814-94	ARM	$25.21
444	285814-99	SHROUD	$17.69
445	285815-02	GASKET	$3.13
446	285815-06	GASKET	$1.60
447	285815-09	CLIP	$1.34
448	285816-30	CLIP	$1.98
450	285815-14	FAN	$19.78
451	285815-17	PULLEY	$17.55
452	285815-20	FLYWHEEL	$51.23
455	285815-25	IGNITION COIL	$26.55
457	285815-29	GASKET	$3.38
458	285815-32	GASKET	$4.88
460	285814-54	PISTON	$74.00
461	285815-38	SPRING	$5.76
462	285815-40	SPRING	$5.08
463	N041178	ARM	$19.06
464	285815-46	SHAFT	$6.44
465	285815-49	LOCK PIN	$0.98
466	285815-51	GOVERNOR ASSEMBLY	$26.66
470	N035919	STARTER ASSEMBLY	$92.65
471	285815-05	INSULATOR	$6.87
472	285815-11	CARBURETOR	$112.63
473	285818-20	AIR FILTER	$32.65
474	285815-50	CONTROL ASSY	$51.00
475	285818-08	HOSE	$14.13
476	285815-73	NUT	$1.62
477	285815-74	NUT	$1.62
479	285815-84	BOLT	$1.62
480	285815-85	BOLT	$1.62
482	285815-86	BOLT	$1.62
483	285815-88	BOLT	$1.62
484	285815-90	BOLT	$1.62
486	285815-89	BOLT	$1.62
488	285815-95	HOUSING COVER	$53.15
489	285814-05	BOLT	$2.84
491	285816-03	BLOWER HOUSING	$51.60
493	285816-08	BRACKET	$12.38
494	642923-01	MUFFLER	$220.59
495	285815-36	ROD	$4.34
496	285816-24	STUD	$2.36
497	285816-41	BOLT	$1.41
506	285814-82	RETAINER	$8.96
508	285816-40	CONNECTING WIRE	$6.26
509	285815-92	BOLT	$1.99
510	285816-42	LABEL	$1.12
511	285816-43	LABEL	$1.41
512	285816-53	ID LABEL	$1.41
515	1000002765	LABEL	$3.78
517	285816-59	MUFFLER COVER	$31.19
518	285816-60	MUFFLER COVER	$37.95
520	285817-01	BOLT	$1.56
521	1000004021	GASKET	$1.56
522	285816-72	SPARK ARRESTER	$27.24
523	285816-67	BOLT	$1.84
524	285816-76	RATCHET	$1.98
525	285816-77	SPRING	$13.06
526	285816-78	BOLT	$1.98
527	285816-79	SPRING	$1.98
528	285816-80	PULLEY	$13.06
529	285816-81	SPRING	$4.48
530	285816-82	ROPE	$12.36
531	285816-83	CAP ASSEMBLY	$1.41
532	285818-25	AIR FILTER	$12.36
533	285818-25	AIR FILTER	$12.36
534	285817-00	COVER	$25.21
535	285817-14	FLOAT	$3.06
536	285817-10	VALVE	$2.85
537	285818-23	BOWL	$3.78
538	285817-09	PIN	$3.06
539	285817-11	O-RING	$1.98
540	285817-15	NOZZLE	$3.06
541	285817-05	BOLT	$1.98
542	285817-06	GASKET	$1.56
543	285818-73	MAIN JET	$6.33
543	285820-70	MAIN JET	$3.16
545	285817-13	LEVER	$1.98
546	285817-07	BOLT	$1.56
547	285817-12	SCREW	$1.56
548	285817-02	SEAL	$2.85
549	285817-08	GASKET	$1.62
552	1349856	PAN HEAD SCREW	$4.42
553	285817-19	SPRING	$9.59
554	285816-06	TUBE	$3.78
555	285817-46	FUEL FILTER	$17.82
559	285818-39	HANDLE	$26.63
560	285815-61	PLATE	$7.55
561	1000004019	GASKET	$1.24
562	N000322	VALVE	$10.51
563	285816-36	BOLT	$1.62
