DeWalt DC628K Cordless Nailer & Stapler Parts

DeWalt DC628K Cordless Nailer & Stapler Parts Image

DeWalt DC628K Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
DeWalt DC628K
Heavy-Duty XRP 1-1/4...
$379.99
Tool Diagram    (Click image to Zoom in) View larger Image

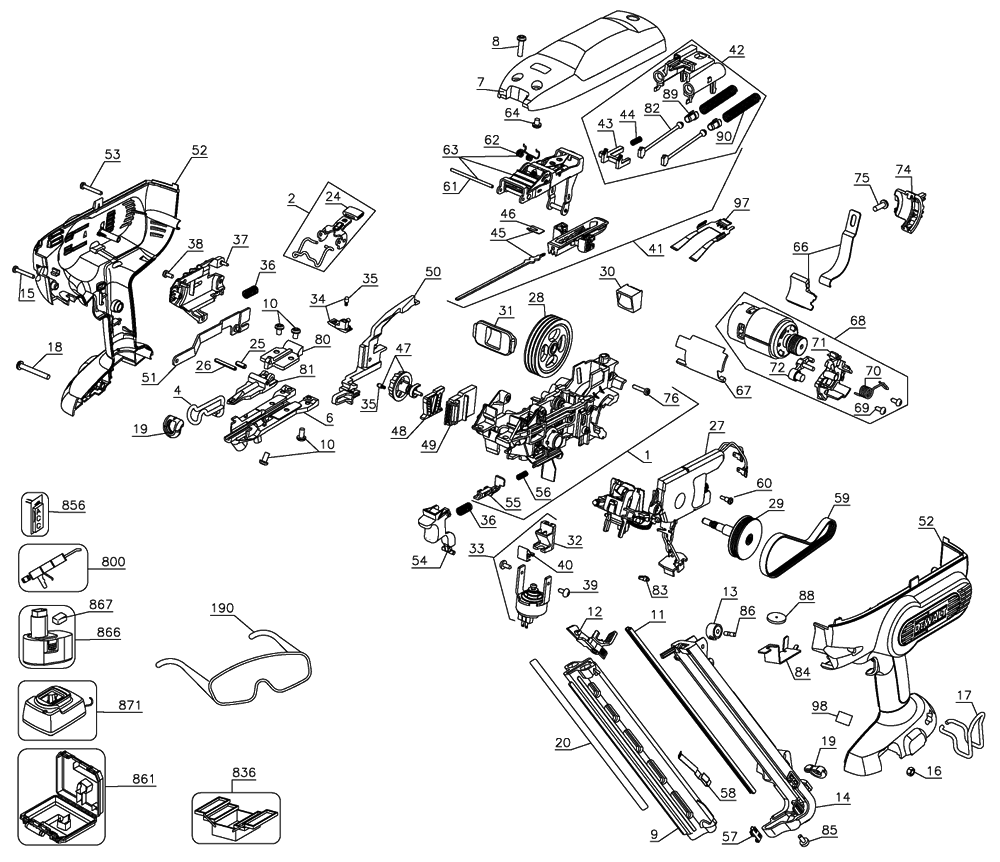

DeWalt DC628K Cordless Nailer & Stapler Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 613852-00 BACKBONE ASSEMBLY $61.66
2 653129-00 LATCH $3.87
4 637462-00 CONTACT TRIP $6.78
6 632376-00 NOSEPIECE $45.19
7 632363-00 TOP COVER $13.64
8 609932-02 SCREW, MACHINE $1.12
9 639512-00 MAGAZINE $30.70
10 609932-00 SCREW, MACHINE $1.12
11 395115-00 LINER $13.03
12 618015-00 PUSHER ASSEMBLY $26.08
13 606337-00 MAGAZINE SPRING $9.69
14 639511-00 MAGAZINE $26.94
15 330045-63 SCREW $4.89
16 330015-04 NUT, HEX $1.23
17 632382-00 BELT HOOK $5.83
18 330045-63 SCREW $4.89
19 616938-00 NOMAR PAD $2.30
20 632378-00 NAME PLATE $1.21
24 395093-00 COVER/LATCH $1.48
25 330036-23 ROLL PIN $1.23
26 330036-21 ROLL PIN $1.23
27 643115-01 CONTROL MODULE $128.59
28 632387-00 FLYWHEEL $26.92
29 613835-00SV SPINDLE AND PULLEY $13.72
30 613869-00SV BUMPER $15.64
31 392240-00 BUMPER $6.14
32 392244-00 CLUTCH $12.03
33 624709-00SV SOLENOID ASSEMBLY $45.83
34 N001917 PADDLE ASSEMBLY $6.53
35 326467-00 DETENT $1.24
36 653099-00 COMPRESSION SPRING $1.62
37 604480-00 CAGE $1.89
38 613619-01 SCREW $1.12
39 330045-60 SCREW, THD.FORM $1.12
40 621980-00 CLIP, RETAINING $1.12
41 633505-01SV RETURN & PROFILE $98.43
42 393217-00SV RETURN DEVICE $11.21
43 614577-00 STOP $1.48
44 610243-00 SPRING $1.12
45 632384-00 DRIVER BLADE $9.51
46 392206-00 CLIP $1.12
47 613874-00 KNOB DEPTH SET $8.56
48 392437-00 ADJUSTING PLATE $1.48
49 392438-00 SLIDER $1.89
50 393220-00SV CONTACT TRIP $3.72
51 632385-00 LINKAGE $3.31
52 633501-00 CLAMSHELL SET $27.37
53 330019-05 SCREW, PLASTITE $1.24
54 392197-00 TRIGGER $1.82
55 392201-00 LINKAGE $1.48
56 394314-00 COMPR.SPRING $1.12
57 395120-00 CATCH $4.82
58 395122-00 RETAINER $4.46
59 392246-00 BELT $12.03
60 623407-00 SHOULDER SCREW $1.43
61 395932-00 PIVOT PIN $1.12
62 394045-00 TORSION SPRING $1.62
63 392232-00 ACTUATION ARM $56.77
64 330045-12 SCREW $1.23
66 606837-01 MOTOR STRAP $1.21
67 623181-00 RUBBER PAD $1.48
68 613834-00 MOTOR ASSEMBLY $37.95
69 330045-44 SCREW $1.23
70 604325-00 SPRING $1.12
71 397762-00 PLATE $2.74
72 630664-00SV IDLER ASSEMBLY $6.33
74 392203-00 MOTOR LEAD WIRE GUIDE $1.89
75 609932-01 SCREW $1.12
76 613619-00 SCREW, THD.FORM $1.12
80 637463-00 UPPER DOOR $14.50
81 637464-00 UPPER DOOR $23.49
82 392243-00 BAND $3.87
83 071025-00 TIE STRAP $1.17
84 632388-00 GUARD $1.77
85 608177-00 SCREW $1.23
86 395085-00 PIN $1.94
88 624913-00 DISC $1.21
89 392242-00 STOP $1.21
90 392236-02 SPRING $1.21
190 629042-01 SAFETY GLASSES $9.73
800 5140024-25 GREASE $112.95
861 633527-00 KITBOX $52.11
861 632254-00 LID CARD $1.99
867 645221-00 BATTERY CAP $1.18
871 388683-12 1 HOUR CHARGER $80.53
