DeWalt DC223KA-Type-2 Cordless Hammer Drill Parts

DeWalt DC223KA-Type-2 Cordless Hammer Drill Parts Image

DeWalt DC223KA-Type-2 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Page-1
Page-2
Tool Diagram    (Click image to Zoom in) View larger Image

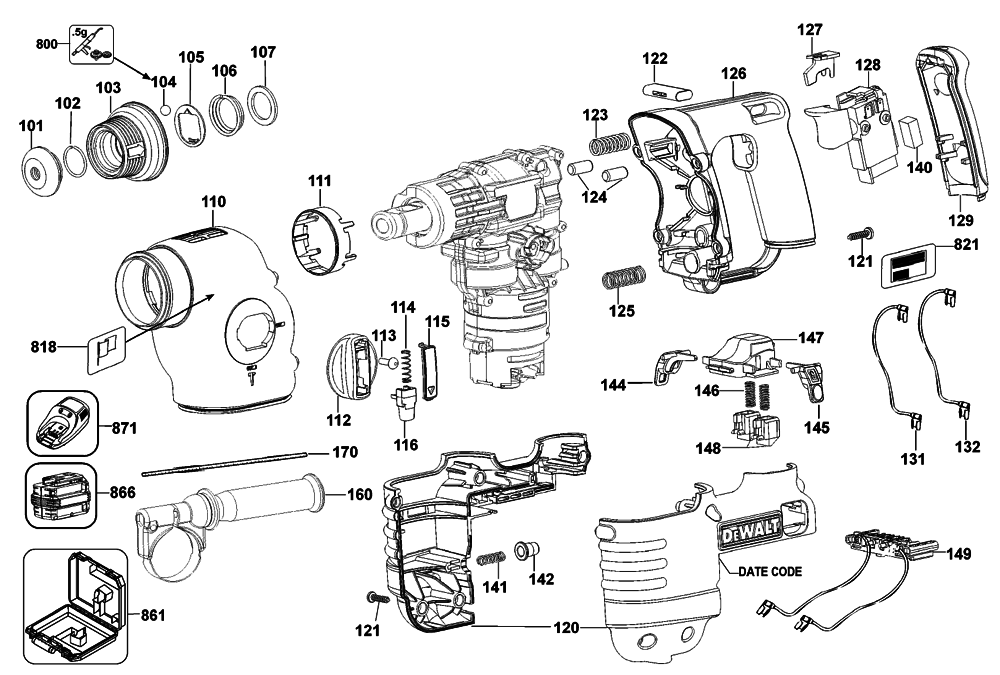

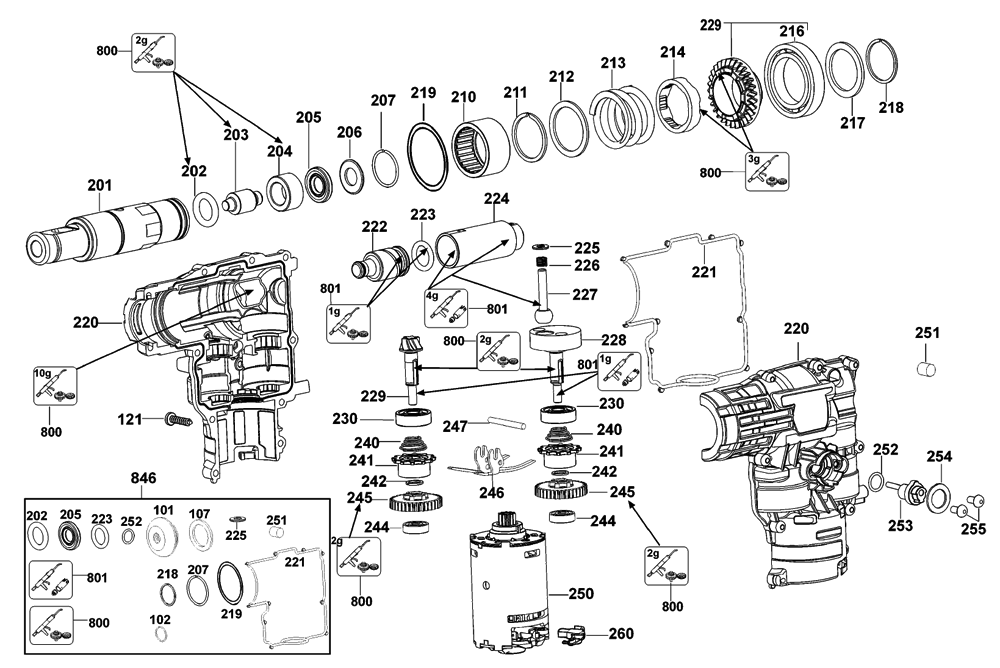

DeWalt DC223KA-Type-2 Cordless Hammer Drill Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
101 323489-00 CAP $4.09
102 579212-00 RING $1.18
103 577928-00 TUBE $5.36
104 583890-00 BALL $1.18
105 578387-00 WASHER $1.95
106 871690-00 SPRING $1.24
107 590306-00 FELT SEAL $1.05
110 574937-00 COVER $25.07
111 490785-00 SLEEVE $1.05
112 575023-00 SELECTOR $1.61
113 324006-16 SCREW $3.70
114 478843-00 SPRING $1.05
115 575026-00 CAP $1.05
116 575024-00 RELEASE BUTTON $1.05
120 493679-00 CLAMSHELL SET $26.60
121 330065-08 SCREW $1.24
122 578218-00 SLIDER $2.40
123 575030-00 SPRING $1.05
124 575032-00 PIN $1.61
125 479313-00 SPRING $1.05
126 1007577-00 HANDLE & COVER $25.38
127 1005987-00 LEVER ASSEMBLY $1.56
128 493678-00 SWITCH $100.05
129 1006234-00 HANDLE COVER $8.30
131 495610-00 LEAD, BROWN $3.94
132 495610-01 LEAD, BLACK $3.39
140 930026-01 BUMPER $1.40
141 489874-00 SPRING $1.23
142 487086-00 KNOB $2.13
144 N025948 BUTTON RELEASE $7.24
145 N025949 BUTTON RELEASE $7.24
146 590240-00 SPRING $1.23
147 N013763 BLOCK KIT $6.94
148 N013763 BLOCK KIT $6.94
149 638529-00 TERMINAL BLOCK $34.67
160 493687-00 SIDE HANDLE ASY $22.60
170 580787-00 DEPTH STOP $2.09
201 492807-00 SPINDLE $79.06
202 323711-02 O RING $1.05
203 492808-00 BEAT PIECE $8.20
204 492809-00 GUIDE BUSHING $2.87
205 870890-00 RING, RETAINING $1.69
206 327087-00 WASHER $3.10
207 323762-07 RING $1.05
210 590302-00 NEEDLE BEARING $17.37
211 488105-00 CLIP $1.05
212 589350-00 WASHER $1.84
213 589346-00 SPRING $6.31
214 492817-00 BUSH $18.94
216 479478-00 BEARING $18.94
217 589348-00 WASHER $2.16
218 488390-00 CLIP $1.05
219 491536-00 O-RING $1.05
220 492820-00 HOUSING ASSEMBLY $19.03
221 478909-00 SEAL $4.12
222 492830-00 RAM $15.02
223 577168-00 O RING $1.24
224 492822-00 PISTON $24.92
225 494317-00 WASHER $0.41
226 490286-00 SPRING $1.05
227 492823-00 BALL SPINDLE $11.66
228 492824-00 CRANKSHAFT $54.18
229 N071966 REPAIR KIT $73.12
230 477133-00 BALL BEARING $3.26
240 575021-00 COMPR. SPRING $1.23
241 492826-00 COLLAR $4.82
242 323763-10 SNAP RING $1.05
244 330003-40 BEARING, BALL $7.54
245 492828-00 GEAR $26.63
246 575022-00 PLATE $3.57
247 590312-00 PIN $1.05
250 493673-00 MOTOR & PINION $97.37
251 582865-00 FILTER $1.87
252 323711-34 RING, O $1.24
253 478898-00 LEVER ASSEMBLY $3.57
254 577802-00 SHIM WASHER $2.85
255 490129-00 SCREW $1.23
260 493511-00 BRUSH PAIR KIT $18.11
800 870889-03 GREASE $5.13
801 487130-04 GREASE $6.33
818 493152-01 LABEL $3.93
821 N044671 RATING PLATE $7.24
846 492804-00 SERVICE KIT $28.43
861 574931-20 KIT BOX $65.26
