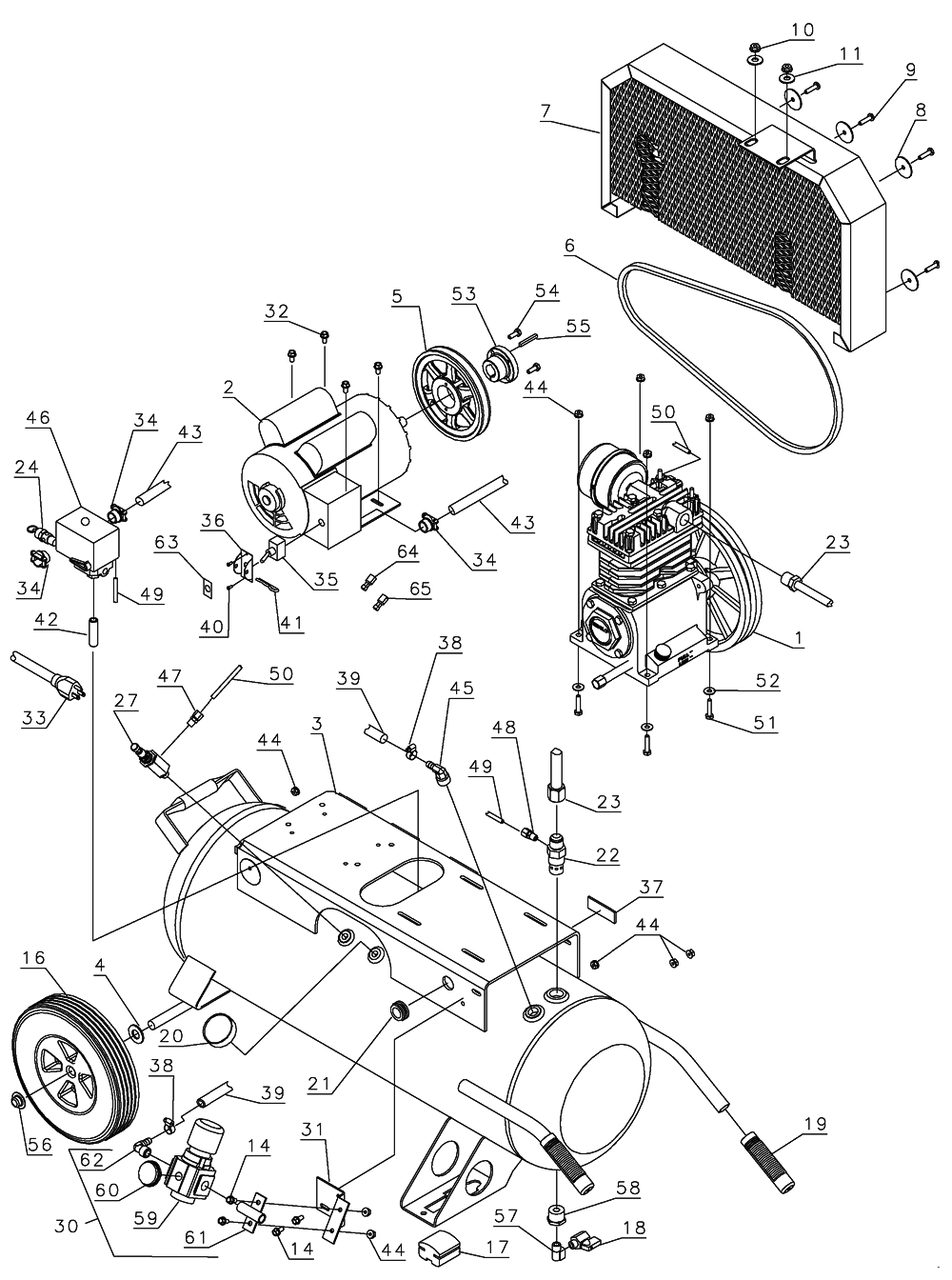

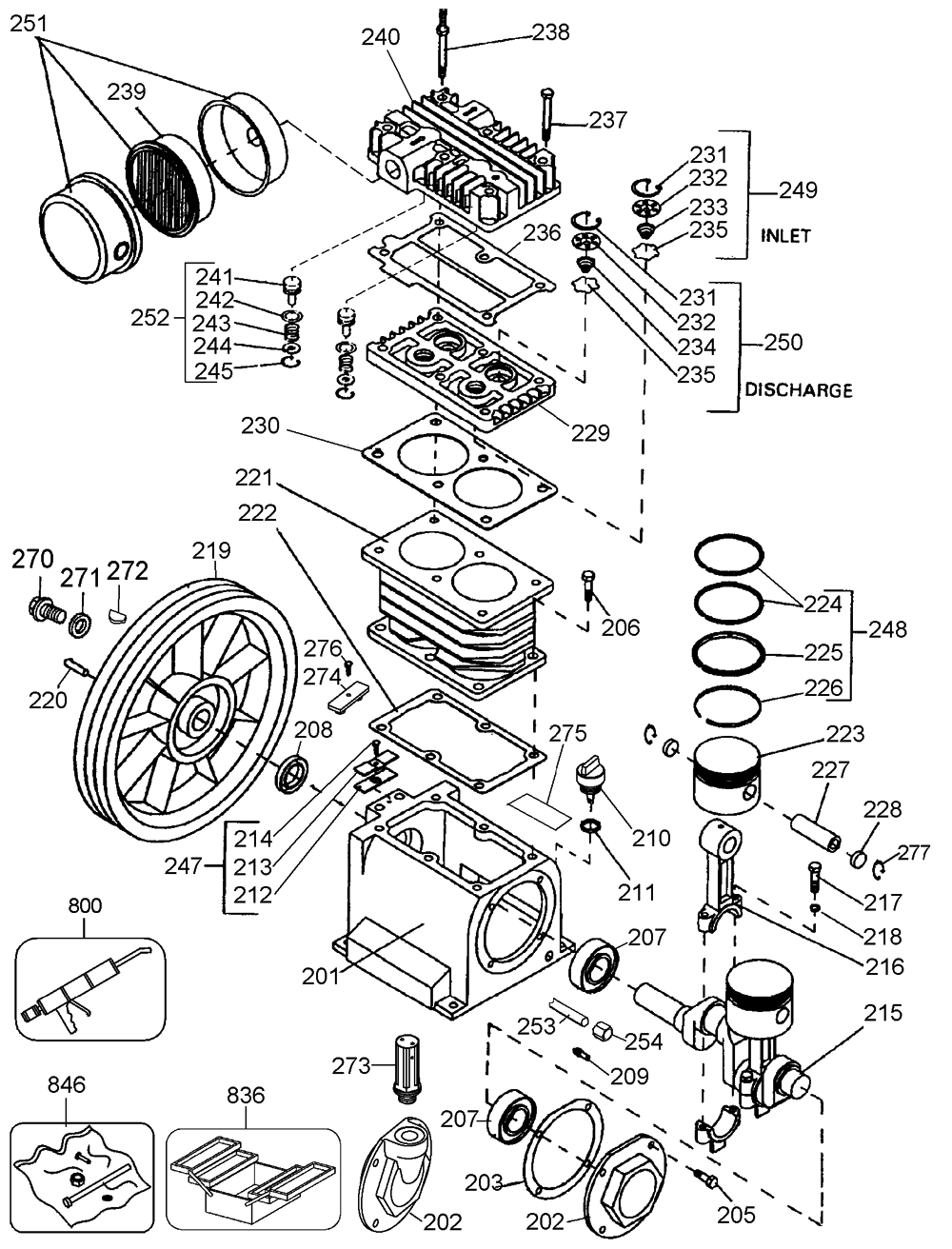

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
2	A13035	MOTOR	$1,242.50
3	5136674-01	TANK	$1,086.01
4	5130243-00	FLAT WASHER	$2.00
5	5137063-00	PULLEY KIT	$26.41
6	N003730	V-BELT	$22.64
7	A21190	BELT GUARD	$114.15
8	5130832-00	FENDER WASHER	$1.36
9	5130196-00	SCREW	$1.43
11	5130198-00	WASHER	$0.61
14	5130257-00	LOCK BOLT	$1.74
16	A11643	WHEEL	$17.53
17	5134369-00	FOOT	$4.36
18	N072023	BALL VALVE	$6.41
19	A17037	GRIP	$2.21
20	5130026-00	GAUGE	$27.53
20	5130026-00	GAUGE	$27.53
22	5134396-00	CHECK VALVE	$18.60
23	5130208-00	HOSE ASSEMBLY	$45.46
24	5130030-00	VALVE	$21.22
27	5130456-00	PILOT VALVE	$28.87
30	5134389-00	REGULATOR ASSY.	$78.20
31	5130417-01	BRACKET	$12.39
32	5130200-00	LOCK BOLT	$6.59
33	5131326-00	CORD & PLUG	$40.33
35	5131519-00	TOGGLE SWITCH	$22.10
36	5130222-00	SWITCH COVER	$8.27
37	A12475	ISOLATOR	$1.84
38	5136480-00	HOSE CLAMP	$9.07
39	A13450	HOSE	$10.99
40	5130885-00	POP RIVET	$1.07
41	5130892-00	CLEVIS PIN	$1.62
43	617002-00	WIRE HARNESS	$16.98
44	5130213-00	NUT	$5.40
45	5130261-00	FITTING	$12.85
46	5134377-00SV	PRESSURE SWITCH	$39.58
47	5130021-00	CONNECTOR	$4.49
48	5130021-00	CONNECTOR	$4.49
49	5137101-00	TUBE ASSM.	$7.82
50	5130199-00	TUBING	$7.76
51	5130792-00	HEX HEAD BOLT	$1.23
52	5130830-00	FLAT WASHER	$1.05
53	5137063-00	PULLEY KIT	$26.41
54	5130113-00	BOLT	$6.98
55	5130850-00	KEY	$1.23
56	5130262-00	PUSH NUT	$2.96
57	5130973-00	DRAIN ELBOW	$10.72
58	5131109-00	REDUCER	$2.51
59	5140112-76	REGULATOR ASSEMBLY	$80.64
60	5130205-00	GAUGE	$10.87
61	5132685-00	BRACKET	$8.31
62	5140038-46	ELBOW	$3.96
63	5130573-00	DECAL	$3.72
64	5131283-00	TERMINAL	$1.28
65	5131284-00	TERMINAL	$1.10
201	5132168-00	CRANK CASE	$77.46
202	5132170-00	BEARING CAP	$9.91
203	5130111-00	GASKET	$6.98
205	5130113-00	BOLT	$6.98
206	5130114-00	BOLT	$3.13
207	5130115-00	BALL BEARING	$14.20
208	5130116-00	SEAL	$6.35
209	5130117-00	PLUG	$2.21
210	5133926-00	OIL CAP	$3.35
211	5130119-00	O-RING	$6.98
212	5130160-00	BREATHER ASSEMBLY	$4.97
213	5130160-00	BREATHER ASSEMBLY	$4.97
214	5130122-00	STUD	$2.50
215	5130123-00	CRANKSHAFT	$129.25
216	627567-00	CONNECTING ROD	$29.09
217	5130126-00	BOLT	$6.98
218	5130127-00	LOCK WASHER	$6.98
219	5130128-00	FLYWHEEL	$104.47
220	5130129-00	KEY	$6.98
221	5132171-00	CYLINDER	$64.13
222	5130545-00	GASKET	$4.14
223	5130161-01	PISTON ASSEMBLY	$82.38
224	5130133-00	COMPRESSION RING	$10.54
227	5130135-00	PISTON PIN	$8.05
228	5130136-00	RETAINER	$2.81
229	5130137-02	VALVE PLATE	$41.63
230	5130138-00	GASKET	$7.36
231	5130139-00	RETAINING RING	$1.56
232	5130140-00	VALVE BUMPER	$3.61
233	5130141-00	VALVE SPRING	$6.98
234	5130142-00	VALVE SPRING	$6.98
235	5130143-00	VALVE DISC	$8.67
236	5130144-00	GASKET	$6.35
237	5130145-00	BOLT	$2.36
238	5130146-00	BOLT	$3.08
239	5130147-01	FILTER - 4 PACK	$26.30
239	5130147-00	FILTER	$7.93
240	5130148-00	HEAD	$57.57
241	5130168-00	UNLOADER ASSEMBLY	$8.73
242	5130150-00	O-RING	$6.68
243	5130151-00	SPRING	$10.87
244	5130152-00	WASHER	$6.80
245	620639-00	RETAINING RING	$5.26
247	5130160-00	BREATHER ASSEMBLY	$4.97
249	5130164-00	VALVE ASSEMBLY	$8.05
250	5130165-00	VALVE ASSEMBLY	$8.05
251	5131692-00	FILTER ASSEMBLY	$27.62
252	5130168-00	UNLOADER ASSEMBLY	$8.73
253	5130154-00	NIPPLE	$5.12
254	5130155-00	CAP	$7.32
277	623935-00	RETAINING RING	$1.43
800	5130427-00	OIL	$20.95
836	5140100-02	LOCTITE	$196.37
846	5132627-00	VALVE PLATE ASSY	$42.15
846	5130161-01	PISTON ASSEMBLY	$82.38
846	5130158-00	GASKET SET	$18.97
846	5130167-00	HEAD ASSEMBLY	$68.75
846	5130159-00	REPAIR KIT	$167.38
