Dewalt D55276-Type-1 Compressor Parts

Dewalt D55276-Type-1 Compressor Parts Image

Dewalt D55276-Type-1 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Dewalt D55276-Type-1
5.5 HP 17 Gallon Gas...
$1,019.99
Tool Diagram    (Click image to Zoom in) View larger Image

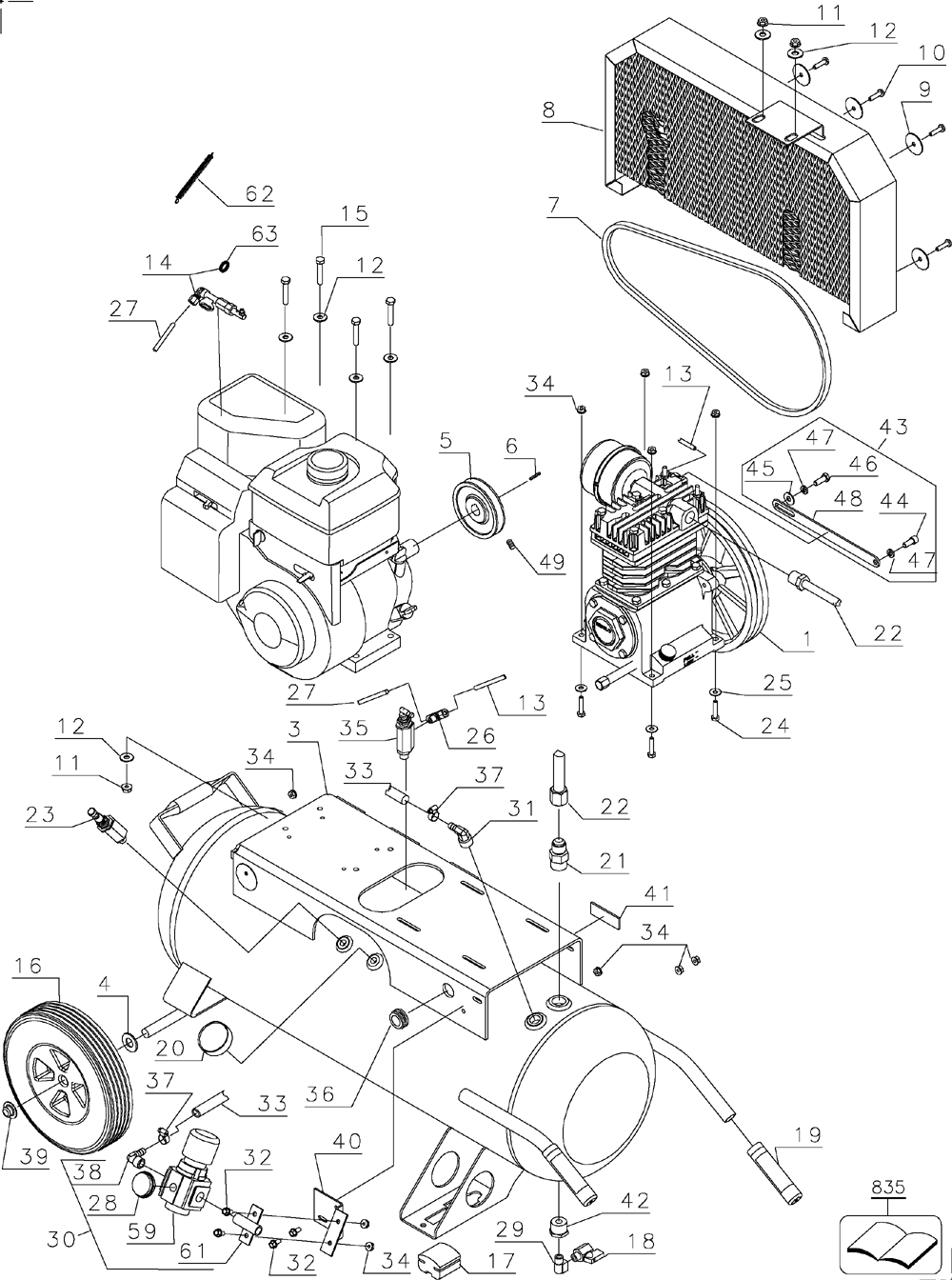

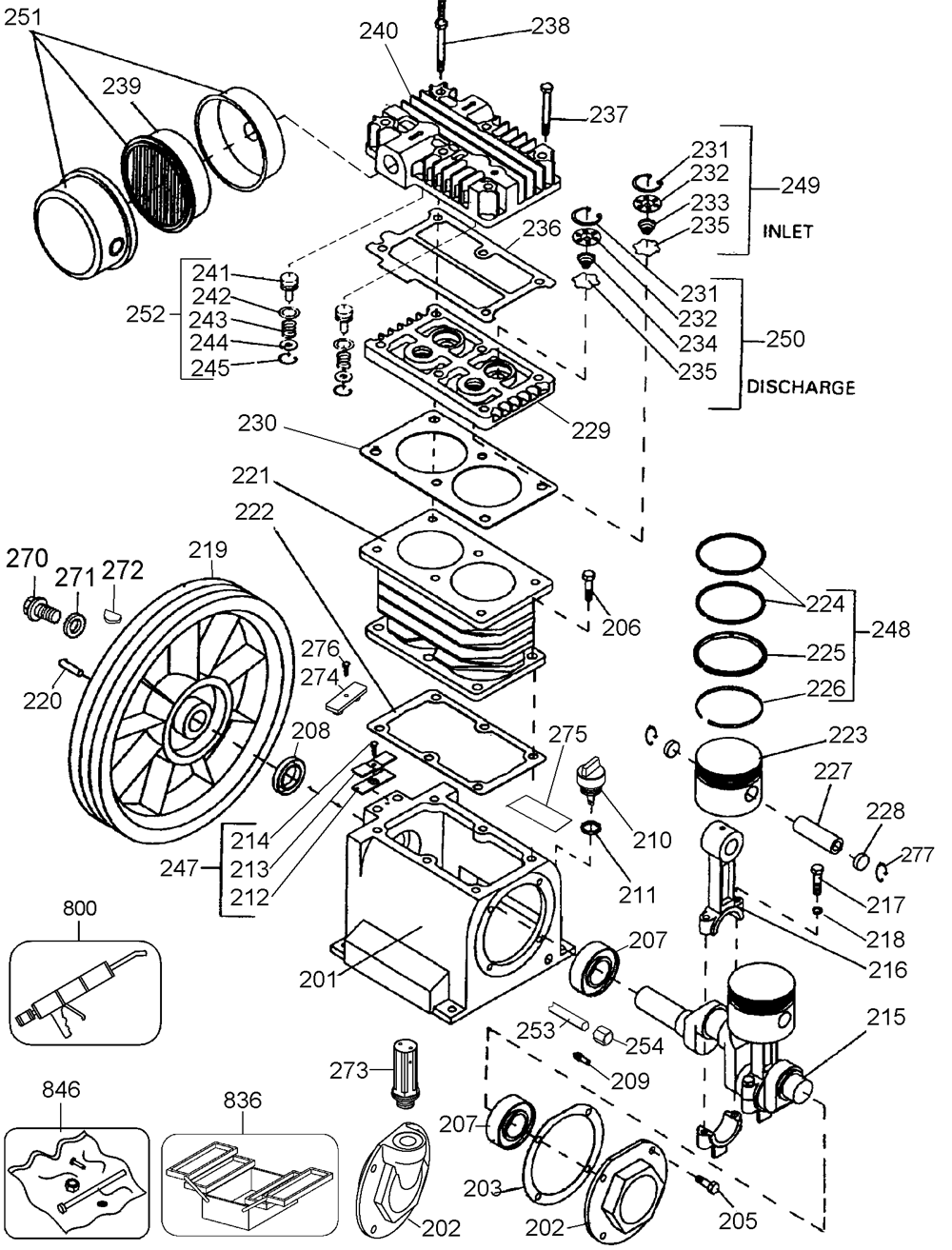

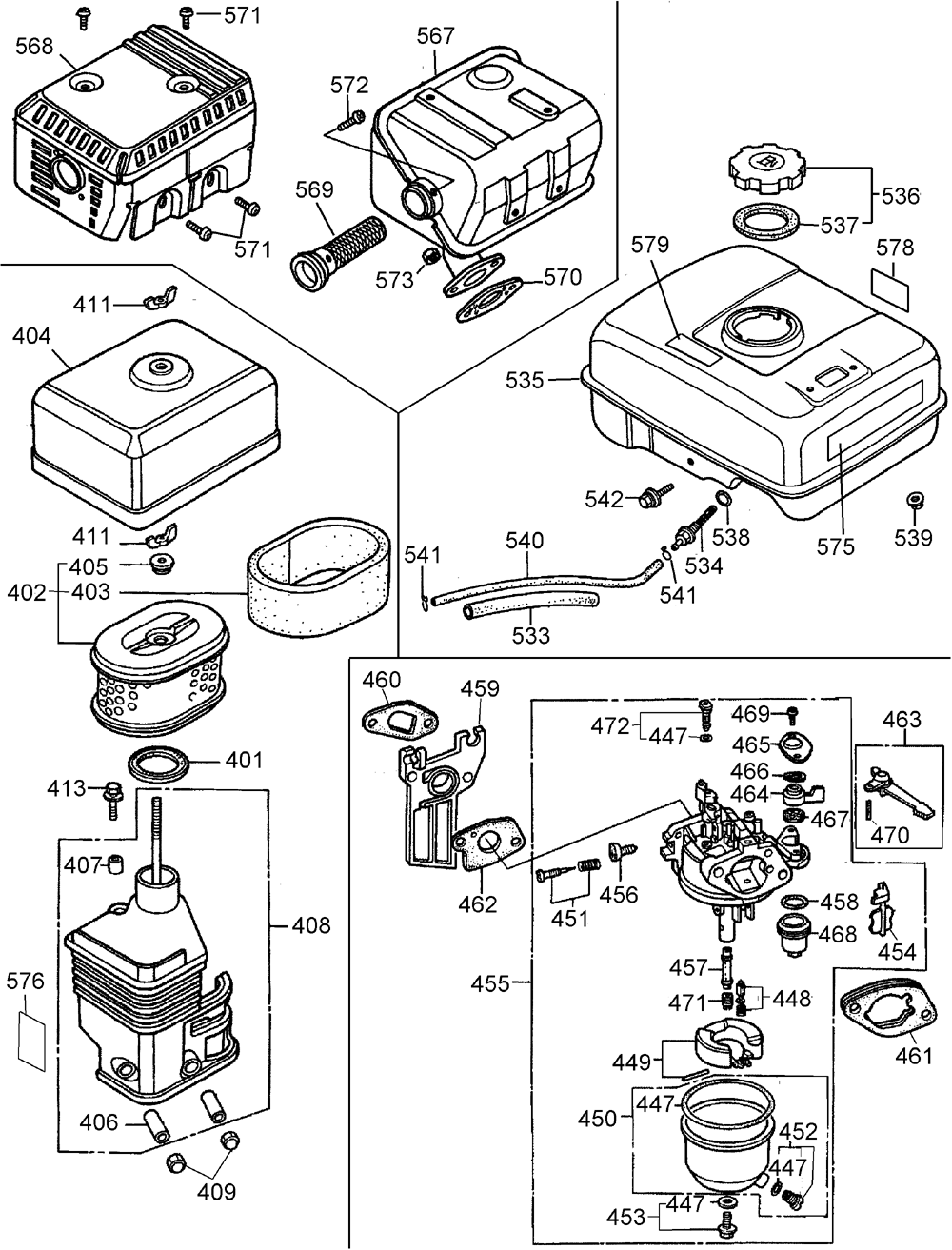

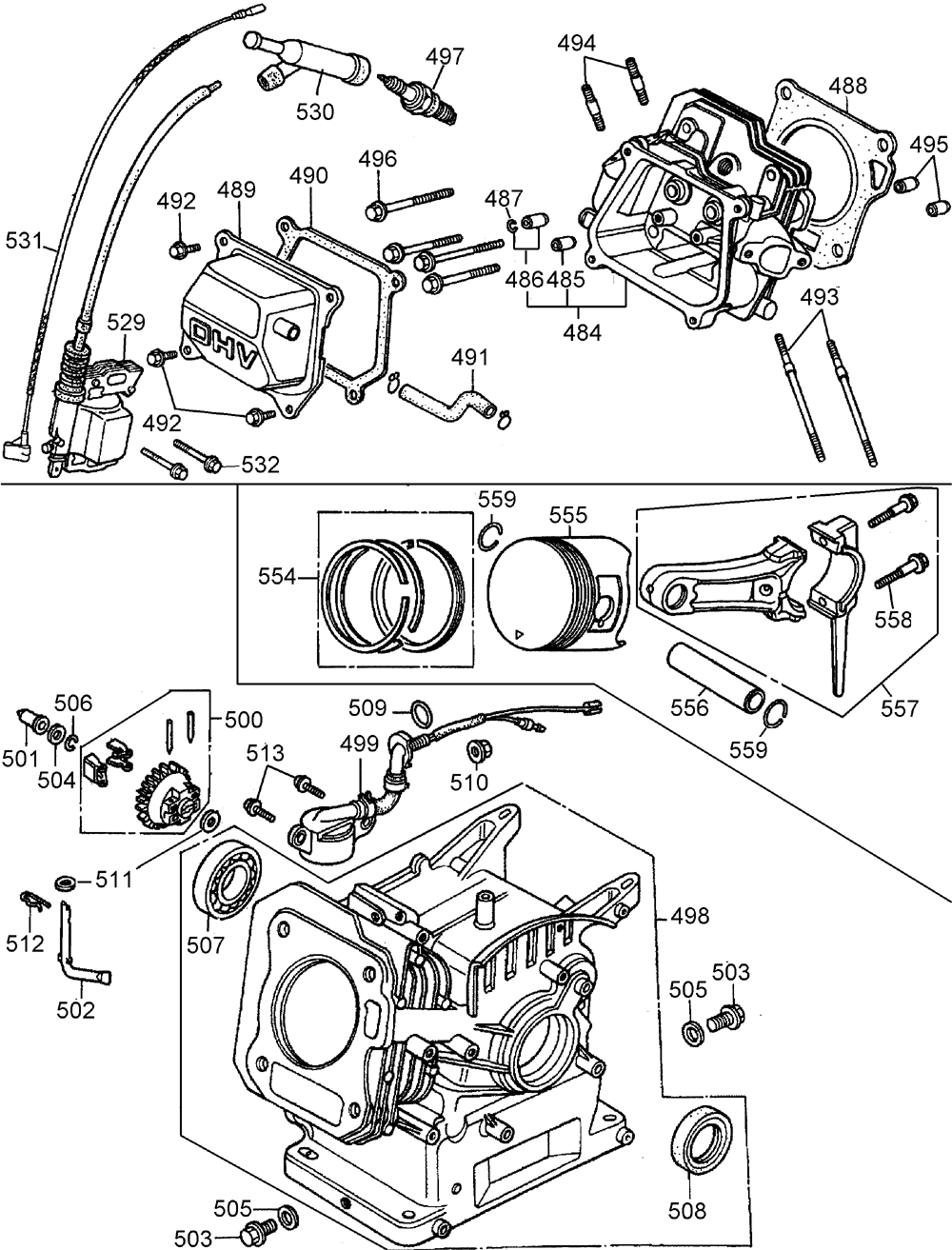

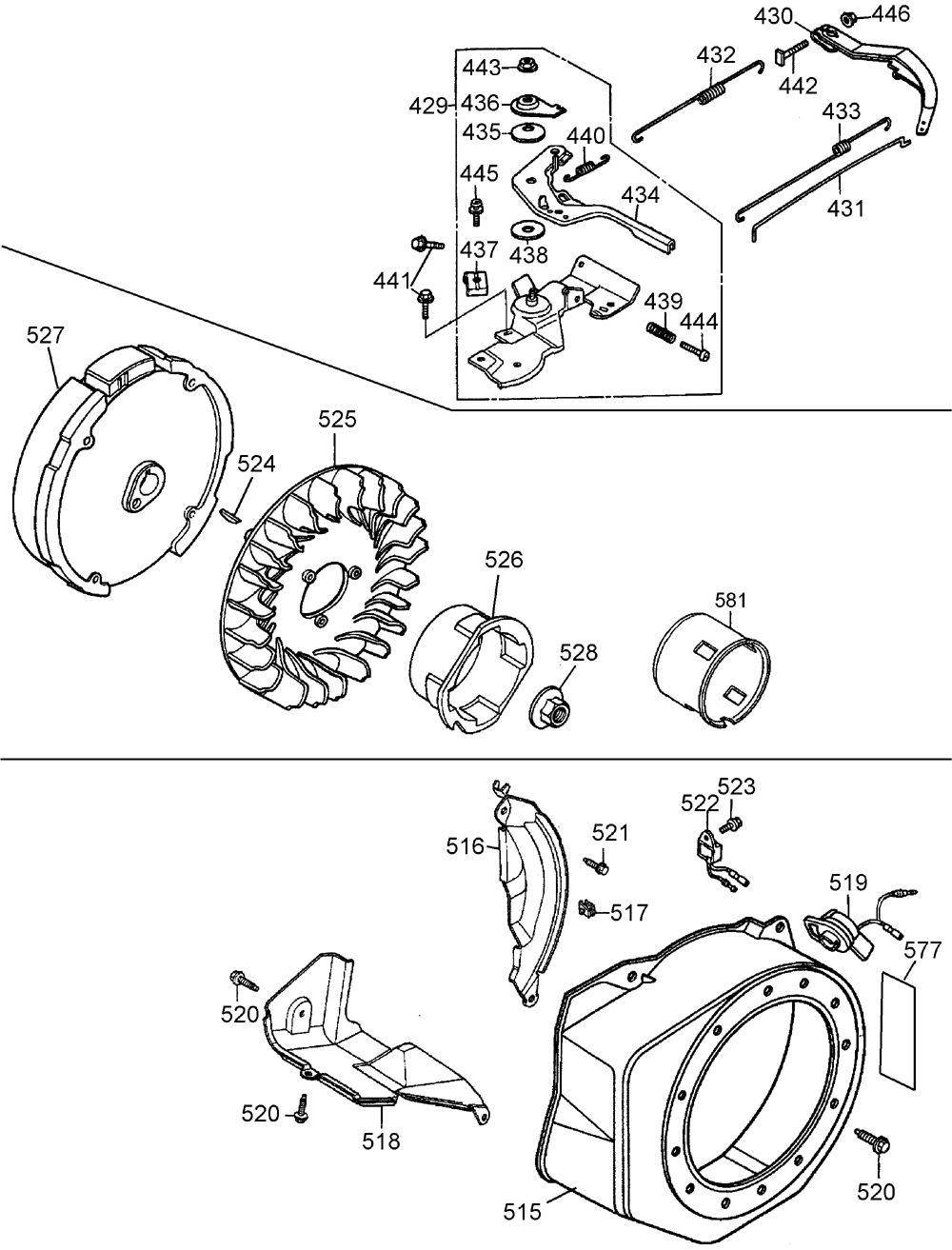

Dewalt D55276-Type-1 Compressor Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
3 5136674-01 TANK $1,086.01
4 5130243-00 FLAT WASHER $2.00
5 5130226-00 PULLEY $43.61
6 5130850-00 KEY $1.23
7 5130227-00 V-BELT $13.03
8 A21190 BELT GUARD $114.15
9 5130832-00 FENDER WASHER $1.36
10 5130196-00 SCREW $1.43
12 5130198-00 WASHER $0.61
13 5130199-00 TUBING $7.76
15 5130229-00 BOLT $2.39
16 A11643 WHEEL $17.53
17 5134369-00 FOOT $4.36
18 N072023 BALL VALVE $6.41
19 A17037 GRIP $2.21
20 5130205-00 GAUGE $10.87
21 5130947-00 ADAPTER $4.81
22 5130208-00 HOSE ASSEMBLY $45.46
23 5130030-00 VALVE $21.22
24 5130792-00 HEX HEAD BOLT $1.23
25 5130830-00 FLAT WASHER $1.05
26 5131052-00 TEE FITTING $18.60
27 5130199-00 TUBING $7.76
28 5130205-00 GAUGE $10.87
29 5130973-00 DRAIN ELBOW $10.72
30 5134389-00 REGULATOR ASSY. $78.20
31 5130261-00 FITTING $12.85
32 5130257-00 LOCK BOLT $1.74
33 A13450 HOSE $10.99
34 5130213-00 NUT $5.40
35 5130236-00 PILOT VALVE $42.51
37 5136480-00 HOSE CLAMP $9.07
38 5140038-46 ELBOW $3.96
39 5130262-00 PUSH NUT $2.96
40 5130417-01 BRACKET $12.39
41 A12475 ISOLATOR $1.84
42 5131109-00 REDUCER $2.51
44 5130233-00 BOLT $2.81
45 5130198-00 WASHER $0.61
46 5130234-00 BOLT $3.38
47 5130235-00 LOCK WASHER $2.51
48 5130231-00 BRACKET $7.50
49 5140006-94 SET SCREW $1.31
59 5140112-76 REGULATOR ASSEMBLY $80.64
61 5132685-00 BRACKET $8.31
63 5130552-00 O RING $1.53
201 5132168-00 CRANK CASE $77.46
202 5132170-00 BEARING CAP $9.91
203 5130111-00 GASKET $6.98
205 5130113-00 BOLT $6.98
206 5130114-00 BOLT $3.13
207 5130115-00 BALL BEARING $14.20
208 5130116-00 SEAL $6.35
209 5130117-00 PLUG $2.21
210 5133926-00 OIL CAP $3.35
211 5130119-00 O-RING $6.98
212 5130160-00 BREATHER ASSEMBLY $4.97
213 5130160-00 BREATHER ASSEMBLY $4.97
214 5130122-00 STUD $2.50
215 5130123-00 CRANKSHAFT $129.25
216 627567-00 CONNECTING ROD $29.09
217 5130126-00 BOLT $6.98
218 5130127-00 LOCK WASHER $6.98
219 5130128-00 FLYWHEEL $104.47
220 5130129-00 KEY $6.98
221 5132171-00 CYLINDER $64.13
222 5130545-00 GASKET $4.14
223 5130161-01 PISTON ASSEMBLY $82.38
224 5130133-00 COMPRESSION RING $10.54
227 5130135-00 PISTON PIN $8.05
228 5130136-00 RETAINER $2.81
229 5130137-02 VALVE PLATE $41.63
230 5130138-00 GASKET $7.36
231 5130139-00 RETAINING RING $1.56
232 5130140-00 VALVE BUMPER $3.61
233 5130141-00 VALVE SPRING $6.98
234 5130142-00 VALVE SPRING $6.98
235 5130143-00 VALVE DISC $8.67
236 5130144-00 GASKET $6.35
237 5130145-00 BOLT $2.36
238 5130146-00 BOLT $3.08
239 5130147-01 FILTER - 4 PACK $26.30
239 5130147-00 FILTER $7.93
240 5130148-00 HEAD $57.57
241 5130168-00 UNLOADER ASSEMBLY $8.73
242 5130150-00 O-RING $6.68
243 5130151-00 SPRING $10.87
244 5130152-00 WASHER $6.80
245 620639-00 RETAINING RING $5.26
247 5130160-00 BREATHER ASSEMBLY $4.97
249 5130164-00 VALVE ASSEMBLY $8.05
250 5130165-00 VALVE ASSEMBLY $8.05
251 5131692-00 FILTER ASSEMBLY $27.62
252 5130168-00 UNLOADER ASSEMBLY $8.73
253 5130154-00 NIPPLE $5.12
254 5130155-00 CAP $7.32
277 623935-00 RETAINING RING $1.43
401 285800-01 GASKET $4.55
402 285800-02 ELEMENT $21.81
403 285800-03 FILTER $6.33
404 285800-04 COVER $28.60
405 285800-05 GROMMET $3.25
406 285800-06 COLLAR $4.00
407 285800-07 COLLAR $4.00
408 285800-08 ELBOW $47.61
409 285800-09 NUT $2.81
411 285800-11 WING NUT $3.71
413 285800-13 BOLT $1.12
414 285800-14 CAMSHAFT $123.67
415 285800-15 PUSH ROD $8.09
416 285800-16 ARM $5.78
417 285800-17 LIFTER $11.45
418 285800-18 PIVOT $5.60
419 285800-19 SPRING $3.23
420 285800-20 VALVE $21.27
421 285800-21 VALVE $28.68
422 285800-22 SPRING $3.47
423 285800-23 RETAINER $8.99
424 285800-24 RETAINER $9.81
425 285800-25 ROTATOR VALVE $5.78
426 285800-26 PLATE $3.26
427 285800-27 BOLT $7.93
428 285800-28 NUT $4.27
429 285800-29 CONTROL ASSY $37.39
430 285800-30 ARM $14.83
431 285800-31 ROD $4.57
432 285800-32 SPRING $5.22
433 285800-33 SPRING $3.79
434 285800-34 LEVER $13.53
435 285800-35 SPRING $3.85
436 285800-36 WASHER $5.32
437 285800-37 HOLDER $4.83
438 285805-67 SPACER $5.12
439 285800-39 SPRING $4.82
440 285800-40 SPRING $2.36
441 285800-41 BOLT $2.16
442 285800-42 BOLT $3.16
443 285800-43 NUT $4.02
444 285800-44 SCREW $0.66
445 285800-45 SCREW & WASHER $1.12
446 285800-46 NUT $1.31
447 285800-47 GASKET SET $18.68
448 285800-48 VALVE SET $27.14
449 285800-49 FLOAT SET $22.16
450 285800-50 CHAMBER SET $26.42
451 285800-51 SET SCREW $19.48
452 285800-52 SET SCREW $10.10
453 285800-53 SET SCREW $12.66
454 285800-54 CHOKE SET $26.30
455 285800-55 CARBURETOR $124.69
456 285800-56 SCREW $14.10
457 285800-57 NOZZLE $20.20
458 285800-58 O-RING $7.16
459 285800-59 INSULATOR $21.75
460 285800-60 GASKET $3.25
461 285800-61 SPACER $7.98
462 285800-62 GASKET $1.67
463 285800-63 LEVER $10.17
464 285800-64 LEVER $9.57
465 285800-65 PLATE $3.54
466 285800-66 SPRING $3.67
467 285800-67 GASKET $4.40
468 285800-68 CUP $22.06
469 285800-69 SCREW $0.86
470 285800-70 PIN $1.60
471 285800-72 JET $7.79
471 285800-71 JET $7.79
472 285800-73 JET $21.44
473 285800-74 COVER ASSY. $128.33
474 285800-75 GASKET $7.70
475 285800-76 CAP ASSY. $6.35
476 285800-77 CAP ASSY. $6.42
477 285800-78 GASKET $3.31
478 285800-79 SEAL $8.49
479 285800-80 PIN $1.72
480 285800-81 BOLT $1.67
481 285800-82 BALL BEARING $22.75
482 285800-83 CRANKSHAFT $242.81
483 285800-84 KEY $13.92
484 285806-68 CYLINDER HEAD $200.96
485 285800-86 GUIDE $10.75
486 285800-87 GUIDE $8.74
487 285800-88 CLIP $1.60
488 285800-89 GASKET $15.24
489 285800-90 COVER $15.78
490 285800-91 GASKET $5.13
491 285800-92 TUBE $4.57
492 285800-93 BOLT $3.47
493 285800-94 BOLT $6.23
494 285800-95 BOLT $4.40
495 285800-96 PIN $2.13
496 285800-97 BOLT $1.89
497 285800-98 SPARK PLUG $4.57
498 285800-99 CYLINDER $554.77
499 285801-00 SWITCH ASSY. $63.31
500 285801-01 GOVERNOR ASSY. $23.53
501 285801-02 SLIDER $3.71
502 285801-03 SHAFT $12.38
503 285801-04 DRAIN PLUG $3.25
504 285801-05 WASHER $2.20
505 285801-06 WASHER $1.59
506 285801-07 CLIP $1.74
507 285801-08 BALL BEARING $21.94
508 285800-79 SEAL $8.49
509 285801-10 O-RING $2.75
510 285801-11 NUT $1.44
511 285801-12 WASHER $0.53
512 285801-13 LOCK PIN $1.12
513 285801-14 BOLT $1.15
515 285801-15 COVER $78.98
516 285801-16 PLATE $10.03
517 285801-17 CLIP $2.07
518 285801-18 SHROUD $16.35
519 285801-19 SWITCH ASSY. $22.06
520 285800-41 BOLT $2.16
521 285801-21 BOLT $2.94
522 285801-22 OIL ALERT UNIT $58.79
523 285801-23 BOLT $7.77
524 285801-24 KEY $3.10
525 285801-25 FAN $25.75
526 285801-26 PULLEY $28.73
527 285801-27 FLYWHEEL $151.22
528 285801-28 NUT $7.26
529 285801-29 IGNITION COIL $99.04
530 285801-30 CAPACITOR ASSY $20.84
531 285801-31 WIRE $10.86
532 285801-32 BOLT $2.94
533 285801-33 RUBBER TUBE $4.83
534 285801-34 JOINT $11.08
535 285801-35 TANK $199.46
536 285801-36 CAP $15.78
537 285801-37 GASKET $3.70
538 285801-10 O-RING $2.75
539 285800-46 NUT $1.31
540 285801-40 HOSE $33.06
541 285801-41 CLIP $1.37
542 285801-42 BOLT $1.53
543 285806-79 STARTER ASSY. $134.89
544 285801-44 REEL $37.92
545 285801-45 RATCHET $8.15
546 285801-46 GUIDE $11.54
547 285801-47 SPRING $5.81
548 285801-48 SPRING $12.22
549 285801-49 SPRING $5.72
550 285801-50 KNOB $7.98
551 285805-10 ROPE $10.55
551 285801-51 ROPE $36.52
552 285801-52 SCREW $6.53
553 285801-53 BOLT $1.89
554 285801-56 RING SET $39.85
554 285801-57 RING SET $41.59
554 285801-54 RING SET $36.13
554 285801-55 RING SET $38.52
555 285806-62 PISTON $42.07
555 285806-64 PISTON $31.79
555 285801-61 PISTON $39.30
555 285801-60 PISTON $49.26
556 285801-62 PIN $11.81
557 285801-64 CON ROD ASSY $63.20
557 285801-63 CON ROD ASSY $73.86
558 285801-65 BOLT $3.31
559 285801-66 CLIP $1.52
567 285801-67 MUFFLER $82.35
568 285801-68 PROTECTOR $36.91
569 285801-69 SPARK ARRESTER $14.78
570 285801-70 GASKET $6.99
571 285801-71 SCREW $2.07
572 285801-72 SCREW $2.07
573 285801-73 NUT $1.05
574 285801-74 EMBLEM $9.06
575 285801-75 LABEL $4.52
576 285801-76 LABEL $2.20
577 285801-77 LABEL $3.85
578 285801-78 LABEL $5.06
579 285801-79 LABEL $3.23
580 285806-76 SEAL $8.37
581 285806-81 STARTER PULLEY $27.04
800 5130427-00 OIL $20.95
836 5140100-02 LOCTITE $196.37
846 5140019-94 TUNE-UP KIT $39.37
846 5130161-01 PISTON ASSEMBLY $82.38
846 5132627-00 VALVE PLATE ASSY $42.15
846 5130158-00 GASKET SET $18.97
846 5130167-00 HEAD ASSEMBLY $68.75
846 5130159-00 REPAIR KIT $167.38
