DeWalt D51844-Type-2 Air Nailer & Stapler Parts

DeWalt D51844-Type-2 Air Nailer & Stapler Parts Image

DeWalt D51844-Type-2 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

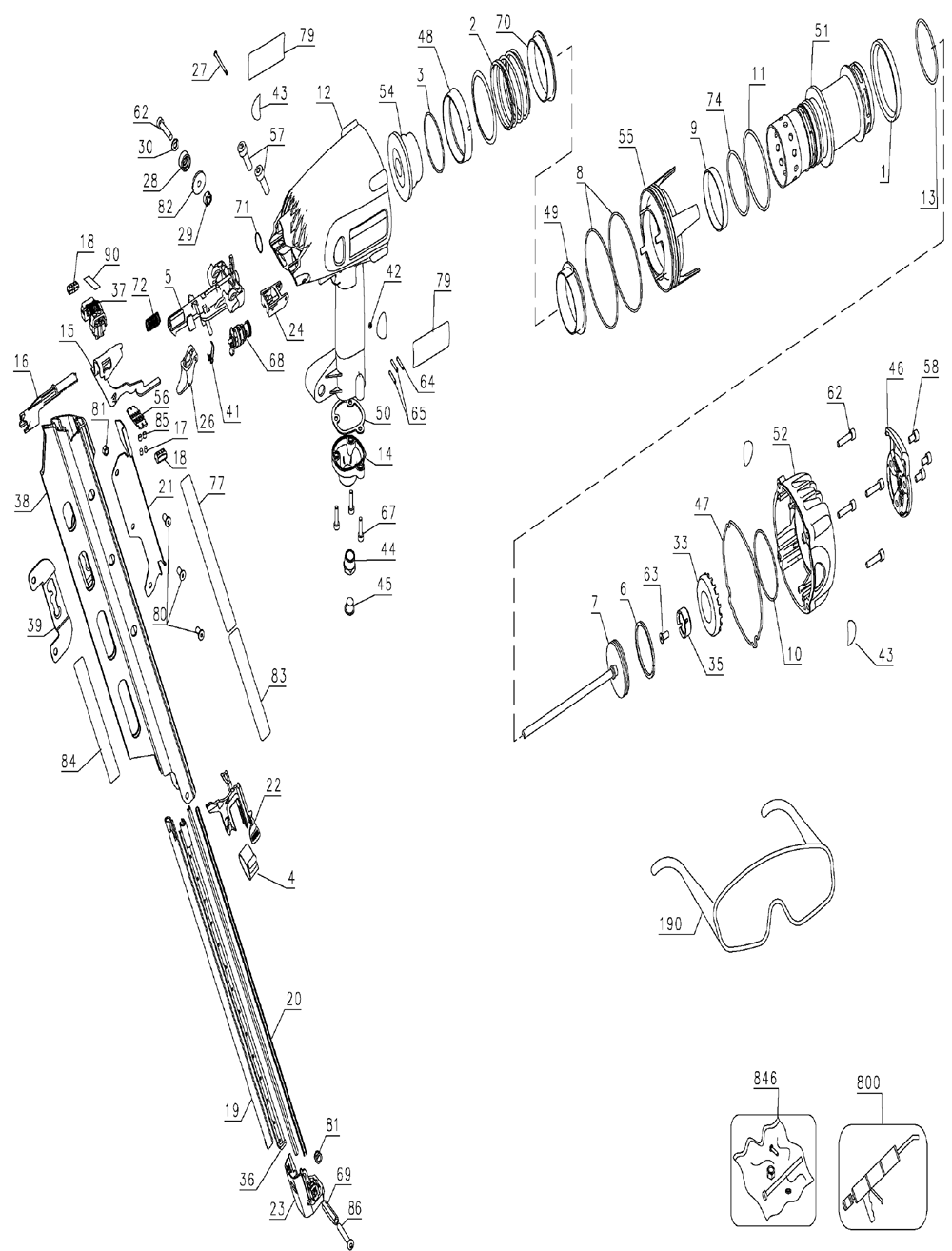

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	390140-00	SEAL	$3.01
2	603413-00	SPRING	$3.01
3	390146-00	O-RING	$1.94
4	390147-00	NEGATOR HUB	$20.43
5	610782-00	ROUND NOSE	$65.31
6	608611-00	O-RING	$1.83
7	610757-00SV	PISTON DRIVER ASSY.	$65.31
8	390156-00	O-RING	$3.01
9	390159-00	SEAL	$1.94
10	608615-00	O-RING	$1.29
11	N034172	O-RING	$3.95
12	647261-00	FRAME	$99.12
12	647261-00	FRAME	$99.12
13	608617-00	O-RING	$1.29
14	612132-00	END CAP	$13.27
15	N016232	CONTACT TRIP	$17.94
16	638750-00	CONTACT TRIP	$11.51
17	326467-00	DETENT	$1.24
18	633359-00	CAP	$1.72
19	391801-00	SHANK LINER	$2.44
20	649200-00	LINER	$6.80
21	606632-01	GUIDE	$8.45
22	645646-00	PUSHER	$22.76
23	610774-00SV	MAGAZINE CAP	$14.45
24	N000248	GUIDE	$2.10
26	395198-00	TRIGGER	$10.12
26	390746-00	TRIGGER	$10.38
27	395091-00	PIN	$2.04
28	617164-00	SPACER	$2.09
29	612149-00	MAGAZINE BRT WASHER	$2.84
30	098197-10	LOCKWASHER	$1.17
33	610753-00	BUTTON	$1.31
35	391789-00	BUMPER	$3.01
36	391802-00	SHANK LINER	$2.44
37	N016446	COVER	$2.69
38	5140046-04	MAGAZINE	$77.59
39	648834-00	BRACKET	$4.96
41	391813-00	SPRING	$1.15
42	391814-00	GROMMET	$1.89
43	627133-00	LABEL	$1.18
44	395195-00	BUSHING	$3.81
45	395196-00	PLUG	$1.15
46	612133-01	DEFLECTOR	$3.78
47	608610-00	SEAL	$1.91
47	648243-00	GASKET	$3.39
48	N009190	COLLAR	$4.96
49	395204-00	SPRING RETAINER	$1.82
50	649365-00	GASKET	$1.36
51	646003-00	CYLINDER	$55.84
52	645503-00	TOP CAP	$33.64
54	610777-00	BUMPER	$7.81
55	395215-00	BULKHEAD	$8.83
56	633214-00	ADJUSTER	$6.23
57	650164-00	SCREW	$1.21
58	650162-00	SCREW	$1.21
62	650165-00	SCREW	$1.21
63	650159-00	SCREW	$1.09
64	650155-00	SPIRAL PIN	$1.21
65	650156-00	SPIRAL PIN	$1.21
67	650163-00	SCREW	$1.21
68	5140095-73	TRIGGER VALVE KIT	$27.23
69	640783-00	SPACER	$1.33
70	603561-00	BAND	$1.15
71	617161-00	O-RING	$1.12
72	390735-00	SPRING	$1.15
74	606640-00	O-RING	$2.55
77	N000452	LABEL	$1.21
79	626181-00	LABEL	$1.18
80	650161-00	SCREW	$1.21
81	330021-01	NUT, STOP	$1.21
82	617165-00	WEAR PLATE	$1.33
83	627136-00	LABEL	$1.18
84	647245-00	WARNING LABEL	$1.09
85	633216-00	DETENT BUSHING	$1.33
86	650160-00	SCREW	$1.09
90	N013927	INSTRUCTION LABEL	$1.16
190	629042-00	SAFETY GLASSES	$11.92
800	429995-00	GREASE	$50.49
846	606123-00	PISTON DRIVER ASSEMBLY	$60.15
846	609993-00	TRIGGER	$26.17
846	5140112-77	O-RING KIT	$30.29
846	606134-00	TRIGGER	$24.83
846	606130-01	BUMPER	$41.05
846	606132-00	TRIGGER VALVE ASY	$25.80
846	606131-00	MAGAZINE SPRING	$25.13
