DeWalt D51822-Type-4 Air Nailer & Stapler Parts

DeWalt D51822-Type-4 Air Nailer & Stapler Parts Image

DeWalt D51822-Type-4 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

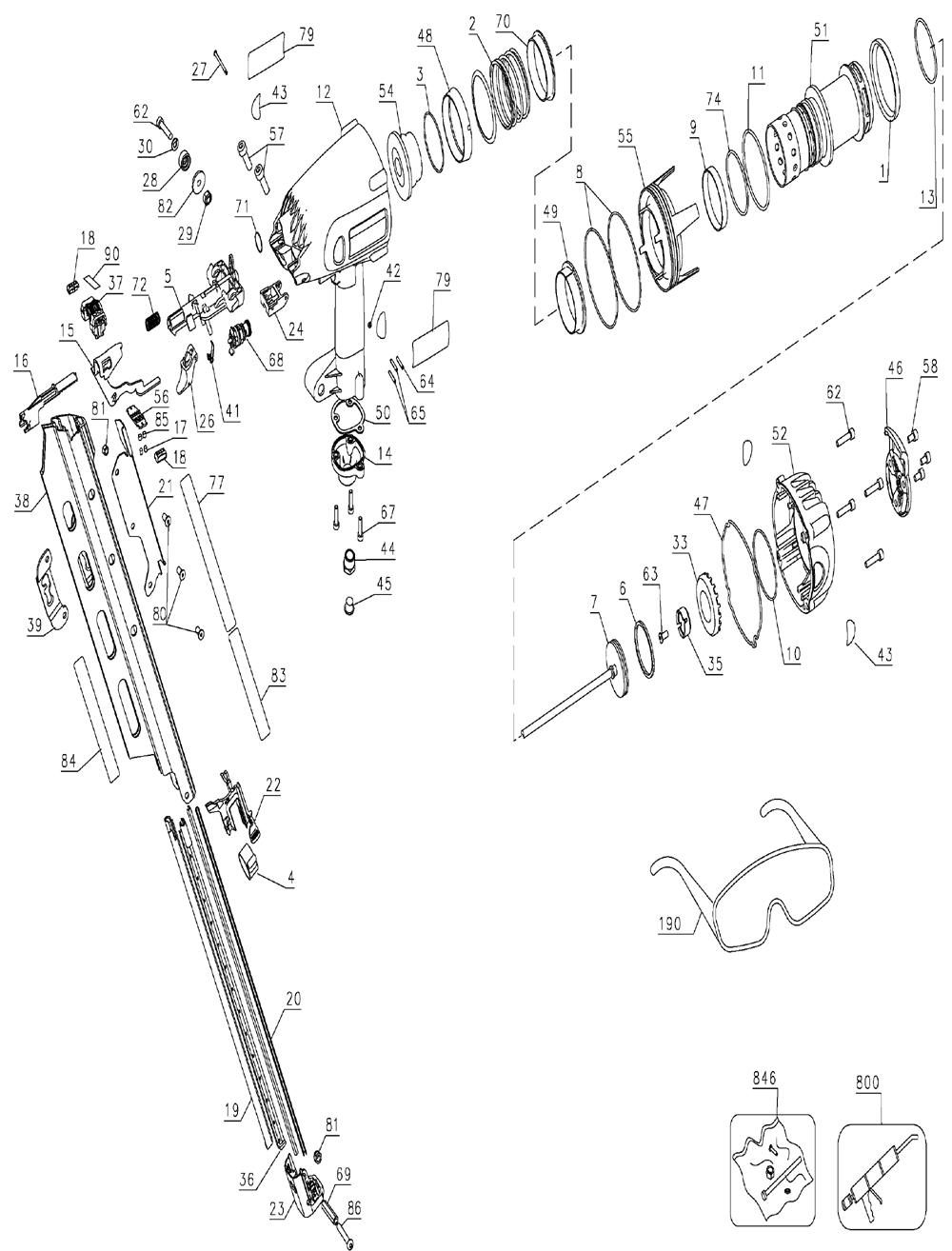

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	390140-00	SEAL	$3.01
2	603413-00	SPRING	$3.01
3	390146-00	O-RING	$1.94
4	390147-00	NEGATOR HUB	$20.43
5	647258-00	NOSE	$55.84
6	608611-00	O-RING	$1.83
7	610756-00	PISTON DRIVER ASSY.	$70.20
8	390156-00	O-RING	$3.01
9	N025479	ORING	$1.28
10	608615-00	O-RING	$1.29
11	612096-00	O-RING	$2.90
12	647261-00	FRAME	$99.12
13	608617-00	O-RING	$1.29
14	612132-00	END CAP	$13.27
15	N016232	CONTACT TRIP	$17.94
16	1000003831	CONTACT TRIP	$14.49
17	326467-00	DETENT	$1.24
18	633359-00	CAP	$1.72
19	390727-00	SHANK LINER	$2.44
20	649201-00	LINER	$6.66
21	606632-00	GUIDE	$7.71
22	645896-00	PUSHER	$21.12
23	610774-00SV	MAGAZINE CAP	$14.45
24	N000248	GUIDE	$2.10
26	641214-00	TRIGGER	$18.05
26	641188-00	TRIGGER ASSEMBLY	$10.13
27	395091-00	PIN	$2.04
28	617164-00	SPACER	$2.09
29	612149-00	MAGAZINE BRT WASHER	$2.84
30	098197-10	LOCKWASHER	$1.17
33	610753-00	BUTTON	$1.31
35	641198-00	BUMPER	$2.41
36	391795-00	SHANK LINER	$2.44
37	N016446	COVER	$2.69
38	5140071-31	MAGAZINE W/LABELS	$63.76
39	648833-00	BRACKET	$5.29
41	391813-00	SPRING	$1.15
42	391814-00	GROMMET	$1.89
43	627133-00	LABEL	$1.18
44	395195-00	BUSHING	$3.81
45	395196-00	PLUG	$1.15
46	612133-01	DEFLECTOR	$3.78
47	648243-00	GASKET	$3.39
48	N009190	COLLAR	$4.96
49	N009191	SPRING RETAINER	$2.10
50	649365-00	GASKET	$1.36
51	N020905	CYLINDER	$82.82
52	645503-00	TOP CAP	$33.64
54	610777-00	BUMPER	$7.81
55	395215-00	BULKHEAD	$8.83
56	633214-00	ADJUSTER	$6.23
57	650164-00	SCREW	$1.21
58	650162-00	SCREW	$1.21
62	650165-00	SCREW	$1.21
63	650159-00	SCREW	$1.09
64	650155-00	SPIRAL PIN	$1.21
65	650156-00	SPIRAL PIN	$1.21
67	650163-00	SCREW	$1.21
68	647956-00	TRIGGER VALVE ASSEMBLY	$12.63
69	640783-00	SPACER	$1.33
70	603561-00	BAND	$1.15
71	617161-00	O-RING	$1.12
72	390735-00	SPRING	$1.15
74	606640-00	O-RING	$2.55
79	626181-00	LABEL	$1.18
80	650161-00	SCREW	$1.21
81	330021-01	NUT, STOP	$1.21
82	617165-00	WEAR PLATE	$1.33
83	N013208	LABEL	$1.16
84	N025477	WARNING LABEL	$1.48
85	633216-00	DETENT BUSHING	$1.33
86	650160-00	SCREW	$1.09
90	N013927	INSTRUCTION LABEL	$1.16
190	629042-00	SAFETY GLASSES	$11.92
800	429995-00	GREASE	$50.49
846	N003391	TRIGGER	$18.56
846	5140115-14	O-RING KIT	$27.10
846	606131-00	MAGAZINE SPRING	$25.13
846	606130-01	BUMPER	$41.05
846	606125-00	PISTON DRIVER ASSEMBLY	$73.21
