DeWalt D51420K Air Nailer & Stapler Parts

DeWalt D51420K Air Nailer & Stapler Parts Image

DeWalt D51420K Parts

Download Schematic

Time to buy a new tool?

DeWalt D51420K

Heavy-Duty 1-Inch x ...

$98.86

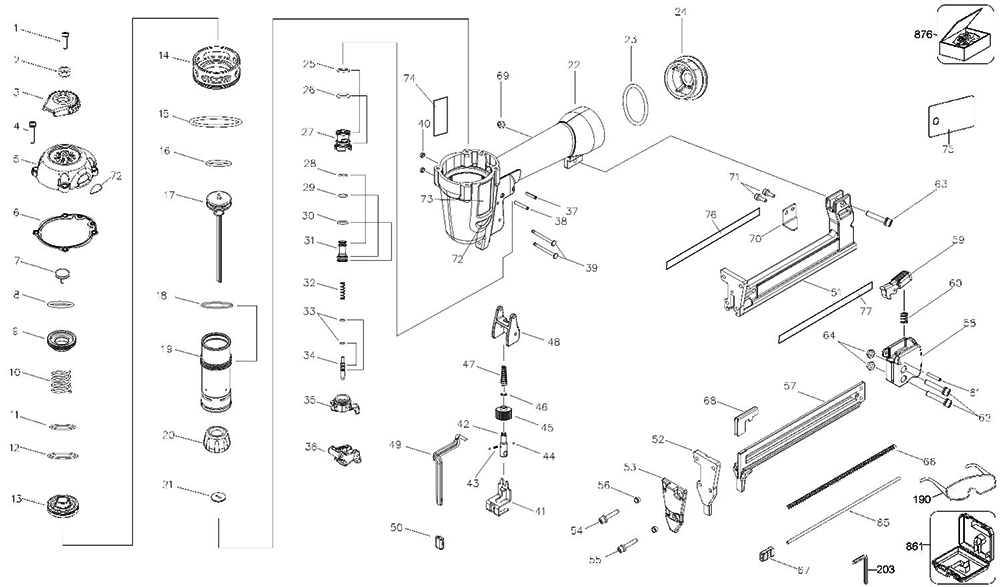

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	5140036-00	BOLT	$1.21
2	5140036-01	BUSHING	$1.44
3	5140036-02	EXHAUST DEFLECTOR	$1.77
4	5140036-03	BOLT	$1.21
5	5140036-04	CAP	$14.65
6	5140036-05	GASKET	$1.21
7	5140036-06	SEAL	$1.21
8	5140036-07	O-RING	$1.21
9	5140036-08	BUMPER	$1.44
10	5140036-09	SPRING	$1.31
11	5140036-10	O-RING	$1.75
12	5140036-11	O-RING	$1.75
13	5140036-12	HEAD VALVE	$4.27
14	5140036-13	HOLD DOWN	$2.63
15	5140036-14	O-RING	$1.75
16	5140036-53	O-RING	$1.75
17	5140036-51	DRIVER ASSY	$14.73
18	5140036-11	O-RING	$1.75
19	5140036-18	CYLINDER	$8.88
20	5140036-19	BUMPER	$2.39
21	5140036-20	PLATE	$1.21
22	5140036-21	BODY	$41.70
23	5140036-22	O-RING	$1.75
24	5140036-23	END CAP	$6.68
25	50049-00	O RING	$1.23
26	390748-00	O-RING	$1.23
27	639885-00	TRIGGER HOUSING	$1.84
28	639886-00	O-RING	$1.21
29	390745-00	O-RING	$1.12
30	390154-00	O-RING	$1.12
31	391790-00	PILOT VALVE	$3.01
32	603414-00	SPRING	$1.12
33	617160-00	O-RING	$1.16
34	390743-00	STEM TRIGGER VALVE	$3.87
35	641011-00	CAP	$2.63
36	398230-00	TRIGGER ASSY	$4.56
37	330036-24	ROLL PIN	$1.23
38	330036-20	ROLL PIN	$1.23
39	395091-00	PIN	$2.04
40	391814-00	GROMMET	$1.89
41	5140036-26	CONTACT TRIP	$2.22
42	5140036-27	DEPTH ADJUSTMENT ROD	$2.16
43	5140036-28	SPRING	$1.21
44	5140036-29	STEEL BALL	$1.75
45	5140036-30	ADJUSTING NUT	$3.71
46	5140036-31	RETAINING RING	$1.75
47	5140036-32	SAFETY SPRING	$1.21
48	5140036-33	GUIDE	$1.21
49	5140036-52	CONTACT TRIP	$5.12
50	5140048-58	RUBBER PAD	$1.12
51	5140036-54	MAGAZINE	$30.05
52	5140036-55	LOWER DOOR	$18.71
53	5140036-56	SAFETY COVER	$1.44
54	5140036-57	BOLT	$1.75
55	5140036-58	BOLT	$1.75
56	5140036-59	BUSHING	$1.21
57	5140036-60	MAGAZINE	$30.85
58	5140036-61	MAGAZINE CAP	$6.60
59	5140036-43	MAGAZINE LATCH	$1.21
60	5140036-63	LATCH SPRING	$1.21
61	330036-24	ROLL PIN	$1.23
62	5140036-65	BOLT	$1.75
63	608180-00	SCREW & WASHER	$1.23
64	5140036-67	NUT	$1.75
65	5140036-68	GUIDE ROD	$1.31
66	5140036-69	MAGAZINE SPRING	$1.21
67	5140036-70	SPRING LATCH	$1.44
68	5140036-71	PUSHER	$2.86
69	330021-00	NUT, ELASTIC STP	$1.23
70	5140036-73	STOP	$2.16
71	5140036-00	BOLT	$1.21
72	619132-00	BUMPER	$1.89
73	613091-00	LABEL	$1.12
74	640767-00	NAME PLATE	$1.21
75	640766-00	HANG TAG	$2.86
76	640765-00	WARNING LABEL	$1.44
77	640764-00	DEPTH LABEL	$1.44
190	629042-00	SAFETY GLASSES	$11.92
203	604407-02	HEX WRENCH	$1.23
861	607317-00	KIT BOX	$42.91
876	606132-00	TRIGGER VALVE ASY	$25.80
876	646778-00	O-RING KIT	$17.36
876	646776-00	BUMPER KIT	$1.03
876	646773-00	DRIVER KIT	$24.32
