Dewalt D51238K-Type-2
18-Gauge Brad Nailer...
$103.22
Tool Diagram    (Click image to Zoom in) View larger Image

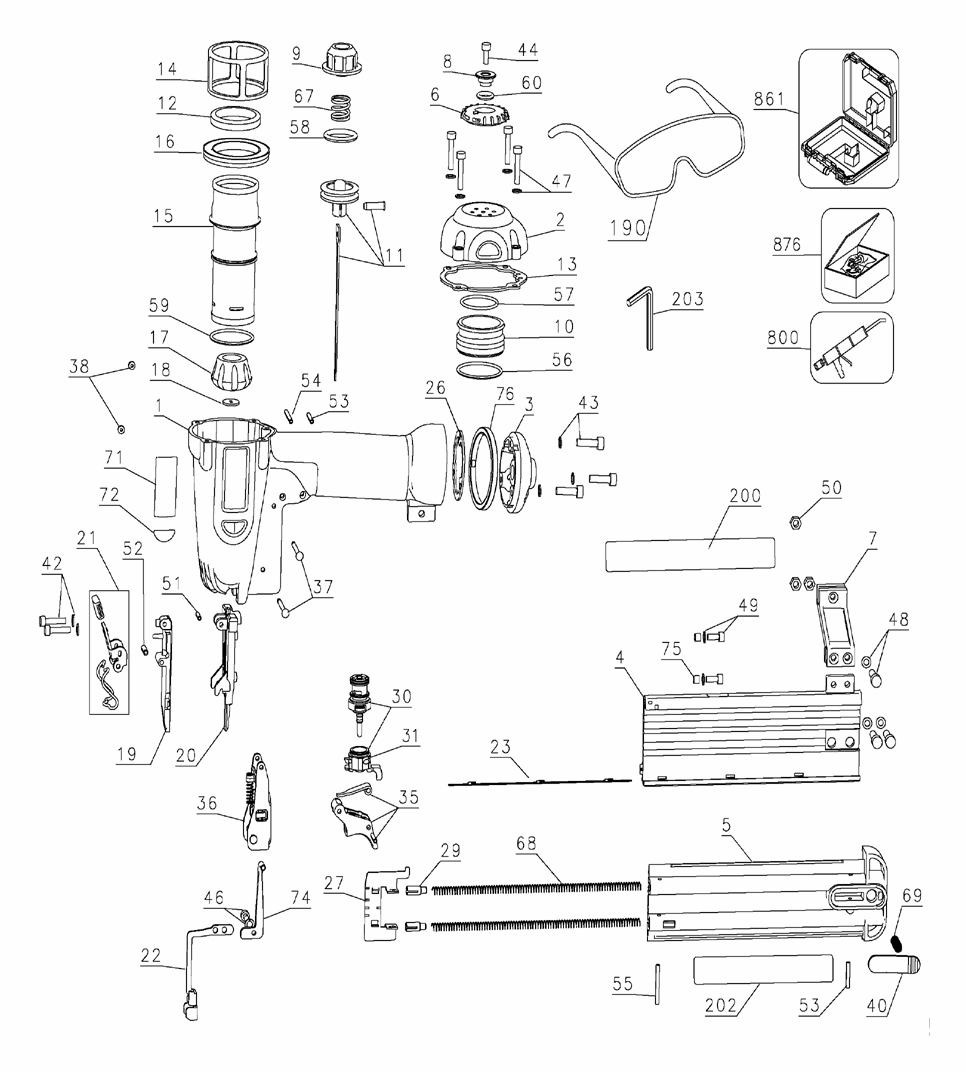

Dewalt D51238K-Type-2 Air Nailer & Stapler Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 643994-00 FRAME $32.26
2 395486-00 CAP $22.27
3 395433-00 END CAP $5.66
4 613726-00 MAGAZINE $20.37
5 647181-00 MAGAZINE COVER $22.06
6 621872-00 EXHAUST DEFLECTOR $1.92
7 395527-00 BRACKET $3.01
8 619175-00 BUSHING $1.12
9 640887-00 BUMPER $6.06
10 395490-00 HEAD VALVE $18.60
11 395499-00 PISTON DRIVER ASSY. $24.11
12 395489-00 SEAL $3.45
13 395488-00 GASKET $3.01
14 395492-00 HOLD DOWN $2.51
15 395494-00 CYLINDER $18.60
16 395496-00 BULKHEAD $3.81
17 395500-00 BUMPER $3.81
18 395501-00 PLATE $2.04
19 395513-00 DOOR $22.27
20 395515-00 NOSE $27.53
21 607178-00 LATCH ASSEMBLY $11.21
22 395520-00 CONTACT TRIP $2.51
23 395526-00 LINER $3.01
26 395430-00 GASKET $1.23
27 620041-00 PUSHER $2.30
29 395533-00 LOCK PIN $1.94
30 647956-00 TRIGGER VALVE ASSEMBLY $12.63
31 641011-00 CAP $2.63
35 398219-00 TRIGGER ASSEMBLY $3.81
35 398230-00 TRIGGER ASSY $4.56
36 N110774 ADJUSTER $14.63
37 395091-00 PIN $2.04
38 391814-00 GROMMET $1.89
40 613029-00 LATCH $6.28
42 608182-00 SCREW & WASHER $1.23
43 608178-00 SCREW $1.23
44 98119-10 SCREW $1.23
46 608183-00 SCREW & WASHER $1.23
47 608184-00 SCREW & WASHER $1.23
48 608180-00 SCREW & WASHER $1.23
49 608179-00 SCREW & WASHER $1.23
50 607156-00 ACORN NUT $1.23
51 330036-11 ROLL PIN $1.23
52 330036-24 ROLL PIN $1.23
53 330036-19 ROLL PIN $1.23
54 330036-20 ROLL PIN $1.23
55 330036-22 ROLL PIN $1.23
56 609020-00 O-RING $1.23
57 398169-00 O-RING $1.80
58 398170-00 O-RING $1.40
59 398171-00 O-RING $1.94
60 390748-00 O-RING $1.23
67 395491-00 SPRING $2.51
68 395530-00 SPRING $1.94
69 613030-00 SPRING $1.05
71 613091-00 LABEL $1.12
72 619132-00 BUMPER $1.89
74 644756-00 CONTACT TRIP $9.62
75 395505-00 BUSHING $2.04
76 614967-00 SPACER $1.62
190 629042-01 SAFETY GLASSES $9.73
200 618014-00 WARNING LABEL $1.87
202 646425-00 LABEL $1.18
203 604407-02 HEX WRENCH $1.23
800 429995-00 GREASE $50.49
861 607317-00 KIT BOX $42.91
876 605696-00 PISTON DRIVER ASSY. $27.00
876 605697-00 BUMPER $9.41
876 605647-00 O-RING KIT $17.97
876 609988-00 TRIGGER $16.70
876 606134-00 TRIGGER $24.83
