DeWalt D28715-Type-1 Electric Saw Parts

DeWalt D28715-Type-1 Electric Saw Parts Image

DeWalt D28715-Type-1 Parts

Download Schematic

Time to buy a new tool?

DeWalt D28715-Type-1

Heavy-Duty 14 Inch C...

$199.00

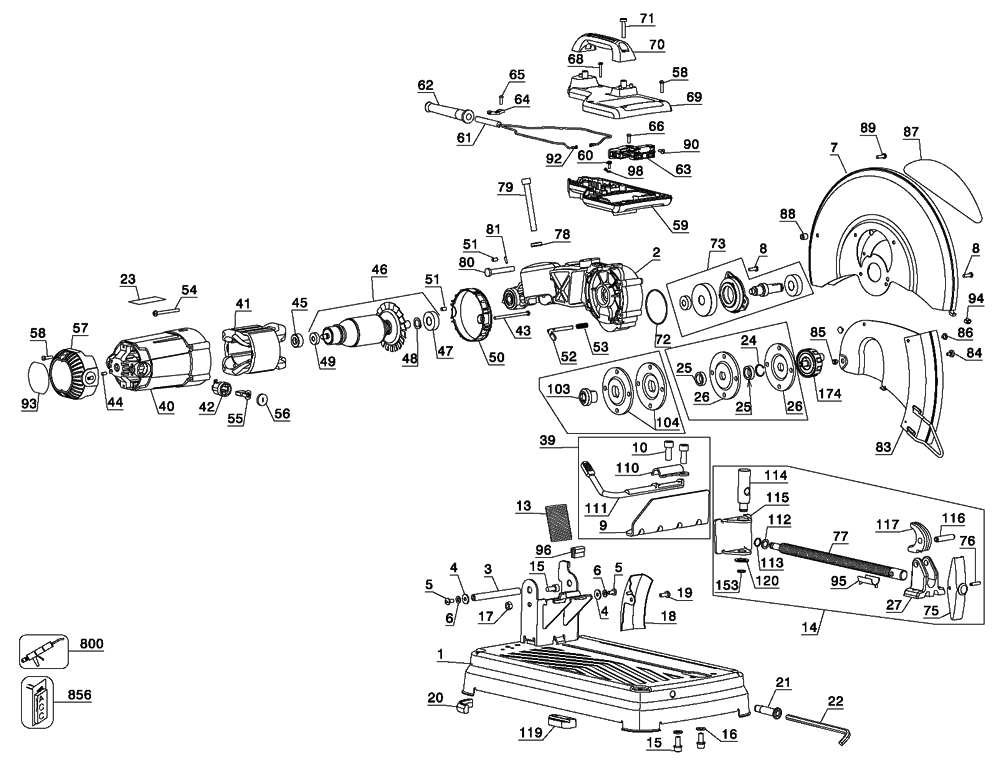

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	639944-00	BASE	$92.09

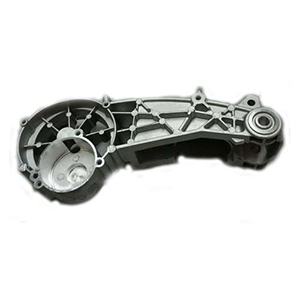

2	N105335	ARM	$48.72
3	621101-00	PIVOT SHAFT	$4.31
4	330016-18	WASHER	$1.10
5	153778-01	SCREW	$1.23
6	098197-10	LOCKWASHER	$1.17
7	639967-00	UPPER GUARD	$34.93
8	330045-15	SCREW, M5X20	$1.24
9	382677-00	FENCE	$8.18
10	383450-00	SCREW	$1.24
13	387282-00	COMPR SPRING	$5.22
14	384180-00S	VISE ASSEMBLY	$53.11
15	98123-16	SCREW	$1.16
16	098197-09	LOCKWASHER	$1.21
17	330021-02	NUT	$1.23
18	384159-00	SPARK DEFLECTOR	$4.28
19	330045-64	SCREW	$1.50
20	383243-00	FOOT	$2.13
21	386765-00	WRENCH HOLDER	$1.95
22	384717-00	HEX WRENCH	$4.96
23	639975-00	NAME PLATE	$1.23
24	389750-00	RETAINER RING	$1.23
25	621081-00	BLADE ADAPTER	$3.25
26	621079-00	CLAMP WASHER	$6.79
27	383810-00	VISE MOUNT	$10.38
39	384137-00	FENCE ASSEMBLY	$22.18
40	621067-02	FIELD CASE	$17.49
41	640192-00	FIELD	$82.62
42	622440-00	BRUSH HOLDER	$2.25
43	330019-34	SCREW	$1.24
44	330022-18	SET SCREW	$1.23
45	609970-00	BEARING CUP	$1.21
46	621069-02	ARMATURE & BRGS.	$78.29
47	605040-27	BALL BEARING	$3.38
48	144803-00	RING, RET.	$1.40
49	330003-60	BEARING	$4.75
50	391375-00	FAN BAFFLE	$3.89
51	623092-00	RUBBER PLUG	$1.10
52	621087-00	SPINDLE LOCK	$1.84
53	621088-00	SPRING	$1.10
54	98094-55	SCREW, M5 X 55MM	$1.24
55	N039389	BRUSH	$3.38
56	622441-00	BRUSH CAP	$1.10
57	621118-00	END CAP	$2.69
58	330019-13	SCREW, M4X19	$1.24
59	639958-00	HANDLE	$12.37
60	330045-06	SCREW	$1.24
61	330079-98	CORD/10FT/14-2SJ	$18.37
61	EC142	Power Tools Replacement Electical Cords (SJO) 14...	$16.19
62	330005-02	PROTECTOR, CORD	$4.37
63	639961-00	SWITCH	$44.93
64	386540-00	CORD CLAMP	$1.24
65	330019-02	SCREW, PLASTITE	$1.23
66	330019-11	SCREW	$1.24
68	330045-08	SCREW	$1.24
69	639963-00	HANDLE	$12.37
70	621082-00	CARRYING HANDLE	$1.84
71	330019-22	SCREW	$1.24
72	99180-46	O-RING	$1.10
73	621074-00	SPINDLE & GEAR	$30.73
75	383252-00	VISE HANDLE	$3.16
76	330036-08	PIN, ROLL	$1.23
77	395856-00	THREADED ROD	$26.67
78	383246-01	WASHER	$1.44
79	383286-00	SCREW	$1.24
80	621104-00	PIN	$2.03
81	330036-00	ROLL PIN	$1.10
83	639971-00	SPARK GUARD	$24.61
84	384844-00	SPECIAL SCREW	$1.44
85	148641-00	NUT, LOCK	$1.24
86	383637-00	RUBBER BUMPER	$1.28
87	621093-00	ID LABEL	$1.10
88	629619-00	SPACER	$1.28
89	330045-16	SCREW, TAPTITE	$1.24
90	384127-01	SCREW	$1.24
92	625933-00	TERMINAL	$4.27
93	391325-00	IDENT. LABEL	$1.69
94	386526-00	RUBBER STOP	$1.24
95	383451-00	SADDLE	$1.80
96	642739-00	STOP	$1.62
98	053650-03	TERMINAL	$1.24
103	649352-00	BLADE ADAPTER	$3.26
104	649353-00	CLAMP WASHER	$4.96
110	391459-00	PLATE LOCK	$3.16
111	382540-00	CAM LEVER	$9.31
112	384365-00	WASHERS	$1.24
113	383169-00	RETAINING RING	$1.24
114	603988-00	PIN	$3.65
115	607278-00	VISE JAW	$9.12
116	386525-01	DOWEL PIN	$1.24
117	383828-00	VISE LOCK	$7.35
119	383254-00	CLAMP BLOCK	$7.80
120	607592-00	WASHER	$1.21
153	398605-00	RETAINING RING	$1.24
174	629984-00S	BLADE CLAMP	$21.20
800	790206-00	GREASE, 6 OZ.	$36.71
