DeWalt D28112-Type-1
4-1/2 Inch (115mm) H...
$97.88
Tool Diagram    (Click image to Zoom in) View larger Image

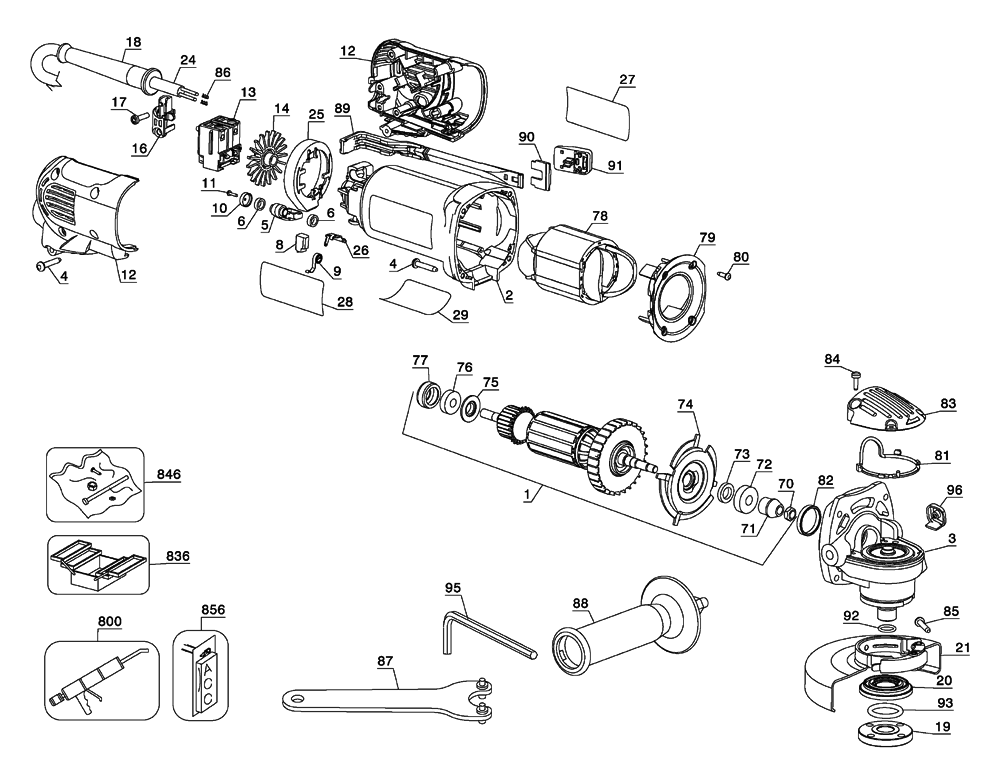

DeWalt D28112-Type-1 Electric Grinder Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 623584-12S ARMATURE ASSY. $46.00
2 623599-01 FIELD CASE $8.44
3 659967-00 GEAR $6.33
3 N012328SV GEAR CASE ASSY $37.42
4 330065-31 SCREW $1.10
5 648743-00 ARM $1.33
6 623592-00 FELT SEAL $1.10
8 650916-01 BRUSH $5.58
8 M65 This item will be shipped Free Carbon Brush Set $8.19
9 623589-00 BRUSH SPRING $1.10
10 623591-00 CAP $1.10
11 593685-00 SCREW $1.10
12 625243-00SV HANDLE SET $8.44
13 945614-00 SWITCH, ON/OFF $19.87
14 N055787 SEPARATOR $1.20
16 623612-00 CORD CLAMP $1.10
17 330019-03 SCREW $1.24
18 330005-01 PROTECTOR, CORD $4.63
18 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
19 636226-00 NUT $7.74
20 633257-00SV BACKING FLANGE $5.29
21 397661-01 GUARD $15.84
24 330072-98 CORD/8FT/18-2SJ $11.53
24 EC182 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 18... $10.19
25 637616-00 BAFFLE $2.35
26 623593-00 TERMINAL $1.10
27 628885-00 ID LABEL $1.10
28 629108-00 NAME PLATE $1.10
29 626891-00 WARNING LABEL $1.10
70 604484-00 NUT $1.24
71 623564-00 PINION $6.79
72 330003-60 BEARING $4.75
73 623617-00 FELT SEAL $1.10
74 623580-00 BRG. RETAINER $1.84
75 623613-00 SLINGER $3.09
76 605040-02 BALL BEARING $3.92
77 641823-00 BEARING CUP $1.62
78 621220-01 FIELD $30.73
79 623572-00 FAN BAFFLE $1.10
80 330065-25 SCREW $1.18
81 623618-00 GASKET $1.10
82 611492-00 SLEEVE, RUBBER $1.12
83 623562-00 GEAR CASE COVER $5.98
84 385676-01 SCREW $1.10
85 631609-02 SCREW $1.39
86 444262-00 TERMINAL $1.24
87 401680-00 WRENCH $8.18
88 614796-00 SIDE HANDLE $12.71
89 623610-00 LINK $1.10
90 644326-00 BAR $1.50
91 623608-00 SWITCH BUTTON $1.28
92 633044-00 O-RING $1.33
93 633043-00 O-RING $1.72
800 429954-00 GREASE, 7LBS $168.34
800 429954-01 GREASE, 1 LB. $87.14
800 30301914-01 GREASE $86.88
800 583534-00 GREASE $61.97
846 5140030-98 SHIM $1.23
856 643772-00 GUARD $12.88
