DeWalt D25941K-Type-3 Electric Hammer Drill Parts

DeWalt D25941K-Type-3 Electric Hammer Drill Parts Image

DeWalt D25941K-Type-3 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

Page-1

Page-2

Page-3

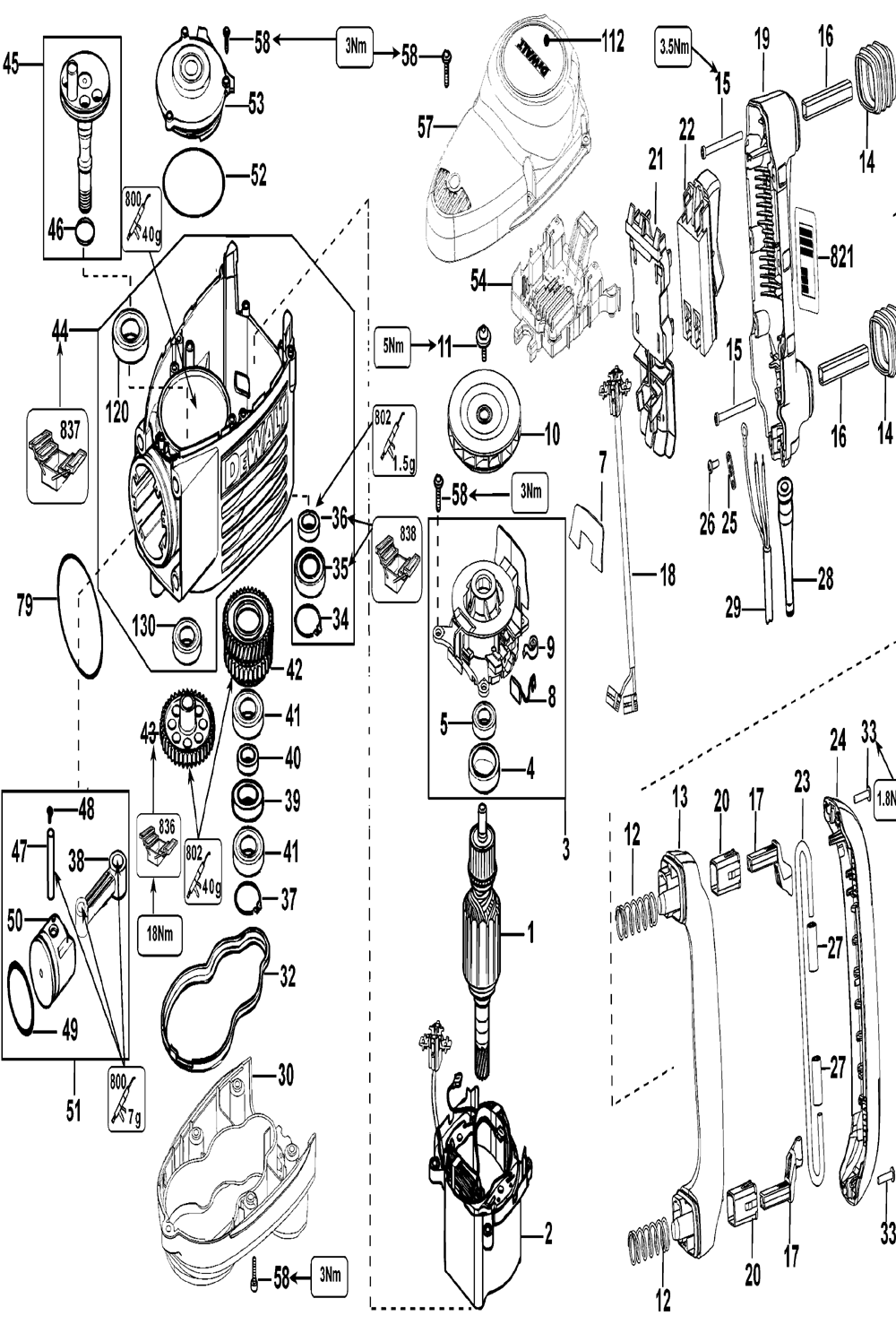

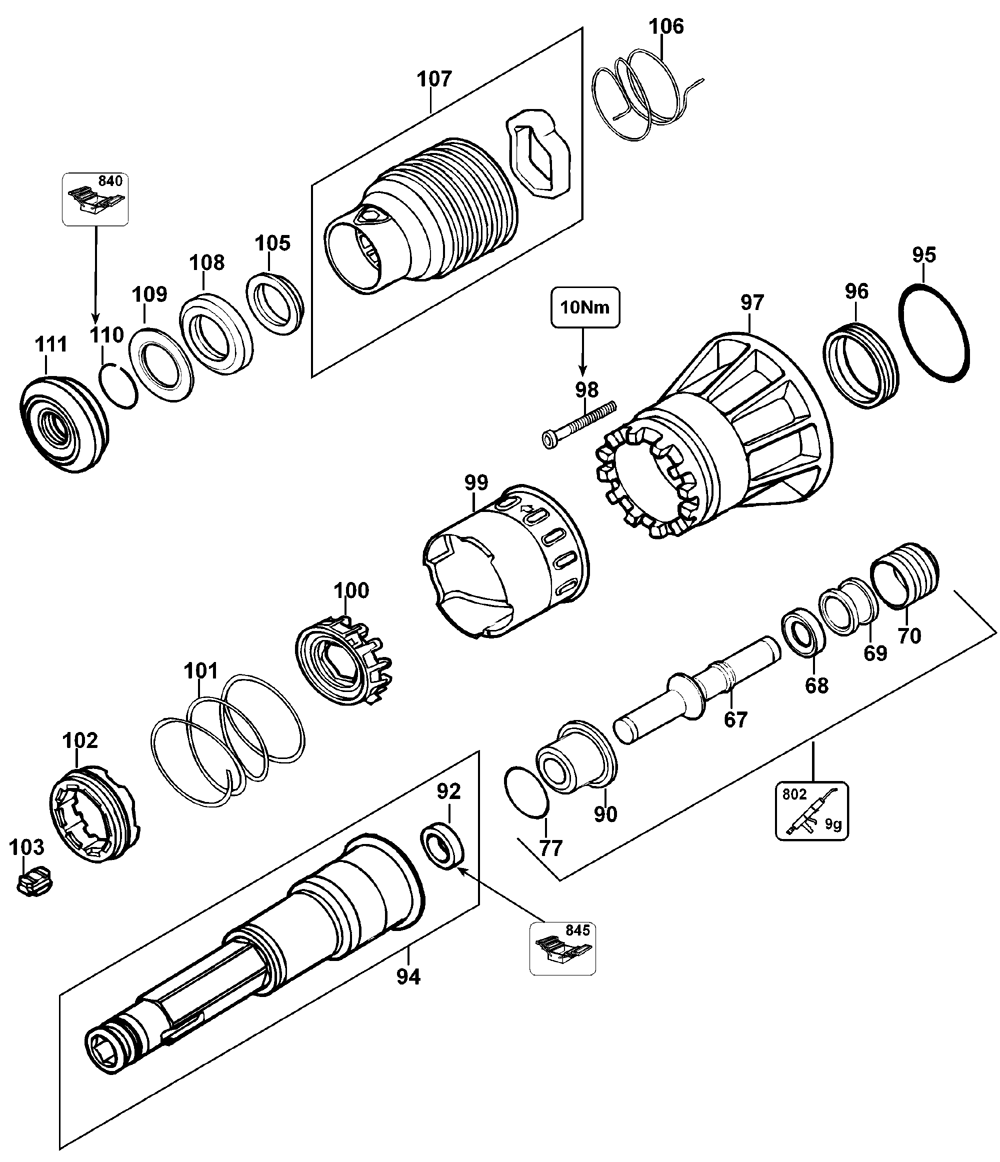

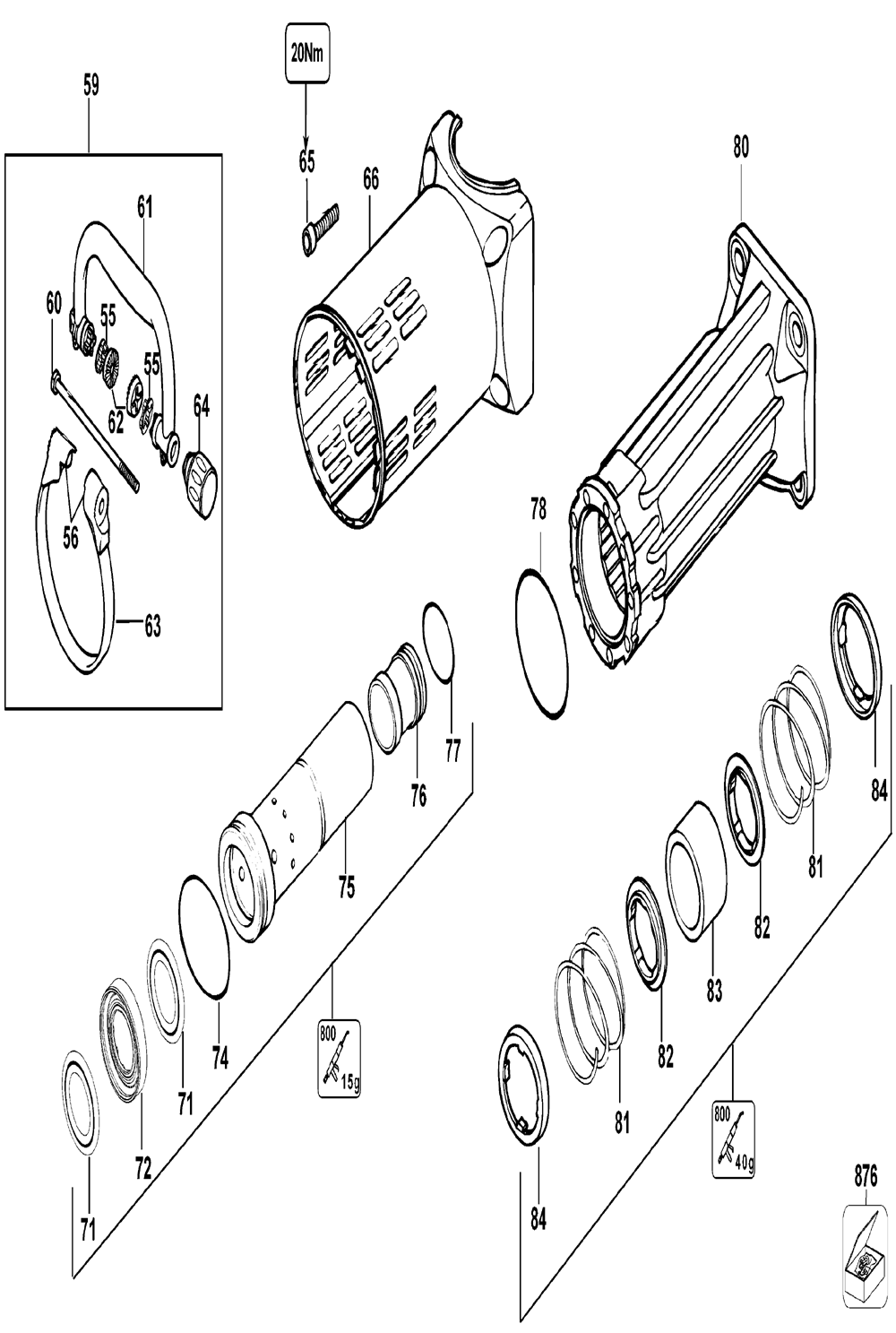

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	579837-03	ARMATURE	$228.51
2	579827-05	FIELD ASSEMBLY	$141.14
3	1007719-01	BRUSH HOLDER ASSY	$68.20
4	590191-00	SLEEVE, INSULATE	$1.44
5	577745-00	BALL BEARING	$9.36
7	1007800-00	SEAL	$2.58
8	1005550-03	BRUSH PAIR KIT	$37.33
9	487377-00	BRUSH SPRING	$3.01
10	1006393-00	FAN	$18.56
11	324119-02	SCREW	$1.24
12	1005637-00	COMPRESSION SPRING	$1.56
13	1005640-00	HANDLE	$12.38
14	1005643-00	BELLOWS	$9.04
15	1005672-00	SCREW	$1.50
16	1005646-00	TUBE, GUIDE	$7.68
17	1005644-00	STOP	$8.02
18	487326-03	LEAD ASSEMBLY	$19.18
19	1005639-00	HANDLE	$15.84
20	1005496-01	GUIDE BUSHING	$2.86
21	496906-00	CARRIER	$4.23
22	496404-00	SWITCH	$29.54
23	1005645-00	ROD	$9.04
24	1005641-00	HANDLE COVER	$13.13
25	821070	CORD CLAMP	$1.62
26	330065-08	SCREW	$1.24
27	1005942-00	SLEEVE BEARING	$1.50
28	323091-01	PROTECTOR, CORD	$4.19
29	1005911-01	CORD SET	$71.49
30	1005642-00	GEAR CASE COVER	$14.49
32	487224-00	SEAL	$4.83
33	330065-08	SCREW	$1.24
34	324821-04	CIRCLIP	$1.95
35	330003-70	BEARING	$11.24
36	487209-01	SEAL	$16.67
37	324821-03	CIRCLIP	$1.24
38	487314-00	CONNECTING ROD	$14.50
39	578452-00	SPACER	$3.64
40	578451-00	SPACER	$2.52
41	330003-67	BEARING	$11.24
42	582108-00	GEAR ASSEMBLY	$115.98
43	582109-00	GEAR	$111.23
44	582110-00	GEAR BOX ASSY	$309.67
45	582111-00	CRANKSHAFT	$65.55
46	576451-00	RING	$1.58
47	582387-00	PIN	$11.54
48	581656-00	KNOB	$1.53
49	487287-00	O RING	$12.71
50	582112-00	PISTON	$18.12
51	582113-01	PISTON ASSEMBLY	$52.08
52	323711-47	O RING	$10.91
53	1007610-00	COVER ASSEMBLY	$8.74
54	1007717-03	MODULE ASSY.	$103.65
55	479319-00	CLAMPING INSERT	$1.10
56	487284-00	CLAMP WASHER	$3.01
57	1005666-01	COVER	$12.38
58	324007-11	SCREW	$1.24
59	584240-01	SIDE HANDLE	$42.86
60	487343-00	BOLT	$6.69
61	487277-00	HANDLE	$16.79
62	479317-01	LOCK WASHER	$1.36
63	487393-00	CLAMP	$12.71
64	487291-00	KNOB ASSY	$7.54
65	949886-32	SCREW	$1.21
66	487283-00	COVER HOUSING	$46.84
67	582369-00	BEAT PIECE	$41.83
68	582388-00	BUSH	$27.11
69	496843-00	DAMPER	$23.26
70	582114-00	BUSH	$29.38
71	496842-00	DAMPER	$19.18
72	496845-00	BUSH	$3.81
74	323711-46	O RING	$13.70
75	582370-00	CYLINDER	$123.37
76	582115-00	RAM	$81.92
77	487287-00	O RING	$12.71
78	323711-56	O-RING	$2.25
79	323711-55	O-RING	$1.62
80	582372-00	HOUSING	$161.98
81	487317-00	SPRING	$16.32
82	578784-00	GUIDE	$2.45
83	582373-00	COUNTERWEIGHT	$36.83
84	487316-00	SPRING GUIDE	$1.91
90	582374-00	BEARING	$29.56
92	N014013	SEAL	$13.55
94	582277-00	SPINDLE ASSEMBLY	$262.05
95	323711-41	O RING	$1.24
96	487302-00	DAMPER	$3.71
97	582375-00	FLANGE	$131.61
98	918825-02	SCREW	$1.24
99	487372-00	SLEEVE	$7.33
100	487366-00	SLEEVE	$7.79
101	487370-00	SPRING	$1.91
102	487365-00	BUSHING	$2.92
103	487369-00	LOCKING DEVICE	$36.72
105	582383-00	DAMPER	$50.19
106	487309-00	SPRING	$4.73
107	582330-00	SLEEVE	$60.56
108	487373-00	DAMPER	$4.73
109	487301-00	WASHER	$14.50
110	579399-00	RING	$1.91
111	487375-00	RUBBER SEAL	$18.12
112	487392-00	LABEL	$3.01
120	330003-68	BALL BEARING	$22.94
130	330003-69	BALL BEARING	$13.77
800	578970-04	GREASE	$33.04
800	578970-06	GREASE	$47.29
802	870889-02	GREASE	$11.24
821	1005677-01	NAME PLATE	$2.38
861	487353-04	KIT BOX	$111.18
876	1008771-00	SERVICE KIT	$218.79
