DeWalt D25113K-Type-2 Electric Drill & Driver Parts

DeWalt D25113K-Type-2 Electric Drill & Driver Parts Image

DeWalt D25113K-Type-2 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

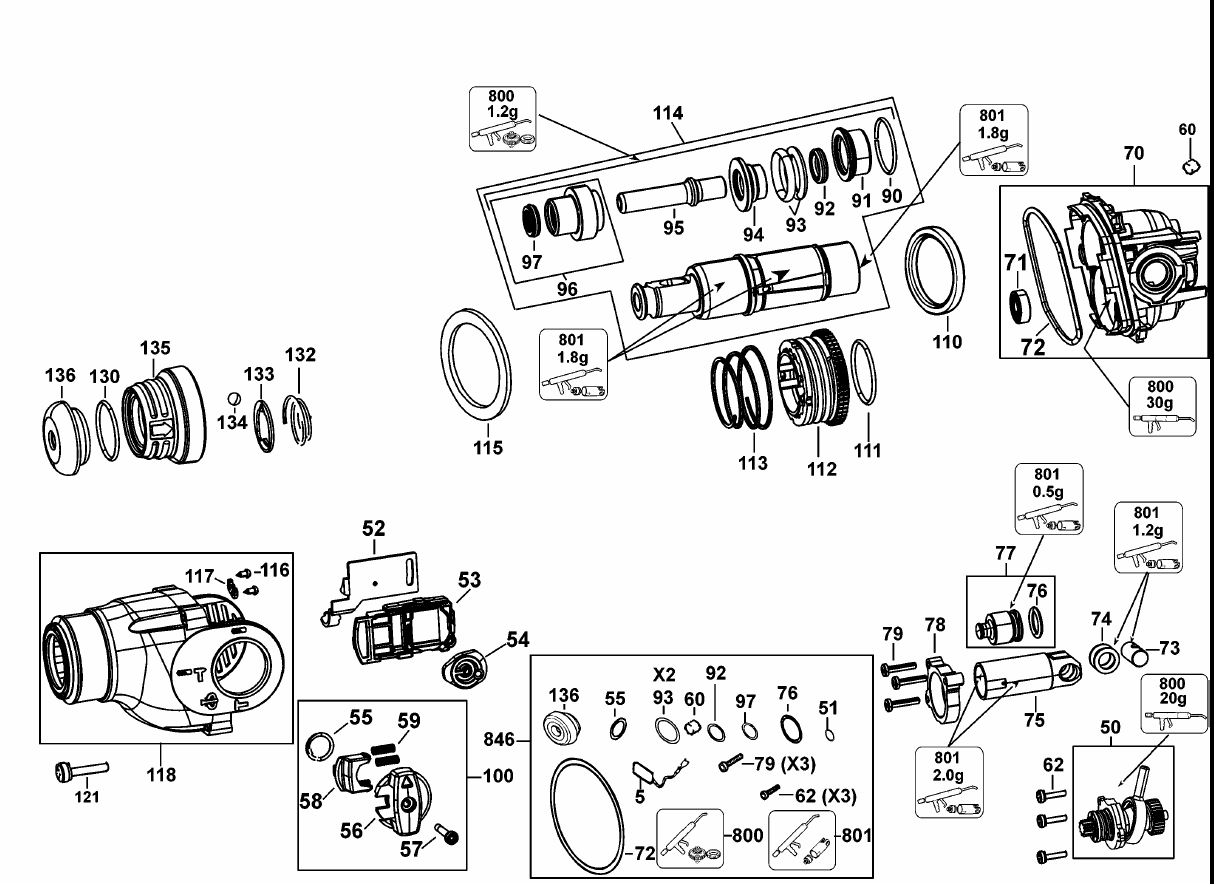

Page-1

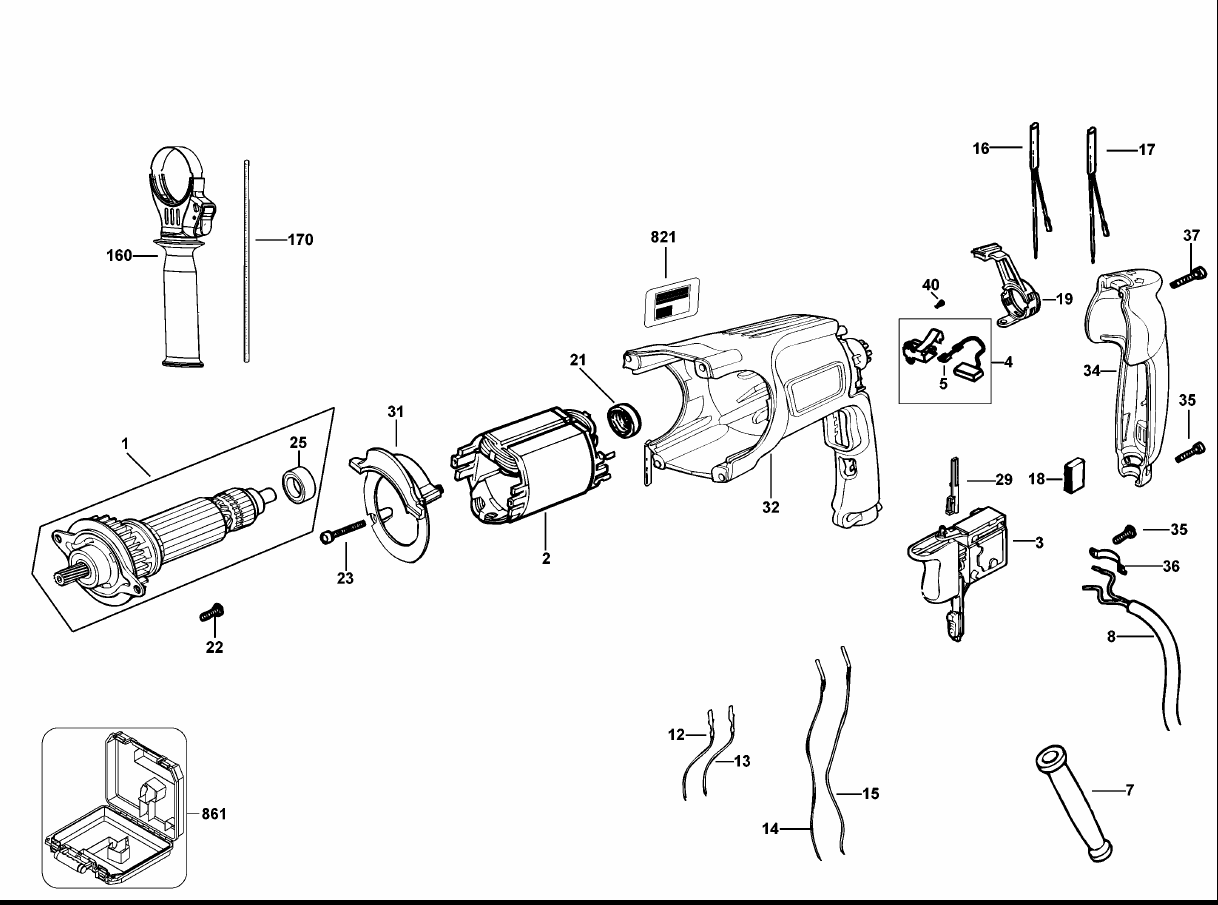

Page-2

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	496249-00	ARMATURE ASSEMBLY	$91.98
2	496247-00	FIELD	$31.65
3	583748-05	SWITCH	$38.38
4	N028620	BRUSH HOLDER ASSY	$7.24
4	577830-03	BRUSH & HOLDER	$14.10
5	N058084	BRUSH, PAIR	$16.66
5	585475-01	BRUSH KIT	$17.58
7	584090-00	CORD PROTECTOR	$2.85
8	330076-19	CORD SET	$25.73
12	584304-00	LEAD	$1.51
13	584304-10	LEADWIRE	$1.77
14	584304-04	LEAD	$1.51
15	584304-05	LEAD	$1.51
16	584304-06	LEAD	$1.51
17	584304-07	LEAD	$1.51
18	930026-01	BUMPER	$1.40
19	479818-00	LEVER	$2.45
21	870052-00	BEARING COVER	$1.24
22	324006-14	SCREW	$1.18
23	326519-03	SCREW	$1.18
25	330003-19	BEARING, BALL	$6.33
29	584551-00	INSERT	$1.50
31	577826-00	FAN BAFFLE	$3.70
32	577810-00	FIELD CASE	$17.68
34	479817-00	HANDLE COVER	$22.79
35	330065-06	SCREW	$1.24
36	821070	CORD CLAMP	$1.62
37	330065-09	SCREW	$1.18
40	330065-25	SCREW	$1.18
45	577791-00	O-RING	$1.18
50	585480-00	INTERSHAFT	$108.04
51	580907-00	O-RING	$1.18
52	578271-00	PLATE	$5.36
53	579564-00	HOLDER	$1.87
54	1006437-00	SELECTOR	$3.06
55	584638-00	O-RING	$1.18
56	1006434-00	KNOB	$2.69
57	324007-15	SCREW	$1.03
58	1006435-00	TRIGGER	$1.41
59	1008957-00	SPRING	$1.28
60	582865-00	FILTER	$1.87
62	583981-00	SCREW	$1.18
70	N031253	HOUSING ASSEMBLY	$36.69
71	330003-31	BEARING, BALL	$8.56
72	578229-00	SEAL	$2.20
73	577801-00	BEARING BLOCK	$8.86
74	577802-00	SHIM WASHER	$2.85
75	496246-00	PISTON	$27.43
76	579699-00	O-RING	$1.33
77	496245-00	RAM	$22.79
78	N042808	BEARING BUSH	$4.64
79	324006-15	SCREW	$1.18
90	577793-00	CLIP	$1.18
91	584426-00	BUSH	$17.68
92	580990-00	O-RING	$1.58
93	577135-00	O-RING	$1.51
94	584425-00	DAMPER	$19.41
95	584424-00	BEAT PIECE	$22.84
96	584423-00	BEARING & SEAL	$14.42
97	577139-00	SEAL	$2.85
100	N031251	LEVER ASSEMBLY	$4.64
110	577797-00	WASHER	$2.40
111	577744-00	O RING	$1.99
112	587482-00	CLUTCH ASSEMBLY	$29.48
113	579178-00	SPRING	$1.87
114	584422-00	CYLINDER ASSEMBLY	$100.36
115	577814-00	WASHER	$2.85
116	330065-05	SCREW	$1.24
117	580291-00	LOCKING DEVICE	$3.61
118	585483-00	HOUSING	$32.61
121	330065-28	SCREW	$1.18
130	579212-00	RING	$1.18
132	871690-00	SPRING	$1.24
133	578387-00	WASHER	$1.95
134	583890-00	BALL	$1.18
135	493965-00	TUBE	$9.17
136	323489-00	CAP	$4.09
160	494661-00	SIDE HANDLE ASY	$22.79
170	495699-00	DEPTH STOP	$6.16
800	870889-02	GREASE	$11.24
801	487130-04	GREASE	$6.33
821	N045773	NAME PLATE	$1.39
846	N058086	SERVICE KIT	$145.92
846	585500-00	SERVICE KIT	$47.62
861	577646-01	KIT BOX	$50.68
