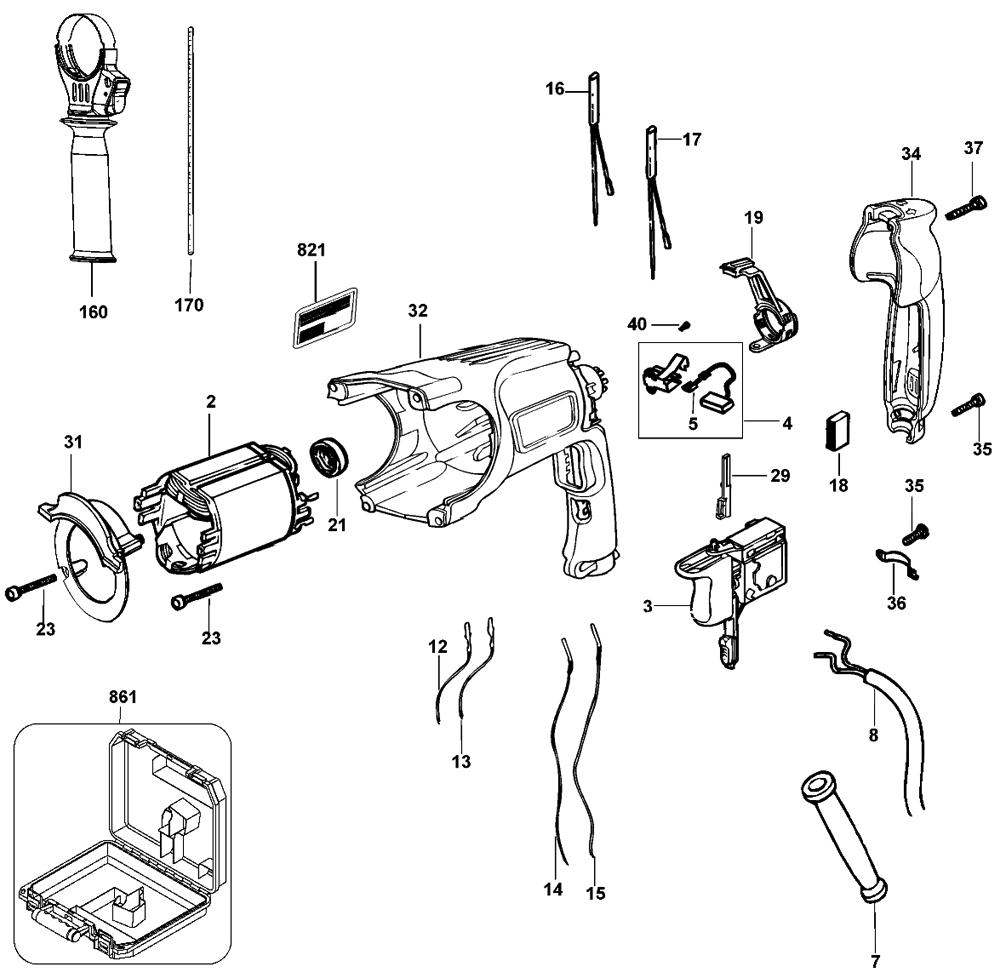

Tool Diagram    (Click image to Zoom in) View larger Image

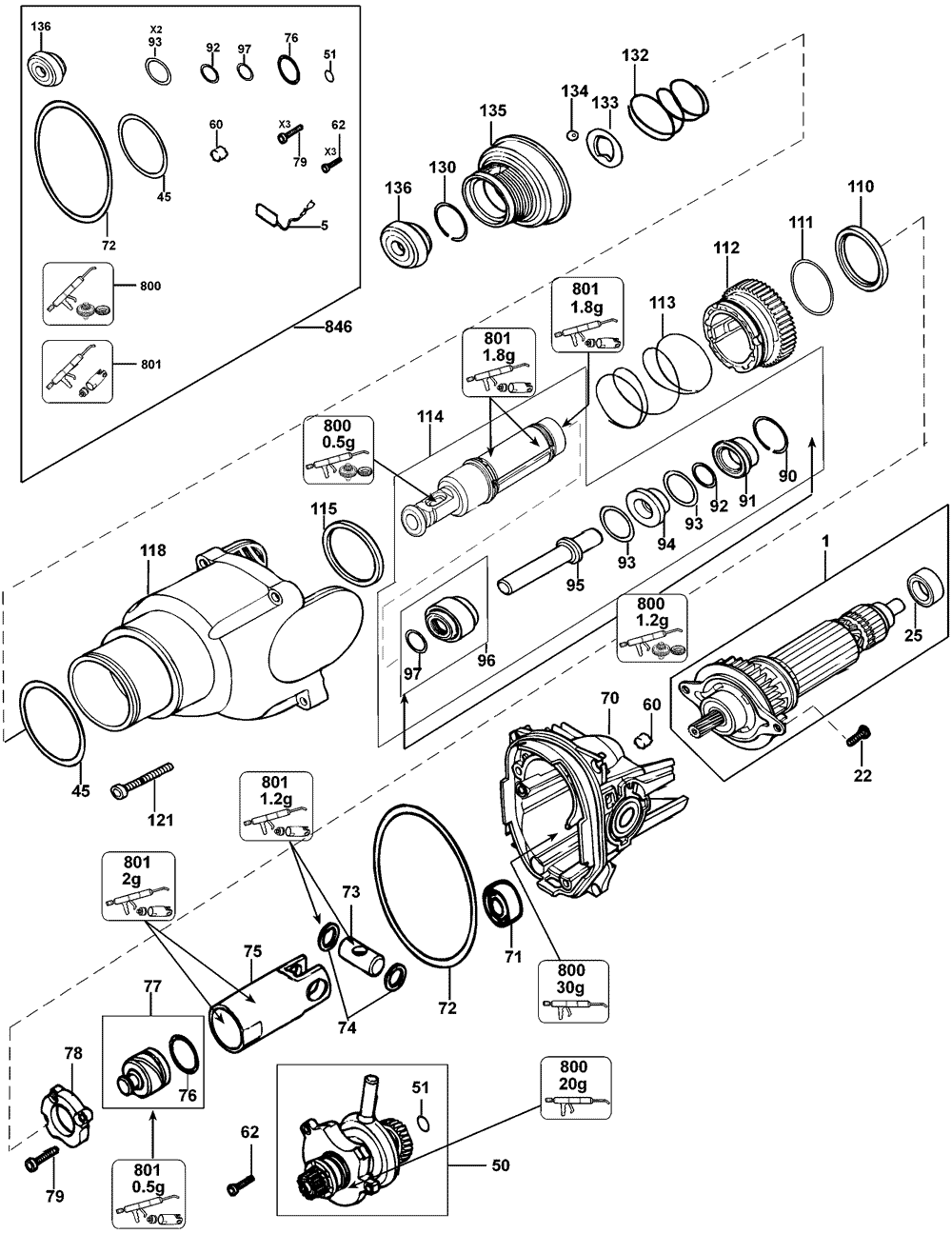

DeWalt D25111K Electric Hammer Drill Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 496249-00 ARMATURE ASSEMBLY $91.98
2 496247-00 FIELD $31.65
3 583748-05 SWITCH $38.38
4 577830-03 BRUSH & HOLDER $14.10
5 585475-01 BRUSH KIT $17.58
7 584090-00 CORD PROTECTOR $2.85
8 330076-19 CORD SET $25.73
12 584304-00 LEAD $1.51
13 584304-10 LEADWIRE $1.77
14 584304-04 LEAD $1.51
15 584304-05 LEAD $1.51
16 584304-06 LEAD $1.51
17 584304-07 LEAD $1.51
18 930026-01 BUMPER $1.40
19 479818-00 LEVER $2.45
21 870052-00 BEARING COVER $1.24
22 324006-14 SCREW $1.18
23 326519-03 SCREW $1.18
25 330003-19 BEARING, BALL $6.33
29 584551-00 INSERT $1.50
31 577826-00 FAN BAFFLE $3.70
32 577810-00 FIELD CASE $17.68
34 479817-00 HANDLE COVER $22.79
35 330065-06 SCREW $1.24
36 821070 CORD CLAMP $1.62
37 330065-09 SCREW $1.18
40 330065-25 SCREW $1.18
45 577791-00 O-RING $1.18
50 585480-00 INTERSHAFT $108.04
51 580907-00 O-RING $1.18
60 582865-00 FILTER $1.87
62 583981-00 SCREW $1.18
70 586502-00 HOUSING $40.70
71 330003-31 BEARING, BALL $8.56
72 578229-00 SEAL $2.20
73 577801-00 BEARING BLOCK $8.86
74 577802-00 SHIM WASHER $2.85
75 496246-00 PISTON $27.43
76 579699-00 O-RING $1.33
77 496245-00 RAM $22.79
78 N042808 BEARING BUSH $4.64
79 324006-15 SCREW $1.18
90 577793-00 CLIP $1.18
91 584426-00 BUSH $17.68
92 580990-00 O-RING $1.58
93 577135-00 O-RING $1.51
94 584425-00 DAMPER $19.41
95 584424-00 BEAT PIECE $22.84
96 584423-00 BEARING & SEAL $14.42
97 577139-00 SEAL $2.85
110 577797-00 WASHER $2.40
111 577744-00 O RING $1.99
112 587482-00 CLUTCH ASSEMBLY $29.48
113 579178-00 SPRING $1.87
114 584422-00 CYLINDER ASSEMBLY $100.36
115 577814-00 WASHER $2.85
118 586500-00 GEAR CASE $26.42
121 330065-28 SCREW $1.18
130 579212-00 RING $1.18
132 871690-00 SPRING $1.24
133 578387-00 WASHER $1.95
134 583890-00 BALL $1.18
135 493965-00 TUBE $9.17
136 323489-00 CAP $4.09
160 494661-00 SIDE HANDLE ASY $22.79
170 495699-00 DEPTH STOP $6.16
800 870889-02 GREASE $11.24
801 487130-04 GREASE $6.33
821 495119-20 NAME PLATE $1.72
846 585499-00 SERVICE KIT $54.93
861 577646-01 KIT BOX $50.68
