DeWalt D24000S Electric Saw Parts

DeWalt D24000S Parts

Download Schematic

Time to buy a new tool?

DeWalt D24000S

Heavy-Duty 10 Inch W...

$849.00

Page-1

Page-2

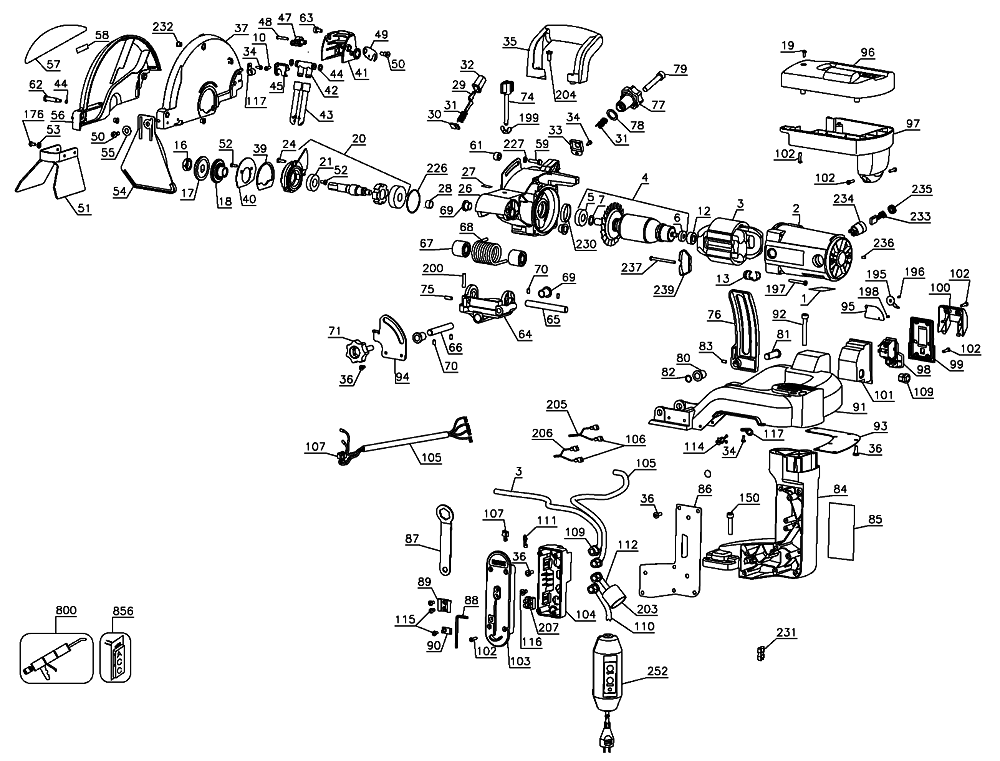

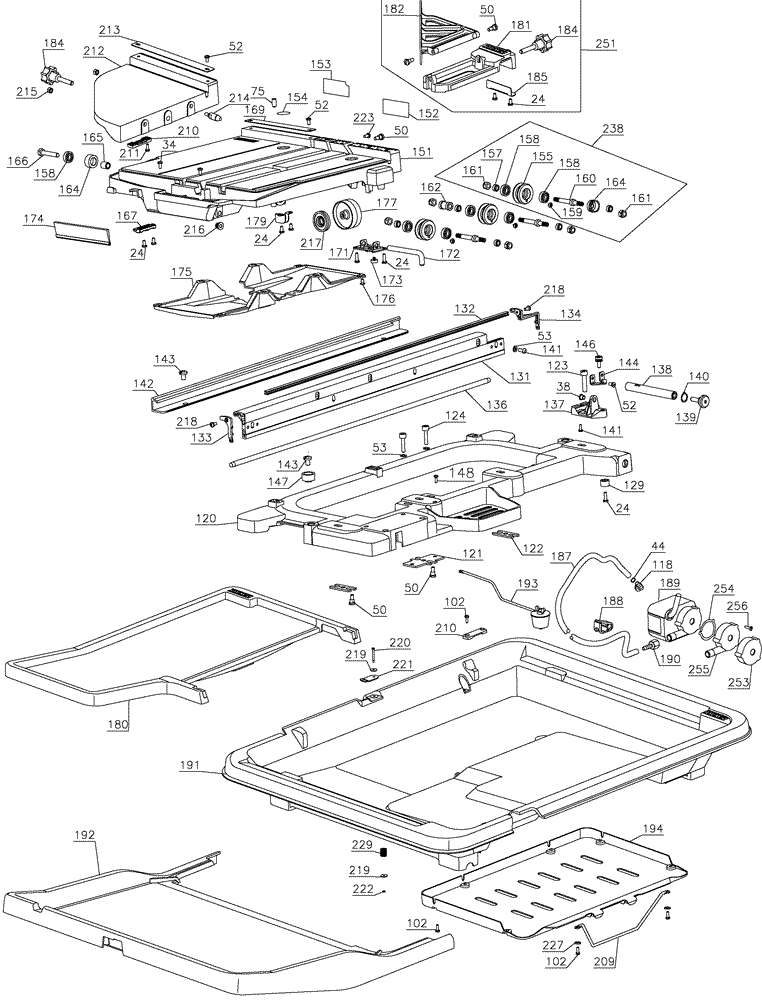

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	393073-16	NAME PLATE	$1.10
2	5140024-35	FIELD CASE	$24.92
3	5140024-36	FIELD	$42.95
4	5140024-37	ARMATURE & BRGS	$52.61
5	605040-27	BALL BEARING	$3.38
6	N043347	BALL BEARING	$3.38
7	398605-00	RETAINING RING	$1.24
10	618303-00	SCREW	$1.10
12	609970-00	BEARING CUP	$1.21
13	682149-00	BUSHING, STR.RLF	$3.89
16	616755-00	ARBOR NUT	$1.28
17	612689-00	CLAMP WASHER	$3.41
18	612690-00	CLAMP WASHER	$20.80
19	618302-11	SCREW	$1.39
20	612692-00	GEAR CASE COVER ASSEMBLY	$55.58
21	330003-29	BALL BEARING	$12.17
24	618302-03	SCREW	$1.10
26	627524-00	ARM	$53.97
27	618132-00	LABEL	$1.10
28	330004-06	BEARING, NEEDLE	$4.09
29	612698-00	SPINDLE LOCK	$1.84
30	618568-00	FELT WIPER	$1.10
31	398736-00	SPRING	$1.23
32	616758-00	SPINDLE LOCK BUTTON	$1.28
33	612701-00	LINER	$1.10
34	618302-00	SCREW	$1.10
35	612702-00	HANDLE	$14.96
36	618302-06	SCREW	$1.60
37	624451-00	COVER	$90.04
38	148608-01	INSERT	$1.28
39	612704-00	SLEEVE	$1.28
40	612705-00	RETAINER	$2.25
41	612768-00	NOSE	$2.92
42	612771-00	MANIFOLD	$1.28
43	613462-00	NOZZLE	$1.84
44	618353-00	O-RING	$1.10
45	612773-00	PLATE	$1.28
47	612774-00	LEVER	$1.28
48	618303-02	SCREW	$1.10
49	612728-00	RETAINER	$2.25
50	618369-00	SHOULDER SCREW	$1.28
51	612776-00	FLAPPER	$5.98
52	618302-02	SCREW	$1.10
53	618540-00	WASHER	$1.10
54	612778-00	FLAPPER	$5.98
55	618540-01	WASHER	$1.10
56	618314-00	COVER	$67.59
57	395021-00	LABEL	$3.08
58	618136-00	CAUTION LABEL	$1.10
59	618304-00	SCREW	$1.84
61	612707-00	SPACER	$1.10
62	618369-02	SHOULDER SCREW	$1.84
63	618304-02	SCREW	$1.28
64	612669-00	TRUNNION	$33.80
65	612708-00	PIVOT SHAFT	$18.23
66	614031-00	PIVOT SHAFT	$18.23
67	612710-00	SPACER	$2.69
68	612711-00	SPRING	$6.71
69	612709-00	BUSHING	$7.90
70	618305-00	SET SCREW	$1.10
71	612712-00	BEVEL KNOB	$2.92
74	616763-00	KNOB	$5.13
75	618305-02	SET SCREW	$1.28
76	612671-00	BRACKET	$12.14
77	618069-00	KNOB	$5.98
78	618540-02	WASHER	$1.28
79	623621-00	BOLT	$3.92
80	612709-01	BUSHING	$14.21
81	612717-00	PIN	$15.02
82	618542-00	RETAINING RING	$1.28
83	618305-01	SET SCREW	$1.10
84	618313-00	COLUMN	$75.06
85	618129-00	WARNING LABEL	$1.28
86	612718-00	PLATE	$3.92
87	616769-00	WRENCH	$2.69
88	98000-13	HEX WRENCH	$1.10
89	147190-01	CLIP	$2.51
90	618123-00	CLIP	$1.84
91	627525-00	SUPPORT ARM	$101.86
92	616770-01	SHOULDER SCREW	$2.92
93	616771-00	PLATE	$5.13
94	613811-00	PLATE	$3.92
95	618133-00	LABEL	$1.84
96	612722-00	COVER	$14.96
97	612724-00	END CAP	$5.13
98	618662-00	SWITCH	$28.46
99	612784-00	SWITCH PLATE	$1.28
100	612726-00	SWITCH BEZEL	$1.28
101	612727-00	ENCLOSURE	$2.69
102	618303-01	SCREW	$1.10
103	616772-00	COVER	$4.31
104	616773-00	ENCLOSURE	$2.92
105	616774-00	CORD	$17.50
106	450212-00	TERMINAL, MALE	$1.95
107	450213-00	TERMINAL, FEMALE	$1.24
109	605155-00	BUSHING	$1.15
110	618958-00	CORD	$90.39
110	636714-00	CORD	$60.64
111	053650-03	TERMINAL	$1.24
112	618605-00	CORD & PLUG	$8.44
114	388301-00	WIRE CLIP	$1.23
115	98102-10	SCREW, M4-U0	$1.24
116	385865-00	SCREW	$1.24
117	619683-00	CLAMP	$1.10
118	612775-00	ELBOW	$1.10
120	612673-00	FRAME	$55.58
121	617634-00	PLATE	$5.13
122	617635-00	PLATE	$1.84
123	618369-03	SHOULDER SCREW	$1.84
124	618304-03	SCREW	$1.28
129	616767-00	FOOT	$1.10
131	612732-00	RAIL	$38.38
132	617352-00	LINER	$2.69
133	612777-00	CAP	$1.28
134	612854-00	CAP	$1.28
136	612733-00	GUIDE ROD	$21.35
137	627522-00	BLOCK	$12.55
138	613465-00	CYLINDER	$4.31
139	612735-00	SCREW	$14.12
140	618541-00	RETAINING RING	$1.28
141	618304-01	SCREW	$1.10
142	612737-00	RAIL	$24.92
143	618302-07	SCREW	$1.28
144	612738-00	BRACKET	$2.25
146	612758-00	SCREW	$2.69
147	399042-00	BUSHING	$3.89
148	620468-00	SCREW	$2.25
150	616770-00	SHOULDER SCREW	$2.69
151	618312-00	CART	$271.79
151	617948-00	CART	$301.98
152	618130-00	WARNING LABEL	$1.10
153	618131-00	LABEL	$1.10
154	610707-00	WARNING LABEL	$2.42
155	612741-00	ROLLER GUIDE	$15.02
157	612743-00	SPACER	$3.51
158	330003-82	BALL BEARING	$4.74
159	618304-07	SCREW	$1.10
160	612745-00	SHAFT	$10.00
161	618539-00	STOP NUT	$1.28
162	612746-00	CYLINDER	$10.09
164	612742-00	ROLLER	$6.80
165	612748-00	SPACER	$3.92
166	618304-05	SCREW	$1.84
167	612749-00	PLATE	$1.28
169	612752-00	SCALE	$5.98
171	616784-00	BRACKET	$4.74
172	617230-00	ROD	$7.61
173	616785-00	SCREW	$5.13
174	612755-00	BRUSH	$5.98
175	612756-00	GUTTER	$3.51
176	618369-01	SHOULDER SCREW	$1.10
177	612757-00	DISC	$5.98
179	612739-00	STOP	$2.69
180	612759-00	COLLECTOR	$24.92
181	612687-00	EDGE GUIDE	$12.55
182	612761-00	GUIDE	$15.85
184	612716-00	KNOB	$4.31
185	612763-00	CLAMPING PLATE	$3.51
187	618697-00	TUBING	$3.09
188	631599-00	VALVE	$3.92
189	612780-00	PUMP	$73.01
190	616779-00	FITTING	$3.92
191	622978-00	PAN	$118.68
192	612783-00	EXTENSION	$38.38
193	612786-00	STOPPER	$5.98
194	618076-00	TRAY	$15.02
195	623509-00	BEVEL POINTER	$3.51
196	153460-06	SCREW	$1.10
197	618302-05	SCREW	$1.10
198	13486-00	SCREW	$1.10
199	613365-00	WING NUT	$1.20
200	618305-06	SET SCREW	$1.10
203	624434-00	COVER	$2.25
204	618302-08	SCREW	$1.60
205	624147-00	LEAD	$4.74
206	624147-01	LEAD ASSEMBLY	$3.92
207	393520-00	TERMINAL BLOCK	$4.31
209	623773-00	ROPE	$4.31
210	622977-00	COVER	$1.60
211	618302-01	SCREW	$1.10
212	618320-00	EXTENSION	$45.68
213	612753-00	SCALE	$10.91
214	623075-00	GUIDE PIN	$5.13
215	618539-01	NUT	$1.28
216	623086-00	INSERT	$3.51
217	623383-00	DISC	$1.60
218	618302-09	SCREW	$1.10
219	618540-03	WASHER	$1.10
220	624727-00	PIN	$1.10
221	622976-00	LATCH	$1.84
222	605365-00	RETAINING CLIP	$1.77
223	618302-10	SCREW	$1.10
226	56122-00	O-RING	$1.77
227	618540-04	WASHER	$1.10
229	625913-00	SPRING	$1.60
230	609971-00	SLEEVE	$1.91
231	625745-00	CORD CLIP	$1.84
232	148608-02	INSERT	$1.60
233	5140024-30	BRUSH	$3.92
234	5140024-31	BRUSH HOLDER	$6.79
235	614368-00	BRUSH CAP	$1.17
236	5140024-33	SET SCREW	$1.10
237	5140024-34	SCREW	$1.20
238	627857-00	ROLLER	$43.73
239	619840-00	SHIELD	$1.50
251	612688-00	EDGE GUIDE	$42.19
252	635225-00	GFCI PLUG	$36.46
253	496555-00	SCREEN	$7.27
254	5140058-96	GASKET	$3.06
255	5140058-97	COVER	$19.92
256	5140058-98	SCREW	$2.72
800	790206-00	GREASE, 6 OZ.	$36.71
