DeWalt D21002-Type-2 Electric Drill & Driver Parts

DeWalt D21002-Type-2 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

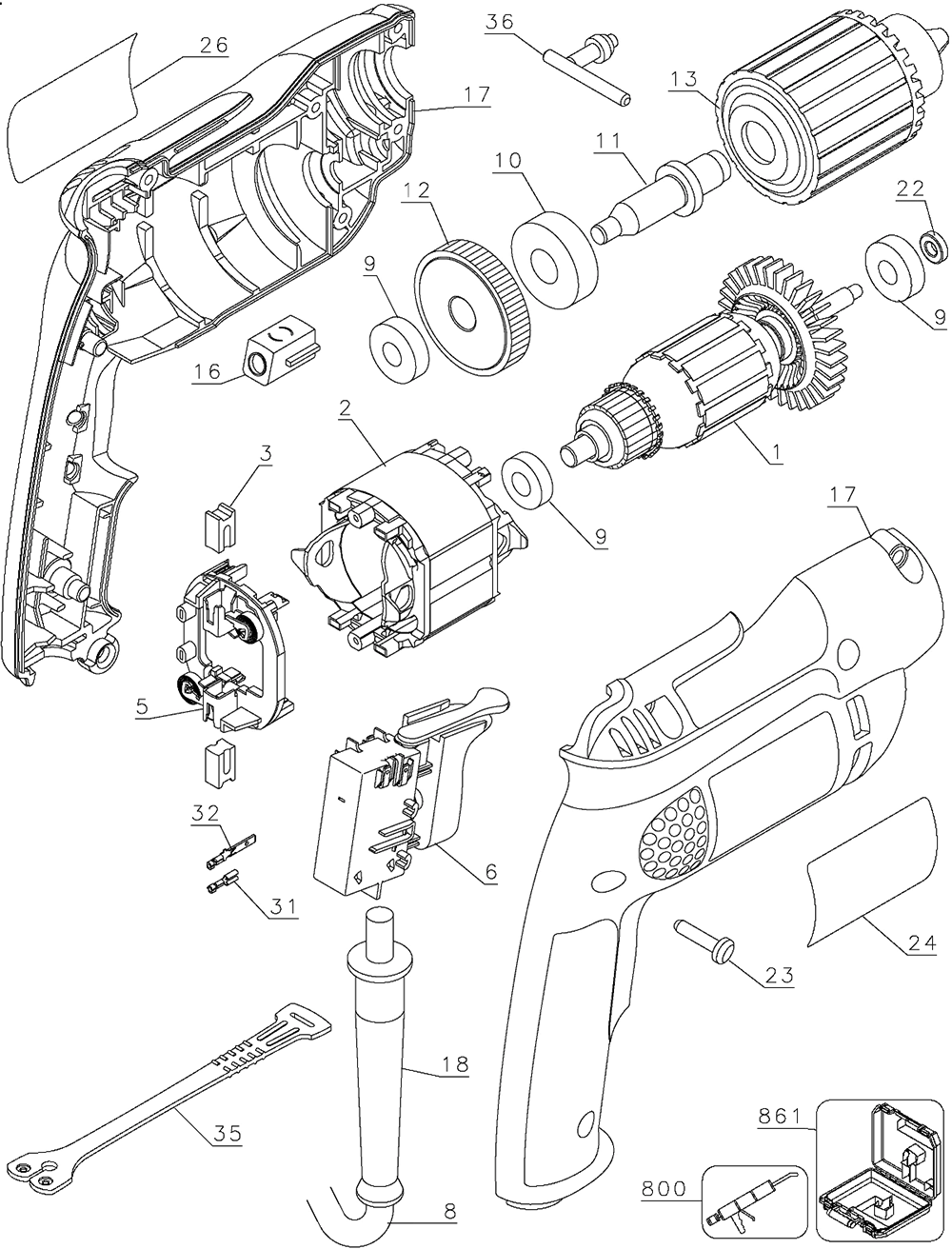

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	388634-03	ARMATURE	$45.61
2	605513-00SV	FIELD	$18.66
3	176846-04	BRUSH	$3.26
3	G58	Carbon Brush Set	$8.19
5	605517-00	BRUSH RING	$7.74
6	636313-00	SWITCH	$26.30
8	330072-98	CORD/8FT/18-2SJ	$11.53
8	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
9	330003-04	BEARING, BALL	$9.84
10	605040-23	BALL BEARING	$5.22
11	658145-00	SPINDLE	$5.58
12	389216-00	GEAR	$6.02
13	287982-00	CHUCK & KEY	$53.20
16	143845-00	LEVEL	$5.49
18	330005-01	PROTECTOR, CORD	$4.63
18	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
22	464292-00	DEFLECTOR	$1.24
23	330019-13	SCREW, M4X19	$1.24
24	635677-00	NAMEPLATE	$1.23
26	605523-00	ID LABEL	$1.18
31	612521-00	RECEPTACLE	$1.18
32	449192-00	TERMINAL	$1.24
35	065288-02	HOLDER	$2.13
36	330034-02	CHUCK KEY	$3.62
800	761995-01	GREASE, 6 OZ.	$29.72
800	283484-01	GREASE, 32 OZ.	$69.49
861	624370-00	KIT BOX	$62.52
