Delta SA180-Type-1 Sander Parts

Delta SA180-Type-1  Sander Parts Image

Delta SA180-Type-1 Parts
Time to buy a new tool?

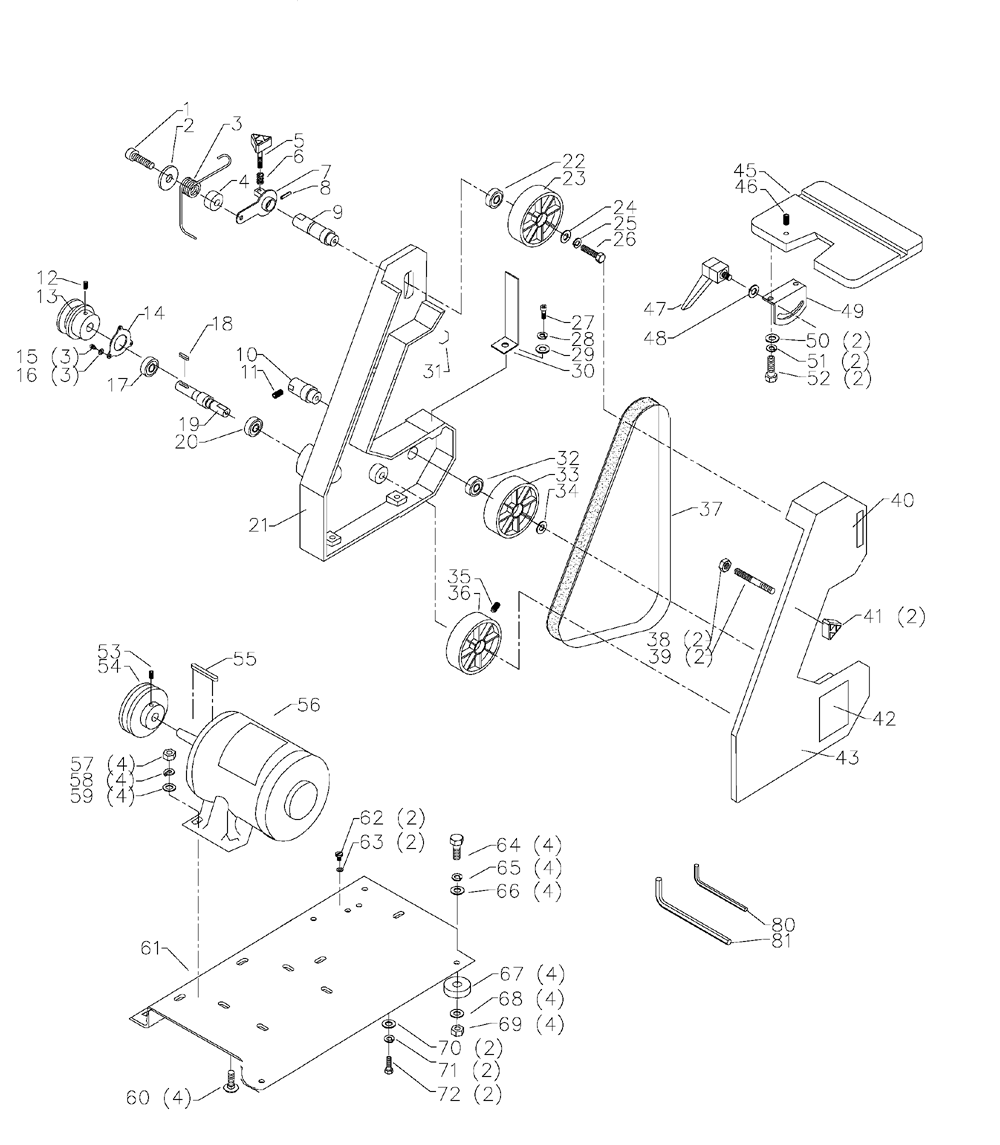

http://www.toolpartspro.com/image/SA180-Type-1/SA180-Delta-T1-PB Breakdown Diagram
Page-1

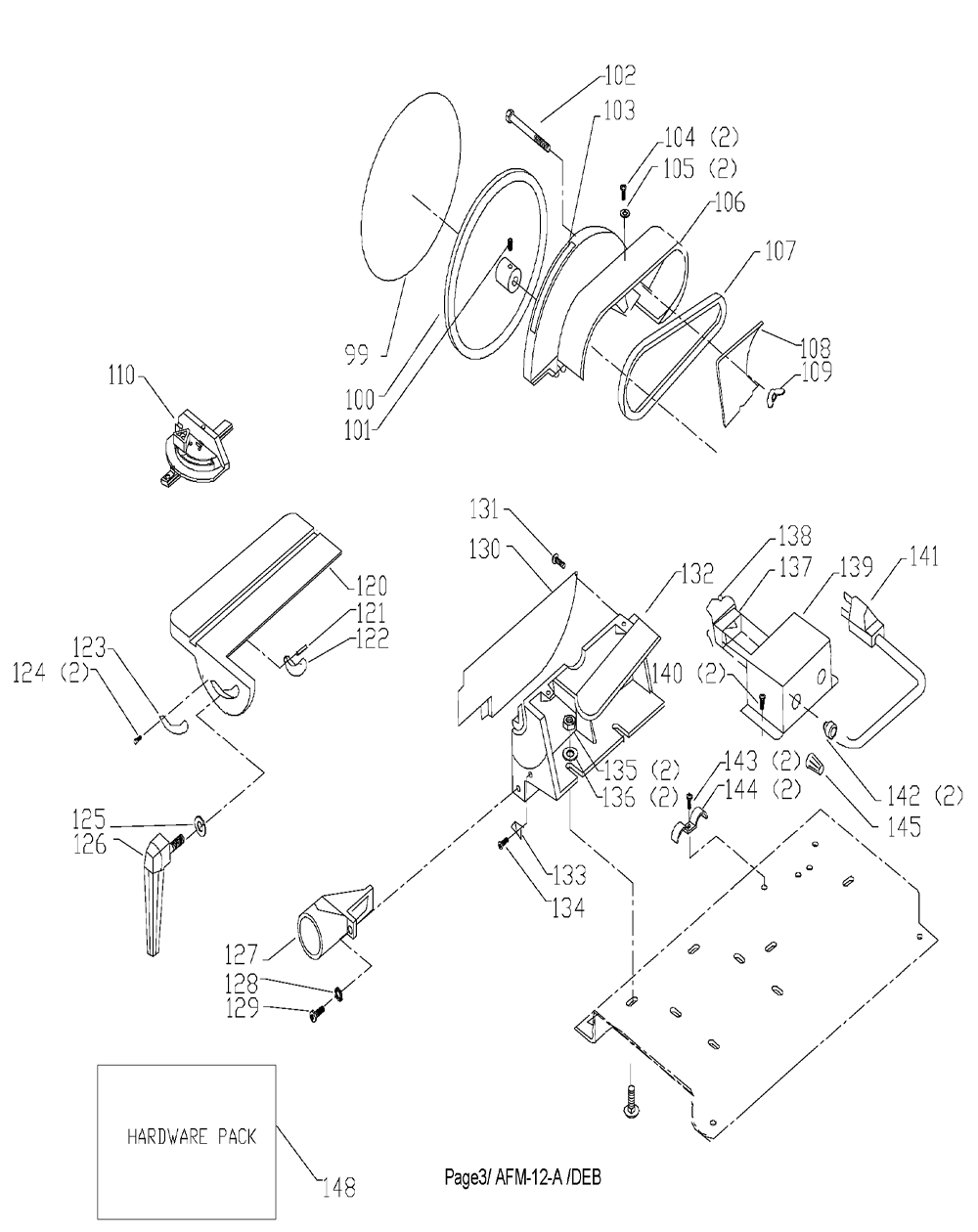

SA180-Delta-T1-PB-1 Breakdown Diagram
Page-2
Tool Diagram    (Click image to Zoom in) View larger Image
ToolspartsPro
Fig.Part #ImgPart NamePriceQty.
1 1246096 CAP SCREW $3.95
2 1341945 FLAT WASHER $0.26
3 1342574 SPRING $0.00Disc
4 1342575 SPACER $3.94
5 902359 TRACKING ADJ SCREW $1.82
6 1342572 SPRING $1.61
8 1246184 ROLL PIN $0.26
9 1342571 IDLER SHAFT $8.89
10 1342577 IDLER SHAFT $8.35
11 1246159 SET SCREW $1.45
12 1246008 SET SCREW $2.86
13 1342581 DRIVE PULLEY $18.35
14 1342580 RETAINING PLATE $3.23
15 1341235 SCREW $2.30
15 1341235 SCREW $2.30
16 488953-00 LOCK WASHER $1.09
17 920040107272 BEARING $24.11
18 1342579 KEY $3.38
19 1342578 MAIN DRIVE SHAFT $10.51
20 422311390002 BEARING 6002-2RS $0.00Disc
21 1342614 FRAME $96.18
22 920040107272 BEARING $24.11
23 1342570 IDLER $4.94Disc
24 1246140 FL WASHER $1.45
25 488874-00 LOCK WASHER $1.06
26 1243379 SCREW $2.76
27 1246100 CAP SCREW $6.34
28 1243360 LOCKWASHER $2.69
29 1243502 WASHER $2.18
30 1342568 PLATEN $3.85
31 1342567 SPECIAL NUT $7.64
32 920040107272 BEARING $24.11
33 1342570 IDLER $4.94Disc
34 1342566 RETAINING RING $1.61
35 1246158 SET SCREW $0.38
36 1342609 DRIVE WHEEL $5.73
38 1243456 NUT $2.14
39 1345979 SCREW $1.61
40 491834-00 ROTATION LABEL $0.26
41 902357 KNOB $1.82
42 902741 WARNING LABEL $4.00
43 902933 COVER $14.54
45 1342564 TABLE $38.36
46 1344042 SET SCREW $3.91
47 5140048-46 CLAMP ASSEMBLY $12.09
47 902852 CLAMP ASSEMBLY $16.50
49 1342562 BRACKET $5.08
50 488822-00 FLAT WASHER $0.26
51 488813-00 LOCK WASHER $1.03
52 1310105 SCREW $2.30
53 1246008 SET SCREW $2.86
54 1342589 DRIVE PULLEY $12.23
55 1342588 KEY $4.24
56 1342608 MTR 1PH .3HP B/D $183.11
57 1243496 NUT-STEEL $2.69
58 1243360 LOCKWASHER $2.69
59 1243502 WASHER $2.18
61 904494 BASE $35.03
62 1313227 SCREW $4.86
63 1310210 LOCKWASHER $1.29
64 1246034 CAP SCREW $2.92
65 488813-00 LOCK WASHER $1.03
66 488822-00 FLAT WASHER $0.26
67 1342605 RUBBER FOOT $1.76
68 488822-00 FLAT WASHER $0.26
69 491964-00 REPLACED BY 330015-03 - NUT $1.06
70 1243502 WASHER $2.18
71 1243360 LOCKWASHER $2.69
72 1246100 CAP SCREW $6.34
80 891903 HEX WRENCH 2.5MM $0.38
81 422301010002 HEX WRENCH $13.87
100 1342583 DISC PLATE $26.59
101 1246159 SET SCREW $1.45
102 1342582 SCREW $2.09
103 491834-00 ROTATION LABEL $0.26
104 1243501 SCREW $0.67
105 492056-00 WASHER $1.06
106 1342584 PULLEY COVER $11.23
107 1342585 V BELT $10.38
108 1342586 COVER $4.24
109 1342587 WING NUT $2.99
110 1342598 MITRE GAGE ASSY $15.64
120 1342592 TABLE $50.88
121 1342593 PIN $1.98
122 1342594 GUIDE $8.77
123 1342595 SCALE $5.79
124 1087794 RIVET $1.69
125 1243502 WASHER $2.18
126 902852 CLAMP ASSEMBLY $16.50
127 1342597 DUST CHUTE $4.59
128 1246067 MACH SCREW $1.94Disc
129 1313361 STAR WASHER $1.29
130 902851 SIDE GUARD $4.78
131 488855-00 No Longer Available - SCREW $0.26
132 904495 SUPPORT $34.76
133 1342596 POINTER $1.98
134 1243501 SCREW $0.67
135 1243496 NUT-STEEL $2.69
136 1243502 WASHER $2.18
137 489105-00 SWITCH $10.49
137 SW7A This item will be shipped Free On-Off Toggle Switch - Delta 489105-00 (Optional... $12.19
138 489105-00 SWITCH $10.49
138 SW7A This item will be shipped Free On-Off Toggle Switch - Delta 489105-00 (Optional... $12.19
138 1343758 KEY (For On/Off Switch) $4.08
139 1342606 SWITCH COVER $11.39
140 1313227 SCREW $4.86
141 1345225 POWER CORD $13.25
142 438010040062S HEYCO BUSHING 5/8 $2.30
143 1313227 SCREW $4.86
144 1340719 CLAMP $2.95
145 1320175 CONNECTOR $1.36
148 902354 HARDWARE PACK $11.26
