Delta 37-070 Jointer Parts

Delta 37-070  Jointer Parts Image

Delta 37-070 Parts
Time to buy a new tool?

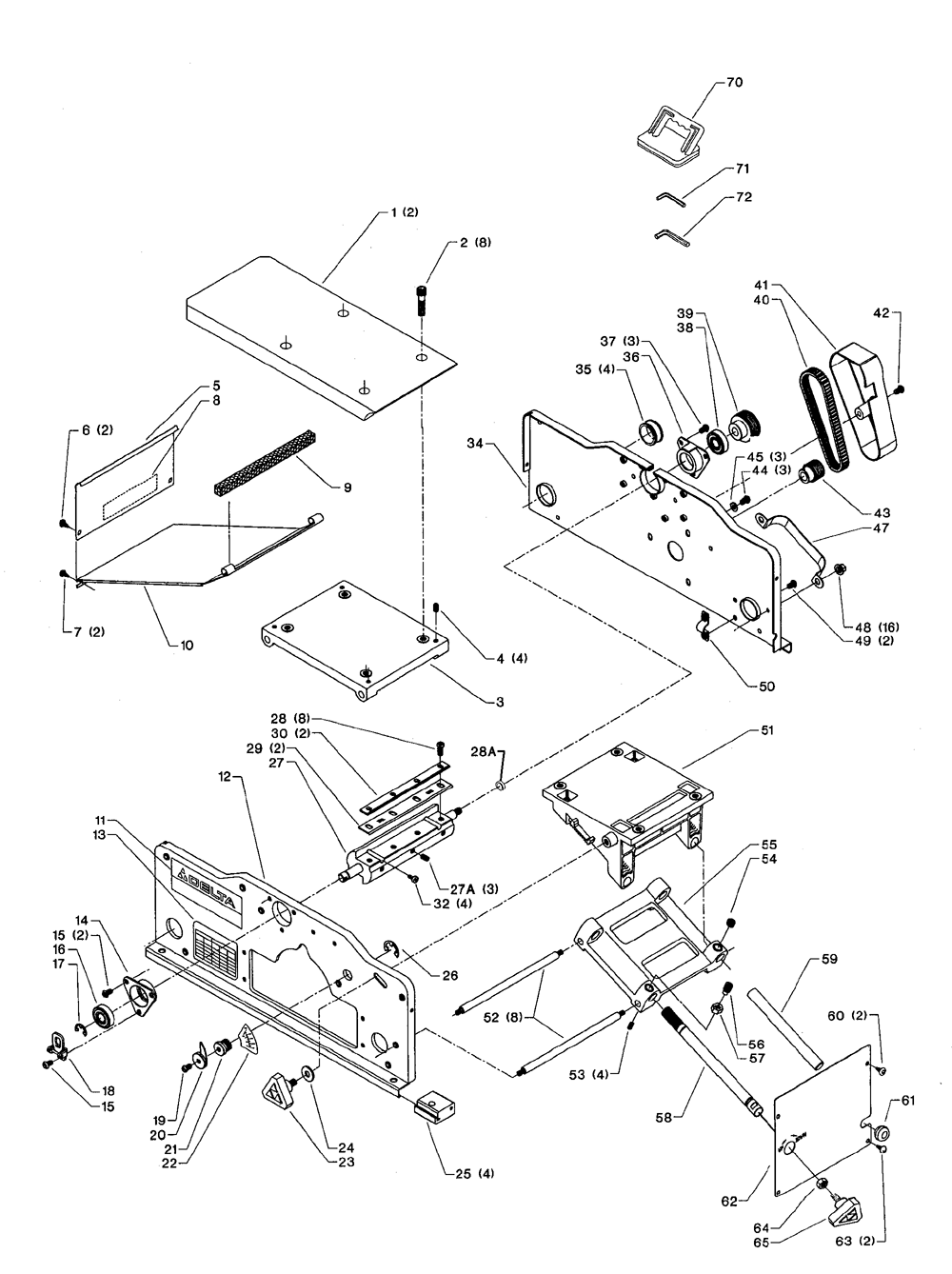

http://www.toolpartspro.com/image/37-070/37-070-delta-PB Breakdown Diagram
Page-1

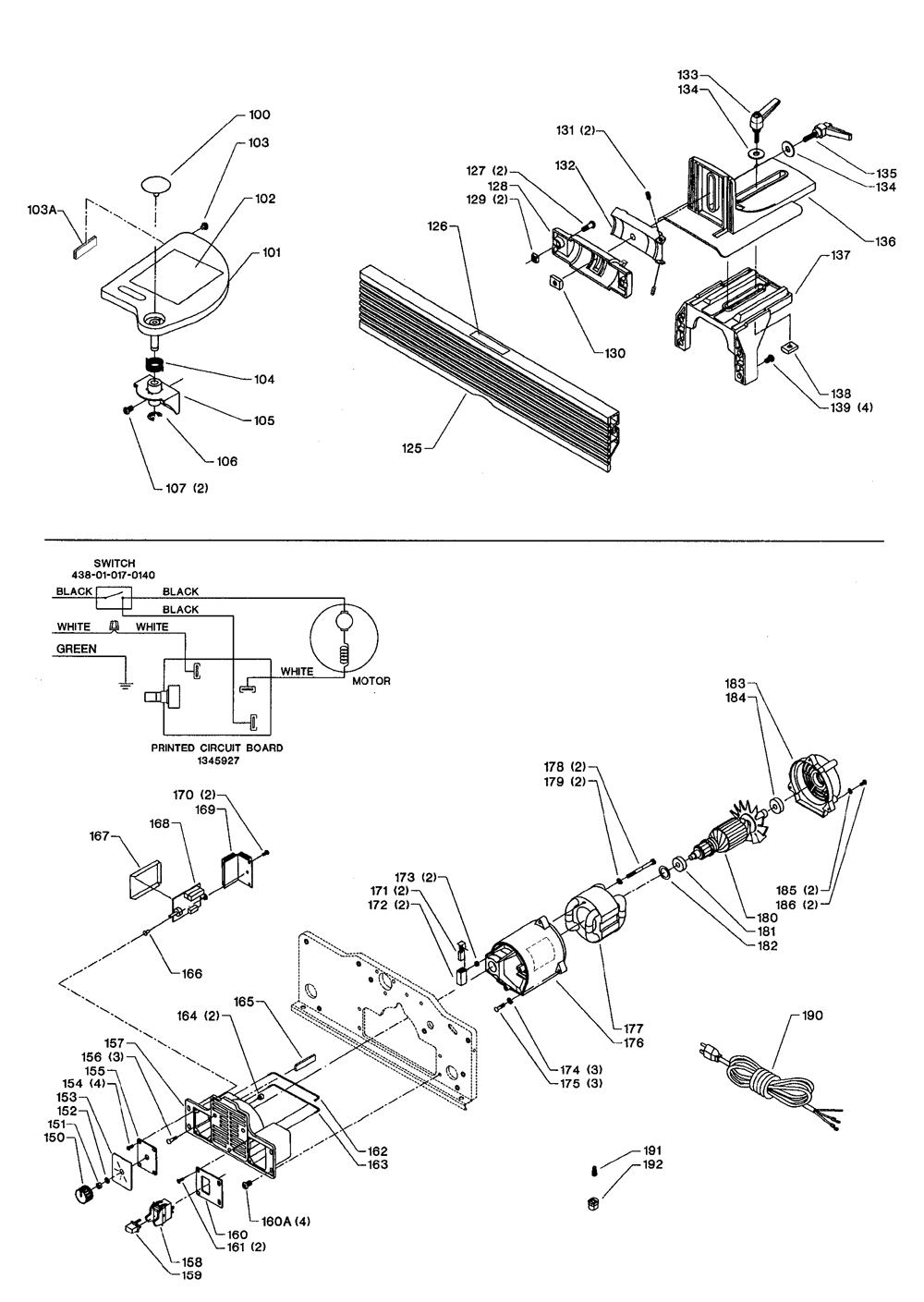

37-070-delta-PB-1 Breakdown Diagram
Page-2
Tool Diagram    (Click image to Zoom in) View larger Image
ToolspartsPro
Fig.Part #ImgPart NamePriceQty.
1 901394 TABLE $43.66
2 1243530 SCREW $4.17
4 1243339 SCREW $2.95
5 905822 COVER $8.04
6 1345859 SCREW $2.91
7 1345874 SCREW $3.46
8 A16199 WARNING LABEL $1.03
9 1345872 FOAM SEAL $0.73
10 905823 DUST CHUTE $14.87
12 1345886 FRONT FRAME $0.00Disc
13 1340107 SPEED CHART $4.61
14 1345865 BEARING RETAINER $6.10
15 1345859 SCREW $2.91
16 920040116611 BEARING -6201ZZ $51.00
16 SE 6201-ZZ This item will be shipped Free Superior Electric SE 6201-ZZ Replacement Ball Be... $7.99
17 491890-00 RING $1.11Disc
18 1345864 CUTTERHEAD LOCK $7.79
19 1345859 SCREW $2.91
20 1345860 POINTER $3.80
22 1345851 DEPTH SCALE $2.91
23 905821 KNOB $3.47
24 1344330 FLAT WASHER $1.61
25 1345863 FOOT $6.08
26 1246028 EXT RET RING $5.82
27 1345878 CUTTERHEAD $40.94
27 1243321 SCREW $2.76
28 1345931 SCREW $2.54
28 1347658 SPACER $1.36
29 37-072 KNIVES $0.00Disc
30 1345935 CLAMP BAR $6.03
32 1345876 KNIFE ADJUSTER $1.78
34 905663 FRAME $32.89
36 1345895 BEARING RETAINER $7.94
37 1345859 SCREW $2.91
38 920040116611 BEARING -6201ZZ $51.00
38 SE 6201-ZZ This item will be shipped Free Superior Electric SE 6201-ZZ Replacement Ball Be... $7.99
39 1345896 CUTTERHEAD PULLEY $9.03
40 1345898 BELT $25.68
41 1345899 BELT GUARD $5.20
42 1345880 SCREW $1.91
43 1345897 DRIVE PULLEY $9.89
44 1345880 SCREW $1.91
45 1246140 FL WASHER $1.45
47 1345894 CORD HOLDER $4.78
48 1345893 NUT $3.31
49 1345859 SCREW $2.91
50 1345891 CORD CLAMP $5.67
51 1345883 INFEED SUPPORT $42.40
52 1345885 TIE ROD $5.57
53 1243339 SCREW $2.95
54 1243321 SCREW $2.76
55 1345884 BRACKET $27.40
56 1246161 SET SCREW $3.41
57 1243456 NUT $2.14
58 1345887 ADJUSTING ROD $9.59
59 1345888 SHAFT $9.02
60 1345859 SCREW $2.91
61 1341544 GROMMET $1.68
62 1345889 END COVER $11.38
63 1345874 SCREW $3.46
64 330015-03 REPLACES 1243398 - NUT, HEX $1.36
65 905821 KNOB $3.47
70 37-108 JOINTER PUSH BLOCK $0.00Disc
71 891903 HEX WRENCH 2.5MM $0.38
72 422291010002 4MM HEX WRENCH $6.10
100 1345871 HOLE PLUG $0.43
101 N030463 GUARD ASSEMBLY $19.90
102 1340104 WARNING LABEL $3.91
103 1345870 BUMPER $1.85
103 1345936 PLASTIC SHOE $2.30
104 1345868 SPRING $3.85
105 1345867 BRACKET $9.67
106 1246058 EXT RET RING $3.94
107 1345859 SCREW $2.91
125 1345904 FENCE $59.45
127 1345880 SCREW $1.91
128 906203 BRACKET $9.37
129 1342697 M6 SQ NUT $2.16
130 1345900 SPECIAL NUT $1.51
131 491922-00 SET SCREW $1.06
132 906204 BRACKET $9.37
133 1345907 FENCE LOCK $8.88Disc
134 1344330 FLAT WASHER $1.61
135 1345903 TILT ASSY $8.87Disc
136 906206 BRACKET $22.05
138 1345900 SPECIAL NUT $1.51
139 1345880 SCREW $1.91
150 1345920 KNOB $1.99
153 1345852 SPEED DIAL $6.95
154 1343612 FT HD SCREW $2.61
155 1345923 COVER $4.19
156 1345924 SCREW $1.96
157 1345918 FRAME $40.65
158 489105-00 SWITCH $10.49
158 SW7A This item will be shipped Free On-Off Toggle Switch - Delta 489105-00 (Optional... $12.19
159 489105-00 SWITCH $10.49
159 SW7A This item will be shipped Free On-Off Toggle Switch - Delta 489105-00 (Optional... $12.19
159 1343758 KEY (For On/Off Switch) $4.08
160 906207 COVER $1.67
160 1345934 SCREW $1.51
161 1343612 FT HD SCREW $2.61
162 1345916 WHITE JUMPER WIRE $4.84
163 1345917 BLACK JUMPER WIRE $4.84
164 1345925 PAD $0.50
165 1345930 DUST SEAL $2.08
166 1342446 SCREW $4.17
168 1345927 SPEED CONTROLLER $133.00
169 1345928 HEAT SINK $12.78
170 1342446 SCREW $4.17
171 1345914 NO LONGER AVAILABLE - BRUSH $5.03Disc
172 1345915 BRUSH HOLDER $4.38
173 488871-00 LOCK NUT $1.06
174 488808-00 LOCK WASHER $1.03
175 1310146 SCREW $1.45
176 1345913 HOUSING $37.21
177 1345912 FIELD $93.36
178 1343980 NAMEPLATE $9.49
179 488808-00 LOCK WASHER $1.03
180 1345911 ARMATURE $165.87
181 920080205352S BEARING 6200ZZ $2.32
182 1343125 WAVY WASHER $1.85
183 1345909 END COVER $29.98
184 1345910 BEARING $14.49
185 1320102 LOCK WASHER $0.38
186 1342446 SCREW $4.17
191 438010070009 WIRE NUT $1.51
192 489133-00 STRAIN RELIEF $1.61
200 1345908 MOTOR ASSY $423.27
