Delta 17-430-Type-1 Drill Press Parts

Delta 17-430-Type-1  Drill Press Parts Image

Delta 17-430-Type-1 Parts
Time to buy a new tool?

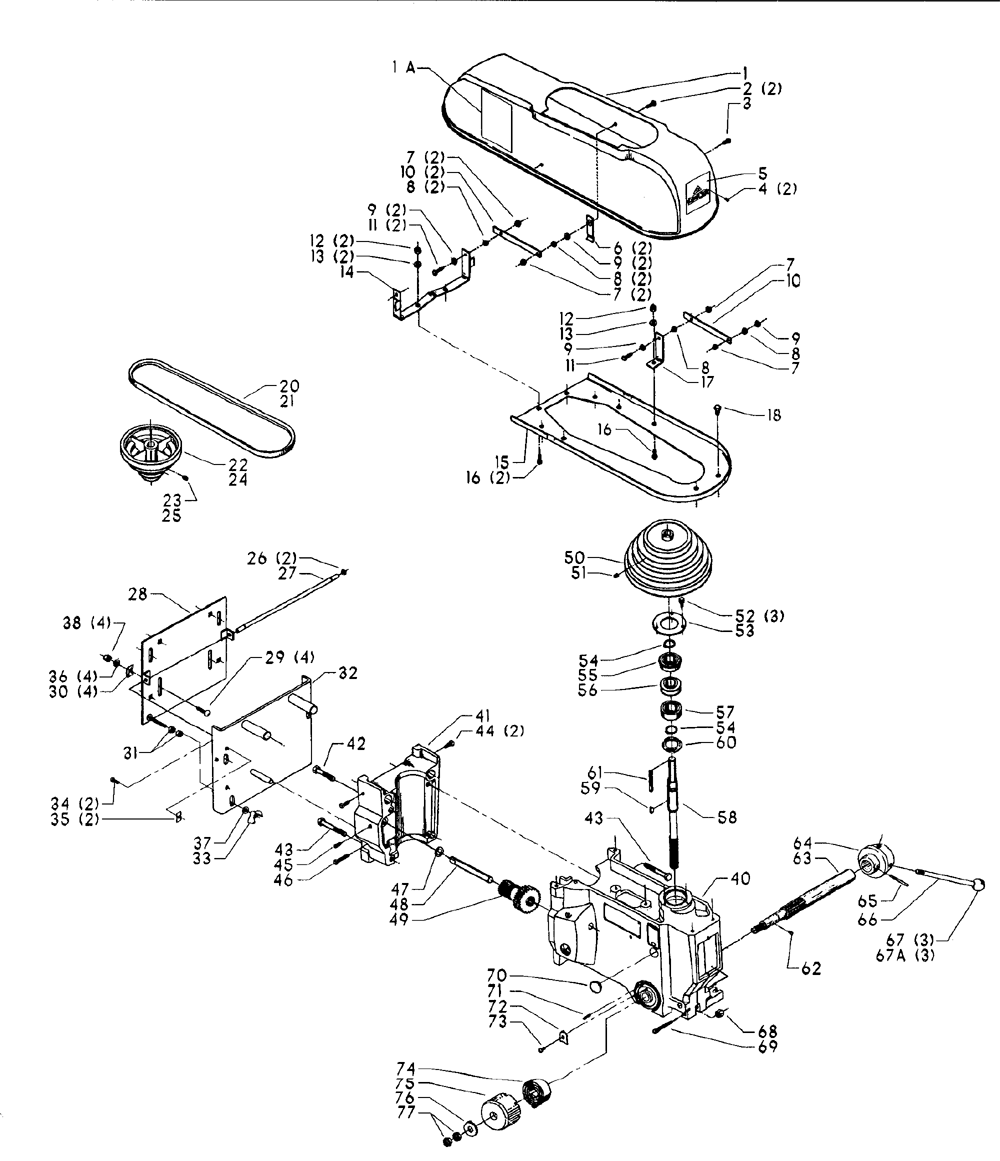

http://www.toolpartspro.com/image/17-430-Type-1/17-430-Delta-T1-PB Breakdown Diagram
Page-1

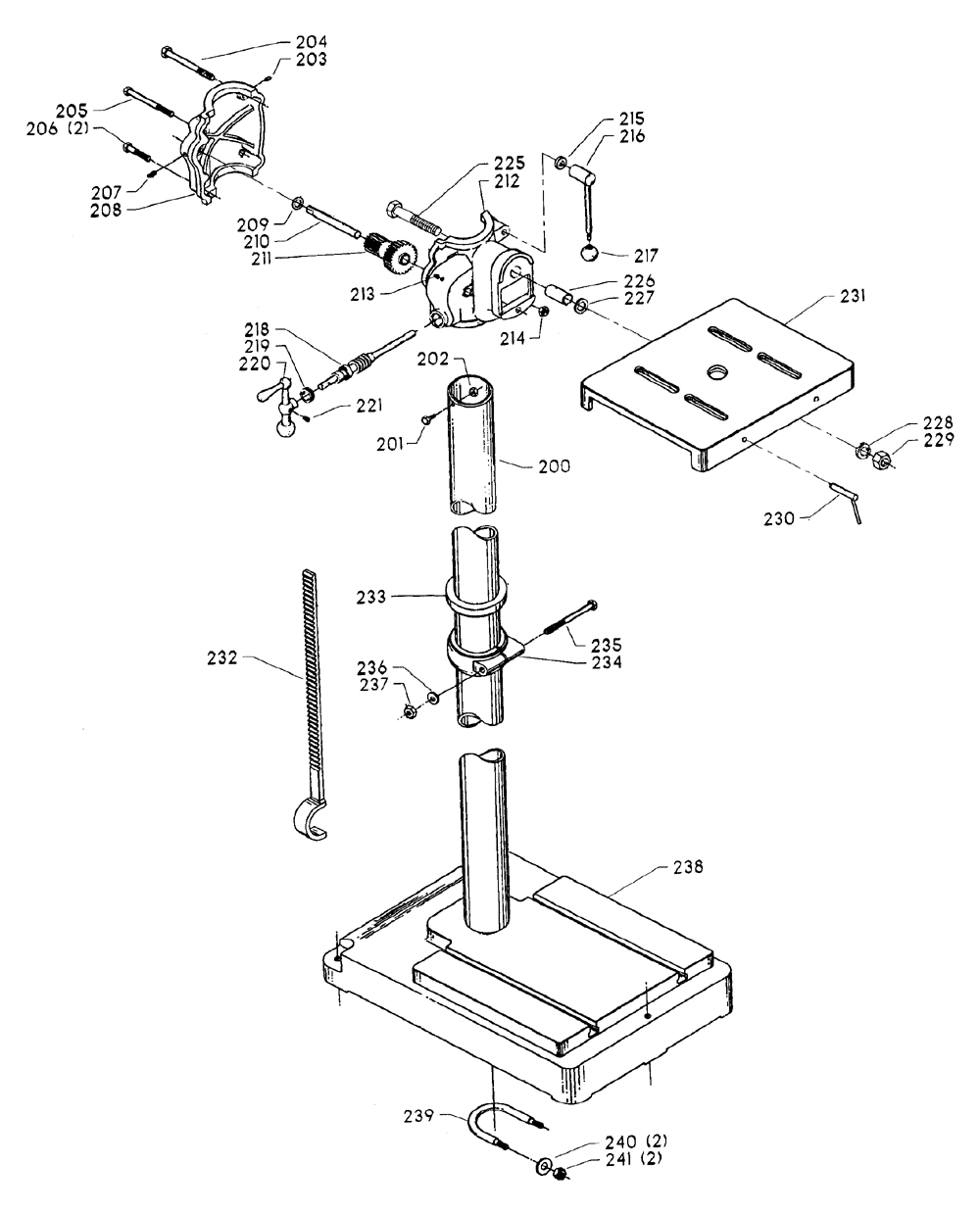

17-430-Delta-T1-PB-1 Breakdown Diagram
Page-2

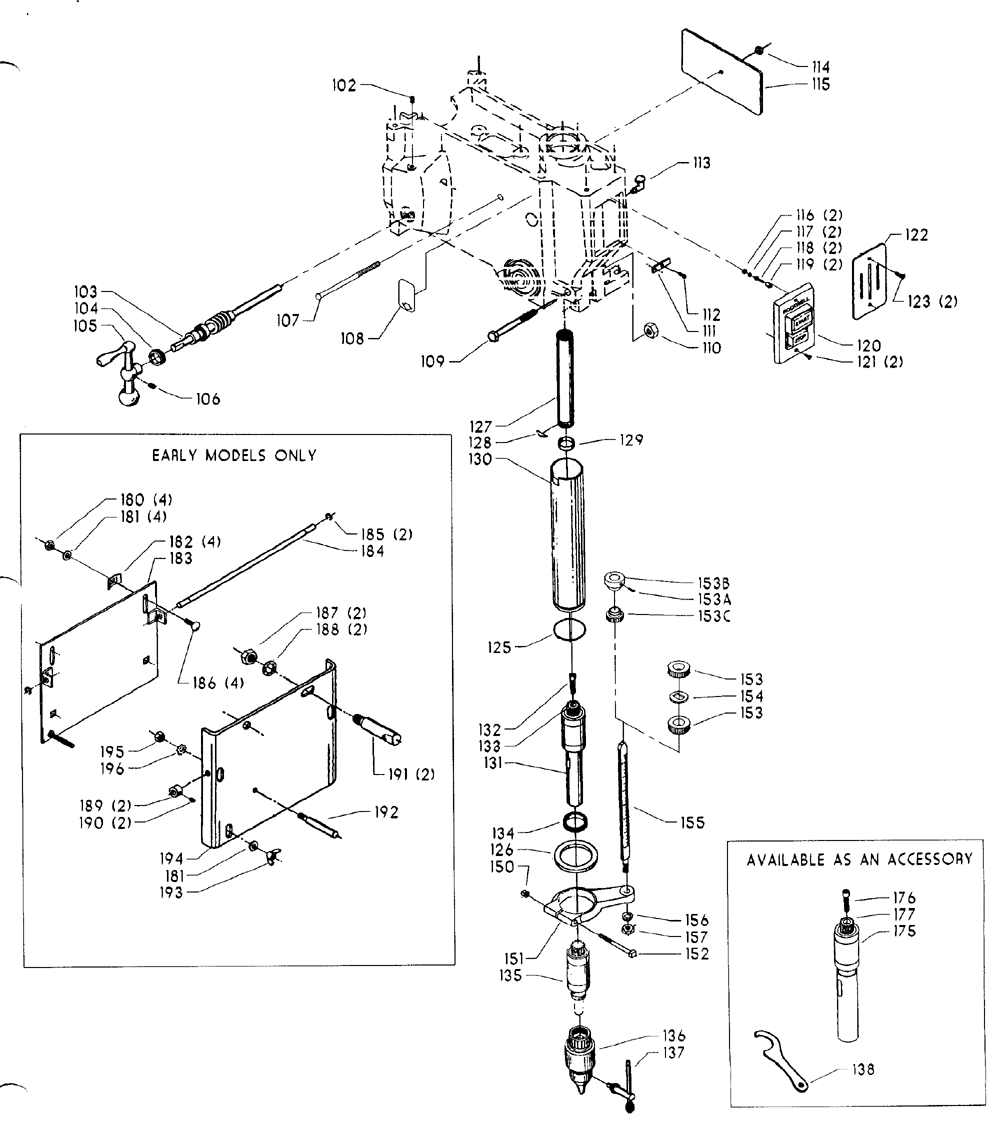

17-430-Delta-T1-PB-2 Breakdown Diagram
Page-3
Tool Diagram    (Click image to Zoom in) View larger Image
ToolspartsPro
Fig.Part #ImgPart NamePriceQty.
109 901010600633 CAP SCREW $4.41
110 902010105437 HEX NUT $3.31
112 901061203019 SCREW $0.26
114 489026-00 HEX NUT $0.32
116 902011209232 HEX NUT $2.30
117 904030301788 LOCKWASHER $1.69
118 402071115002S STUD $3.06
119 402071045007S SPACER $3.19
120 1340100 SWITCH COVER ASSY $34.33
121 901020100567S MACHINE SCREW $1.69
122 402040310001S SWITCH OPENING COVER $3.85
123 901061203019 SCREW $0.26
125 904150214138 GARTER SPRING $13.32
126 904070612942 CUSHION RING $8.89
127 402051055004 DRIVE SLEEVE $157.66
128 927012013720 SEGMENT KEY $5.73
129 904150214139 GARTER SPRING $135.88
130 402073775001 QUILL ASSEMBLY $2,226.16
131 5140030-88 SPINDLE $513.13
132 901030100750 CAP SCREW $2.85
134 902070207176S BEARING CLOSURE NUT $12.50
135 17-882 17880 W/JACOB MT $0.00Disc
136 5140043-11 0-1/2 IN 3JAW CHUK $0.00Disc
137 65-104 KEY $41.71
138 15-838S SPANNER WRENCH $13.02
150 489026-00 HEX NUT $0.32
153 402120685001 KNURLED NUT $14.54
153 901042601534 THUMB SCREW $8.12
153 402040885005 MICRO STOP $21.62
153 402040885005 MICRO STOP $21.62
153 402040885005 MICRO STOP $21.62
154 904011031317 SPEC WASHER $5.40
155 402073885002 STOP ASSY $440.43
155 402041085007 STOP ROD $150.80
156 904020201704S LOCK WASHER $1.51
157 489191-00 HEX NUT $1.06
176 901030100750 CAP SCREW $2.85
180 902010101300S HEX NUT $1.69
181 904010101620S WASHER $1.69
182 902030002951 SPEED NUT $6.38
183 1200037 MOTOR PLATE ASSY $88.06
185 904150117105 RING $0.26
186 901110200834S CARRIAGE BOLT $1.69
187 902010201226S NUT $4.41
188 904030201674 LOCKWASHER $0.26
189 426033880001 SET COLLAR ASSY $90.40
190 491950-00 SET SCREW $1.06Disc
191 402070715003 PIN $12.08
192 402070715001 PIN $0.26
193 902040101403 WING NUT $2.69
194 1200035 MOTOR PLATE ASSY $312.31
195 902010101207 HEX NUT $1.69
201 901010600612S CAP SCREW $3.49
202 489026-00 HEX NUT $0.32
203 901041500206 SET SCREW $2.69
204 901010600643 CAP SCREW $6.49
205 901010600637 CAP SCREW $5.49
207 901041900207S SET SCREW $2.69
208 402070205003 CAP $260.75
209 904070105575 WASHER $2.85
211 402070515002 COMPOUND GEAR $269.92
212 402073145001 TABLE BRACKET $1,550.59
212 402070145006 BRACKET $541.06
213 901041500205 SET SCREW $6.70
214 902010205438 HEX JAM NUT $1.69
215 904100313893 WASHER $2.14
216 402053275002 CLAMP HANDLE $410.39
217 1641138 KNOB $29.96
217 1641138 KNOB $29.96
218 402054065008 WORM SHAFT $593.98
220 930059914787 BALL CRANK $78.76
221 901041500206 SET SCREW $2.69
225 901010600630 CAP SCREW $0.26
226 402051055002 SLEEVE $148.35
227 904010131826 WASHER $1.20
228 904020201707 LOCK WASHER $0.85
236 904100312097S SPECIAL WASHER $2.85
238 402070055002 BASE $1,231.05
239 402070275001 U-BOLT $18.37
240 904010101618S STEEL WASHER $1.69
241 902010101282S HEX JAM NUT $1.69
1 402007520001 WARNING LABEL $3.31
3 901021207504S MACHINE SCREW $1.69
4 901064502250S DRIVE SCREW $1.69
5 402051370001 NAMEPLATE $24.53
7 902012101079 LOCK NUT $0.26
8 489026-00 HEX NUT $0.32
9 904010101614S STEEL WASHER $1.69
11 901010600626S CAP SCREW $1.69
12 902010101300S HEX NUT $1.69
13 904010101620S WASHER $1.69
14 401043145010 REAR BRACKET $185.95
15 402070545001 LOWER GUARD $150.89
16 901020100506 MACHINE SCREW $1.69
17 401040145007 FRONT BRACKET $50.82
18 901010600605 CAP SCREW $1.69
21 49-051 V BELT-REPLACES 501 $14.72
23 901041500206 SET SCREW $2.69
24 41-825 HS PULY-7/8B-5ST $448.17
25 901041500206 SET SCREW $2.69
26 904150131024 RET RING $2.32
28 1200037 MOTOR PLATE ASSY $88.06
28 1200040 MOTOR PLATE ASSY $105.97
29 901110200834S CARRIAGE BOLT $1.69
30 902030002951 SPEED NUT $6.38
31 902010205435S JAM NUT $1.69
32 1200035 MOTOR PLATE ASSY $312.31
33 902040101403 WING NUT $2.69
34 901010600649S CAP SCREW $1.69
35 902030002951 SPEED NUT $6.38
36 904010101620S WASHER $1.69
37 904010101620S WASHER $1.69
38 902010101300S HEX NUT $1.69
40 402073575022 HEAD ASSY $1,963.44
41 402070205005 CAP $236.53
43 901010603114 CAP SCREW $3.16
45 901041900207S SET SCREW $2.69
47 904070105575 WASHER $2.85
49 402070515002 COMPOUND GEAR $269.92
51 901041500206 SET SCREW $2.69
52 901202416107 HEX HD SCR $0.38
55 920040215116 BEARING $0.00Disc
56 926010516349 PULLEY $408.69
57 920040205360 BEARING $12.38
58 402071065005 SPINDLE $441.95
59 927010102600 WOODRUFF KEY $6.73
60 928060107352 SPRING WASHER $14.65
61 927030102661 KEY $9.44
62 952011213274 SPRING PIN $15.03
63 402071065026 PINION SHAFT $2,105.30
63 402074065018 PINION ASSY $346.70
65 905010106745 ROLL PIN $3.31
67 1641138 KNOB $29.96
67 1641138 KNOB $29.96
68 902012009706 HEX NUT $9.57
69 901030131026S CAP SCREW $4.00
70 961010107473 PLUG $10.46
71 905010106715S ROLL PIN $1.51
73 901030408015S CAP SCREW $2.69
74 928080121766 DISCONTINUED - RETURN SPRING $80.65Disc
75 402073885002 STOP ASSY $440.43
76 904010101622 STEEL WASHER $1.69
77 902010201226S NUT $4.41
102 901041500205 SET SCREW $6.70
103 402054065008 WORM SHAFT $593.98
105 930059914787 BALL CRANK $78.76
106 901041500206 SET SCREW $2.69
107 901020100912 MACHINE SCREW $2.61
108 960030102413 LUBE PLATE $9.67
