Bosch GML50 Radio Parts

Bosch GML50 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

Page-1

Page-2

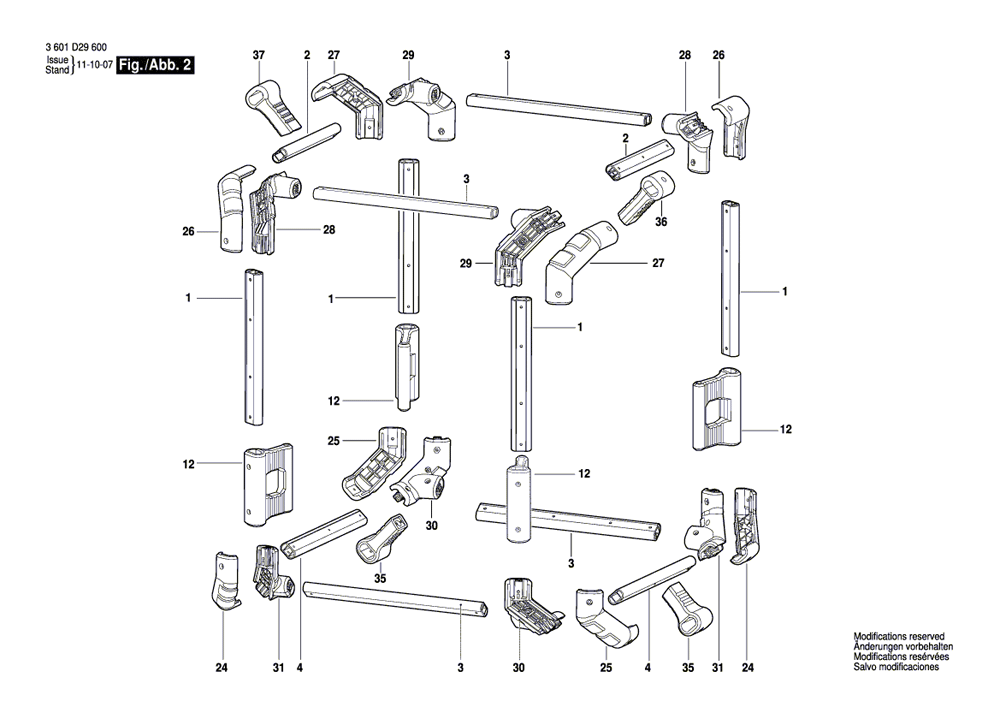

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	2-610-008-308	Aluminum Tubing	$4.00
2	2-610-008-309	Aluminum Tubing	$4.00
3	2-610-008-310	Aluminum Tubing	$4.00
4	2-610-008-311	Aluminum Tubing	$4.00
5	2-610-008-312	Protective Grille	$4.00
6	2-610-008-313	Cover Flap	$9.11
7	2-610-008-314	Cover Flap	$9.11
10	2-610-008-315	Fuse Holder	$4.00
11	2-610-008-316	Radio Antenna	$6.03
12	2-610-008-317	Damping rubber	$6.91
13	2-610-008-321	Rubber Plug	$1.34
14	2-610-008-322	Rubber Plug	$1.34
15	2-610-008-323	Rubber Plug	$1.34
16	2-610-008-324	Rubber Plug	$1.34
19	2-610-008-327	Rotary Knob	$1.34
21	2-610-008-328	Rotary Knob	$1.34
22	2-610-008-329	Cabinet Door	$1.34
23	2-610-008-330	Antenna Support	$1.34
24	2-610-008-331	Corner Protection	$2.79
25	2-610-008-332	Corner Protection	$2.79
26	2-610-008-333	Corner Protection	$2.79
27	2-610-008-334	Corner Protection	$2.79
28	2-610-008-335	Corner Protection	$4.00
29	2-610-008-336	Corner Protection	$4.00
30	2-610-008-337	Corner Protection	$4.00
31	2-610-008-338	Corner Protection	$4.00
32	2-610-008-339	Cable Holder	$1.91
33	2-610-012-187	Holding Handle	$6.03
35	2-610-008-361	Damping rubber	$4.00
36	2-610-008-362	Damping rubber	$4.00
37	2-610-008-363	Damping rubber	$4.00
40	2-610-012-188	Rubber Plug	$0.89
41	2-610-012-186	Remote Control	$11.58
42	2-610-008-343	Av-Cable	$2.79
