Bosch CET3-10 Compressor Parts

Bosch CET3-10 Compressor Parts Image

Bosch CET3-10 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Bosch CET3-10
3 Gallon 1 HP Mini T...
$289.99
Page-1
Page-2
Page-3
Tool Diagram    (Click image to Zoom in) View larger Image

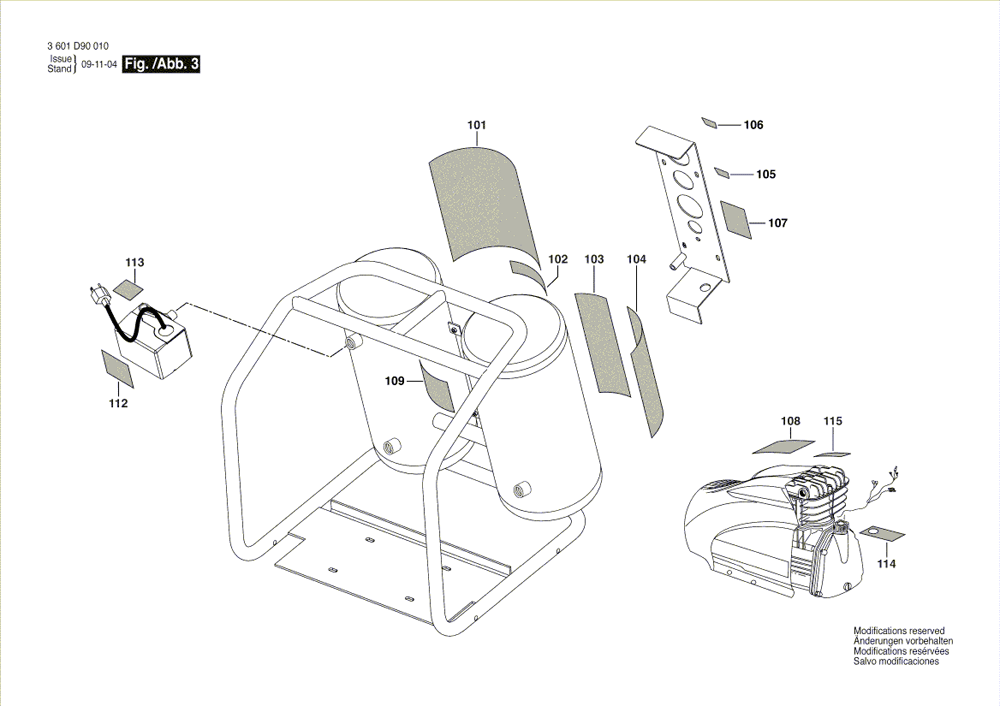

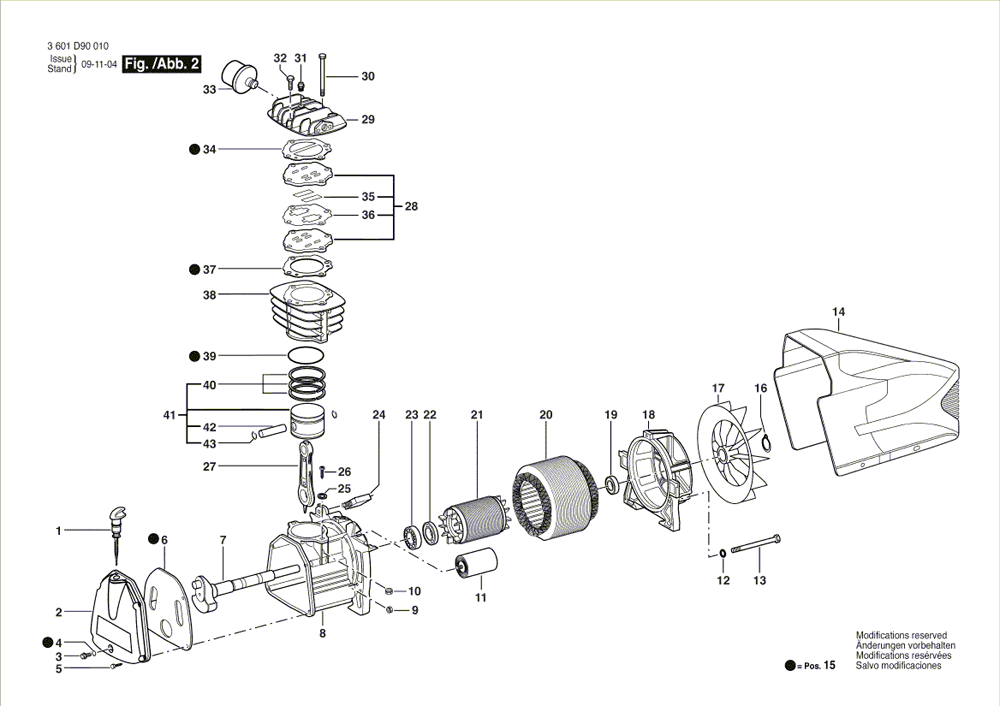

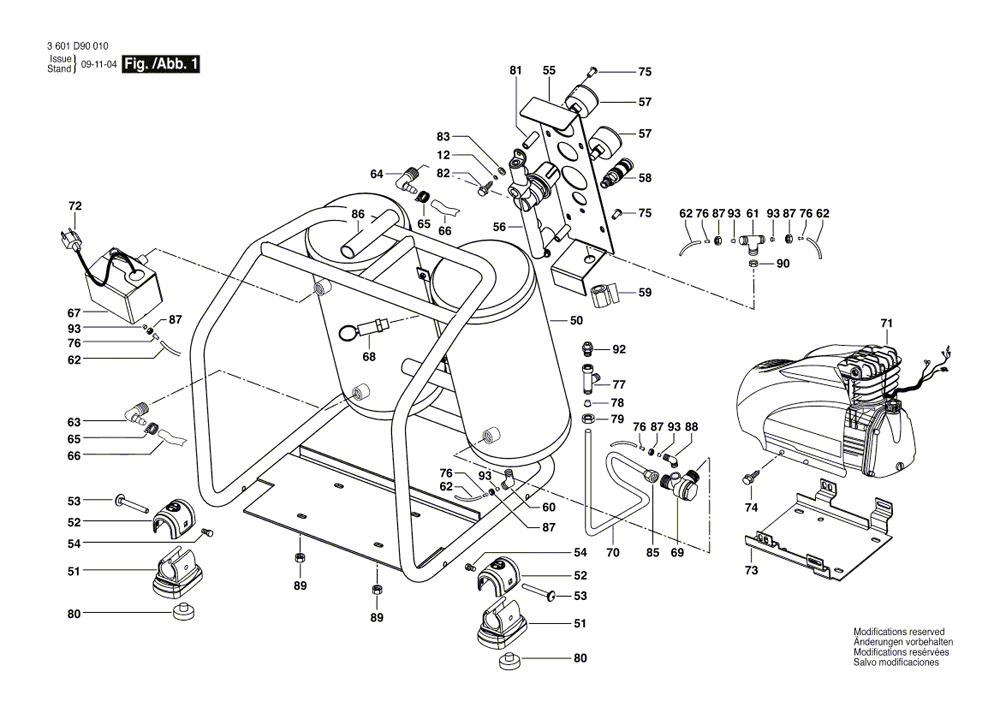

Bosch CET3-10 Compressor Parts Breakdown Diagram
