Bosch 3915 Electric Saw Parts

Bosch 3915 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

Page-1

Page-2

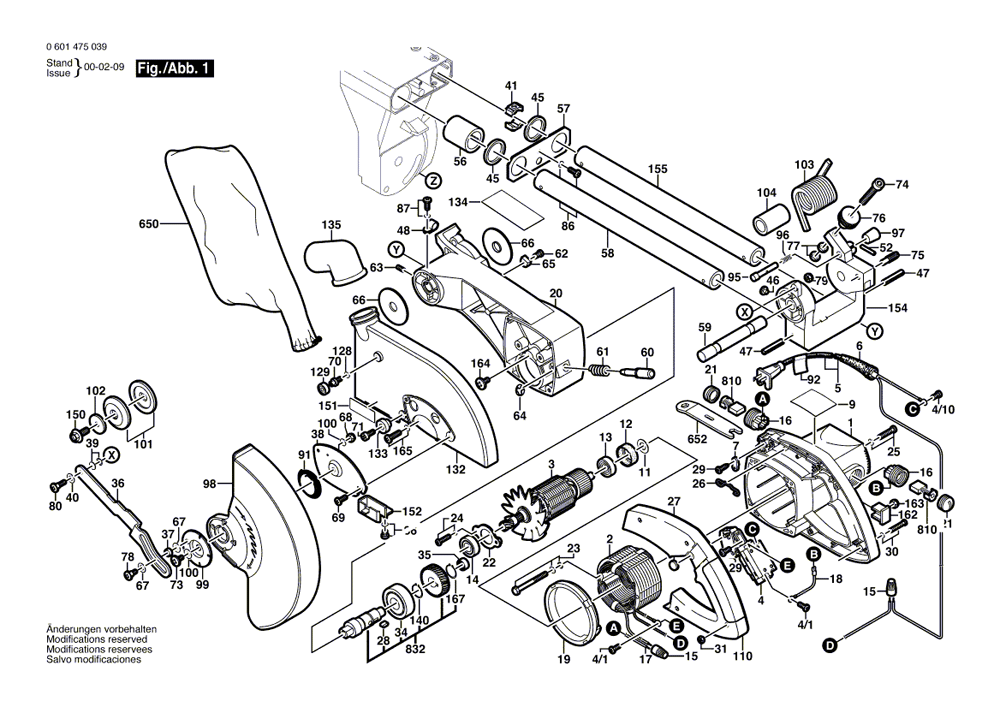

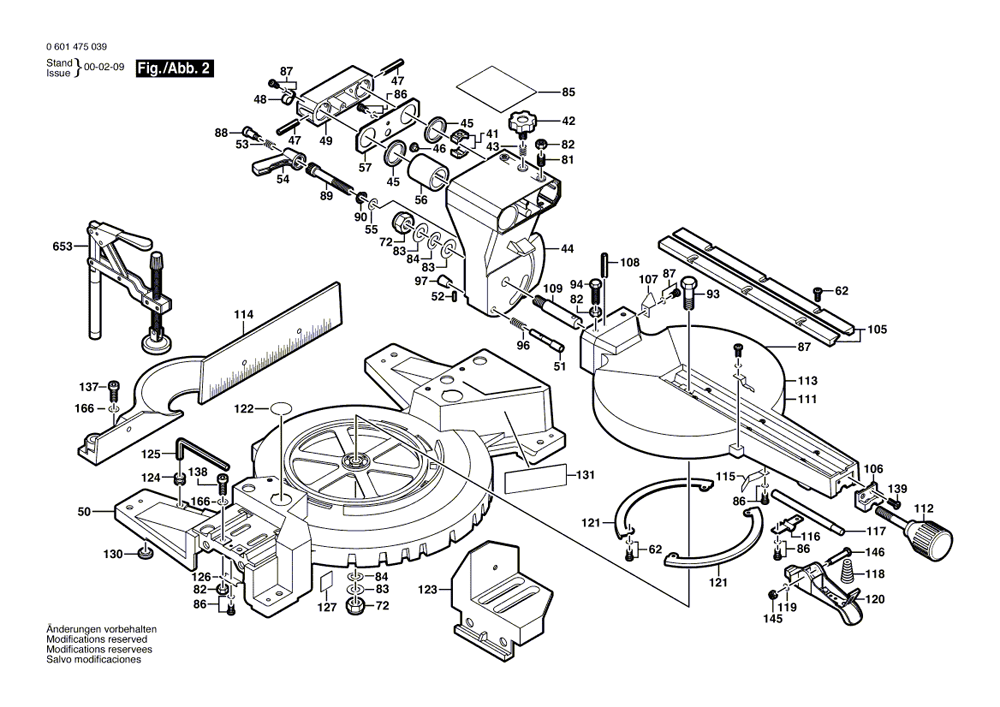

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	2-610-911-880	Motor Housing	$65.75
2	2-610-911-856	Stator 120V	$73.20
3	2-610-911-857	Rotor 120V	$92.70
4	2-610-911-881	Switch	$27.31
4/10	2-610-315-146	Screw	$1.34
5	2-610-911-879	Power supply cord	$24.95
6	2-610-911-932	Cord guard	$4.00
7	2-610-911-878	Fastening Clamp	$1.34
9	2-610-991-995	Nameplate	$4.00
11	2-610-911-924	Spring Washer	$3.17
12	2-610-911-925	Ring	$2.24
13	2-610-911-928	Ball Bearing	$7.90
14	2610911927	BALL BEARING	$10.27
15	2610358932	CONNECTOR	$1.34
16	2610911858	CARBON BRUSH HOLDER	$16.59
17	2-610-911-930	Cable 280 MM	$2.79
18	2-610-911-942	Cable 360 MM	$2.79
19	2-610-911-931	Air-Deflector Ring	$3.17
20	2-610-911-572	Gear Housing	$92.70
21	2610911859	COVER	$1.91
22	2610911566	BEARING COVER	$2.79
23	2610911929	SCREW	$1.34
24	2610998571	SCREW	$1.34
25	2-610-911-865	Screw	$1.57
26	2-610-911-567	Spring Wire	$1.34
27	2-610-304-698	Screw	$2.24
28	2610993102	KEY	$1.34
29	2-610-911-903	Screw	$0.89
30	2-610-911-904	Screw	$1.34
31	2-610-358-521	Hex Nut	$0.89
34	2-610-993-105	Ball Bearing	$20.28
35	2-610-993-106	Ball Bearing	$11.58
37	2-610-911-850	Spacer	$1.34
38	2-610-993-107	Tab Washer	$6.91
39	2-610-911-895	Plain Washer	$0.89
40	2-610-027-396	Washer	$0.89
41	2-610-911-588	Clamping Block	$3.17
42	2-610-911-583	Knob	$6.91
43	2-610-911-582	Spring	$1.34
44	2-610-911-592	Bearing Pedestal	$73.20
45	2-610-911-589	Seal	$7.90
46	2-610-911-584	Rubber Pad	$1.34
47	2-610-911-593	Slotted Spring Pin	$2.24
48	2-610-911-872	Cable Clip	$1.34
49	2-610-911-586	Support	$27.31
50	2-610-911-551	Base Plate	$192.99
51	2-610-911-869	Bar	$2.24
52	2-610-911-577	Retaining Pin	$0.89
53	2-610-911-561	Spring	$1.91
55	2-610-351-415	Plain Washer	$0.89
56	2-610-915-760	Sliding Bearing	$36.72
57	2-610-911-587	Intermediate Plate	$6.91
58	2-610-911-590	Pipe	$83.45
59	2-610-911-875	Shaft	$9.11
60	2-610-911-594	Locking Pin	$6.03
61	2-610-911-564	Spring	$1.34
62	2-610-911-899	Screw	$1.34
63	2-610-911-908	Set screw	$1.91
64	2-610-911-902	Clip	$0.89
65	2-610-911-563	End stop	$1.34
66	2-610-911-937	Shim	$4.00
67	2-610-911-599	Plain Washer	$0.89
68	2-610-911-570	Hex Nut	$1.34
69	2-610-004-925	Screw	$4.00
70	2-610-911-883	Shoulder Screw	$2.24
71	2-610-911-911	Shoulder Screw	$0.89
72	2-610-911-886	Self-locking nut	$1.34
73	2-610-911-905	Screw	$0.89
74	2-610-911-580	Screw	$3.17
75	2-610-911-873	Stop Screw	$2.24
76	2-610-911-579	Nut	$9.11
77	2-610-934-688	Nut	$1.34
78	2-610-911-598	Shoulder Screw	$1.34
79	2610911896	NUT	$0.89
80	2-610-911-885	Shoulder Screw	$0.89
81	2-610-911-914	Set screw	$2.24
83	2-610-911-887	Plain Washer	$1.34
84	2-610-911-868	Spring Washer	$1.34
85	2-610-911-670	Label	$4.00
86	2-610-911-897	Screw	$0.89
87	2-610-911-907	Screw and washer assembly	$0.89
88	2-610-911-562	Shoulder Screw	$2.24
90	2-610-911-891	Spring Washer	$0.89
91	2-610-911-853	Torsion Spring	$3.17
92	2-610-911-671	Warning Plate	$2.79
93	2-610-911-861	Hex Screw	$2.79
94	2-610-911-884	Threaded Bolt	$0.89
95	2-610-911-575	Detent Pin	$2.24
96	2-610-911-576	Compression Spring	$1.34
97	2-610-911-578	Knob	$1.57
98	2-610-911-556	Flap Guard	$24.95
99	2-610-911-852	Cover	$5.26
100	2-610-029-234	Plain Washer	$0.89
101	2-610-911-909	Flange	$5.26
102	2-610-911-870	Plain Washer	$2.79
103	2-610-911-860	Torsion Spring	$16.59
104	2-610-911-874	Sleeve	$4.00
105	2-610-911-862	Support Plate	$3.17
106	2-610-911-867	Holding Fixture	$6.91
107	2-610-911-877	Pointer	$2.79
108	2-610-911-597	Bolt	$1.34
109	2-610-911-910	Pivot	$9.11
110	2-610-911-568	Handle	$20.28
111	2-610-911-552	Saw Table	$175.29
112	2-610-911-866	Knob	$10.27
113	2-610-911-876	Pointer	$2.79
114	2-610-911-553	Stop Rail	$73.20
115	2-610-911-913	Leaf Spring	$1.34
116	2-610-911-912	Support	$1.34
117	2-610-911-864	Bolt	$4.60
118	2-610-911-917	Compression Spring	$1.34
119	2-610-320-126	Washer	$1.34
120	2-610-911-936	Locking Lever	$10.27
121	2-610-911-863	Sliding Plate	$5.26
122	2-610-911-658	Warning Plate	$2.79
123	2-610-911-554	Extension Stand	$55.35
124	2610911920	RUBBER BUSHING	$1.34
125	2-610-911-935	Hexagon Socket Wrench 6 MM	$6.91
126	2-610-911-919	Threaded Plate	$2.79
127	2-610-911-667	Warning Plate	$2.79
128	2-610-911-906	Washer	$1.34
129	2-610-911-938	Ball Bearing	$4.00
130	2610358846	RUBBER BUSHING	$1.34
131	2-610-911-666	Warning Plate	$2.79
132	2-610-911-555	Safety Cover	$55.35
133	2-610-911-921	Round Rubber	$1.34
134	2-610-911-669	Warning Plate	$2.79
135	2-610-911-934	Suction Tube	$4.00
137	2-610-911-893	Screw	$2.24
138	2-610-356-733	Screw	$0.89
139	2-610-911-900	Screw	$0.89
140	2-610-993-108	Spring retaining ring	$0.89
145	2610911901	SELF-LOCKING NUT	$1.57
146	2-610-911-918	Screw	$2.24
150	2-610-911-871	Screw	$1.91
151	2-610-911-668	Warning Plate	$2.79
152	2-610-911-916	Deflector	$6.03
154	2-610-911-922	Bearing Pedestal	$73.20
155	2-610-911-591	Pipe	$83.45
162	2610911569	INSERT	$1.57
163	2-610-327-868	Nut	$1.34
164	2-610-911-923	Screw	$0.89
165	2-610-993-104	Screw	$0.89
166	2-610-993-221	Plain Washer	$0.89
167	2-610-992-356	Spring retaining ring	$1.91
650	2-610-911-939	Dust Bag	$16.59
652	2-610-911-565	Key	$6.91
810	2610997207	CARBON-BRUSH SET	$7.90
