Bosch 1853-5
7 or 9 Inch Large An...
$173.99
Free Shipping
Page-1
Page-2

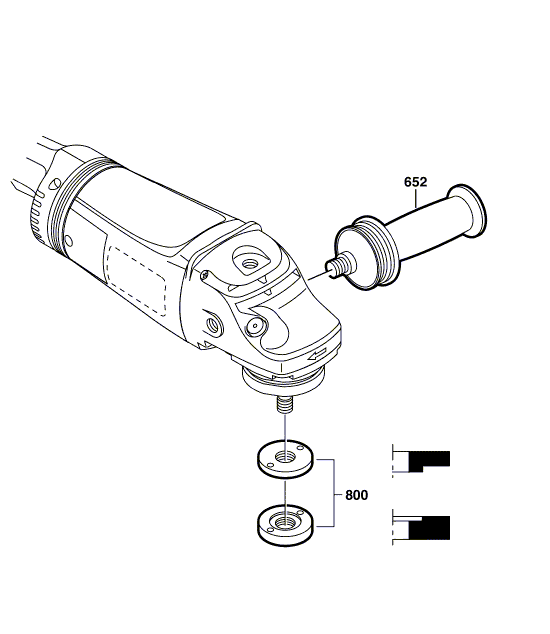

Tool Diagram    (Click image to Zoom in) View larger Image

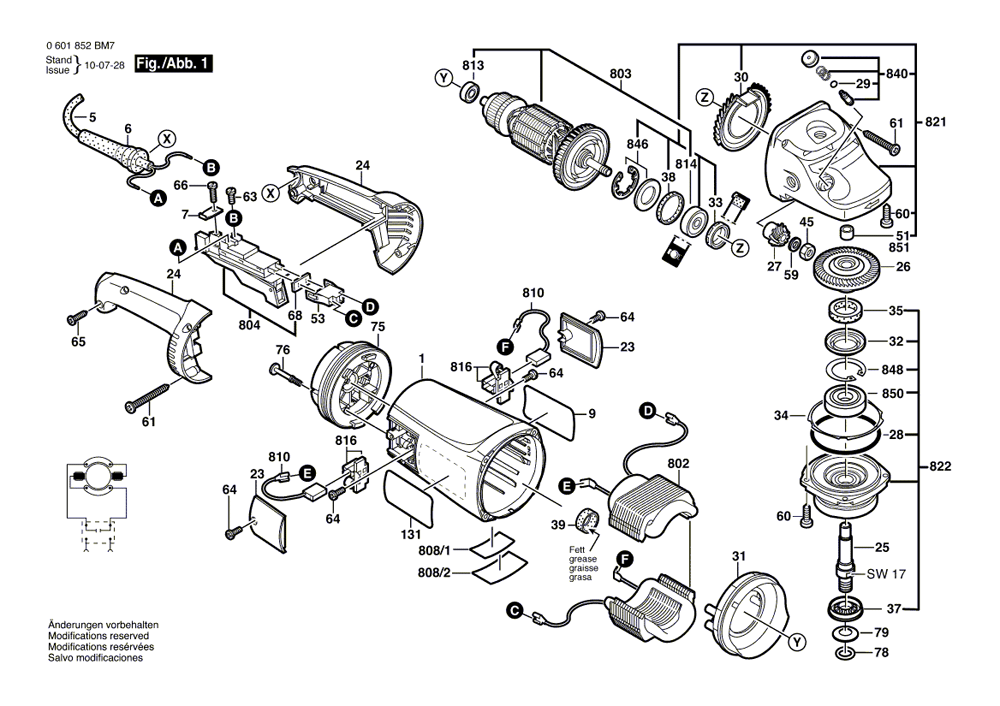

Bosch 1853-5 Electric Grinder Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 1-605-108-240 Motor Housing BLUE $14.23
6 1600703023 GROMMET $1.34
7 1601302018 FASTENING CLAMP $1.34
9 1-601-118-F38 Manufacturer's Nameplate $2.79
23 1-605-500-206 Sealing cap BLUE $3.17
24 1-605-132-141 Handle BLUE $7.90
25 1-603-523-117 "Grinding Spindle 5/8"" " $18.08
26 1-606-333-271 Crown Gear Z=49 $65.75
27 1606333252 BEVEL GEAR $46.86
28 1600210033 O-RING $1.34
29 1-600-210-045 O-Ring 8x1 MM $1.34
30 1-600-591-029 Air Distributor $1.91
31 1-600-591-028 Air-Deflector Ring $1.91
32 1600290019 RETAINING SNAP RING $1.34
33 1600290013 ROTARY SHAFT LIP SEAL $1.91
34 1600190020 SHIM $1.34
  1600190021 SHIM $1.34
  1600190022 SHIM $1.34
  1600190037 SHIM $0.89
  1-600-190-038 Shim 0,25 MM $0.89
  1-600-190-039 Shim 0,35 MM $0.89
  1-600-190-040 Shim 0,40 MM $0.89
35 1600205034 FELT WASHER $1.34
37 1-600-290-036 Sealing ring BLACK $1.57
38 1600206020 RUBBER RING $1.34
39 1600206030 RUBBER RING $1.34
45 1603300019 HEX NUT $1.34
51 2600910001 NEEDLE BUSH $2.24
53 1-605-190-068 Socket Housing $1.34
59 1600101655 PLAIN WASHER $1.34
60 1603435023 THREAD-FORMING TAP. SCREW $1.34
61 2912401038 TAPPING SCREW $0.89
63 1603410014 PAN HEAD SCREW $1.34
64 1603435042 PLASTIC-CUTTING SCREW $1.34
66 2910211019 TAPPING SCREW $0.89
68 1-601-006-011 Sealing Plate $1.34
75 1-600-290-057 Damper $16.59
76 1-603-414-016 Collar Screw TORX-PLUS-20-IP $1.34
78 1-900-210-111 O-Ring 12x3 MM $1.91
79 1-600-171-001 Locking Washer $1.34
131 1-601-118-G66 Reference Plate $2.79
652 1-602-025-030 Auxiliary Handle M14, Ø37x115 MM BLACK $14.23
800 1-607-000-380 Parts Set $12.80
802 1-604-220-385 Field 100-120V $36.72
803 1-604-011-178 Armature 100-120V $60.55
804 1-607-000-704 On-Off Switch $32.38
808/1 1-619-P07-025 Nameplate $1.91
808/2 1-619-P01-490 Transparent Cover $0.89
810 1607014175 CARBON BRUSH $11.58
814 1-600-905-028 Deep-Groove Ball Bearing $9.11
816 1-604-336-048 Brush Holder $5.26
821 1-607-000-C03 Gear Housing $40.54
822 1-607-000-C05 Bearing Flange Ø 230 MM $24.95
840 1-607-000-354 Push-Button $1.57
846 1607000342 RETAINING WASHER $1.57
848 1600119010 SPRING RETAINING RING $1.34
850 1-600-905-026 Deep-Groove Ball Bearing 6203-2 RS C3 17x40x12 $6.03
851 2600910001 NEEDLE BUSH $2.24
