Bosch 1677MDT Electric Saw Parts

Bosch 1677MDT Parts

Download Schematic

Time to buy a new tool?

Bosch 1677MDT

7 1/4 Inch 15 Amp Tw...

$194.99

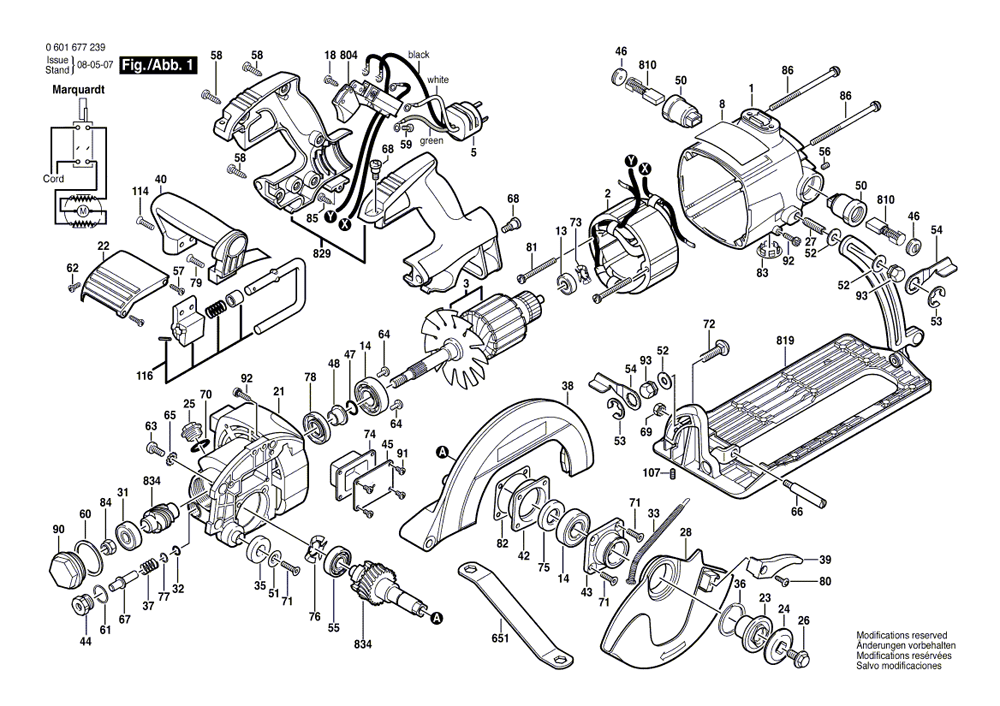

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	2-610-906-405	Housing	$36.72
3	2-610-931-892	Armature	$46.86
5	2-610-916-916	Connector Cable	$3.17
8	2-610-917-131	Nameplate	$1.34
13	2-610-017-348	Deep-Groove Ball Bearing	$2.24
14	2-610-024-748	Ball Bearing	$4.60
18	2-610-901-971	Screw	$0.89
21	2-610-906-401	Gear Housing	$36.72
24	1-619-X02-969	Washer	$4.60
25	2-610-023-384	Lock	$0.89
26	2-610-000-050	Collar bolt	$1.34
27	2-610-315-286	Bolt	$0.89
31	2-610-017-875	Ball Bearing	$3.17
32	2-610-015-726	Ring	$0.89
33	2-610-911-148	Extension Spring	$1.57
35	2-610-319-494	End stop	$1.34
36	2610341359	RETAINING SNAP RING	$1.34
37	2-610-023-394	Spring	$0.89
39	2-610-911-213	Lever	$0.89
42	2-610-352-115	Pivot Plate	$4.60
43	2-610-352-091	Holding Plate	$9.11
44	2-610-023-324	Pin	$1.57
46	3-603-463-500	Screw Plug	$0.89
47	2-610-044-638	O-Ring	$1.34
50	2-610-329-940	Carbon Brush Holder	$4.00
51	2-610-004-341	Washer	$0.89
52	2-610-912-616	Washer*This part replaces obsolete part #: and 2...	$0.89
53	2-610-968-747	Spring retaining ring	$1.34
55	2-610-000-166	Ball Bearing	$3.17
56	2-610-027-039	Set screw	$0.89
57	2-610-315-299	Screw	$0.89
58	2-610-315-380	Screw	$0.89
59	1-619-X03-644	Screw	$0.89
60	2-610-023-331	Washer	$1.34
61	2-610-025-067	Washer	$1.34
62	2-610-329-929	Screw	$0.89
63	2-610-329-955	Screw	$0.89
64	1619X01786	CONTACT SCREW	$0.89
65	2-610-306-355	Washer	$0.89
69	2-610-356-026	Nut	$0.89
71	2-610-027-002	Screw	$0.89
72	2-610-911-837	Bolt	$1.34
73	2-610-004-459	Spring Washer	$1.34
74	2-610-023-335	Insert	$3.17
75	2-610-025-245	Seal	$1.57
76	2-610-931-237	Spring Washer	$1.34
77	2-610-017-016	Washer	$0.89
78	2-610-329-927	Seal	$2.24
79	2-610-993-549	Screw	$0.89
81	2-610-329-950	Screw	$0.89
83	2-610-350-005	Plug	$0.89
84	2-610-318-324	Nut	$1.34
85	2610315386	SCREW	$0.89
86	2-610-329-953	Screw	$1.34
91	2-610-353-289	Tapping Screw	$0.89
93	1-619-X01-283	Nut	$1.91
107	2-610-911-889	Set screw	$1.34
114	2-610-911-890	Screw	$0.89
804	2-610-321-608	On-Off Switch	$10.27
829	2-610-917-012	Set Of Handles	$10.27
834	1-619-X02-374	Set Of Gears	$36.72
