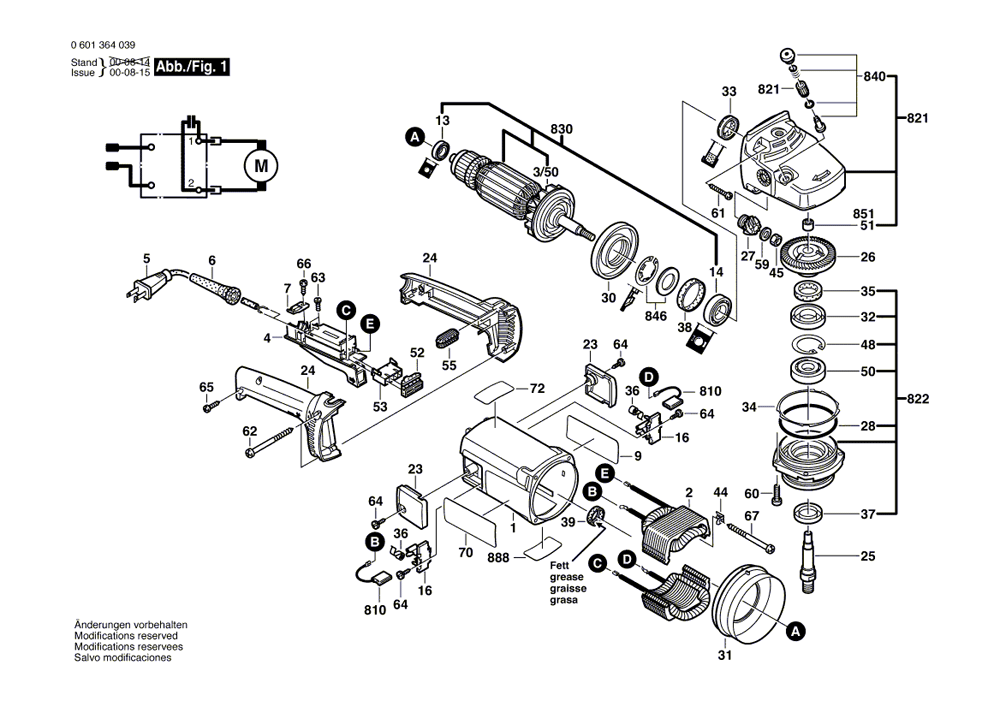

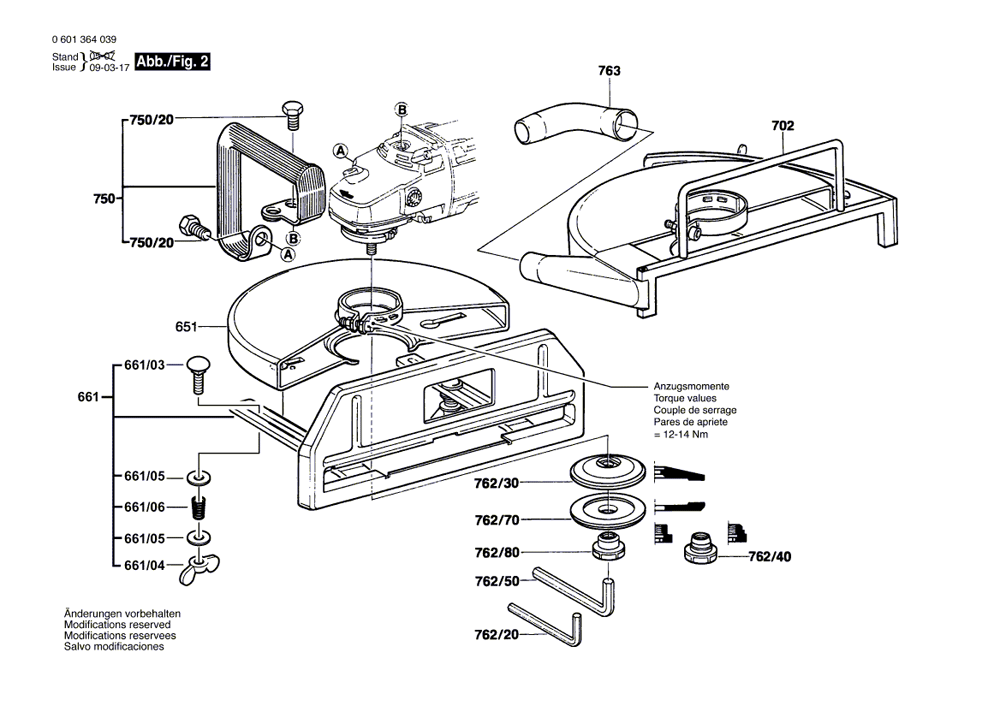

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	1605108145	MOTOR HOUSING	$20.28
2	1604220387	FIELD	$40.54
3/50	1606610127	FAN	$2.24
4	1607200104	ON-OFF SWITCH	$22.70
6	1600703023	GROMMET	$1.34
7	1601302018	FASTENING CLAMP	$1.34
9	2610906991	MANUFACTURER'S NAMEPLATE	$2.79
16	1604336021	BRUSH HOLDER	$2.79
23	1605500165	SEALING CAP	$2.79
24	1605132121	HANDLE	$9.11
25	1603523106	GRINDING SPINDLE	$32.38
26	1606333253	CROWN GEAR	$65.75
27	1606333252	BEVEL GEAR	$46.86
28	1600210033	O-RING	$1.34
30	1600591010	AIR-DEFLECTOR RING	$1.57
31	1600591011	AIR-DEFLECTOR RING	$1.34
32	1600290019	RETAINING SNAP RING	$1.34
33	1600290013	ROTARY SHAFT LIP SEAL	$1.91
34	1600190020	SHIM	$1.34
34	1600190021	SHIM	$1.34
34	1600190022	SHIM	$1.34
34	1600190037	SHIM	$0.89
35	1600205034	FELT WASHER	$1.34
36	1604652015	SPIRAL SPRING	$1.34
37	1600290020	SEALING RING	$1.34
38	1600206020	RUBBER RING	$1.34
39	1600206030	RUBBER RING	$1.34
44	1601334008	HOLDING BRACKET	$1.34
45	1603300019	HEX NUT	$1.34
48	1600119010	SPRING RETAINING RING	$1.34
50	3600905134	DEEP-GROOVE BALL BEARING	$9.11
51	1600200031	PLAIN BEARING	$1.34
52	1602388027	CABLE ROUTING	$1.34
53	1605190038	SOCKET HOUSING	$1.34
59	1600101655	PLAIN WASHER	$1.34
60	1603435023	THREAD-FORMING TAP. SCREW	$1.34
61	2912401038	TAPPING SCREW	$0.89
62	1603435024	TAPPING SCREW	$1.34
63	1603410014	PAN HEAD SCREW	$1.34
64	1603435042	PLASTIC-CUTTING SCREW	$1.34
66	2910211019	TAPPING SCREW	$0.89
70	2610906872	MANUFACTURER'S NAMEPLATE	$2.79
810	1607014175	CARBON BRUSH	$11.58
821	1607000920	GEAR HOUSING	$40.54
822	1607000947	PARTS SET	$40.54
830	1604011155	ARMATURE	$133.82
840	1607000206	PUSH-BUTTON	$2.24
846	1607000342	RETAINING WASHER	$1.57
851	2600910001	NEEDLE BUSH	$2.24
888	1601106032		$1.91
651	1605510213	PROTECTIVE COVER	$101.08
661	1608190014	GUIDE BLOCK	$92.70
661/03	2910281246	ROUND-HEAD BOLT	$1.57
661/04	2915191007	WING NUT	$2.79
661/05	2600100041	PLAIN WASHER	$1.34
661/06	1604643003	COMPRESSION SPRING	$4.00
750	1607000247	STRAP-SHAPED HANDLE	$50.33
750/20	2603450007	HEX SCREW	$3.17
762/20	1907950007	OFFSET SCREWDRIVER	$2.79
762/50	3607950013	OFFSET SCREWDRIVER	$7.90
762/70	1605703068	CONICAL SPRING WASHER	$10.27
763	1600793007		$32.38
