bosch 1347AK Electric Grinder Parts

bosch 1347AK Electric Grinder Parts Image

bosch 1347AK Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
bosch 1347AK
4-1/2 Inch Small Ang...
$87.99
Tool Diagram    (Click image to Zoom in) View larger Image

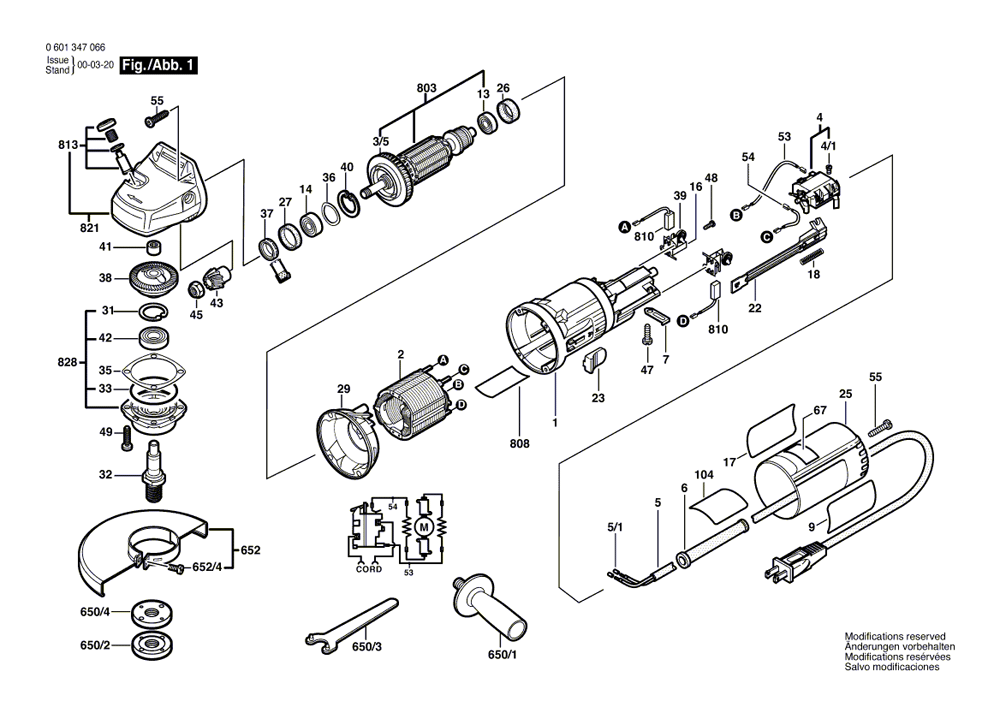

bosch 1347AK Electric Grinder Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 1605108151 MOTOR HOUSING $11.58
2 1604220226 FIELD $24.95
3/5 1606610121 FAN $1.57
4 1607200086 ON-OFF SWITCH $10.27
4/1 2910091047 PAN HEAD SCREW $0.89
5 3604460555 POWER SUPPLY CORD $9.11
5/1 1900452012 END SPLICE $0.89
6 2600703013 GROMMET $1.34
7 1601302017 FASTENING CLAMP $1.34
9 2610906844 MANUFACTURER'S NAMEPLATE $2.79
13 2600905032 DEEP-GROOVE BALL BEARING $2.79
14 1619P01511 DEEP-GROOVE BALL BEARING $3.17
16 2601323021 BRUSH HOLDER $1.34
17 2610906860 MANUFACTURER'S NAMEPLATE $2.79
18 1604611026 COMPRESSION SPRING $1.34
22 1602319002 ADJUSTING SLIDE $1.34
23 1602026057 SWITCH HANDLE $1.34
25 1600508010 HOUSING COVER $4.60
26 1600502020 RUBBER BUSHING $1.34
27 1600206025 RUBBER RING $1.34
29 1601328005 AIR-DEFLECTOR RING $1.57
31 2916660013 SPRING RETAINING RING $1.34
32 1603523122 GRINDING SPINDLE $24.95
33 3600210124 O-RING $1.57
35 1600136012 SHIM $1.34
35 1600136010 SHIM $1.57
35 1600136011 SHIM $1.34
36 1600150011 SPRING WASHER $1.34
37 1600290016 ROTARY SHAFT LIP SEAL $1.57
38 1606333601 CROWN GEAR $7.90
39 1604652013 SPIRAL SPRING $1.34
40 2916660009 SPRING RETAINING RING $1.91
41 1600910018 NEEDLE BUSH $2.24
42 1600905006 DEEP-GROOVE BALL BEARING $10.27
43 1606333242 BEVEL GEAR $20.28
45 1603300016 HEX NUT $1.34
47 2910611018 TAPPING SCREW $1.34
48 2610914920 TAPPING SCREW $0.89
53 1604448005 CONNECTING CABLE $2.24
54 1604448006 CONNECTING CABLE $1.34
67 1601110358 REFERENCE PLATE $1.34
104 1601008003 INSULATING PLATE $1.34
650/1 2602025067 AUXILIARY HANDLE $1.57
650/2 2610910341 FLANGE $3.17
650/3 1607950052 PIN-TYPE FACE-WRENCH $2.79
650/4 2610992248 FLANGE $2.79
652 2610906260 PROTECTIVE COVER $12.80
803 1604010261 ARMATURE WITH FAN $46.86
810 1607014116 CARBON-BRUSH SET $9.11
813 1607000253 PUSH-BUTTON $2.24
821 1605806480 GEAR HOUSING $29.17
828 1607000936 BEARING FLANGE $16.59
