Bosch 1276D Sander & Polisher Parts

Bosch 1276D Sander & Polisher Parts Image

Bosch 1276D Parts

Download Schematic

Time to buy a new tool?

Bosch 1276D

4" x 24" Belt Sander

$231.99

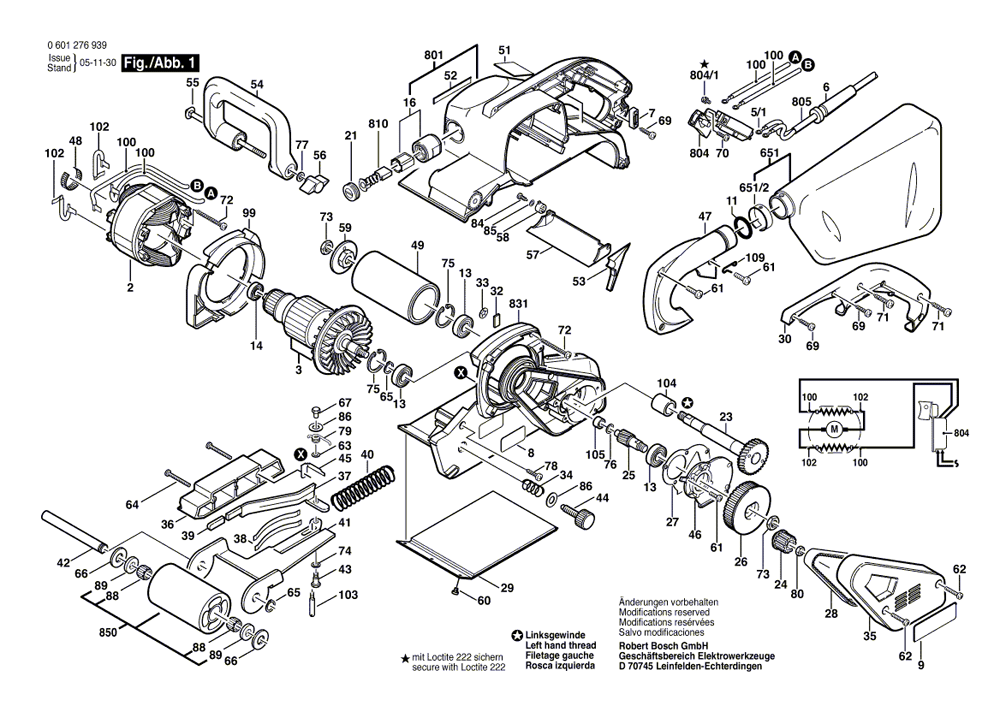

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
6	3-600-707-503	Grommet Ø 9,4 MM	$1.57
7	2601035001	CABLE CLIP	$1.34
8	2-610-907-382	Nameplate	$1.57
9	2-610-911-727	Manufacturer's Nameplate	$2.79
11	2610992403	O-RING	$1.34
13	1-900-905-161	Deep-Groove Ball Bearing 6001-2RS DIN 625	$4.00
14	1619P01511	DEEP-GROOVE BALL BEARING	$3.17
23	2-610-908-618	Spindle With Gear	$24.95
24	2-610-993-575	Pinion	$15.38
25	2-610-908-621	Pinion	$18.08
26	2-610-994-443	Conversion Gear	$27.31
27	3-601-015-503	Insert 0,8 MM	$2.24
28	3-604-736-505	Toothed Belt 14,3 MM, Z=60	$15.38
29	2-610-908-625	Sander Support Plate	$14.23
30	2-610-994-470	Handle Cover BLUE	$4.00
32	2-610-908-628	Ceramic Plate	$2.24
33	1600146001	LOCKING WASHER	$1.34
34	2-610-990-029	Compression Spring	$1.91
35	2-610-990-025	Gear Cover BLUE	$4.60
36	3-605-510-525	Guard Plate	$11.58
37	3-601-923-502	Lever	$14.23
38	2-610-908-629	Leaf Spring	$1.91
39	2-610-908-630	Protective Cap	$1.91
40	3-604-619-500	Spring	$2.24
41	2-610-908-632	Support Frame	$18.08
42	2-610-908-634	Shaft	$9.11
43	3-603-453-500	Hex Screw 5x0,8 MM	$2.79
44	2-610-908-637	Adjusting Screw	$4.00
45	2-610-908-638	Plate Strap	$1.91
46	2-610-993-630	Gear Cover	$20.28
47	3-605-500-579	Fan Cover BLUE	$5.26
48	2-610-911-048	Ring 22 MM THICK	$1.91
49	2-610-908-642	Pulley	$27.31
51	2-610-967-533	Reference Plate	$2.79
52	2-610-911-699	Reference Plate	$2.79
53	2-610-908-651	Dust Cap	$2.24
54	2-610-908-652	Auxiliary Handle	$11.58
55	2-610-908-653	Round-Head Bolt	$1.91
56	1-603-339-006	Wing Nut M6	$1.34
57	2-610-908-655	Adjustment Flap	$9.11
58	2-610-908-656	Adjusting Device	$1.91
59	2-610-908-657	Cover Disc	$1.91
60	2-610-911-095	Socket head cap screw DIN 7985 3,50x4,00-4.8	$1.91
61	3-603-415-540	Screw 4x13 MM	$1.91
62	3-603-429-514	Screw 4x25 MM	$1.34
63	2-916-011-010	Plain Washer DIN 125-A4,3-ST	$0.89
64	3-603-429-513	Screw 4x35 MM	$1.34
65	2-916-650-003	Spring retaining ring DIN 471-12x1-FSt	$0.89
66	2-610-908-658	Washer 12,5x26,0x1,52MM	$1.91
67	3-603-315-500	Spring Retainer M 5x0,8 MM	$1.91
69	2610910566	TAPPING SCREW	$0.89
70	2910611424	TAPPING SCREW	$0.89
71	2-910-611-028	Tapping Screw DIN 7981-ST4,2x22-C-H	$0.89
72	2-610-996-051	Tapping Screw	$1.57
73	2-610-990-040	Hex Nut	$1.91
74	3-600-150-505	Spring Washer	$1.91
75	2-610-908-661	Retaining snap ring	$1.91
76	3-600-100-504	Shim	$1.91
77	2916011014	PLAIN WASHER	$0.89
78	2-910-611-013	Tapping Screw DIN 7981-ST3,5x19-C-H	$0.89
79	2-610-990-039	Compression Spring	$4.00
80	2-610-908-663	Hex Nut M8x1,25 MM	$1.91
84	2-910-641-086	Screw	$1.34
85	2610991341	Shim	$1.34
86	2-610-992-475	Shim	$1.34
88	3-600-910-504	Needle bush Ø12xØ16x10 MM	$2.24
89	1600290016	ROTARY SHAFT LIP SEAL	$1.57
99	2-610-908-665	Baffle BLUE	$5.26
100	2-610-908-666	Connecting Cable Vyc101	$4.00
102	2-610-908-668	Connecting Cable Vyc101	$4.00
103	3-603-405-509	Swivelling Axis	$1.91
104	3-600-301-501	Bushing Ø 15,9 MM	$2.24
105	3-600-301-502	Bushing Ø 7,8 MM	$2.24
109	3-604-680-500	Wire Guide	$1.91
651	2-610-994-480	Dust Bag	$11.58
651/2	3-601-253-503	Holding Spring	$2.24
801	2-610-991-330	Motor Housing BLUE	$60.55
804/1	3603433506	SOCKET HEAD CAP SCREW	$1.91
805	3604460514	POWER SUPPLY CORD	$14.23
810	2-610-908-677	Carbon-Brush Set	$14.23
831	2-610-907-550	Housing	$73.20
850	2-610-908-644	Tensioning Roller	$32.38
