Bosch 1132VSR Electric Drill & Driver Parts

Bosch 1132VSR Electric Drill & Driver Parts Image

Bosch 1132VSR Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Bosch 1132VSR
Right Angle Drill w/...
$249.99
Free Shipping
Tool Diagram    (Click image to Zoom in) View larger Image

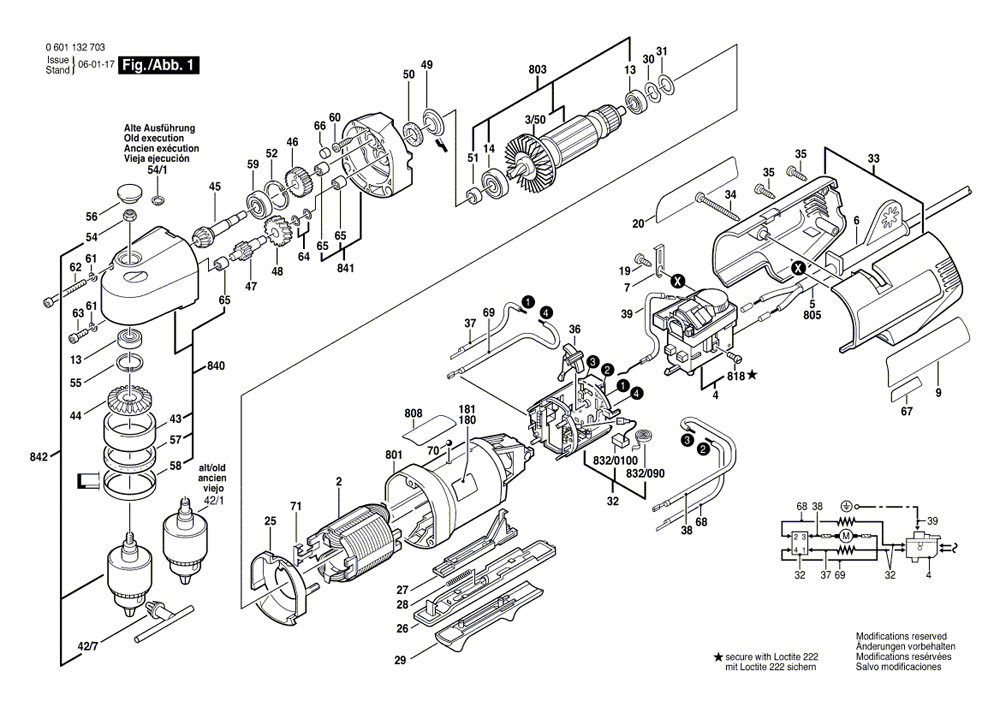

Bosch 1132VSR Electric Drill & Driver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
2 2-604-220-566 Field 115V $18.08
3/50 2-606-610-081 Fan $5.26
4 2-607-200-290 Switch $65.75
6 2600707060 GROMMET $1.34
7 1601302017 FASTENING CLAMP $1.34
13 2600905032 DEEP-GROOVE BALL BEARING $2.79
14 2-600-905-021 Deep-Groove Ball Bearing 9 MM $7.90
19 2910211019 TAPPING SCREW $0.89
20 3-601-110-403 Sticker SHADOW SIDE $2.79
25 2-601-328-002 Cover Disc $2.24
26 2-608-001-005 Switch Rocker BLUE $2.24
27 2-608-001-007 Switch Slide BLACK $1.34
28 2-604-611-033 Compression Spring $1.34
29 2-608-001-013 Switch Handle YELLOW $1.57
30 2-600-150-003 Shim $1.34
31 2-600-101-617 Shim 0,3 MM $1.34
32 2-604-337-051 Brush Holder $36.72
33 2-605-104-351 Housing Cover BLUE $10.27
34 2-910-211-283 Tapping Screw DIN 7971-B3,9x45 $1.34
35 2-910-211-007 Tapping Screw DIN 7971-BZ2,9x16 $0.89
36 2-601-990-004 Control Lever $1.57
37 2-604-448-154 Elec. Cable W/Connection L = 83 MM WHITE $1.34
38 2-604-448-156 Elec. Cable W/Connection L = 113 MM WHITE $1.34
42/7 2607950007 CHUCK WRENCH $4.60
44 3-606-333-035 Crown Gear Z=36 $27.31
45 3-606-333-038 Bevel Gear Z=18 $40.54
46 3-606-317-010 Cylindrical Gear Z=21 $18.08
47 3-606-309-010 Toothed Shaft Z=11 $20.28
48 2-606-317-065 Cylindrical Gear Z=24 $2.24
49 2-600-500-017 Cupped Washer $1.34
50 2-600-108-026 Felt Washer $1.34
51 2-600-300-047 Seal Bushing $1.91
52 2-916-660-007 Spring retaining ring DIN 472-22x1MM $0.89
54 2-915-061-003 Hex Nut DIN 985-M 5-8-A $1.57
54/1 2-916-640-004 Spring retaining ring DIN 471-7x0,8-FST $0.89
55 2-916-660-005 Spring retaining ring DIN 472-19x1MM $0.89
56 3-600-508-008 Plug $1.34
57 3-600-205-001 Felt Washer $1.57
58 3-600-500-000 Cover Ring $1.91
60 2-910-211-021 Tapping Screw DIN 7971-ST3,9x22-F $0.89
62 2-910-141-140 Hex Socket Head Cap Screw DIN 912-M 4x45-8.8 $1.34
64 2600100607 SHIM $1.34
65 3-600-300-014 Sintered-Metal Bushing $1.34
66 3-603-100-023 Plug $1.34
67 3-601-110-243 Sticker $4.00
68 3-604-445-006 Connecting Cable L=91 MM BLUE $2.79
69 3-604-445-007 Connecting Cable L=91 MM $2.79
71 2601329037 CONTACT SPRING $1.34
801 2-605-108-060 Motor Housing BLUE $12.80
803 3-604-010-067 Armature 110-115V $83.45
808 1601106032 $1.91
818 1-603-429-002 Socket head cap screw M3,5x7 MM $1.34
832/090 1604652013 SPIRAL SPRING $1.34
832/0100 2-604-320-911 Carbon-Brush Set $6.91
840 3-607-031-170 Gear Housing $65.75
841 3-607-031-169 Bearing Flange $55.35
842 3-608-571-007 Key Chuck $73.20
