Bosch 11321EVS Demolition & Breaker Hammer Parts

Bosch 11321EVS Demolition & Breaker Hammer Parts Image

Bosch 11321EVS Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Bosch 11321EVS
12 Pound SDS-max®...
$542.99
Page-1

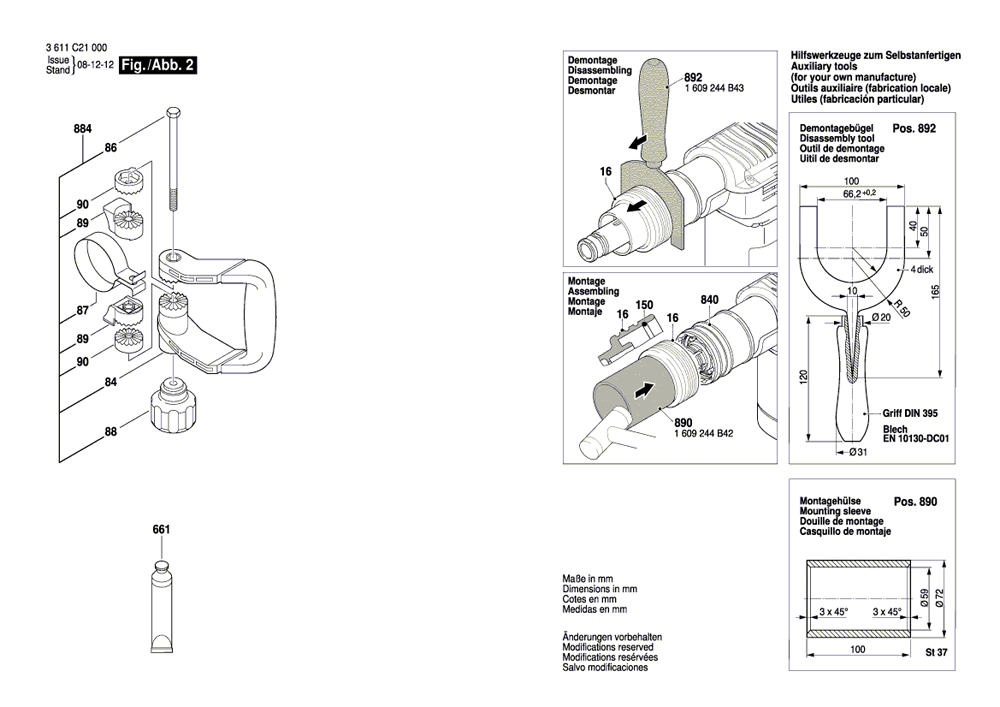

Page-2
Tool Diagram    (Click image to Zoom in) View larger Image

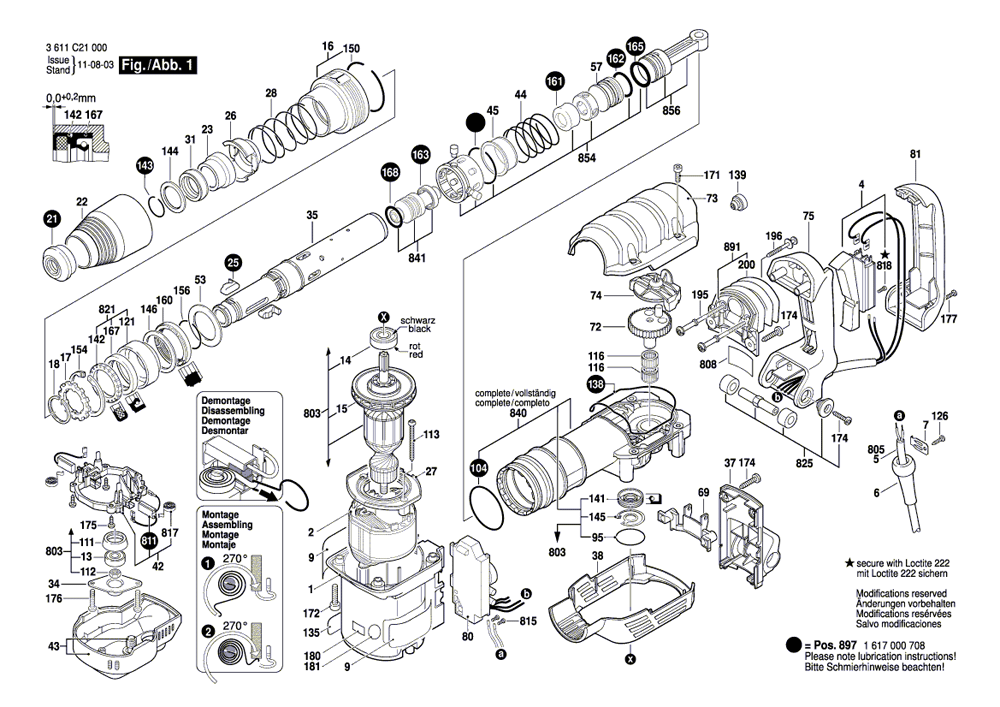

Bosch 11321EVS Demolition & Breaker Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 1-615-102-161 Motor Housing BLUE $22.70
2 1-614-220-133 Field 100-115V $27.31
4 1-617-200-095 Switch $16.59
5 1-614-461-035 Power supply cord USA/CDN 3,1m 3 x 2,08mm SJ0W $29.17
6 1-600-703-035 Grommet $1.91
7 1-601-302-019 Fastening Clamp $1.34
9 1-611-110-D63 Manufacturer's Nameplate $2.79
13 1-610-900-026 Deep-Groove Ball Bearing 8x24x8 $10.27
14 1-610-905-028 Deep-Groove Ball Bearing 12x32x10 $18.08
15 1-616-610-090 Fan $10.27
16 1-610-499-055 Ratchet Sleeve $6.03
17 1-610-241-000 Catch Disk $2.79
18 1-614-601-030 Retaining ring $1.91
21 1-610-508-038 Protective Cap $2.79
22 1-610-591-030 Protection Sleeve $4.00
23 1-610-520-001 Stop Sleeve $10.27
25 1-612-300-036 Stopping Device $7.90
26 1-610-290-076 Indexing Disk $5.26
27 1-610-591-028 Air-Deflector Ring $1.91
28 1-614-621-000 Compression Spring $1.91
31 1-610-290-049 Damping Ring $2.24
34 1-610-516-013 Flange $1.57
35 1-615-806-214 Hammer Pipe $92.70
37 1-615-500-390 Bearing Pedestal $6.91
38 1-615-190-158 Covering hood BLUE $6.03
42 1-614-336-085 Brush Holder $29.17
43 1-615-500-410 Fan Cover BLACK $11.58
44 1-614-621-007 Compression Spring $2.24
45 1-610-499-064 Control Bushing $12.80
53 1-610-102-054 Support Disc $2.79
57 1-618-710-089 Striker $20.28
69 1-610-099-005 Retaining Bracket $1.57
72 1-616-317-083 Eccentric Cog Wheel Z=43 $65.75
73 1-615-500-387 Housing Cover $27.31
74 1-610-516-016 Holding-Down-Appliance $2.79
75 1-615-132-118 Handle BLUE $36.72
80 1-617-233-050 Speed governor $65.75
81 1-615-132-088 Handle Cover BLACK $20.28
84 1-615-132-109 Auxiliary Handle $20.28
86 2911011270 HEX SCREW $1.91
87 1-611-316-022 Clamping Band $6.91
88 1613349017 STAR KNOB $5.26
89 1-618-040-084 Clamping Piece $1.57
90 1610190053 CATCH DISK $0.89
95 1-610-210-173 O-Ring 1,5x32 MM $1.34
104 1-610-210-095 O-Ring 55x2 MM $1.34
111 1-610-290-064 Bushing $1.34
112 1-613-300-008 Hex Nut DIN 936-M8x1-8 $1.34
113 1-613-435-009 Tapping Screw ST-4,8x57,5-TORX,T20 $1.34
121 1-610-328-018 Bushing $12.80
126 2910211019 TAPPING SCREW $0.89
135 1-614-431-031 Connecting Cable $4.60
138 1-611-015-050 Sealing Frame $4.00
139 1610508050 PLUG $1.57
141 1-610-290-066 Rotary shaft lip seal $7.90
142 1-610-290-061 Rotary shaft lip seal $3.17
143 1-614-601-021 Retaining ring DIN 7993-28x2 $2.79
144 1-610-251-006 Supporting Disc $4.60
145 1-610-119-012 Spring retaining ring $1.34
146 1-610-113-012 Shim $1.34
150 1-614-601-041 Retaining ring $1.91
154 2-916-660-024 Spring retaining ring 55x2MM, DIN 472 $4.00
156 1-610-224-009 Retaining ring $1.34
160 1-610-210-172 Damping Ring $5.26
161 1-610-290-093 Damping rubber $1.34
162 1-610-210-203 O-Ring $3.17
163 1-610-290-065 Sealing ring $4.00
165 1-610-210-153 O-Ring 4x25 MM $2.24
167 1-610-290-062 Rotary shaft lip seal $2.24
168 1-610-210-144 O-Ring $1.34
171 1-613-435-014 Torx Oval-Head Screw M5x16-TORX,T25 SILVER $1.34
172 1-613-435-013 Torx Oval-Head Screw M6x30-TORX,T30 SILVER $1.34
174 1-613-435-012 Torx Oval-Head Screw M4,8x25-TORX,T25 SILVER $1.34
175 2-912-401-018 Tapping Screw DIN7981-ST3,9x13-C-Z $0.89
176 1-613-435-012 Torx Oval-Head Screw M4,8x25-TORX,T25 SILVER $1.34
177 1-603-435-051 Tapping Screw ST3,9x32 SILVER $1.34
195 1-613-490-015 Torx Oval-Head Screw $1.34
196 1-613-435-019 Screw and washer assembly $1.34
200 1-610-284-000 Bellows $7.90
661 1615430010 GREASE TUBE $4.60
803 1-614-011-128 Armature 115V $116.60
808 1601106035 $1.91
811 1-617-014-144 Carbon-Brush Set $15.38
815 1-609-271-281 Socket head cap screw $0.89
817 1614652004 SPIRAL SPRING $3.17
818 2-910-011-082 Socket head cap screw DIN 84-AM3,5x6-5.8 $0.89
821 1-617-000-835 Bushing $18.08
825 1-617-000-706 Bearing Shaft $10.27
840 1-617-000-A08 Impact Mechanism Housing $20.28
841 1-617-000-899 Striker Pin $32.38
854 1-617-000-707 Guide Bushing $20.28
856 1-617-000-A00 Hammer Piston $16.59
884 1-612-025-061 Auxiliary Handle $32.38
890 1-609-244-B42 Mounting Sleeve $40.54
891 1-617-000-A26 Spring Pack $18.08
892 1-609-244-B43 Bow $83.45
897 1-617-000-708 Wear and Tear Part Set $36.72
