Bosch 11317EVS Demolition & Breaker Hammer Parts

Bosch 11317EVS Demolition & Breaker Hammer Parts Image

Bosch 11317EVS Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Bosch 11317EVS
Hex Demolition Hamme...
$754.99
Page-1

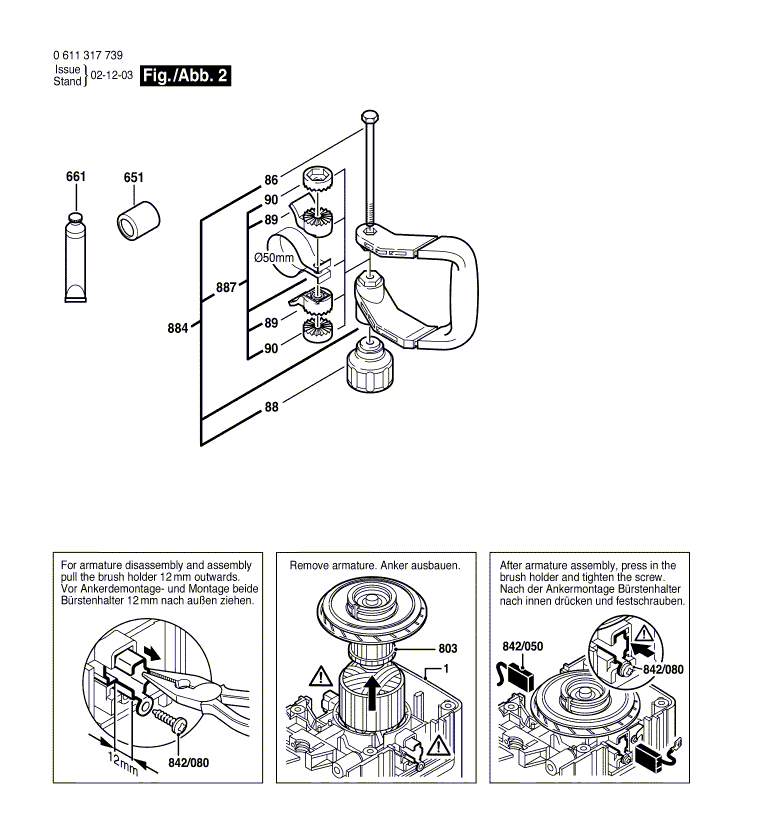

Page-2
Tool Diagram    (Click image to Zoom in) View larger Image

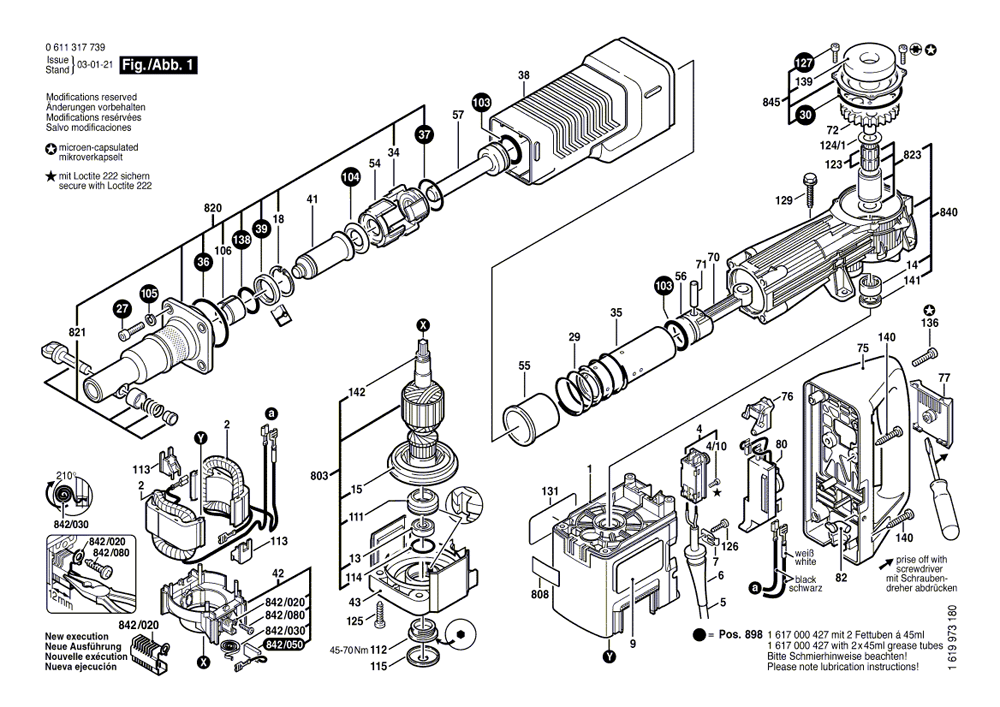

Bosch 11317EVS Demolition & Breaker Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 1615108091 MOTOR HOUSING $27.31
2 1614220125 FIELD $50.33
4 1617200048 ON-OFF SWITCH $18.08
4/10 2910011088 SOCKET HEAD CAP SCREW $0.89
5 1614460057 POWER SUPPLY CORD $20.28
6 1610703053 GROMMET $1.34
7 1601302018 FASTENING CLAMP $1.34
9 1-611-110-C35 Manufacturer's Nameplate $2.79
13 2610909310 DEEP-GROOVE BALL BEARING $12.80
14 1610910089 NEEDLE-ROLLER BEARING $18.08
15 1616610083 FAN $15.38
18 1610119010 SPRING RETAINING RING $2.79
27 2910151246 HEX SOCKET HEAD CAP SCREW $1.91
29 1614621003 COMPRESSION SPRING $2.24
30 1610210147 O-RING $1.57
34 1610390029 SPACER TUBE $15.38
35 1615806108 HAMMER PIPE $65.75
36 1610210127 O-RING $1.34
37 1610210128 O-RING $1.34
38 1-615-190-052 Covering hood $24.95
39 1610283030 ROTARY SHAFT LIP SEAL $7.90
41 1-618-710-078 Striker Pin $46.86
42 1614336036 BRUSH HOLDER $32.38
43 1615808083 BEARING COVER $24.95
54 1610190019 CONTROL DISC $6.91
55 1610420005 CONTROL BUSHING $18.08
56 1618700064 HAMMER PISTON $10.27
57 1618710062 STRIKER $50.33
70 1612001033 CONNECTING ROD $10.27
71 1613101006 STRAIGHT PIN $1.91
72 1616317045 ECCENTRIC COG WHEEL $73.20
75 1615132082 HANDLE $29.17
76 1612026049 CONTROL LEVER $1.57
77 1612026048 SHIFT PLATE $6.91
80 1-617-233-039 Speed governor 110-120V $46.86
82 1615510000 LIGHT CONDUCTOR $1.57
86 2911011270 HEX SCREW $1.91
88 1613349017 STAR KNOB $5.26
89 1618040053 CLAMPING PIECE $1.91
90 1610190053 CATCH DISK $0.89
103 1610210122 O-RING $5.26
104 1610210123 O-RING $2.24
105 2-916-690-007 Spring Lock Washer DIN 128-A8-FST $0.89
106 1-610-508-042 Piston Guide Ring $15.38
111 3610501500 BUSHING $9.11
112 3613461500 THREADED RING $9.11
113 1610009007 SPACER $1.34
114 1900210130 O-RING $2.79
115 1610508027 PROTECTIVE CAP $2.24
123 1610913013 NEEDLE-ROLLER ASSEMBLY $6.91
124/1 1610101608 THRUST BEARING DISC $1.34
125 2910611047 TAPPING SCREW $1.57
126 2910211019 TAPPING SCREW $0.89
127 2-914-551-117 Microencapsulated Screw DIN 912-M 5x12-8.8 $1.57
129 1613433001 SCREW AND WASHER ASSEMBLY $0.89
131 1611110C36 MANUFACTURER'S NAMEPLATE $2.79
136 2914551114 MICROENCAPSULATED SCREW $0.89
138 1610210130 O-RING $4.60
139 1610108020 FELT WASHER $5.26
140 2910211247 TAPPING SCREW $0.89
141 1610290028 ROTARY SHAFT LIP SEAL $1.91
142 3613344500 OIL RETURN RING $18.08
661 1615430010 GREASE TUBE $4.60
803 1614011074 ARMATURE $192.99
808 1601106032 $1.91
820 1-617-000-850 Tool Holder Set $156.61
821 1-617-000-014 Locking Bolt Set $27.31
823 1617000403 NEEDLE-ROLLER ASSEMBLY $18.08
840 1617000969 IMPACT MECHANISM HOUSING $244.40
842/020 1614336017 BRUSH GUIDE $7.90
842/030 1614652004 SPIRAL SPRING $3.17
842/050 1617014126 CARBON-BRUSH SET $12.80
842/080 2910611012 TAPPING SCREW $0.89
845 1617000418 HOUSING COVER $10.27
887 1617000188 CLAMPING BAND $7.90
898 1-617-000-427 Wear and Tear Part Set $55.35
