Homelite VCH250D-180 (UT-06053) Concrete Vibrator Parts

Other tools in Homelite Concrete Vibrator Parts category

About these parts

This page lists all 42 parts for the Homelite VCH250D-180 (UT-06053) concrete vibrator, with the schematic diagram and each part's diagram number. 8 parts are available to order today.Parts marked "Discontinued by manufacturer" are no longer made and can't be ordered.Check the model and type number on your tool's nameplate; models that share parts with this one are listed below. Can't find your part? Email sales@toolpartspro.com and we'll look for it.

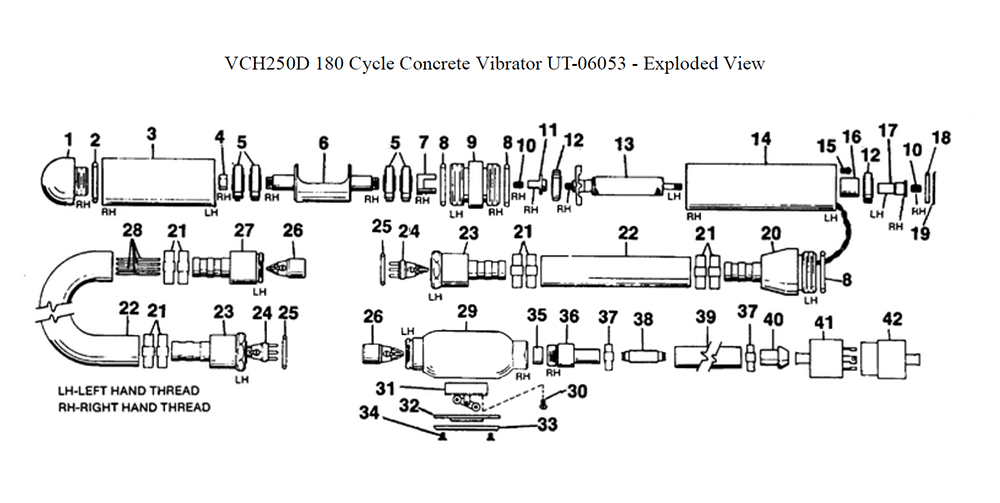

Fig-0

Reference Filter: Filter parts list by name or model number:

Homelite VCH250D-180-(UT-06053) Replacement Parts List

1

Nose- Steel Part # 0262601 Discontinued by manufacturer

N/A
2

O-ring Part # 0262603 Discontinued by manufacturer

N/A
3

Barrel- Eccentric Part # 0262604 Discontinued by manufacturer

N/A
4

Nut Part # 0262605 Discontinued by manufacturer

N/A
5

Bearing Part # 0262606

$54.04
Add to Cart
6

Eccentric Part # 0262607 Discontinued by manufacturer

N/A
7

Driver- Female Part # 0262608

$42.37
Add to Cart
8

O-ring Part # 0262609

$4.61
Add to Cart
9

Connector- Center Part # 0262610 Discontinued by manufacturer

N/A
10

Screw- Set Part # 0262611 Discontinued by manufacturer

N/A
11

Driver- Male Part # 0262612

$45.66
Add to Cart
12

Bearing-motor Part # 0262613

$37.91
Add to Cart
13

Rotor Part # 0262614 Discontinued by manufacturer

N/A
14

Motor Barrel & Stator Part # 0262615 Discontinued by manufacturer

N/A
15

Screw Part # 0262617 Discontinued by manufacturer

N/A
16

Spacer Part # 0262618 Discontinued by manufacturer

N/A
17

Shaft- Extension Part # 0262619 Discontinued by manufacturer

N/A
18

Spacer- Bearing Part # 0262620 Discontinued by manufacturer

N/A
19

Ring- Snap Part # 0262621 Discontinued by manufacturer

N/A
20

Connector- Hose Part # 0262622 Discontinued by manufacturer

N/A
21

Clamp- Hose Part # 0262623 Discontinued by manufacturer

N/A
22

Hose Part # 0262624 Discontinued by manufacturer

N/A
23

Connector- Female Part # 0262625 Discontinued by manufacturer

N/A
24

Plug Part # 0262626 Discontinued by manufacturer

N/A
25

O-ring Part # 0262627

$3.57
Add to Cart
26

Receptacle Part # 0262628 Discontinued by manufacturer

N/A
27

Connector- Male Part # 0262629 Discontinued by manufacturer

N/A
28

Wire Part # 0262630 Discontinued by manufacturer

N/A
29

Switch Box Part # 0262631 Discontinued by manufacturer

N/A
30

Screw Part # 0262632 Discontinued by manufacturer

N/A
31

Switch Part # 0262633 Discontinued by manufacturer

N/A
32

Gasket Part # 0262634 Discontinued by manufacturer

N/A
33

Cover- Switch Box Part # 0262635 Discontinued by manufacturer

N/A
34

Screw Part # 0262636 Discontinued by manufacturer

N/A
35

Seal Part # 0262637

$7.91
Add to Cart
36

Connector- Cable Part # 0262638 Discontinued by manufacturer

N/A
37

Clamp- Hose Part # 0262639 Discontinued by manufacturer

N/A
38

Cable Part # 0262640 Discontinued by manufacturer

N/A
39

Hose- Protective Part # 0262641

$172.55
Add to Cart
40

Fitting- Hose End Cone Part # 0262642 Discontinued by manufacturer

N/A
41

Plug- "twist Lock" Part # 0262644 Discontinued by manufacturer

N/A
42

Receptacle-"twist Lock" Part # 0262645 Discontinued by manufacturer

N/A

Homelite VCH250D-180-(UT-06053) Replacement Parts
