Homelite UT-46510 Cultivator Parts

Other tools in Homelite Cultivator Parts category

About these parts

This page lists all 57 parts for the Homelite UT-46510 cultivator, with the schematic diagram and each part's diagram number. 0 parts are available to order today.Parts marked "Discontinued by manufacturer" are no longer made and can't be ordered. Can't find your part? Email sales@toolpartspro.com and we'll look for it.

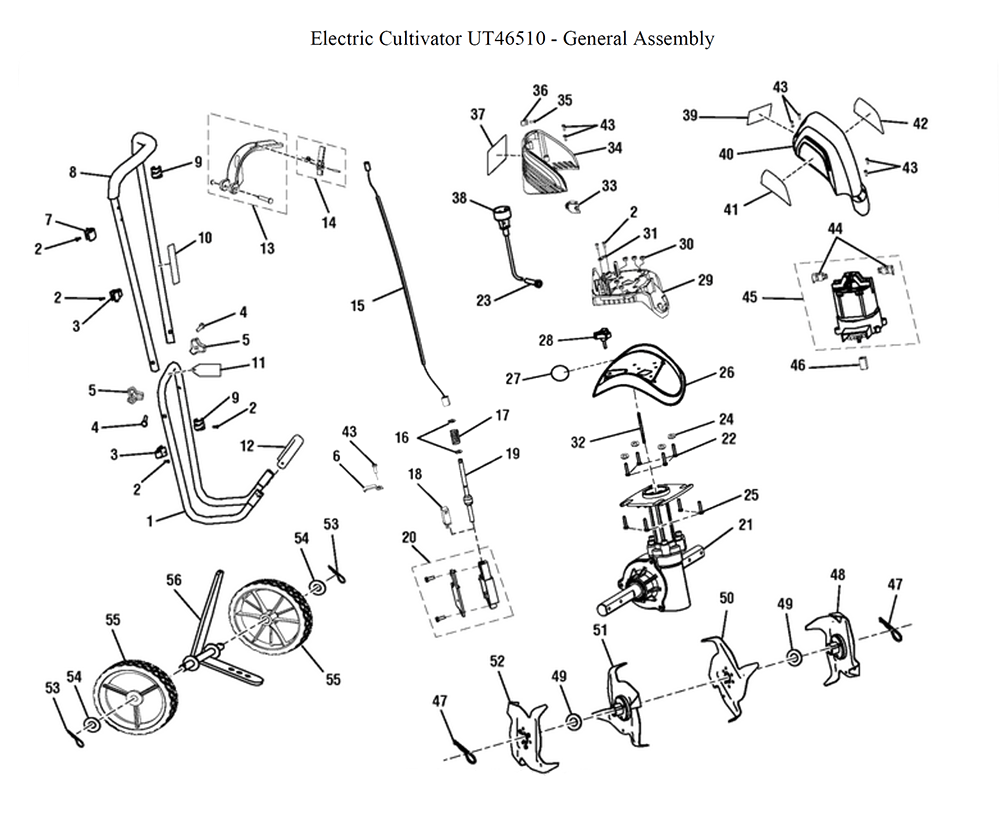

Fig-0

Reference Filter: Filter parts list by name or model number:

Homelite UT-46510 Replacement Parts List

00

Operator's Manual Part # 987000517 Discontinued by manufacturer

N/A
1

Lower Handle Part # 33202282G Discontinued by manufacturer

N/A
2

Screw (M4.2 X 14 Mm) Part # 3220107G Discontinued by manufacturer

N/A
3

Cable Retainer Ring Part # 34103282G Discontinued by manufacturer

N/A
4

Handle Bolt Part # 3220436G Discontinued by manufacturer

N/A
5

Handle Knob Part # 3410835G Discontinued by manufacturer

N/A
6

Switch Plate Part # 33207282G Discontinued by manufacturer

N/A
7

Upper Cable Retainer Ring Part # 34102282G Discontinued by manufacturer

N/A
8

Upper Handle Assembly Part # 31115282G Discontinued by manufacturer

N/A
9

Cord Retainer Ring Part # 3411135G Discontinued by manufacturer

N/A
10

Icon Warning Label Part # 38105282G Discontinued by manufacturer

N/A
11

Hang Tag Part # 38102282G Discontinued by manufacturer

N/A
12

Front Handle Assembly Part # 31105282G Discontinued by manufacturer

N/A
13

Switch Trigger Assembly Part # 31112822G Discontinued by manufacturer

N/A
14

Switch Lock-out Assembly Part # 31113282G Discontinued by manufacturer

N/A
15

Switch Cable Assembly Part # 31101282G Discontinued by manufacturer

N/A
16

Retaining Ring Part # 3230136G Discontinued by manufacturer

N/A
17

Compression Spring Part # 33903282G Discontinued by manufacturer

N/A
18

Switch Part # 36301282G Discontinued by manufacturer

N/A
19

Switch Actuator Part # 31104282G Discontinued by manufacturer

N/A
20

Switch Box Assembly Part # 31107282G Discontinued by manufacturer

N/A
21

Gear Box Assembly Part # 31101281G Discontinued by manufacturer

N/A
22

Bolt (M6 X 35 Mm Hex Hd.) Part # 32201282G Discontinued by manufacturer

N/A
23

Bend Relief Part # 3420102G Discontinued by manufacturer

N/A
24

Washer (M6) Part # 3290699G Discontinued by manufacturer

N/A
25

Bolt (M6 X 25 Mm, Hex Hd.) Part # 32205271G Discontinued by manufacturer

N/A
26

Tine Shield Assembly Part # 31117282G Discontinued by manufacturer

N/A
27

Foot Warning Label Part # 38103282G Discontinued by manufacturer

N/A
28

Adjustment Knob Part # 34111282G Discontinued by manufacturer

N/A
29

Motor Base Part # 34105282G Discontinued by manufacturer

N/A
30

Lock Nut (M6) Part # 3220343G Discontinued by manufacturer

N/A
31

Wire Clip Part # 3411435G Discontinued by manufacturer

N/A
32

Flex Shaft Part # 33206282G Discontinued by manufacturer

N/A
33

Circuit Breaker Part # 36901281G Discontinued by manufacturer

N/A
34

Lower Motor Cover Part # 31118282G Discontinued by manufacturer

N/A
35

Screw (M4 x12 Mm) Part # 32212100G Discontinued by manufacturer

N/A
36

Switch Cable Clip Part # 33203282G Discontinued by manufacturer

N/A
37

Data Label Part # 38106282G Discontinued by manufacturer

N/A
38

Power Cord Part # 36401281G Discontinued by manufacturer

N/A
39

Warning Label Part # 38104282G Discontinued by manufacturer

N/A
40

Upper Motor Cover Part # 31116282G Discontinued by manufacturer

N/A
41

Logo Label (right) Part # 38107282G Discontinued by manufacturer

N/A
42

Logo Label (left) Part # 38101282G Discontinued by manufacturer

N/A
43

Screw (M4.2 X 18 Mm) Part # 3220210G Discontinued by manufacturer

N/A
44

Brush Assembly Part # 36111281G Discontinued by manufacturer

N/A
45

Motor Assembly Part # 31114282G Discontinued by manufacturer

N/A
46

Flex Shaft Adaptor Part # 33209281G Discontinued by manufacturer

N/A
47

Hitch Pin Part # 3320543G Discontinued by manufacturer

N/A
48

Tine Assembly (d) Part # 31105281G Discontinued by manufacturer

N/A
49

Washer (felt) Part # 34901282G Discontinued by manufacturer

N/A
50

Tine Assembly (c) Part # 31104281G Discontinued by manufacturer

N/A
51

Tine Assembly (b) Part # 31103281G Discontinued by manufacturer

N/A
52

Tine Assembly (a) Part # 31102281G Discontinued by manufacturer

N/A
53

Hitch Pin Part # 3290237G Discontinued by manufacturer

N/A
54

Washer Part # 3220898G Discontinued by manufacturer

N/A
55

Wheel Assembly (6 In.) Part # 31102282G Discontinued by manufacturer

N/A
56

Axle/drag Stake Assembly Part # 31103282G Discontinued by manufacturer

N/A
