Black and Decker GR3000-BR Type 1 Electric Mower Parts

Other tools in Black and Decker Electric Mower Parts category

About these parts

This page lists all 28 parts for the Black and Decker GR3000-BR Type 1 electric mower, with the schematic diagram and each part's diagram number. 0 parts are available to order today.Parts marked "Discontinued by manufacturer" are no longer made and can't be ordered.Check the model and type number on your tool's nameplate; models that share parts with this one are listed below. Can't find your part? Email sales@toolpartspro.com and we'll look for it.

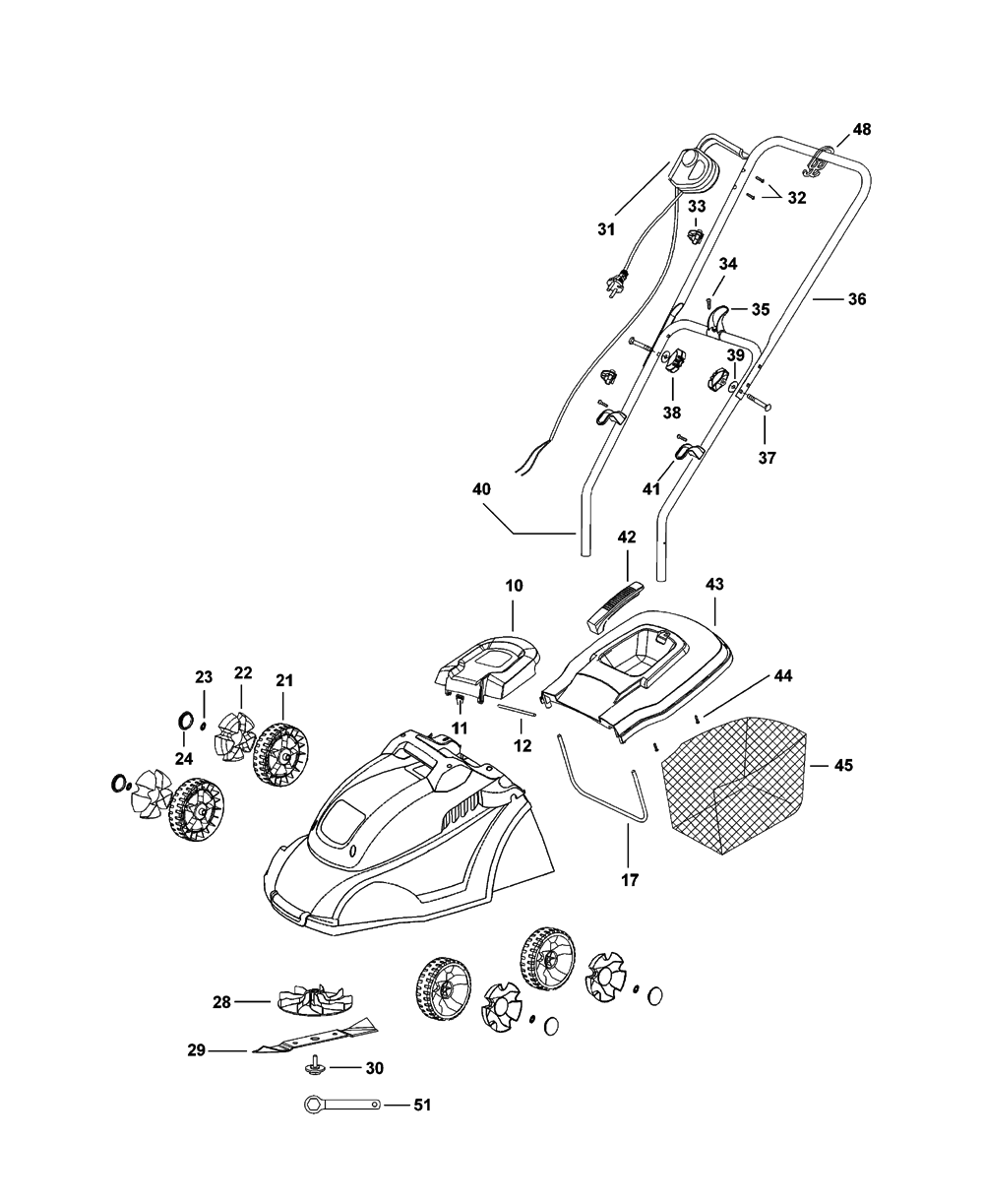

Fig-0

Reference Filter: Filter parts list by name or model number:

Black and Decker GR3000-BR Type-1 Replacement Parts List

10

Grassflap Part # 1003816-00 Discontinued by manufacturer

N/A
11

Spring Part # 1003795-00 Discontinued by manufacturer

N/A
12

Spindle Part # 1003817-00 Discontinued by manufacturer

N/A
17

Bag Frame Part # 1003796-00 Discontinued by manufacturer

N/A
21

Wheel Part # 1004015-00 Discontinued by manufacturer

N/A
22

Wheel Cover Part # 1003801-00 Discontinued by manufacturer

N/A
23

Check Ring Part # 1003802-00 Discontinued by manufacturer

N/A
24

Hubcap Part # 1003803-00 Discontinued by manufacturer

N/A
28

Fan Part # 1003797-00 Discontinued by manufacturer

N/A
29

Blade Part # 569035-00 Discontinued by manufacturer

N/A
30

Special Nut Part # 1003799-00 Discontinued by manufacturer

N/A
31

Switch Box Assy Part # 5140063-55 Discontinued by manufacturer

N/A
32

Screw Part # 1003806-00 Discontinued by manufacturer

N/A
33

Cable Lock Part # 1003813-00 Discontinued by manufacturer

N/A
34

Screw Part # 1003807-00 Discontinued by manufacturer

N/A
35

Cable Guide Part # 1003809-00 Discontinued by manufacturer

N/A
36

Upper Handle Part # 1004018-00 Discontinued by manufacturer

N/A
37

Bolt Part # 1003812-00 Discontinued by manufacturer

N/A
38

Knob Part # 1003808-00 Discontinued by manufacturer

N/A
39

Washer Part # 1003811-00 Discontinued by manufacturer

N/A
40

Lower Handle Part # 1004019-00 Discontinued by manufacturer

N/A
41

Cable Guide Part # 1003814-00 Discontinued by manufacturer

N/A
42

Handle Part # 1003818-00 Discontinued by manufacturer

N/A
43

Cover Part # 1003819-00 Discontinued by manufacturer

N/A
44

Screw Part # 1003794-00 Discontinued by manufacturer

N/A
45

Grass Bag Part # 1003820-00 Discontinued by manufacturer

N/A
48

Cable Support Part # 1003821-00 Discontinued by manufacturer

N/A
51

Spanner Part # 1003822-00 Discontinued by manufacturer

N/A
