Ryobi DP102L Drill Press Parts

Other tools in Ryobi Drill Press Parts category

About these parts

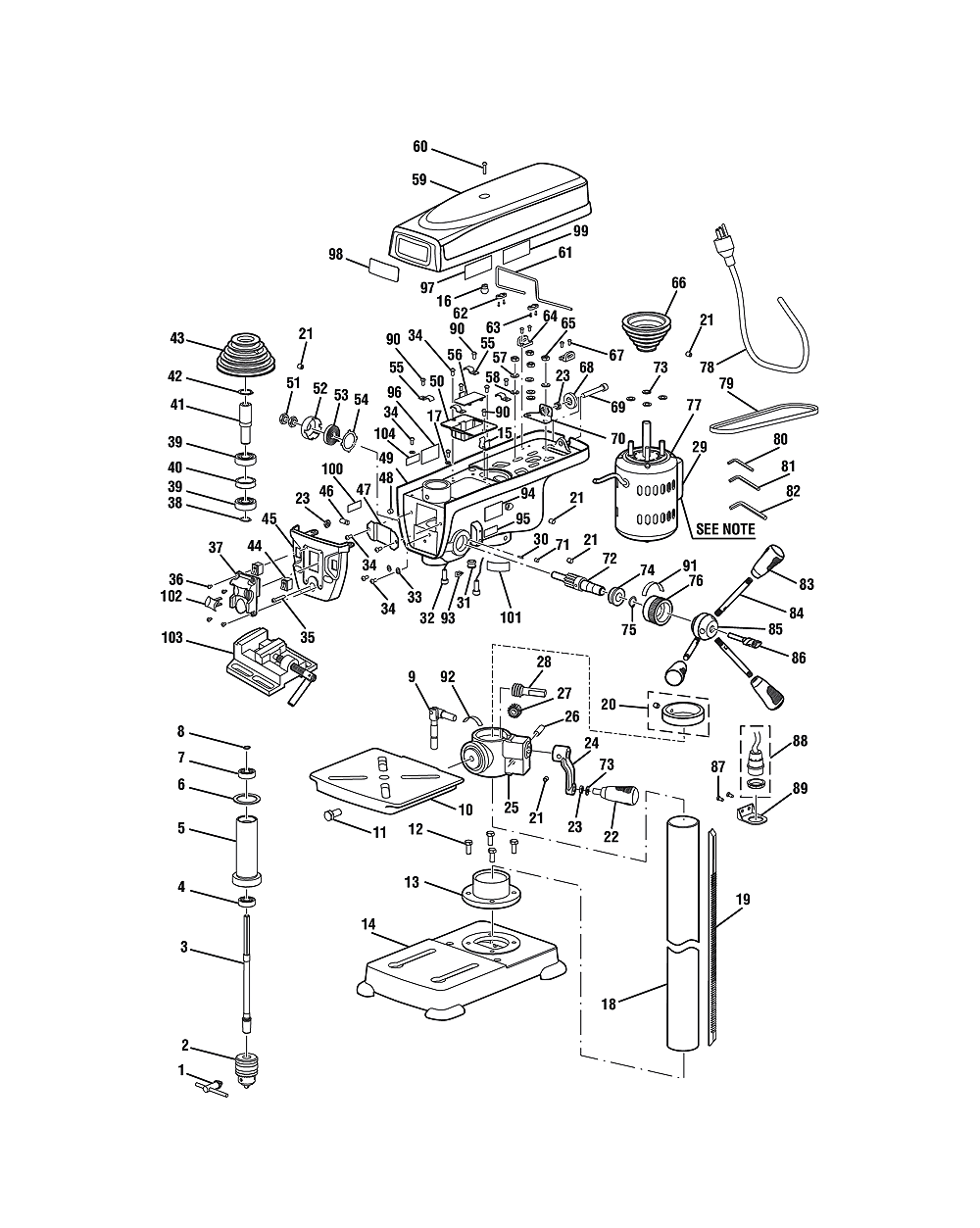

This page lists all 105 parts for the Ryobi DP102L drill press, with the schematic diagram and each part's diagram number. 1 part is available to order today.Parts marked "Discontinued by manufacturer" are no longer made and can't be ordered.Check the model and type number on your tool's nameplate; models that share parts with this one are listed below. Can't find your part? Email sales@toolpartspro.com and we'll look for it.

Fig-0

Reference Filter: Filter parts list by name or model number:

Ryobi DP102L Replacement Parts List

00

Operator's Manual DP102L Part # 983000641 Discontinued by manufacturer

N/A
1

Chuck Key Part # 13103006M1 Discontinued by manufacturer

N/A
2

Chuck Part # 13103006M Discontinued by manufacturer

N/A
3

Spindle Shaft Part # 13203001A Discontinued by manufacturer

N/A
4

Ball Bearing (80201) Part # 089140200004 Discontinued by manufacturer

N/A
5

Quill Tube Part # 13203002D

$7.05
Add to Cart
6

Quill Gasket Part # 13303006 Discontinued by manufacturer

N/A
7

Ball Bearing 60201 Part # TDP02001 Discontinued by manufacturer

N/A
8

Retaining Ring (11) Part # TDP10001 Discontinued by manufacturer

N/A
9

Table Lock Handle Part # 16101013A Discontinued by manufacturer

N/A
10

Table Part # 13201014D Discontinued by manufacturer

N/A
11

Hex Bolt M12 X 25 Part # TDP05001 Discontinued by manufacturer

N/A
12

Hex Bolt M8 X 20 Part # TDP01001 Discontinued by manufacturer

N/A
13

Base Collar Part # 13201002 Discontinued by manufacturer

N/A
14

Base Part # 089140200014 Discontinued by manufacturer

N/A
15

Clip Part # 089140200015 Discontinued by manufacturer

N/A
16

Ball Part # 089140200016 Discontinued by manufacturer

N/A
17

Washer Part # 089140200102 Discontinued by manufacturer

N/A
18

Column Tube Part # 13201003 Discontinued by manufacturer

N/A
19

"rack for 10"" Drill Press" Part # 13201010 Discontinued by manufacturer

N/A
20

Column Collar Part # 089140200097 Discontinued by manufacturer

N/A
21

Socket Set Screw M8 X 10 Part # TDP03001 Discontinued by manufacturer

N/A
22

Knob Part # 089140200022 Discontinued by manufacturer

N/A
23

Hex Nut M8 Part # TDP06001 Discontinued by manufacturer

N/A
24

Crank Part # 089140200024 Discontinued by manufacturer

N/A
25

Table Support Part # 089140200025 Discontinued by manufacturer

N/A
26

Gear Shaft Part # 13201007 Discontinued by manufacturer

N/A
27

Worm Gear Part # 13201006 Discontinued by manufacturer

N/A
28

Gear Part # 13201008 Discontinued by manufacturer

N/A
29

Capacitor (DP102 Motor) Part # 089140200094 Discontinued by manufacturer

N/A
30

Roll Pin (D25 X 16 Mm) Part # 089140200030 Discontinued by manufacturer

N/A
31

Rubber Grommet Part # 089140200031 Discontinued by manufacturer

N/A
32

Laser Light Part # 089140200032 Discontinued by manufacturer

N/A
33

Ext. Tooth Lock Washer M5 Part # TDP08001 Discontinued by manufacturer

N/A
34

Screw (M5 X 6MM,PAN Hd) Part # TDP07001 Discontinued by manufacturer

N/A
35

Screw (M5 X 25 Mm Pan Hd) Part # 089140200035 Discontinued by manufacturer

N/A
36

Screw (M35 X 95 Mm Pan Hd) Part # 089140200036 Discontinued by manufacturer

N/A
37

Switch Part # 089140200037 Discontinued by manufacturer

N/A
38

Retaining Ring Part # TDP10002 Discontinued by manufacturer

N/A
39

Ball Bearing (60203) Part # 089140200039 Discontinued by manufacturer

N/A
40

Spacer Part # 13302023A Discontinued by manufacturer

N/A
41

Pulley Insert Part # 089140200041 Discontinued by manufacturer

N/A
42

Retaining Ring (22) Part # 089140200042 Discontinued by manufacturer

N/A
43

Pulley Spindle Part # 089140200043 Discontinued by manufacturer

N/A
44

Light Switch Part # 089140200044 Discontinued by manufacturer

N/A
45

Switch Box Part # 089140200045 Discontinued by manufacturer

N/A
46

Special Set Screw Part # 13202021 Discontinued by manufacturer

N/A
47

Baffle Part # 089140200047 Discontinued by manufacturer

N/A
48

Hex Screw M8 X 8 Part # TDP03002 Discontinued by manufacturer

N/A
49

Head Stock Part # 089140200049 Discontinued by manufacturer

N/A
50

Battery Box Part # 089140200050 Discontinued by manufacturer

N/A
51

Hex Nut M10 Part # TDP06002 Discontinued by manufacturer

N/A
52

Spring Cap Part # 13104008 Discontinued by manufacturer

N/A
53

Torsion Spring Part # 13104009 Discontinued by manufacturer

N/A
54

Spring Retainer Part # 13104007 Discontinued by manufacturer

N/A
55

Cord Clamp Part # 13202014 Discontinued by manufacturer

N/A
56

Battery Box Cap Part # 089140200056 Discontinued by manufacturer

N/A
57

Lock Washer (16-1) Part # 089140200057 Discontinued by manufacturer

N/A
58

Washer M8 Part # TDP11002 Discontinued by manufacturer

N/A
59

Guard Part # 089140200059 Discontinued by manufacturer

N/A
60

Screw (M5 X 25 Mm Pan Hd) Part # 089140200035 Discontinued by manufacturer

N/A
61

Gemel Part # 089140200061 Discontinued by manufacturer

N/A
62

Clamp Gemel Part # 089140200062 Discontinued by manufacturer

N/A
63

Screw (M42 X 95 Mm Pan Hd) Part # 089140200063 Discontinued by manufacturer

N/A
64

Seat Gemel Part # 089140200064 Discontinued by manufacturer

N/A
65

Hex Nut (M8) Part # 089140200065 Discontinued by manufacturer

N/A
66

Motor Pulley Part # 089140200066 Discontinued by manufacturer

N/A
67

Screw (M4 X 8 Mm Pan Hd) Part # 089140200067 Discontinued by manufacturer

N/A
68

Belt Tension Knob Part # 089140200068 Discontinued by manufacturer

N/A
69

Screw (M8 X 60 Mm Hex Soc Hd) Part # 089140200069 Discontinued by manufacturer

N/A
70

Motor Adjust Plate Part # 089140200070 Discontinued by manufacturer

N/A
71

Screw (M6 X 5 Mm Hex Socket) Part # 089140200071 Discontinued by manufacturer

N/A
72

Gear Shaft Assembly Part # 089140200105 Discontinued by manufacturer

N/A
73

Washer Part # 089140200096 Discontinued by manufacturer

N/A
74

Shaft Seat Part # 089140200074 Discontinued by manufacturer

N/A
75

Retaining Ring (16) Part # 089140200075 Discontinued by manufacturer

N/A
76

Depth Stop Ring Part # 089140200076 Discontinued by manufacturer

N/A
77

Motor (inc Key No 105) Part # 089140200103 Discontinued by manufacturer

N/A
78

Motor Cord Part # 13202016 Discontinued by manufacturer

N/A
79

Belt K31 Part # 13205007 Discontinued by manufacturer

N/A
80

Hex Key (3 Mm) Part # 089140200080 Discontinued by manufacturer

N/A
81

Hex Key 4MM Part # TDP04001 Discontinued by manufacturer

N/A
82

Hex Key (5 Mm) Part # 089140200082 Discontinued by manufacturer

N/A
83

Knob Part # 089140200104 Discontinued by manufacturer

N/A
84

Rod Part # 089140200084 Discontinued by manufacturer

N/A
85

Hub Part # 089140200085 Discontinued by manufacturer

N/A
86

Knob Depth Screw Part # 089140200086 Discontinued by manufacturer

N/A
87

Screw (M42 X 13 Mmcountersunk Hd) Part # 089140200087 Discontinued by manufacturer

N/A
88

Bulb Socket W/nut Part # 089140200088 Discontinued by manufacturer

N/A
89

Bulb Socket-bracket Part # 089140200089 Discontinued by manufacturer

N/A
90

Screw (M5 X 8 Mm Pan Hd) Part # 089140200095 Discontinued by manufacturer

N/A
91

Depth Scale Part # 089140200901 Discontinued by manufacturer

N/A
92

Bracket-scale Part # 089140200902 Discontinued by manufacturer

N/A
93

Depth (stroke) Indicator Part # 089140200903 Discontinued by manufacturer

N/A
94

Warning Label Part # 089140200904 Discontinued by manufacturer

N/A
95

Laser Warning Label-1 Part # 089140200905 Discontinued by manufacturer

N/A
96

Data Label Part # 089140200906 Discontinued by manufacturer

N/A
97

Label (speed Chart-1) Part # 089140200907 Discontinued by manufacturer

N/A
98

Logo Label Part # 089140200908 Discontinued by manufacturer

N/A
99

Label (speed Chart-2) Part # 089140200910 Discontinued by manufacturer

N/A
100

Laser Waring LABEL-2 Part # 089140200911 Discontinued by manufacturer

N/A
101

Lamp Watt Label Part # 089140200909 Discontinued by manufacturer

N/A
102

Key Sm. Switch - Yellow Part # 984406003 Discontinued by manufacturer

N/A
103

Vise (25 In) Part # 089140200092 Discontinued by manufacturer

N/A
104

Laser Label Part # 089140200912 Discontinued by manufacturer

N/A
