Tanaka TLE-550 Parts Schematic
  • Fig-0
  • Fig-1

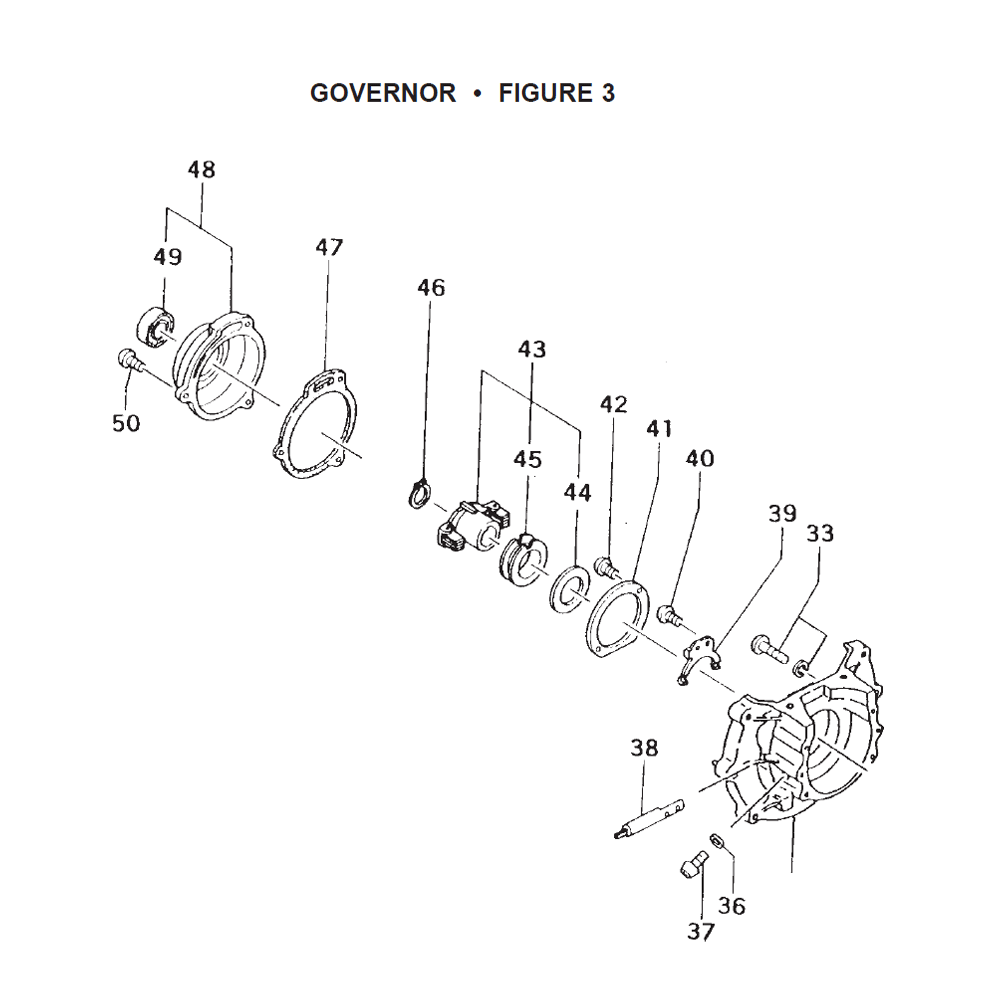

  • Fig-2
  • Fig-3
  • Fig-4
  • Fig-5
  • Fig-6
  • Fig-7

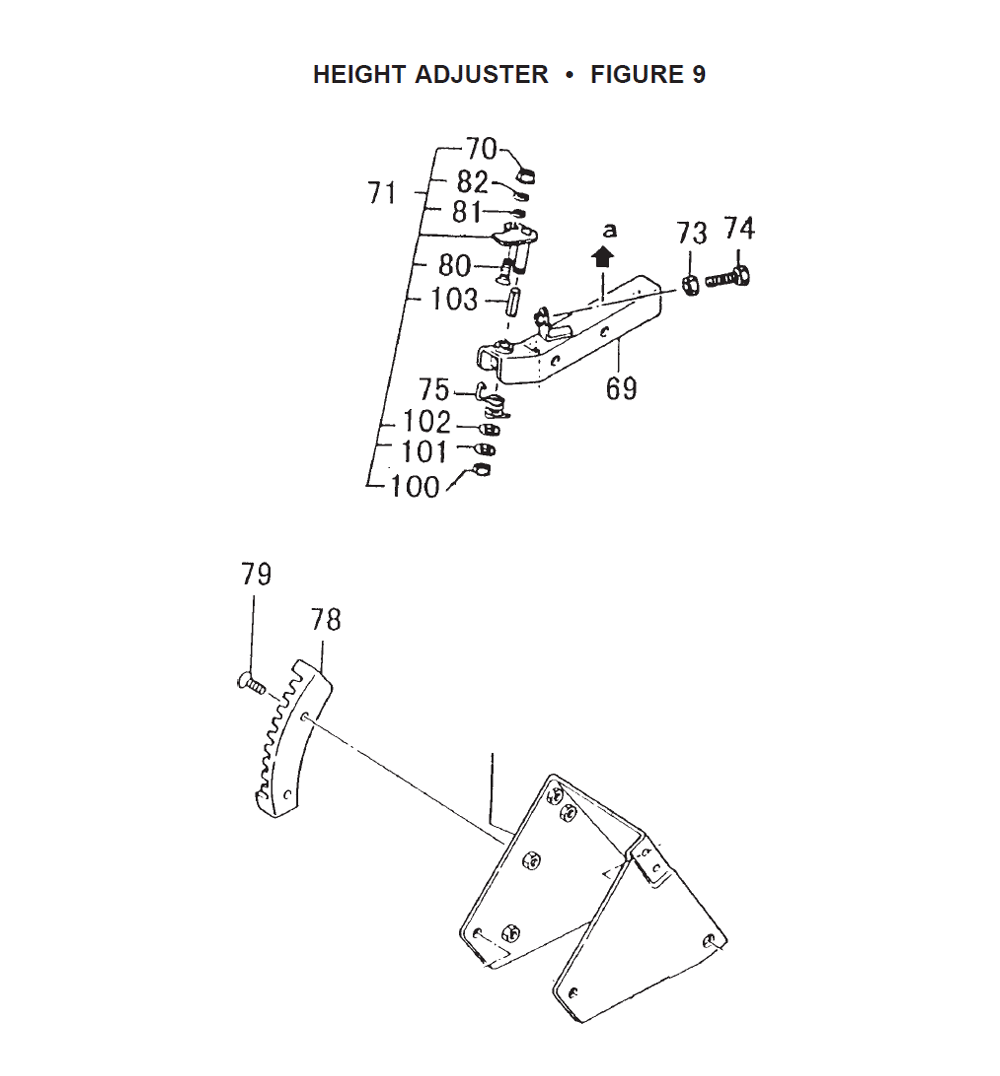

  • Fig-8

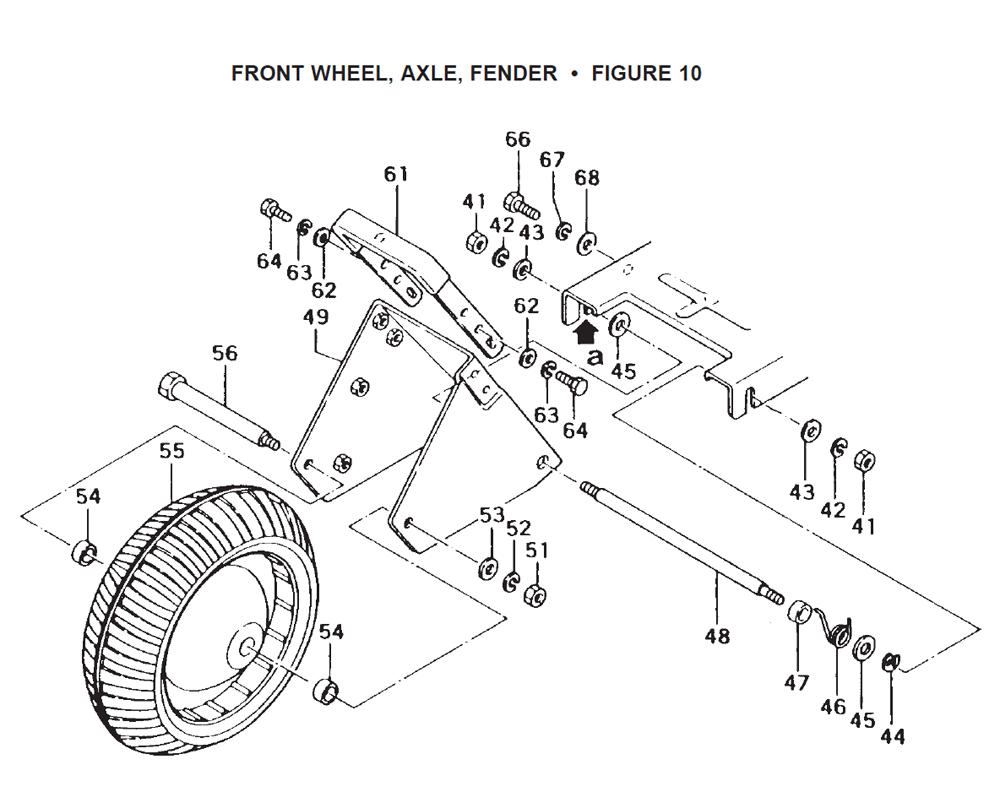

  • Fig-9
  • Fig-10
  • Fig-11
  • Fig-12
  • Fig-13
  • Fig-14
  • Fig-15
  • Fig-16
  • Fig-17

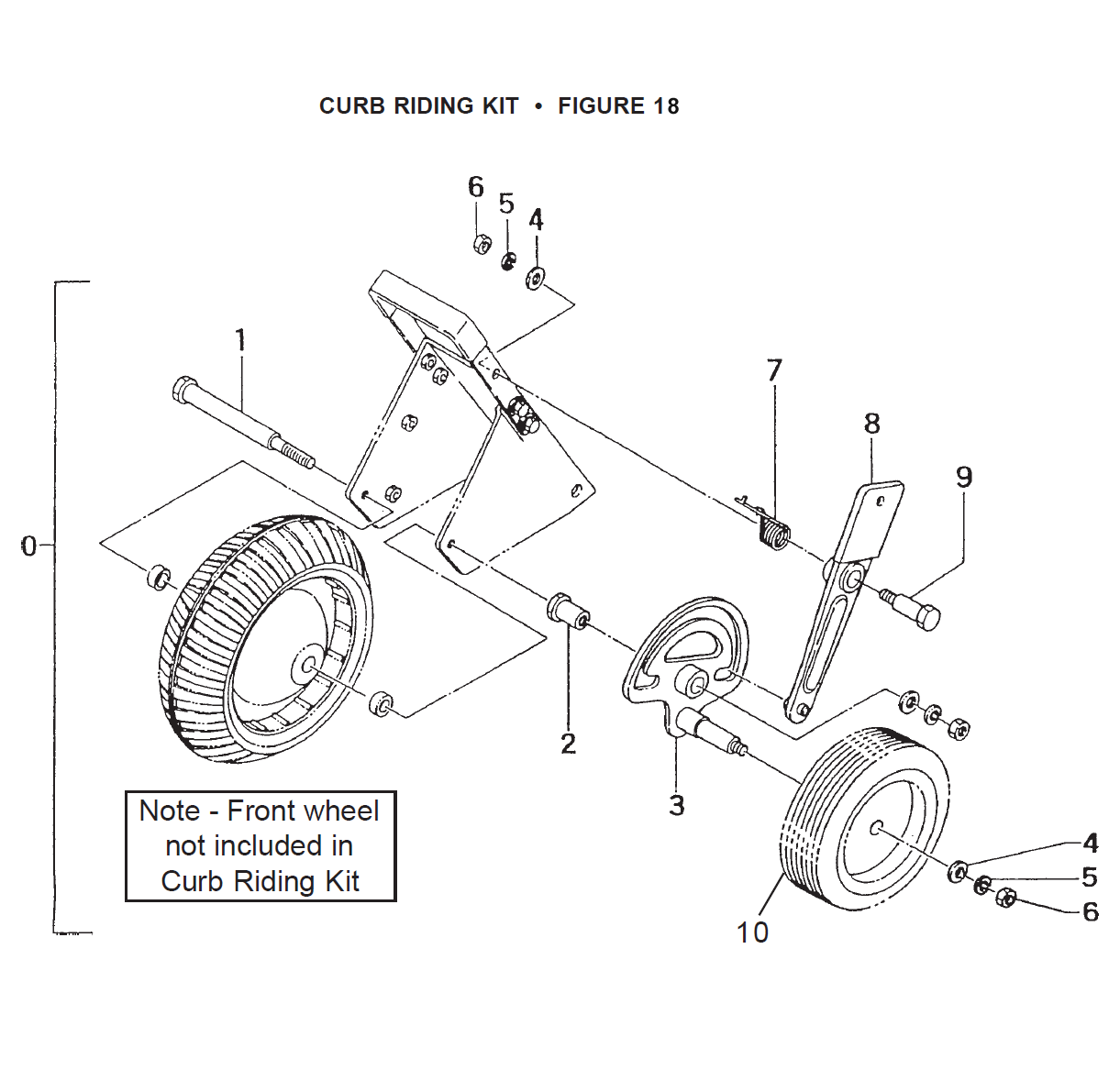

  • Fig-18

Download Tanaka TLE-550 Parts Diagram!

Tanaka TLE-550 Replacement Parts List  Other tools in Tanaka Edgers Parts category

Fig# Image Part No Part Name Price Add To Cart

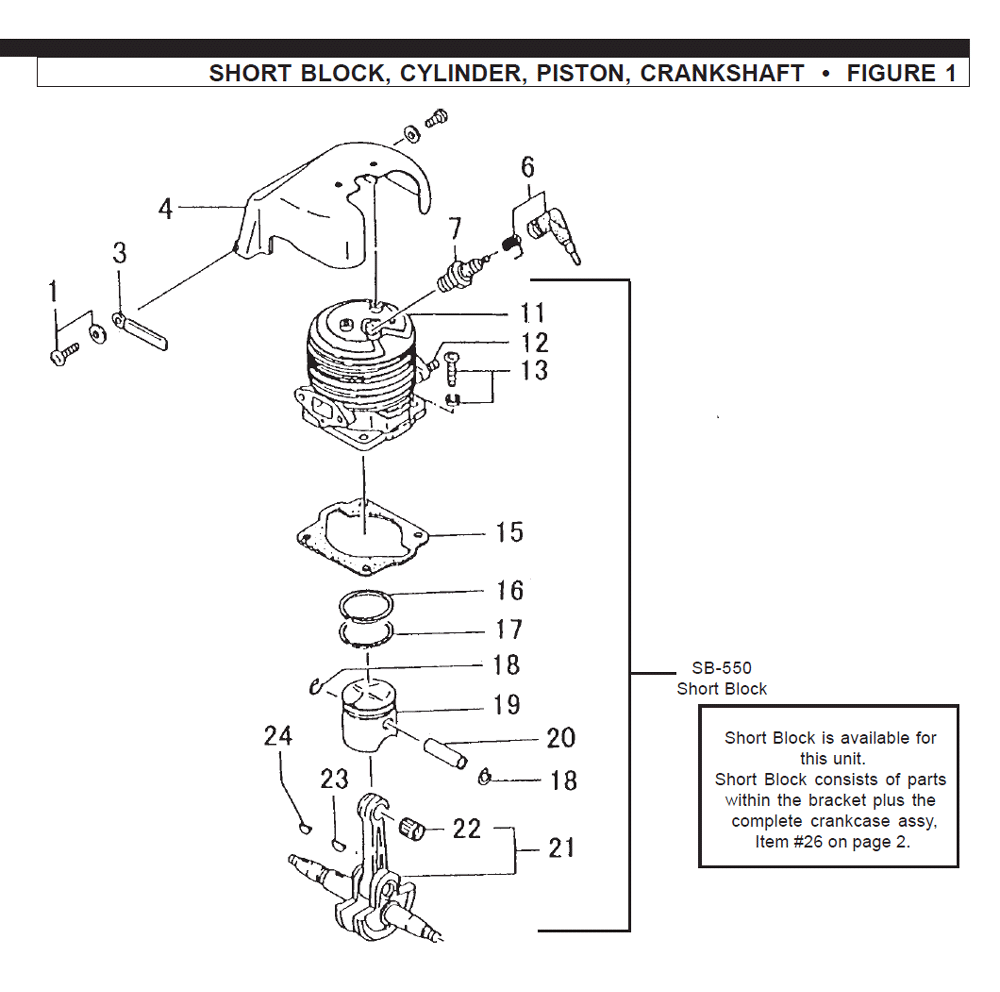

1-1. 994-13050-121 SCREW,3X12/PS $1.24
1-1. 6695321 SCREW 5x12/P $1.72
1-11. 0021024480 CYLINDER $0.00

Discontinued

1-11. 6685498 CYLINDER SET $129.53
1-12. 10002100200 BOLT,STUD,6X22 $1.87
1-12. 6686771 BOLT,STUD,6X22 $1.72
1-13. 6695359 SCREW,6X18/S $1.72
1-13. 994-14060-181 SCREW,6X18/S $1.74
1-15. 6685752 GASKET,CYLINDER $1.72
1-15. 0171020021 GASKET,CYLINDER $0.00

Discontinued

1-16. 04010100200 RING,PISTON,TOP $0.00

Discontinued

1-16. 6686051 RING,PISTON,TOP $10.00
1-17. 041-10100-201 RING,PISTON $0.00

Discontinued

1-17. 6686133 PISTON RING (replaces 04110100201) $6.32
1-18. 039-02000-201 CIRCLIP,PISTON PIN $0.00

Discontinued

1-18. 6686029 CIRCLIP,PISTON PIN $1.72
1-19. 031-10100-210 PISTON $0.00

Discontinued

1-19. 6695859 PISTON (replaces 03110100210) $31.39
1-20. 6686019 PIN,PISTON,10x35 $3.28
1-20. 037-10100-200 PIN,PISTON,10X35 $0.00

Discontinued

1-21. 6697173 CRANK SHAFT COMP. (replaces 04610243801) $89.29
1-21. 0461024380 CRANKSHAFT $0.00

Discontinued

1-22. 999-62101-004 BEARING,NEEDLE,F1010B $21.02
1-22. 6695596 BEARING,NEEDLE F1010B TBL-4610 $8.13
1-23. 6684899 KEY,WOODRUFF,3X13X4.5 $1.72
1-23. 06810100200 KEY,WOODRUFF,3X13X4.5 $0.00

Discontinued

1-24. 6686457 WOOD-RUFF KEY 3X13X5 (replaces 06802000200) $1.72
1-24. 06802000200 **KEY,WOODRUFF,3X13X5 $0.00

Discontinued

1-3. 6688004 CLAMP,CORD (replaces 19805015800) $1.37
1-3. 198-05015-800 CLAMP,CORD $1.29
1-4. 016-10244-200 COVER,CYLINDER $0.00

Discontinued

1-4. 6685695 COVER,CYLINDER $14.91
1-6. 157-01570-900 CAP,SPARK PLUG,ASS'Y $6.48
1-6. 6687468 CAP,SPARK PLUG,ASSY TBC-225 $3.28
1-7. 01802233200 PLUG,SPARK $0.00

Discontinued

1-7. 6685052 Replaced by 669-9322 - SPARK PLUG CJ6 CG22EAB/D/S $5.02
10-41. 6684612 HEX. NUT 8 (replaces 99101080011) $1.72
10-41. 99101080011 NUT,8 $1.15
10-42. 99210080012 WASHER,S,8 $1.15
10-42. 6684971 WASHER,S,8 $1.72
10-43. 99201080011 WASHER,8 $1.64
10-43. 6684611 WASHER,8 $1.72
10-44. 99355100001 RING,STOP,10 $1.48
10-44. 6695314 RING,STOP,10 $1.40
10-45. 6690891 WASHER $1.78
10-45. 48333111200 WASHER $1.93
10-46. 6687992 SPRING,FENDER,FRONT $1.72
10-46. 196-33111-200 SPRING,FENDER,FRONT $5.84
10-47. 6689149 SPACER,B $3.28
10-47. 32133111200 SPACER,B $1.48
10-48. 6688624 SHAFT,CENTER $24.64
10-48. 29233111200 SHAFT,CENTER $40.96
10-49. 6687986 SET,FRONT FENDER $116.08
10-49. 19533111801 FENDER,FRONT $116.08
10-51. 6684612 HEX. NUT 8 (replaces 99101080011) $1.72
10-51. 99101080011 NUT,8 $1.15
10-52. 99210080012 WASHER,S,8 $1.15
10-52. 6684971 WASHER,S,8 $1.72
10-53. 6684611 WASHER,8 $1.72
10-53. 99201080011 WASHER,8 $1.64
10-54. 32033111200 SPACER $1.48
10-54. 6689135 SPACER $2.80
10-55. 6690181 WHEEL,FRONT,8in $40.57
10-55. 430-33111-800 WHEEL,FRONT,8" $40.57
10-56. 6688619 SHAFT,FRONT $26.48
10-56. 29033111200 SHAFT,FRONT $93.76
10-61. 19733111200 HANDLE,CARRYING $54.02
10-61. 6687994 HANDLE,CARRYING $2.27
10-62. 6684639 WASHER,6 (replaces 99201060011) $1.72
10-62. 99201060011 WASHER,6 $1.24
10-63. 6695219 WASHER,S,6 $1.72
10-63. 99210060012 WASHER,S,6 $1.24
10-64. 6694987 BOLT 6X20 (replaces 99021060201) $1.78
10-64. 99021060201 BOLT,6X20 $1.15
10-66. 6695000 BOLT 8X20 (replaces 99021080201) $1.72
10-66. 99021080201 BOLT,8X20 $5.03
10-67. 6684971 WASHER,S,8 $1.72
10-67. 99210080012 WASHER,S,8 $1.15
10-68. 99201080011 WASHER,8 $1.64
10-68. 6684611 WASHER,8 $1.72

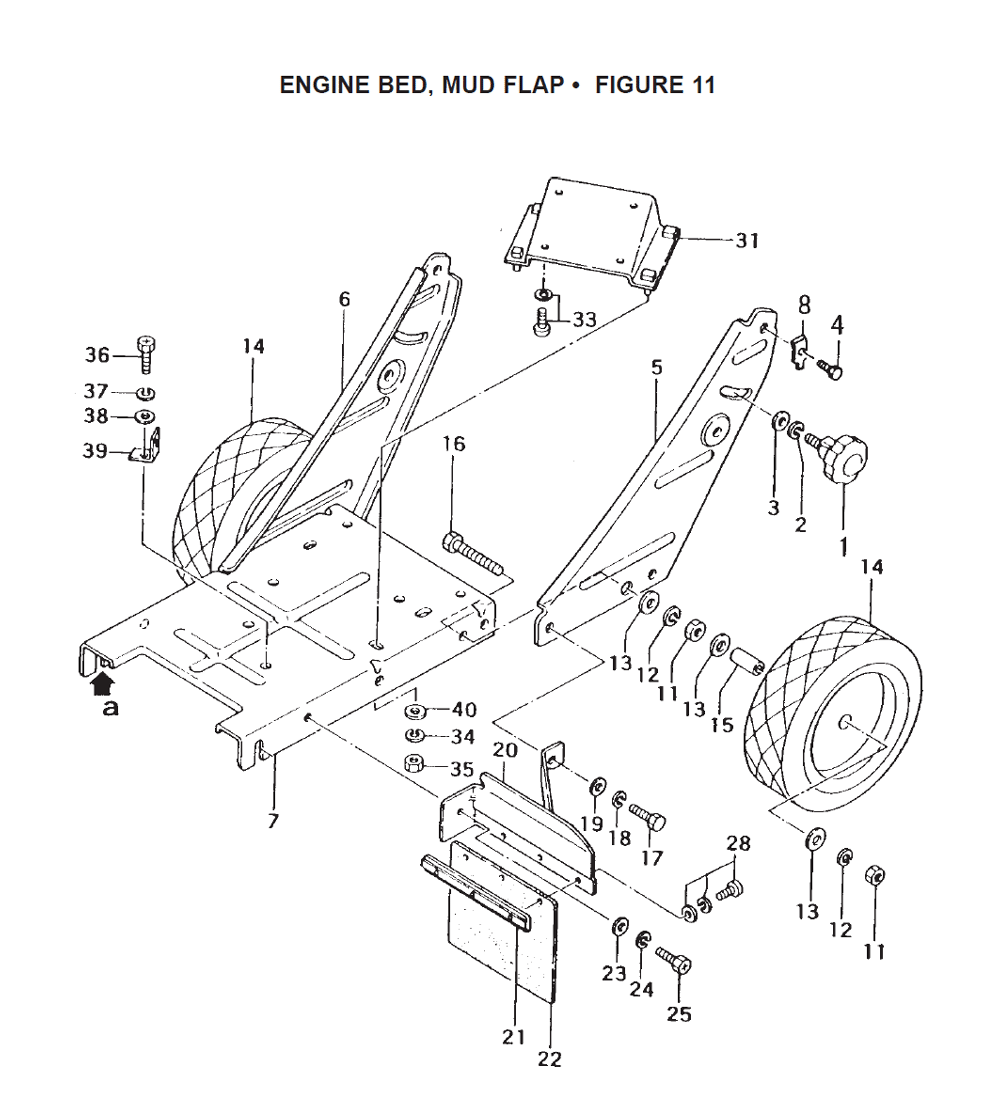

11-1. 21033110800 HANDLE,LOCK $16.92
11-1. 6688090 HANDLE,LOCK $6.32
11-11. 6695131 NUT,10 $1.72
11-11. 99101100011 NUT,10 $1.44
11-12. 6695225 S.WASHER 10 (replaces 99210100012) $1.72
11-12. 99210100012 WASHER,S,10 $1.15
11-13. 6695198 WASHER,10 $1.72
11-13. 992-01100-011 WASHER,10 $1.15
11-14. 6690188 REAR WHEEL (replaces 43133110800) $18.83
11-14. 431-33110-801 WHEEL,REAR,8" $15.46
11-15. 6688626 COLLAR $4.80
11-15. 294-33111-200 COLLAR $0.28
11-16. 6695007 BOLT,HEX.HOLE,10X70 $1.72
11-16. 99021100701 BOLT,HEX.HOLE,10X70 $4.12
11-17. 99021080201 BOLT,8X20 $5.03
11-17. 6695000 BOLT 8X20 (replaces 99021080201) $1.72
11-18. 6684971 WASHER,S,8 $1.72
11-18. 99210080012 WASHER,S,8 $1.15
11-19. 6684611 WASHER,8 $1.72
11-19. 99201080011 WASHER,8 $1.64
11-2. 99210080012 WASHER,S,8 $1.15
11-2. 6684971 WASHER,S,8 $1.72
11-20. 6691008 BRACKET,MUD FLAP $14.24
11-20. 495-33111-810 BRACKET,MUD FLAP $58.93
11-21. 496-33111-200 HOLDER,MUD FLAP $74.84
11-21. 6691016 HOLDER,MUD FLAP $4.80
11-22. 6691030 FLAP,MUD $6.32
11-22. 500-33111-200 FLAP,MUD $6.89
11-23. 6684639 WASHER,6 (replaces 99201060011) $1.72
11-23. 99201060011 WASHER,6 $1.24
11-24. 6695219 WASHER,S,6 $1.72
11-24. 99210060012 WASHER,S,6 $1.24
11-25. 669-5015 PLUS BOLT 6X12 $1.72
11-25. 99023060121 BOLT,PLUS,6X12 $1.15
11-28. 994-15040-101 SCREW,4X10 $1.15
11-28. 6695370 SCREW,PS,4X12 $1.72
11-3. 6684611 WASHER,8 $1.72
11-3. 99201080011 WASHER,8 $1.64
11-31. 6685591 ENGINE BED COMP. (replaces 00533110800) $9.18
11-31. 005-33110-800 BED,ENGINE $0.00

Discontinued

11-33. 6695358 SCREW,S,6X16 $1.40
11-33. 99414060161 SCREW,S,6X16 $1.15
11-35. 99182060001 NUT,FLANGE,6 $1.44
11-35. 6695170 CHAIN BAR CLAMP NUT (replaces 12132350200) $1.72
11-36. 990-23060-151 BOLT,PLUS,6X15 $1.15
11-36. 6695019 Alternative for 6695017: BOLT,6X16 PLUS $1.72
11-37. 99210060012 WASHER,S,6 $1.24
11-37. 6695219 WASHER,S,6 $1.72
11-38. 99201060011 WASHER,6 $1.24
11-38. 6684639 WASHER,6 (replaces 99201060011) $1.72
11-39. 6689299 CLUTCH CASE STAY (replaces 33933110200) $3.28
11-39. 33933111200 STAY,CLUTCH CASE $5.34
11-4. 6695000 BOLT 8X20 (replaces 99021080201) $1.72
11-4. 99021080201 BOLT,8X20 $5.03
11-5. 6687721 HANDLE HOLDER A (replaces 16733110201) $24.92
11-5. 16733110210 HOLDER,HANDLE A $1.48
11-6. 6687723 HANDLE HOLDER B (replaces 16833110200) $21.54
11-6. 16833110210 HANDLE,HOLDER B $1.48
11-7. 002-33111-800 BASE,ENGINE $0.00

Discontinued

11-8. 16933111200 WASHER,LOCK TAB $1.44
11-8. 6687727 WASHER,LOCK TAB $1.72

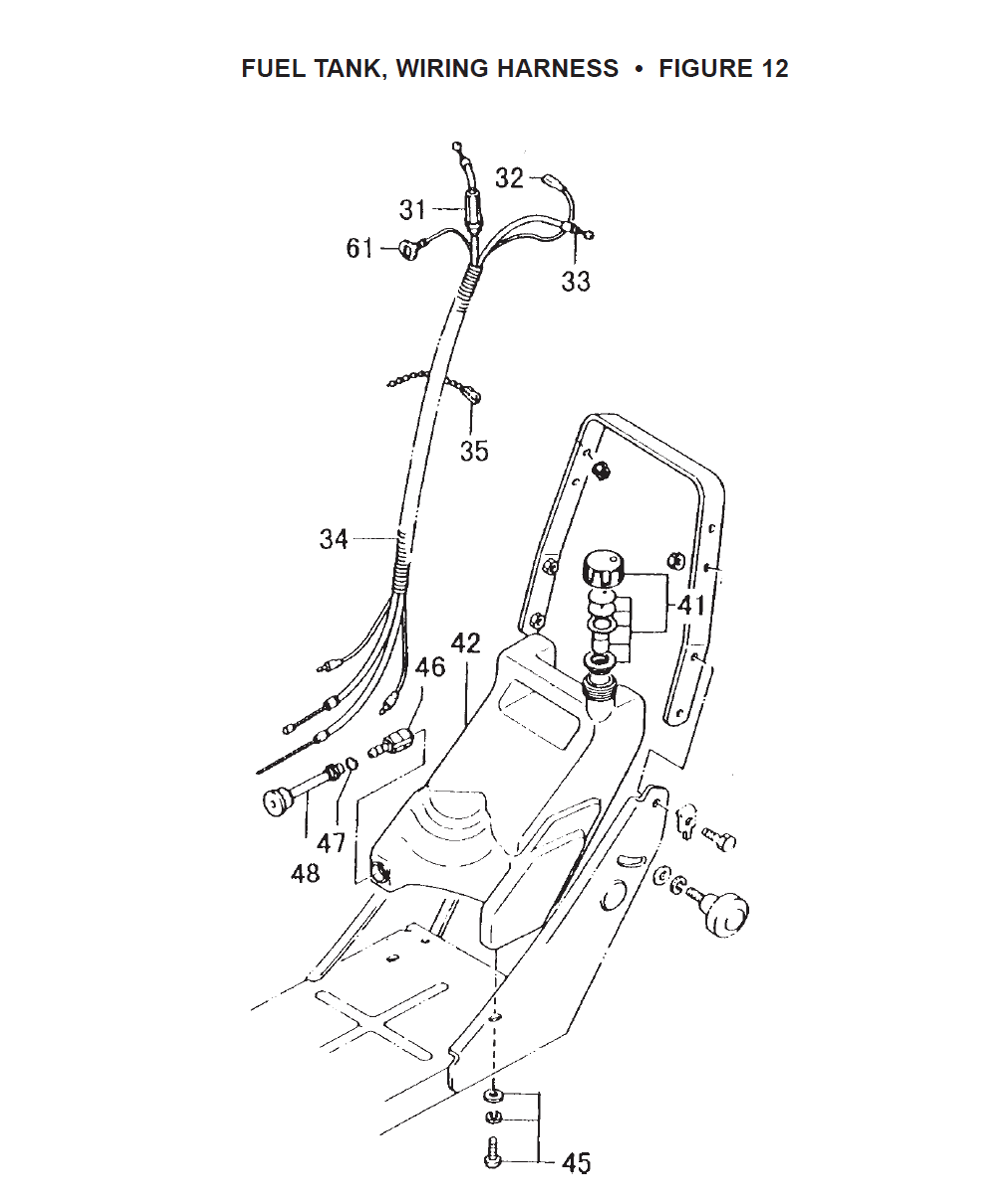

12-31. 6693935 WIRE,THROTTLE TLE-600 $19.14
12-31. 885-10260-81 WIRE,THROTTLE $21.44
12-32. 6687879 STOP CORD COMP. (replaces 17810243800) $3.28
12-32. 17810243800 CORD,STOP $7.60
12-33. 480-33118-91 WIRE,ADJUST $21.84
12-33. 6690886 WIRE,HEIGHT ADJUST $13.33
12-34. 6687618 TUBE,PROTECTION,13X850 $4.70
12-34. 16413085010 TUBE,PROTECTION,13X850 $11.22
12-35. 6684715 CLAMP,B | H173341~ $1.37
12-35. 4603311120 CLAMP,B $1.48
12-41. 6691788 CAP,TANK TLE-600 $9.03
12-41. 595-33123-90 CAP,TANK TLE $19.87
12-42. 6691643 TANK W/CAP,TLE $50.31
12-42. 591-33123-90 TANK W/CAP,TLE $109.22
12-45. 994-15060-121 SCREW,6X12 $1.15
12-45. 6695399 SCREW 6X10/PS (replaces 99415060121) $1.39
12-46. 67501630900 FILTER,FUEL $7.43
12-46. 6692273 PUMP FILTER BODY ASSY TBL-7800 J223400 $7.42
12-47. 6692312 CLIP,7 (replaces 68004019210) $1.72
12-47. 68004019210 CLIP,7 $1.36
12-48. 6692299 PIPE,FUEL $5.34
12-48. 6697905 RUBBER FUEL LINE $8.25
12-48. 678-10246-200 PIPE,FUEL $8.03
12-61. 6687804 CORD,EARTH,B $3.28
12-61. 177-33111-800 CORD,EARTH,B $8.18

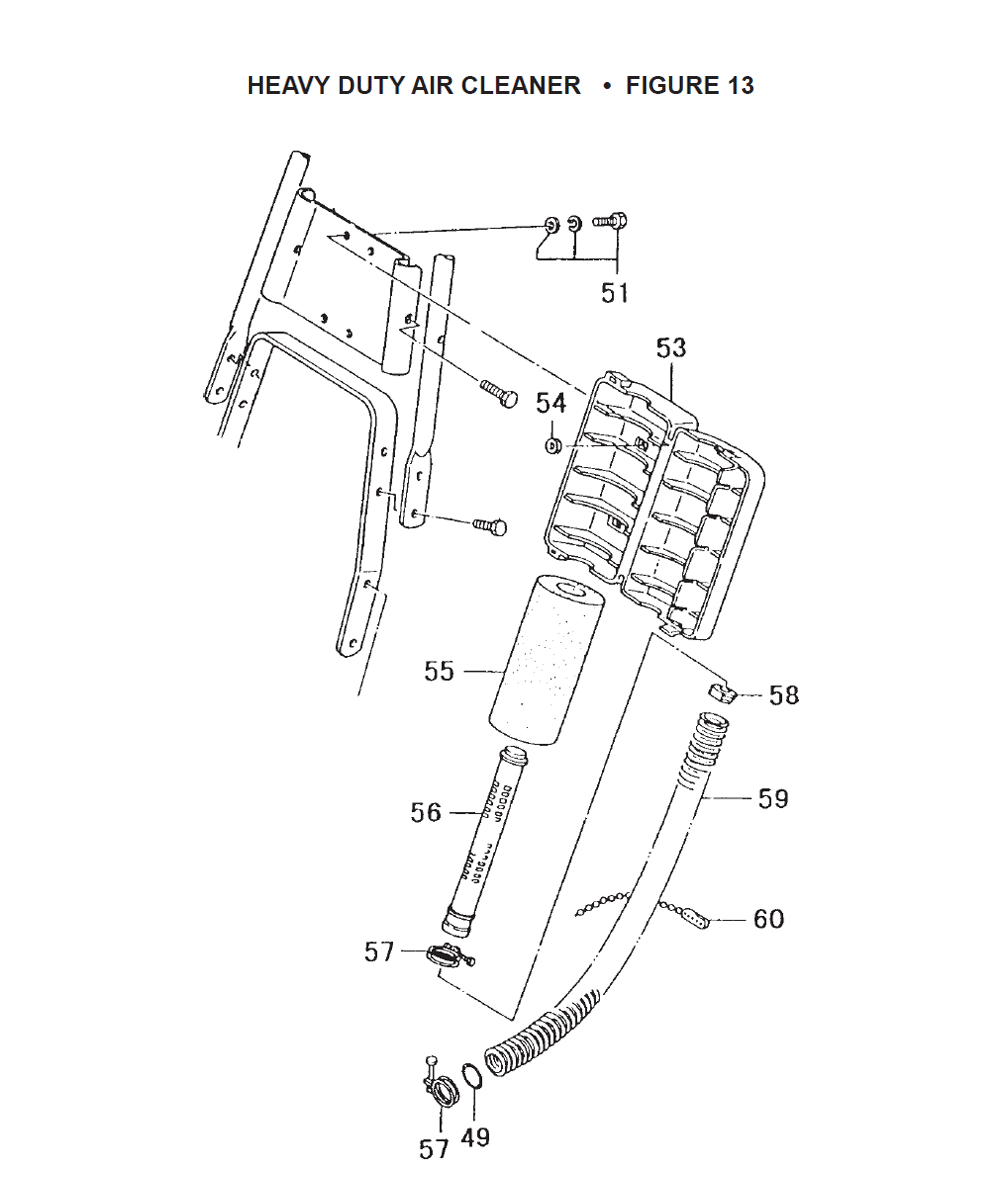

13-49. 999-67042-003 O-RING,P-42 $3.30
13-49. 6695680 O-RING,P-42 $2.80
13-51. 6695384 SCREW,5X14/PS $1.39
13-51. 99415050141 SCREW,5X14/PS $1.15
13-53. 42333111201 BODY,CLEANER $35.46
13-53. 6690138 BODY,CLEANER $10.90
13-54. 99101050011 NUT,5 $1.15
13-54. 6684965 NUT,5 TBC-240PF $1.72
13-55. 44405015200 ELEMENT,CLEANER $15.55
13-55. 6690327 ELEMENT,CLEANER $16.41
13-56. 6690168 CORE,CLEANER $6.32
13-56. 42505015200 CORE,CLEANER $26.66
13-57. 6690792 BAND,WIRE 36 $1.72
13-57. 466-33111-200 BAND,WIRE 36 $3.12
13-58. 6690757 PIPE,RUBBER,15 $4.80
13-58. 46233110200 PIPE,RUBBER,15 $7.14
13-59. 6687619 HOSE,CLEANER $13.63
13-59. 164-32055-000 HOSE,CLEANER $5.34
13-60. 45933111900 CLAMP,HOSE ASS'Y $4.06
13-60. 6690681 CLAMP,HOSE ASS'Y $1.37

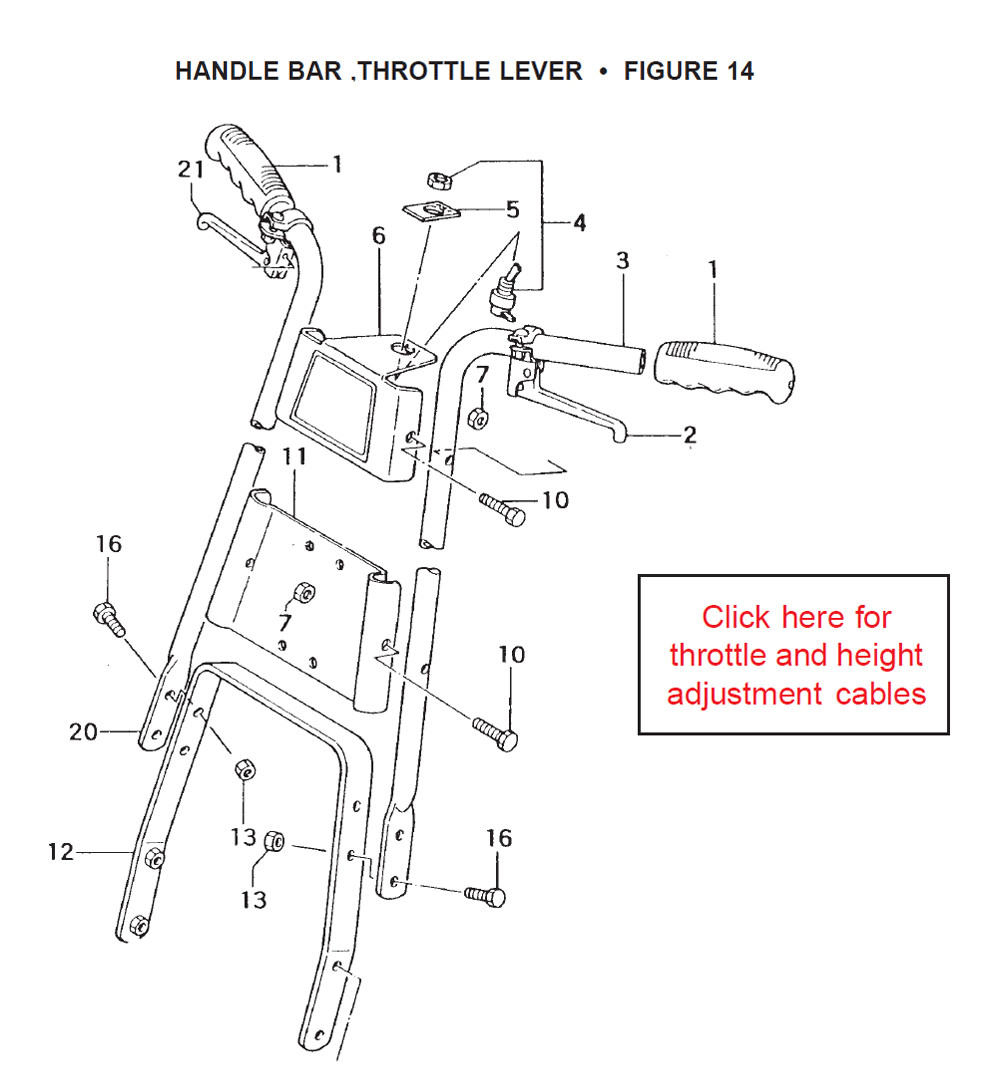

14-1. 165-33111-200 GRIP,HANDLE $4.06
14-1. 6687623 GRIP,HANDLE | ~F147891 $6.32
14-10. 99021060351 BOLT,6X35 $2.60
14-10. 6694992 BOLT 6X35 (replaces 99021060351) $1.72
14-11. 45433111200 HOLDER,CLEANER BODY $23.47
14-11. 6690438 HOLDER,CLEANER BODY $8.96
14-12. 6687423 HANDLE,A $33.77
14-12. 155-33111-800 HANDLE,A $23.88
14-13. 99182060001 NUT,FLANGE,6 $1.44
14-13. 6695170 CHAIN BAR CLAMP NUT (replaces 12132350200) $1.72
14-16. 990-21060-181 BOLT,6X18 $1.15
14-16. 6695020 BOLT,PLUS,6X18 $1.72
14-2. 4723311190 LEVER,ADJUST,ASS'Y $10.50
14-2. 6690816 LEVER,ADJUST,ASS'Y $12.73
14-20. 6687485 HANDLE,RIGHT $28.83
14-20. 15833111200 HANDLE,RIGHT $4.06
14-21. 1623311190 LEVER,THROTTLE ASS'Y $36.20
14-3. 6687493 HANDLE,LEFT $28.83
14-3. 15933111200 HANDLE,LEFT $2.80
14-4. 6687502 STOP SWITCH ASS'Y (replaces 16201570900) $6.32
14-4. 16201570900 SWITCH,STOP,ASS'Y $12.30
14-5. 6687949 SWITCH NAME PLATE (replaces 18301300200) $1.72
14-5. 18301300200 NAME PLATE,SWITCH $1.87
14-6. 6692140 PLATE,STOP SWITCH $9.22
14-6. 640-33111-200 PLATE,STOP SWITCH $11.40
14-7. 6695170 CHAIN BAR CLAMP NUT (replaces 12132350200) $1.72
14-7. 99182060001 NUT,FLANGE,6 $1.44

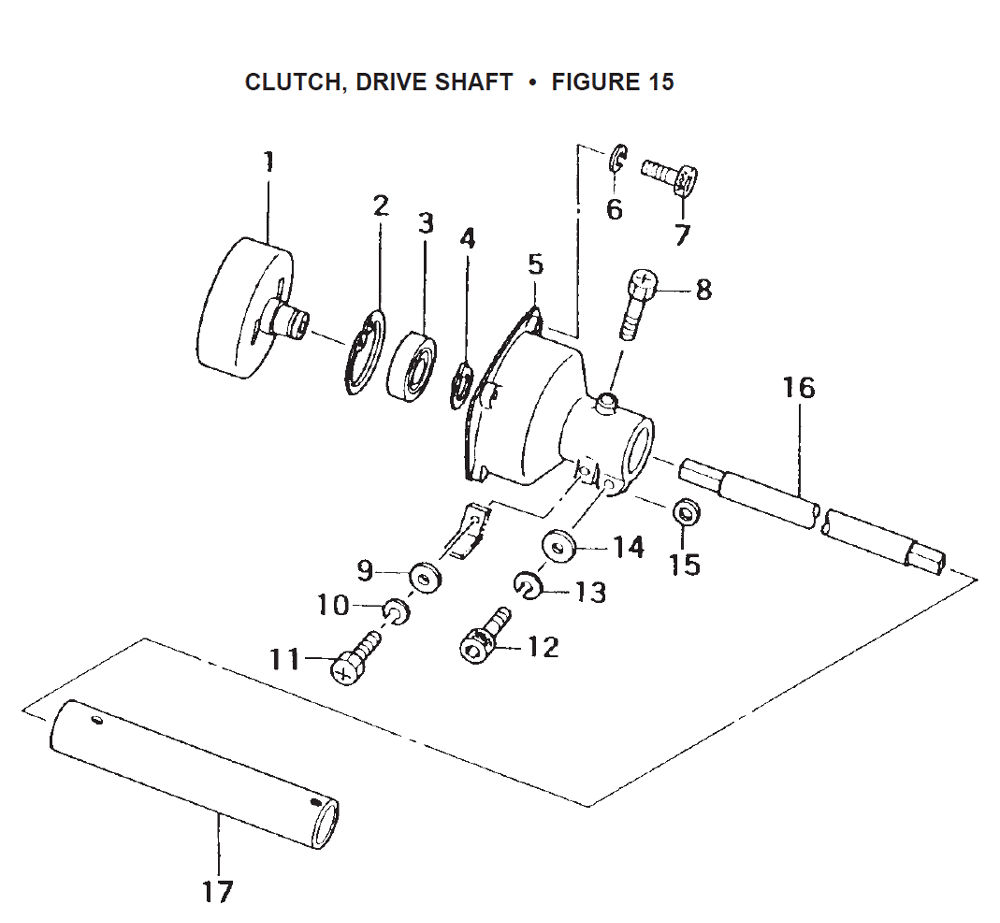

15-1. 6689234 CLUTCH DRUM COMP. (replaces 33233110800) $27.40
15-1. 33233110801 DRUM,CLUTCH $13.60
15-10. 99210060012 WASHER,S,6 $1.24
15-10. 6695219 WASHER,S,6 $1.72
15-11. 6695019 Alternative for 6695017: BOLT,6X16 PLUS $1.72
15-11. 990-23060-151 BOLT,PLUS,6X15 $1.15
15-12. 990-51060-303 BOLT,HEX.HOLE,6X30 $1.92
15-12. 6695063 HEX. HOLE BOLT 6X30 (replaces 99051060303) $1.37
15-13. 99210060062 WASHER,S,6 $1.24
15-13. 6684826 S. WASHER 6 (replaces 99210060062) $1.72
15-14. 6695194 WASHER,6 $1.34
15-14. 99201060061 WASHER,6 $1.15
15-15. 33833110200 WASHER,CLUTCH CASE $2.09
15-15. 6689296 CLUTCH CASE WASHER (replaces 33833110200) $0.35
15-16. 343-33111-200 SHAFT,DRIVE $1.48
15-16. 6689446 SHAFT,DRIVE $16.11
15-17. 6689318 PIPE,DRIVE SHAFT $19.44
15-17. 341-33111-200 PIPE,DRIVE SHAFT $4.06
15-2. 6695298 STOP RING C-40 IN (replaces 99351040002) $1.72
15-2. 993-51040-002 RING,STOP,C40 $2.54
15-3. 6203VV BALL BEARING #6203DD. 40MM/OD (replaces 99961620304) $8.47
15-3. 99961620304 BEARING,BALL,#6203DD $4.06
15-4. 6695286 RING,STOP,C17 EX (replaces 99350017002) $1.72
15-4. 99350017002 RING,STOP,C17 EX $1.15
15-5. 331-33110-200 CASE,CLUTCH $1.48
15-5. 6689212 CLUTCH CASE (replaces 33133110200) $23.60
15-6. 6684834 WASHER,S,5 (replaces 99210050062) $1.72
15-6. 99210050062 WASHER,S,5 $1.15
15-7. 6695051 BOLT,HEX,5X25 H253161 $1.72
15-7. 99051050253 BOLT,HEX,5X25 $1.15
15-8. 99023060121 BOLT,PLUS,6X12 $1.15
15-8. 669-5015 PLUS BOLT 6X12 $1.72
15-9. 99201060011 WASHER,6 $1.24
15-9. 6684639 WASHER,6 (replaces 99201060011) $1.72

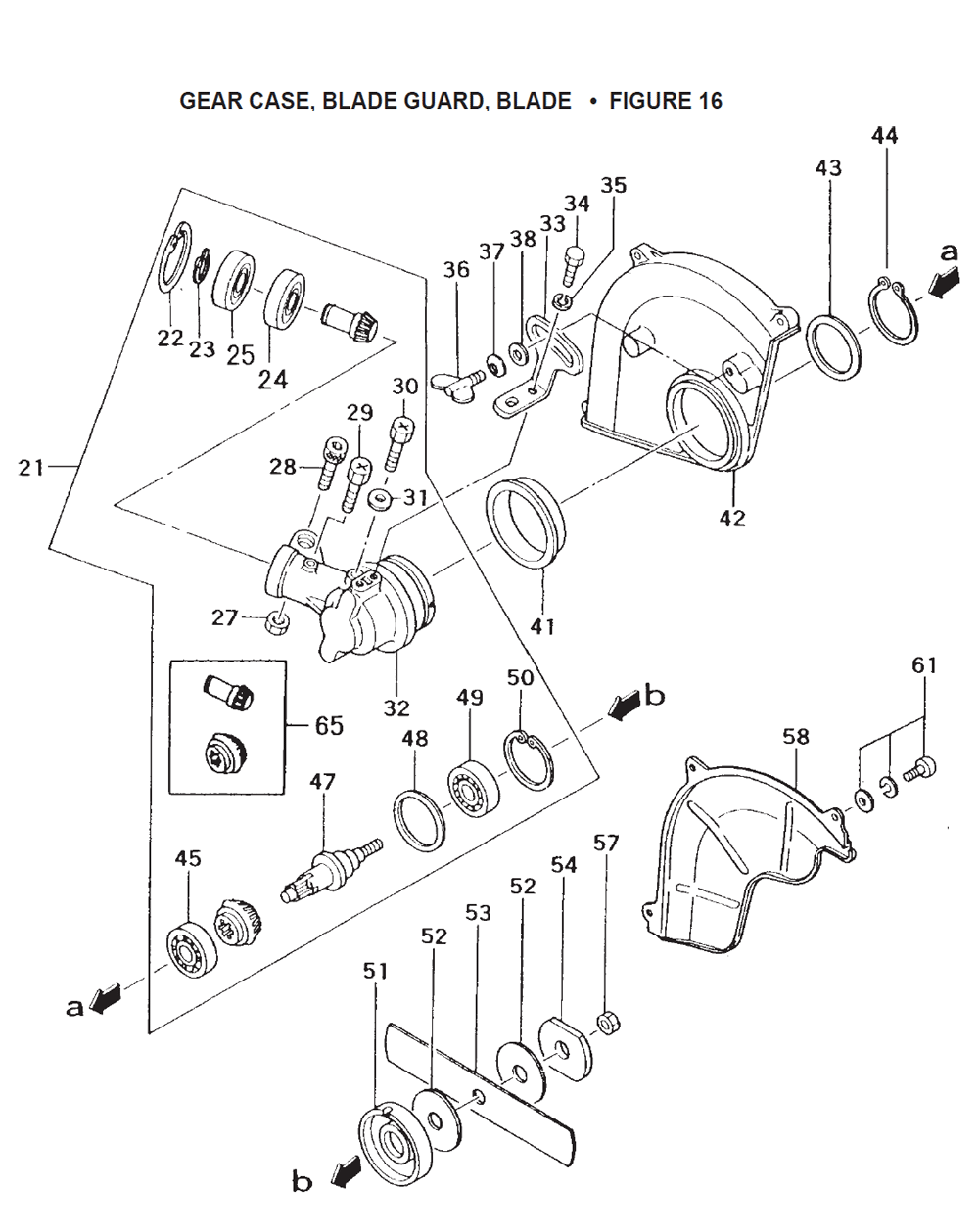

16-21. 6688662 CASE,GEAR ASS'Y $175.35
16-21. 300-33111-900 CASE,GEAR ASS'Y $25.68
16-22. 6695295 RING,STOP,C-32 IN $1.37
16-22. 99351032002 RING,STOP,C-32 IN $3.95
16-23. 6695285 STOP RING C-15 EX (replaces 99350015002) $1.72
16-23. 99350015002 RING,STOP,C-15 EX $1.15
16-24. 99961600200 BEARING,BALL,#6002 $11.00
16-25. 6695538 BALL BEARING #6002Z, 32MM/OD (replaces 99961600202) $7.57
16-25. 99961600202 BEARING,BALL,#6002Z $129.83
16-27. 6695128 NUT,8 $1.78
16-27. 99101080013 NUT,8 $1.15
16-28. 990-51080-303 BOLT,HEX.HOLE,8X30 $1.87
16-28. 6695069 HEX. HOLE BOLT 8X30 (replaces 99051080303) $0.48
16-29. 99023060121 BOLT,PLUS,6X12 $1.15
16-29. 669-5015 PLUS BOLT 6X12 $1.72
16-30. 6695026 BOLT 8X12 W/PLUS (replaces 99023080121) $0.50
16-30. 99023080121 BOLT,P,8X12 $1.74
16-31. 316-12101-200 GASKET,DRAIN PLUG $1.29
16-31. 6689104 DRAIN PLUG GASKET (replaces 31612101200) $1.37
16-32. 300-33110-210 CASE,GEAR $25.92
16-32. 6688659 CASE,GEAR $51.20
16-33. 6690321 STAY,SIDE COVER $11.21
16-33. 443-33111-202 STAY,SIDE COVER $1.48
16-34. 99021060151 BOLT,6X15 $1.15
16-34. 6694983 BOLT,6X15 (replaces 99021060151) $1.72
16-35. 99210060012 WASHER,S,6 $1.24
16-35. 6695219 WASHER,S,6 $1.72
16-36. 6695097 WING BOLT 8X20 (replaces 99060080202) $3.28
16-36. 990-60080-201 BOLT,WING,8X20 $5.19
16-37. 99205080030 WASHER,8 $1.15
16-37. 668-4648 BENT WASHER 8 $1.72
16-38. 99201080011 WASHER,8 $1.64
16-38. 6684611 WASHER,8 $1.72
16-41. 445-33110-200 HOLDER,SAFETY COVER $3.60
16-41. 6690336 SAFETY COVER HOLDER (replaces 44533110200) $4.80
16-42. 6690215 SAFETY COVER (replaces 44133110201) $31.39
16-42. 441-33110-210 COVER,SAFETY $70.67
16-43. 14133110200 WASHER,SAFETY COVER $3.85
16-43. 6687322 SAFETY COVER WASHER (replaces 14133110200) $1.72
16-44. 993-50065-002 RING,STOP,EX,C-65 $9.18
16-44. 6695290 STOP RING C-65 EX (replaces 99350065002) $6.32
16-45. 6695552 BEARING,BALL,#6201 32mm/OD $4.96
16-45. 999-61620-100 BEARING,BALL,#6201 $1.56
16-47. 6688920 SHAFT,GEAR $45.56
16-47. 30433110210 SHAFT,GEAR $149.67
16-48. 382-33110-200 HOLDER,BEARING $11.52
16-48. 6689761 BEARING HOLDER (replaces 38233110200) $1.40
16-49. 99961620504 BEARING,BALL,#6205DD $33.58
16-49. 6205DD BALL BEARING #6205 DD, 52MM/OD (replaces 99961620504) $13.25
16-50. 993-51052-002 RING,STOP,C-52 IN $4.12
16-50. 6695300 STOP RING C-52 IN (replaces 99351052002) $2.64
16-51. 310-33110-200 HOLDER,CUTTER $2.80
16-51. 6689014 CUTTER HOLDER (replaces 31033110200) $20.70
16-52. 31433111200 WASHER,HOLDER $4.60
16-52. 6689078 WASHER,HOLDER $3.28
16-53. 435-33110-200 BLADE,TLE-500/550 $0.00

Discontinued

16-54. 6689040 CUTTER HOLDER CAP (replaces 31133110201) $4.80
16-54. 31133110202 CAP,CUTTER HOLDER $2.80
16-57. 6695140 NUT,12 (replaces 99111120011) $1.72
16-57. 99111120011 NUT,12 $1.59
16-58. 4423311020 COVER,SIDE $4.46
16-58. 6690288 SIDE COVER (replaces 44233110201) $10.30
16-61. 6695382 SCREW,5X12/PS $1.72
16-61. 99415050121 SCREW,5X12/PS $1.24
16-65. 301-33111-000 SET,GEAR/PINION $5.34
16-65. 6688840 PINION (replaces 30233110210) $53.00

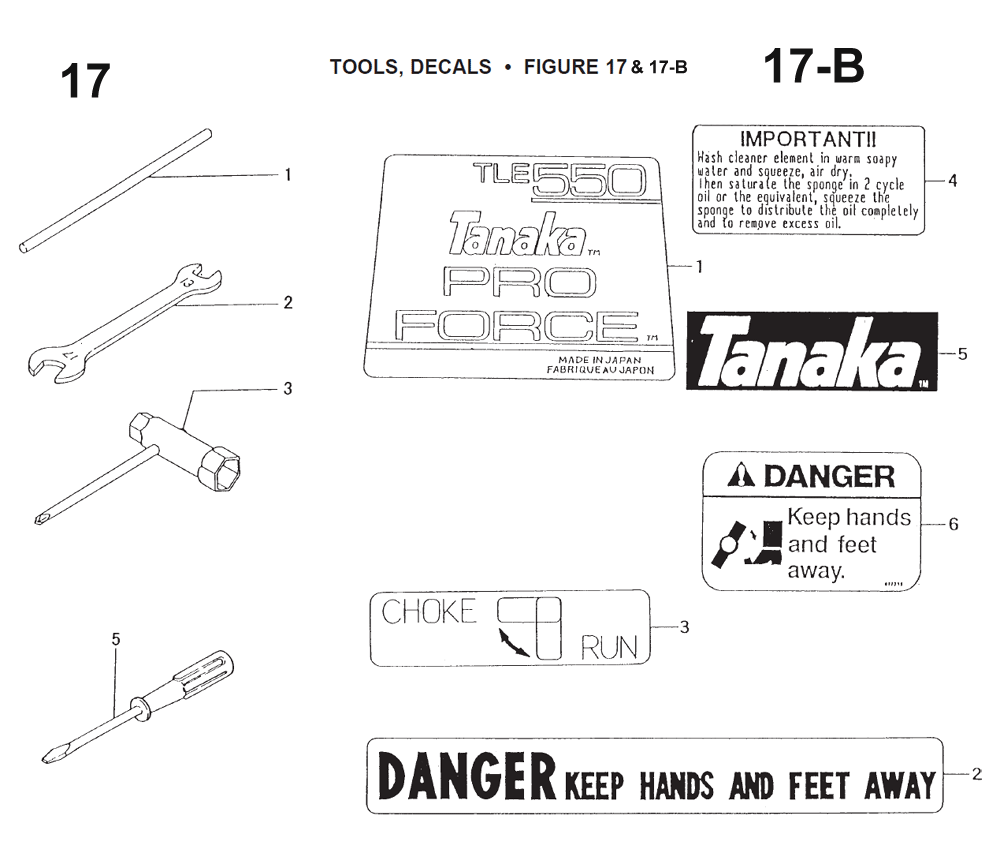

17-1. 75233900200 BAR,LOCKING $1.59
17-1. 6692899 LOCKING BAR (replaces 75233900200) $1.72
17-1-B. 906-33114-200 DECAL $5.69
17-2. 810-20000-200 SPANNER,13X17 $10.94
17-2. 6693498 SPANNER 13X17 (replaces 81020000200) $5.34
17-2-B. 919-33111-201 DECAL,CAUTION $6.12
17-2-B. 6694539 DECAL,CAUTION (replaces 91933111201) $1.72
17-3. 6685997 SPANNER,COMBI 10x19 CH50EA3 $6.32
17-3. 03629331501 SPANNER,COMBI $0.00

Discontinued

17-3-B. 6694434 DECAL,CHOKE $1.72
17-3-B. 908-10246-200 DECAL,CHOKE $3.12
17-4-B. 6694439 DECAL,CAUTION (replaces 9083316020) $1.72
17-4-B. 9083316021 DECAL,CAUTION $2.92
17-5. 6686632 DRIVER,MINUS,4x50 (replaces 081293297U) $4.06
17-5. 081293291G DRIVER,SCREW,4X50 $5.63
17-5-B. 6694465 DECAL,SYMBOL $1.72
17-5-B. 91505015200 DECAL,SYMBOL $2.58
17-6-B. 91833117200 DECAL,CAUTION $5.43
17-6-B. 6694516 DECAL,CAUTION $2.80
18-0. 748011 CURB KIT,TLE-550,600 $149.88
18-1. 6688606 SHAFT,FRONT $47.92
18-1. 28933111200 SHAFT,FRONT $57.76
18-10. 6687098 WHEEL,TPE,6in.in.x150 TBC-255SFK $9.95
18-10. 1203729480 WHEEL,TPE,6" $13.86
18-2. 6688109 NUT,SPECIAL $8.44
18-2. 21833110200 NUT,SPECIAL $15.27
18-3. 22033110800 HOLDER,WHEEL $0.00

Discontinued

18-4. 99201080011 WASHER,8 $1.64
18-4. 6684611 WASHER,8 $1.72
18-5. 99210080012 WASHER,S,8 $1.15
18-5. 6684971 WASHER,S,8 $1.72
18-6. 99101080011 NUT,8 $1.15
18-6. 6684612 HEX. NUT 8 (replaces 99101080011) $1.72
18-7. 22533111200 SPRING,STOPPER $28.83
18-7. 6688190 SPRING,STOPPER $3.28
18-8. 6688181 STAY,STOPPER $25.92
18-8. 22333110800 STAY,STOPPER $24.14
18-9. 22633111200 BOLT,SPECIAL $13.11
18-9. 6688204 BOLT,SPECIAL $13.08

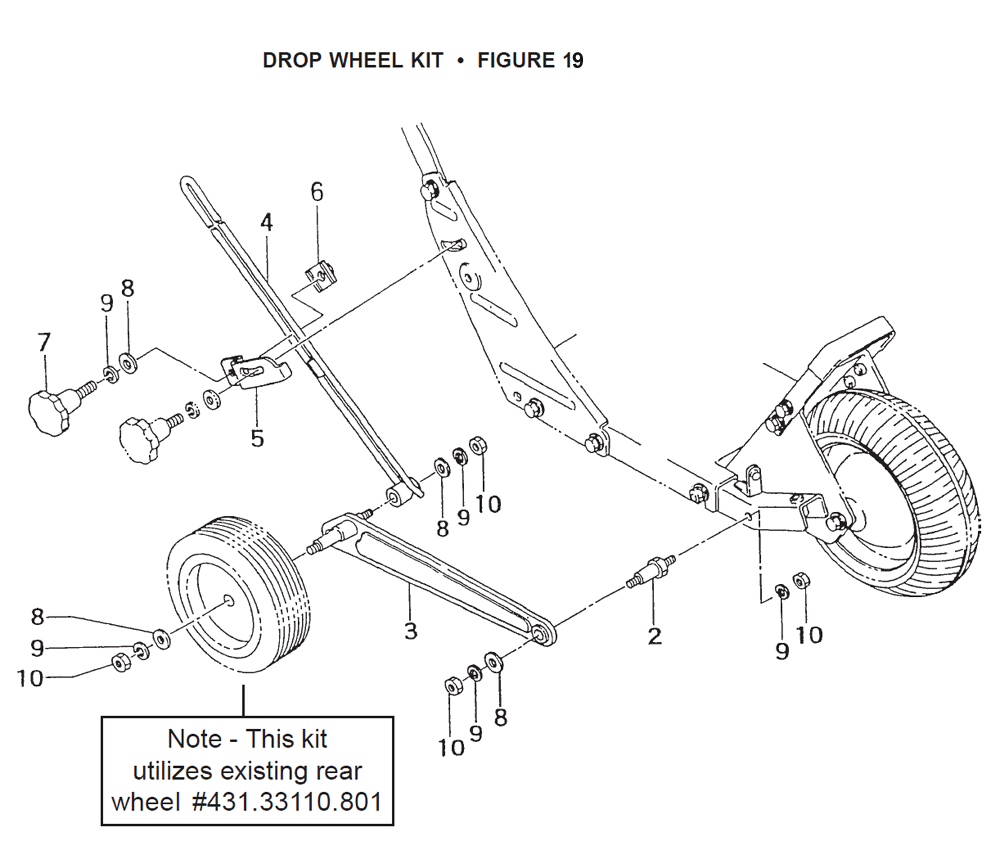

19-0. 748012 CURB KIT,TLE-550,600 $0.00

Discontinued

19-10. 6684612 HEX. NUT 8 (replaces 99101080011) $1.72
19-10. 99101080011 NUT,8 $1.15
19-2. 38033111200 BOLT,SPECIAL $22.07
19-2. 6689749 BOLT,SPECIAL $36.01
19-3. 6688030 BRACKET,WHEEL $43.13
19-3. 20033110800 BRACKET,WHEEL $25.90
19-4. 6688064 ADJUSTER,WHEEL $65.69
19-4. 20533110800 ADJUSTER,WHEEL $14.62
19-5. 20833111200 HOLDER,ADJUSTER $14.86
19-5. 6688065 HOLDER,ADJUSTER $5.84
19-6. 6688086 METAL,HOLDER $1.72
19-6. 20933111800 METAL,HOLDER $56.33
19-7. 6688090 HANDLE,LOCK $6.32
19-7. 21033110800 HANDLE,LOCK $16.92
19-8. 6684611 WASHER,8 $1.72
19-8. 99201080011 WASHER,8 $1.64
19-9. 99210080012 WASHER,S,8 $1.15
19-9. 6684971 WASHER,S,8 $1.72

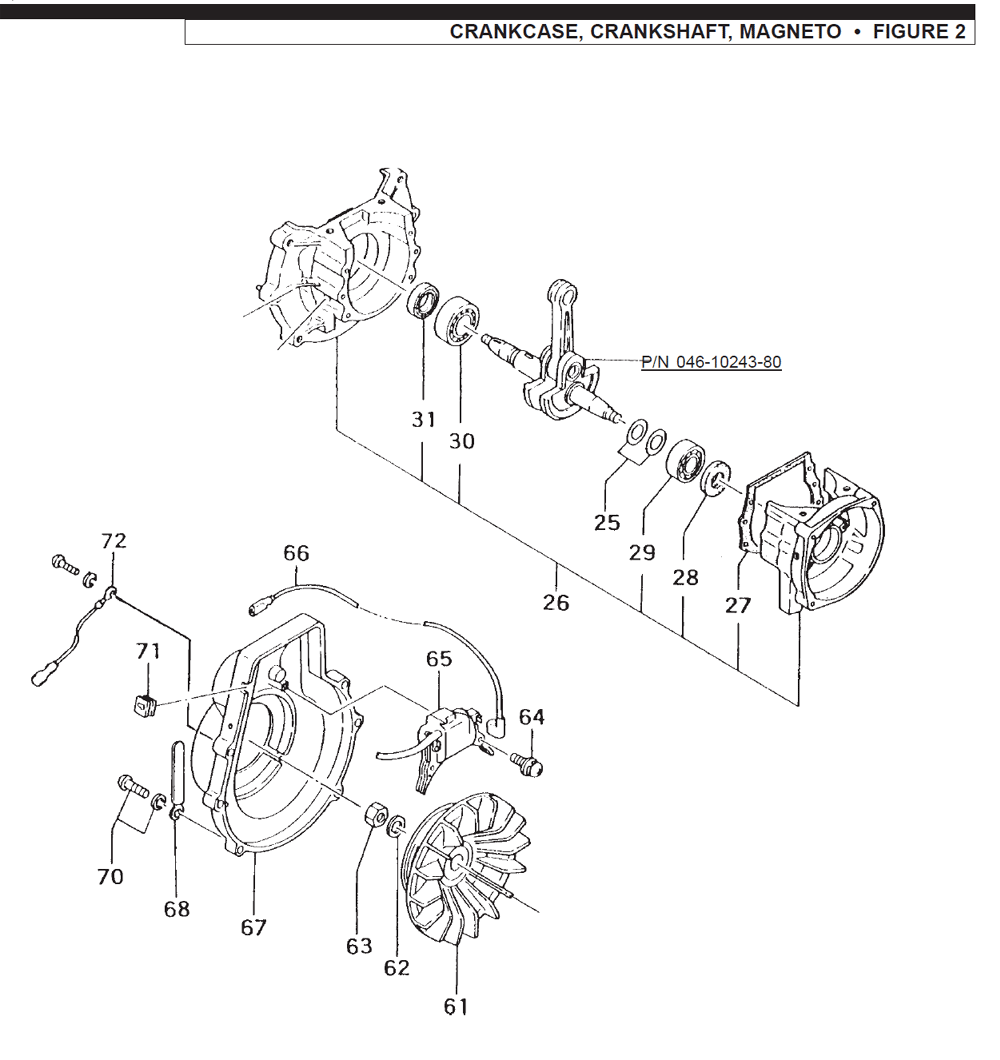

2-25. 6686471 SHIM,15.2X20X.15 | Shims are in.as neededin. to obtain correct c/s side clearance. $0.28
2-25. 07111600240 SHIM,16X21X.30 $0.00

Discontinued

2-25. 6686482 SHIM,16X21X.30 (replaces 07111600240) $1.40
2-25. 07102007220 SHIM,15.2X20X.15 $0.00

Discontinued

2-25. 07102007210 SHIM,15.2X20X.10 $0.00

Discontinued

2-25. 6686470 SHIM,15.2X20X.10 (replaces 07102007210) $1.19
2-25. 6686481 CRANK SHAFT SHIM 0.20 (replaces 07102007230) $2.64
2-25. 07111600230 SHIM,16X21X.20 $0.00

Discontinued

2-26. 072-10243-91 CRANKCASE,ASS'Y $0.00

Discontinued

2-26. 6686595 CRANK CASE ASS'Y (replaces 07210243900) $77.40
2-27. 090-10200-21 GASKET,CRANKCASE $0.00

Discontinued

2-27. 6686727 CRANK CASE GASKET (replaces 09010200201) $1.72
2-28. 999-66153-000 SEAL,OIL,#15307 $6.01
2-28. 6695641 SEAL,OIL,#15307 $3.28
2-29. 99961620200 BEARING,BALL,#6202 $25.92
2-29. 6695557 BEARING,BALL,#6202 35mm/OD $6.67
2-30. 6695562 BEARING,BALL,#6203 40mm/OD $6.99
2-30. 99961620300 BEARING,BALL,#6203 $38.37
2-31. 6695648 OIL SEAL,UE17307 $4.80
2-31. 999-66173-000 SEAL,OIL,#17307 $5.16
2-61. 6687403 ROTOR,MAGNETO | C223695 $51.64
2-61. 155-21714-801 ROTOR,MAGNETO $149.07
2-62. 992-01100-011 WASHER,10 $1.15
2-62. 6695198 WASHER,10 $1.72
2-63. 991-09100-001 NUT,10 L.H. $1.74
2-63. 6695134 NUT,10 L.H. $1.72
2-64. 99416040226 SCREW,WS,4X22 $1.29
2-64. 6695410 SCREW,WS,4X22 (replaces 99416040226) $0.32
2-65. 16721954800 COIL,IGNITION $0.00

Discontinued

2-65. 6695942 COIL,IGNITION | H124861~ $58.55
2-66. 6687826 CORD,STOP | ~G076701 $3.28
2-66. 178-0136M-800 CORD,STOP $7.24
2-67. 6687047 CASE,FAN $33.58
2-67. 112-10246-200 CASE,FAN $1.48
2-68. 19810246800 CLAMP,CORD $3.12
2-68. 6688008 CLAMP,CORD (replaces 19810246800) $1.40
2-70. 6695363 SCREW,6X25/S $1.12
2-70. 99414060251 SCREW,6X25/S $1.09
2-71. 202-10200-201 GROMMET,SECONDARY CORD $1.59
2-71. 6688040 GROMMET,SECONDARY CORD $1.72
2-72. 6688448 CORD,EARTH $2.64
2-72. 27404037800 CORD,EARTH $3.78
3-33. 99414060301 SCREW,6X30/S $1.09
3-33. 6695364 SCREW,6X30/S $1.78
3-36. 727-01040-201 GASKET,DRAIN $1.29
3-36. 6692685 GASKET,DRAIN (replaces 72701040201) $1.72
3-37. 6694926 SCREW,6X10 $1.40
3-37. 99011060102 SCREW,6X10 $1.59
3-38. 6689682 GOVERNOR SHAFT (replaces 36910250203) $10.61
3-38. 369-10250-203 SHAFT,GOVERNOR $3.82
3-39. 6689679 GOVERNOR SHAFT ARM (replaces 36710250201) $3.28
3-39. 367-10250-210 FORK,GOVERNOR SHAFT $4.46
3-40. 99011030061 SCREW,3X6 $1.15
3-40. 6694855 SCREW,3X6 (replaces 99011030061) $1.72
3-41. 6689175 OIL PARTITION (replaces 32910250200) $1.72
3-41. 329-10250-201 PARTITION,OIL $0.00

Discontinued

3-42. 6694861 SCREW,4X8 $1.72
3-42. 990-11040-081 SCREW,4X8 $1.15
3-43. 6687055 GOVERNOR ASS'Y (replaces 11410250901) $34.20
3-43. 114-10250-910 GOVERNOR,ASS'Y $60.82
3-44. 6689780 GOVERNOR PLATE (replaces 38810250200) $3.28
3-44. 38810250210 PLATE,GOVERNOR $12.28
3-45. 6689782 SLEEVE,GOVERNOR $15.20
3-45. 38910250210 SLEEVE,GOVERNOR $25.92
3-46. 99350015002 RING,STOP,C-15 EX $1.15
3-46. 6695285 STOP RING C-15 EX (replaces 99350015002) $1.72
3-47. 385-10250-202 GASKET,GOVERNOR COVER $3.69
3-47. 6689775 GOVERNOR COVER GASKET (replaces 38510250202) $1.72
3-48. 38410243900 COVER,GOVERNOR ASS'Y $7.44
3-48. 6689771 GOVERNOR COVER ASS'Y (replaces 38410243900) $10.30
3-49. 6695637 SEAL,OIL,UD15257 $4.80
3-49. 99966152511 SEAL,OIL,#VE15X25X7 $4.74
3-50. 6694863 SCREW,4x10 $1.72
3-50. 99011040101 SCREW,4X10 $1.15

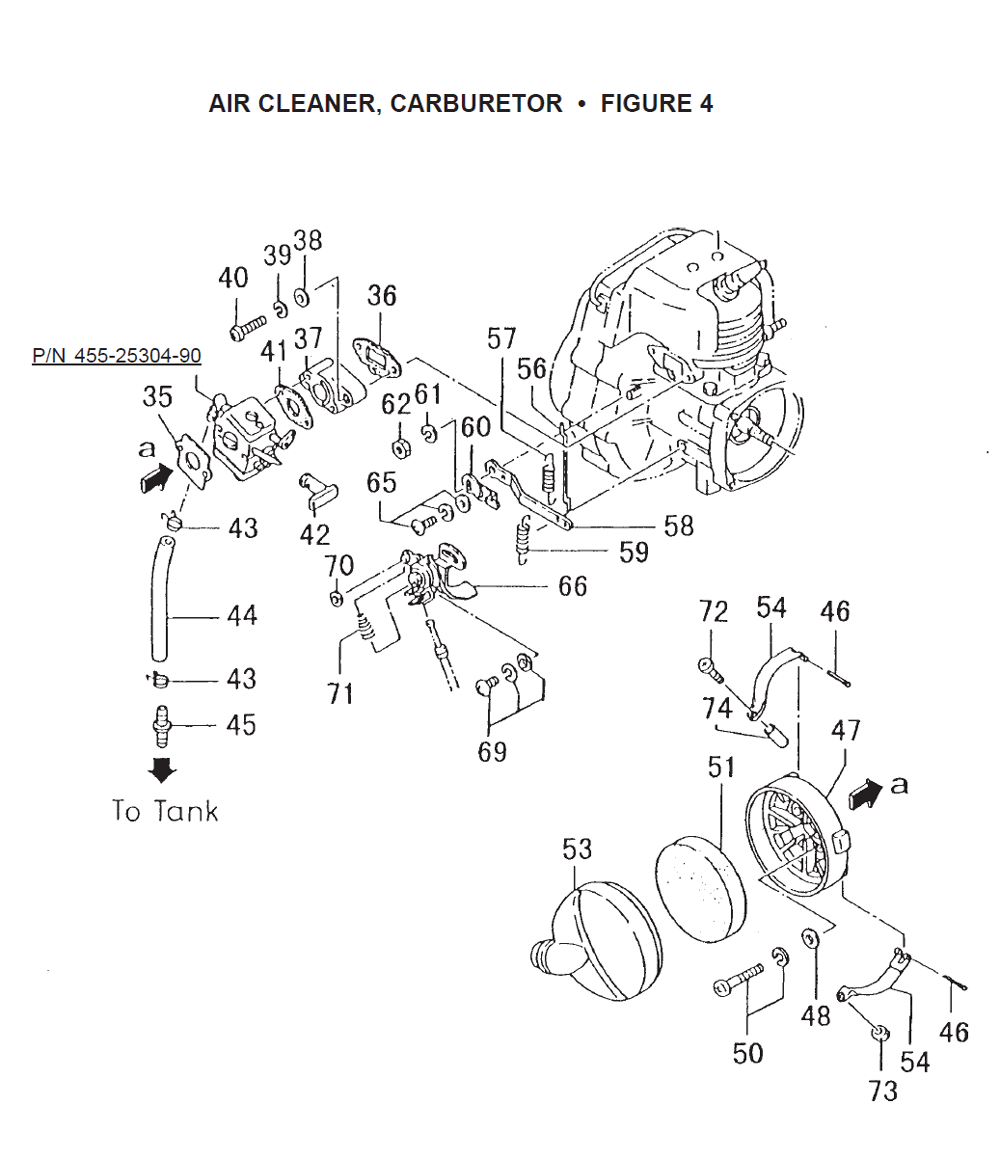

4-35. 6690183 GASKET,CLEANER (replaces 43105015201) $1.72
4-35. 431-05015-201 GASKET,CLEANER $1.56
4-36. 40310244201 GASKET,INTAKE MANIFOLD $1.99
4-36. 6689899 GASKET,INTAKE MANIFOLD $1.72
4-37. 6689978 INSULATOR,CARBURETOR $14.54
4-37. 404-10244-200 INSULATOR,CARBURETOR $23.47
4-38. 6684864 WASHER,SMALL,5 $1.72
4-38. 992-00050-011 WASHER,SMALL,5 $1.16
4-39. 992-10050-012 S.WASHER 5 $1.72
4-39. 6684662 WASHER,S,5 (replaces 99210050012) $1.72
4-40. 6694897 SCREW 5X25 (replaces 99011050252) $0.44
4-40. 990-11050-252 SCREW,5X25 $1.92
4-41. 6689826 GASKET,CARBURETOR $4.46
4-41. 4020174020 CARB GASKET $2.69
4-42. 6691004 LEVER,CHOKE $1.72
4-42. 49504200200 LEVER,CHOKE $54.04
4-43. 6692305 CLIP,5.5 (replaces 68000206200) $1.72
4-43. 680-00206-200 *CLIP,5.5 $1.29
4-44. 70053005195 PIPE,FUEL,3X5X195 $2.86
4-44. 6692419 FUEL PIPE (replaces 70013005060) $3.28
4-45. 49732350200 JOINT,PIPE $7.43
4-45. 6685196 JOINT,PIPE (replaces 4973297020) $1.72
4-46. 6695267 PIN,SPRING,2.5X16 $1.72
4-46. 99324025161 PIN,SPRING,2.5X16 $1.15
4-47. 6690129 BODY,CLEANER $7.22
4-47. 42310246201 BODY,CLEANER $27.47
4-48. 6684864 WASHER,SMALL,5 $1.72
4-48. 992-00050-011 WASHER,SMALL,5 $1.16
4-50. 6695355 SCREW, 5X65 S $1.72
4-50. 994-14050-651 SCREW, 5X65 S $1.33
4-51. 6690324 ELEMENT,CLEANER A $3.28
4-51. 444-02401-201 ELEMENT,CLEANER A $4.96
4-53. 6690159 CAP,CLEANER $6.32
4-53. 42410246200 CAP,CLEANER $17.32
4-54. 6690211 BAND,CLEANER $4.80
4-54. 439-10246-200 BAND,CLEANER $5.58
4-56. 6690964 ROD,THROTTLE $1.72
4-56. 490-10244-200 ROD,THROTTLE $3.05
4-57. 37612121200 SPRING,GOVERNOR ROD $3.64
4-57. 6689714 GOVERNOR ROD SPRING (replaces 37612121200) $1.72
4-58. 6689719 LEVER,GOVERNOR OUTER $2.64
4-58. 377-10244-200 LEVER,GOVERNOR OUTER $8.44
4-59. 37410244200 SPRING,GOVERNOR $3.48
4-59. 6689697 SPRING,GOVERNOR $1.72
4-60. 37210250201 LEVER,GOVERNOR SPRING $1.48
4-60. 6689687 GOVERNOR SPRING LEVER (replaces 37210250201) $1.37
4-61. 6695219 WASHER,S,6 $1.72
4-61. 99210060012 WASHER,S,6 $1.24
4-62. 99101060013 NUT,6 $1.15
4-62. 6684872 NUT,6 $1.34
4-65. 994-15040-081 SCREW, 4X8 $1.09
4-65. 6695368 SCREW,4X8 $0.29
4-66. 83010250903 LEVER,CONTROL,ASS'Y $48.08
4-66. 6693591 CONTROL LEVER ASS'Y (replaces 83010250903) $9.69
4-69. 6695413 SCREW,WS,5X10 $1.72
4-69. 99416050101 SCREW,WS,5X10 $1.29
4-70. 70017512003 RETAINER $1.29
4-70. 6692396 RUBBER PIPE 7.5X12X3 (replaces 70017512003) $1.37
4-71. 90210243200 SPRING,WIRE,RETURN $2.54
4-71. 6694055 WIRE RETURN SPRING (replaces 90210243200) $1.72
4-72. 990-11050-351 SCREW,5X35 $1.15
4-72. 6694901 SCREW 5X35 (replaces 99011050351) $1.72
4-73. 99101050011 NUT,5 $1.15
4-73. 6684965 NUT,5 TBC-240PF $1.72
4-74. 6690805 COLLAR (replaces 47010246200) $1.72
4-74. 47010246200 COLLAR $8.20

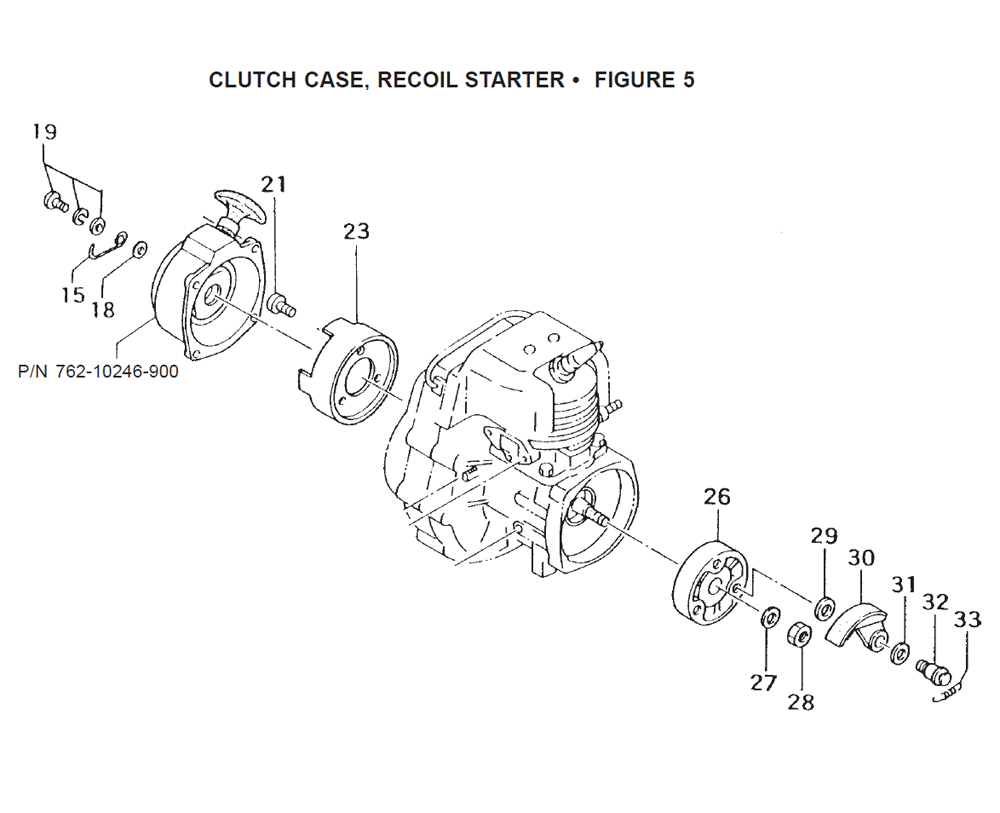

5-15. 6690734 CLAMP $0.67
5-15. 46133111200 CLAMP $5.60
5-18. 6684661 WASHER,5 $1.72
5-18. 99201050011 WASHER,5 $1.24
5-19. 99415050202 SCREW,5X20/PS $1.15
5-19. 6695392 SCREW,5x20/PS $1.40
5-21. 99414060202 SCREW,6X20S $1.15
5-21. 6695361 SCREW,6X20S $0.43
5-23. 6693410 PULLEY,STARTER $17.68
5-23. 798-10246-200 PULLEY,STARTER $29.67
5-26. 347-10243-200 FLANGE,CLUTCH $25.92
5-26. 6689508 CLUTCH FLANGE (replaces 34710243200) $4.80
5-27. 6695198 WASHER,10 $1.72
5-27. 992-01100-011 WASHER,10 $1.15
5-28. 6695142 NUT,LH,10 $1.72
5-28. 991-15100-001 NUT,LH,10 $2.09
5-29. 35910112203 WASHER,CLUTCH B $1.36
5-29. 6689645 WASHER,CLUTCH B $1.72
5-30. 29010112802 ARM,CLUTCH $61.47
5-30. 6688617 ARM,CLUTCH $11.51
5-31. 6689638 CLUTCH WASHER A (replaces 35810112200) $1.72
5-31. 35810112201 WASHER,CLUTCH $1.39
5-32. 35710112204 BOLT,CLUTCH STEP $10.53
5-32. 6689633 BOLT,CLUTCH STEP J234751 $3.28
5-33. 6689434 SPRING,CLUTCH J234751 $1.72
5-33. 34210205220 SPRING,CLUTCH $1.48
6-1. 990-11050-061 SCREW,5X6 $1.15
6-1. 6694881 SCREW,5X6 | D029371 $1.37
6-11. 6695379 SCREW,5X8/PS $0.29
6-11. 994-15050-081 SCREW,5X8/PS $1.09
6-2. 992-10050-012 S.WASHER 5 $1.72
6-2. 6684662 WASHER,S,5 (replaces 99210050012) $1.72
6-3. 99201050011 WASHER,5 $1.24
6-3. 6684661 WASHER,5 $1.72

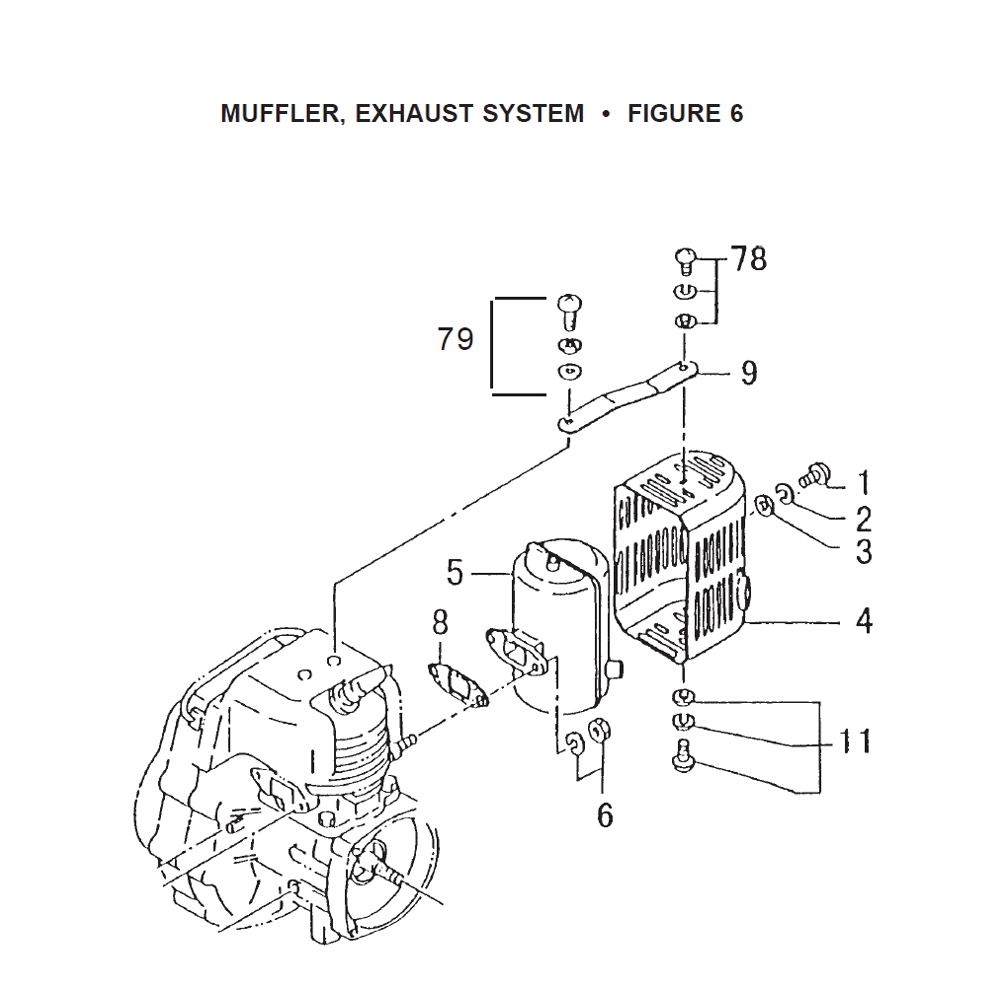

6-4. 738-03120-21 PROTECTOR,MUFFLER $30.13
6-4. 6692775 PROTECTOR,MUFFLER $26.48
6-5. 706-10225-800 MUFFLER $68.02
6-6. 6695475 NUT,SPRING 6 $1.72
6-6. 99440060011 NUT,SPRING 6 $1.19
6-78. 99415050121 SCREW,5X12/PS $1.24
6-78. 6695382 SCREW,5X12/PS $1.72
6-79. 994-13050-121 SCREW,3X12/PS $1.24
6-79. 6695321 SCREW 5x12/P $1.72
6-8. 737-10242-20 GASKET,MUFFLER $0.00

Discontinued

6-8. 6692746 GASKET,MUFFLER $1.72
6-9. 733-10205-210 STAY,MUFFLER $1.48
6-9. 6692705 STAY,MUFFLER $3.28

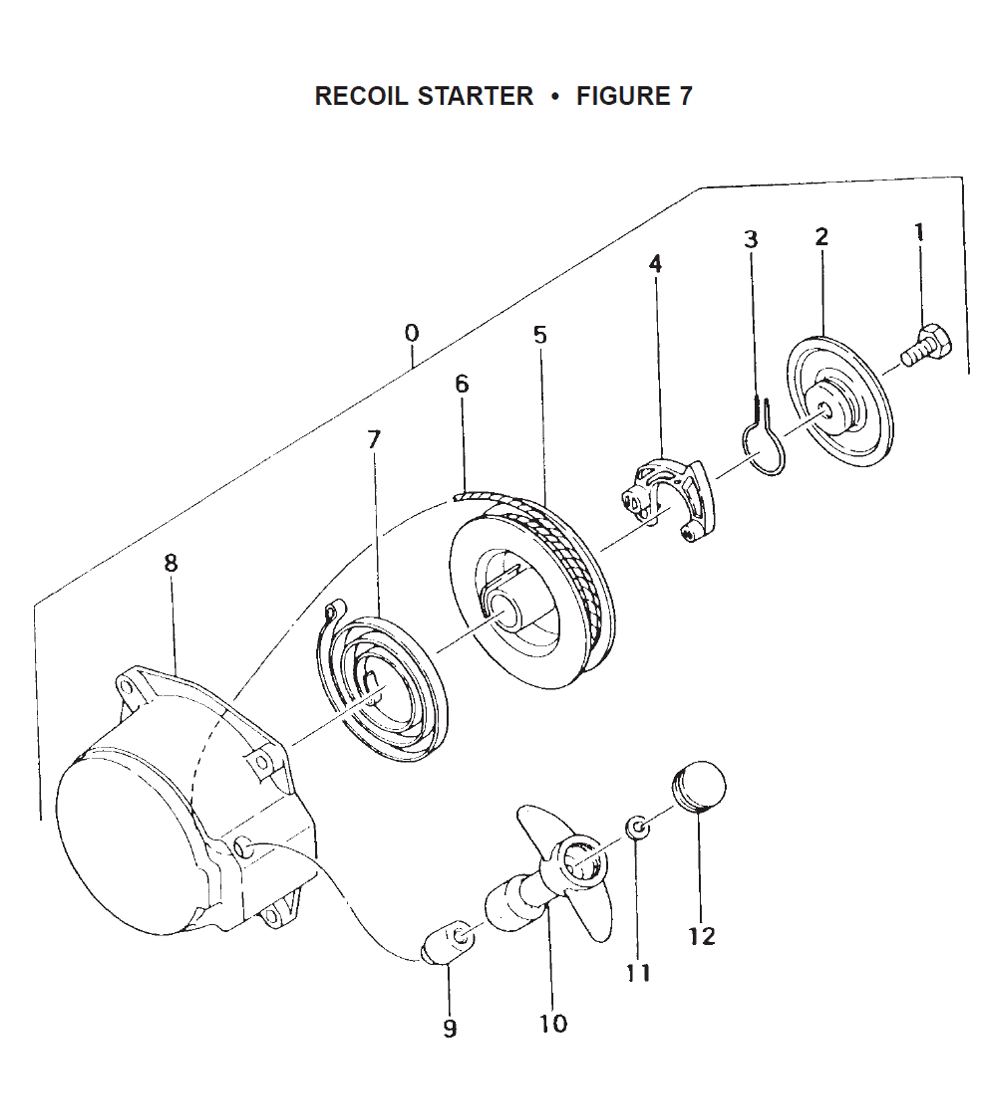

7-0. 6692996 STARTER,RECOIL ASS'Y $42.72
7-0. 762-10246-900 STARTER,RECOIL ASS'Y $84.05
7-1. 99021060121 BOLT,6X12 $1.15
7-1. 6694982 BOLT,6X12 $1.15
7-10. 78510118200 HANDLE,STARTER $9.78
7-10. 6693241 HANDLE,STARTER $4.06
7-11. 6693383 STOPPER,ROPE J234751 $0.52
7-11. 79510243200 STOPPER,ROPE $2.54
7-12. 83510246200 CAP,STARTER HANDLE $2.96
7-12. 6693610 STARTER HANDLE CAP (replaces 83510118200) $1.37
7-2. 83710205200 PLATE,FRICTION $11.76
7-2. 6693630 PLATE,FRICTION $4.86
7-3. 6693617 SPRING,FRICTION $2.80
7-3. 83610205200 SPRING,FRICTION $5.82
7-4. 6693323 STARTER PAWL (replaces 78810243200) $4.46
7-4. 788-10243-200 PAWL,STARTER $7.26
7-5. 6693085 PULLEY,STARTER $12.12
7-5. 77410246800 PULLEY,STARTER $29.67
7-6. 6693176 ROPE,STARTER $5.34
7-6. 78310205200 ROPE,STARTER $5.71
7-7. 6693123 SPRING,RECOIL $20.35
7-7. 77910205200 SPRING,RECOIL $29.06
7-8. 6693045 BODY,RECOIL STARTER $24.64
7-8. 77210246200 BODY,RECOIL STARTER $51.54
7-9. 78010108200 GUIDE,ROPE $6.28
7-9. 6693140 ROPE GUIDE (replaces 78010118200) $4.80

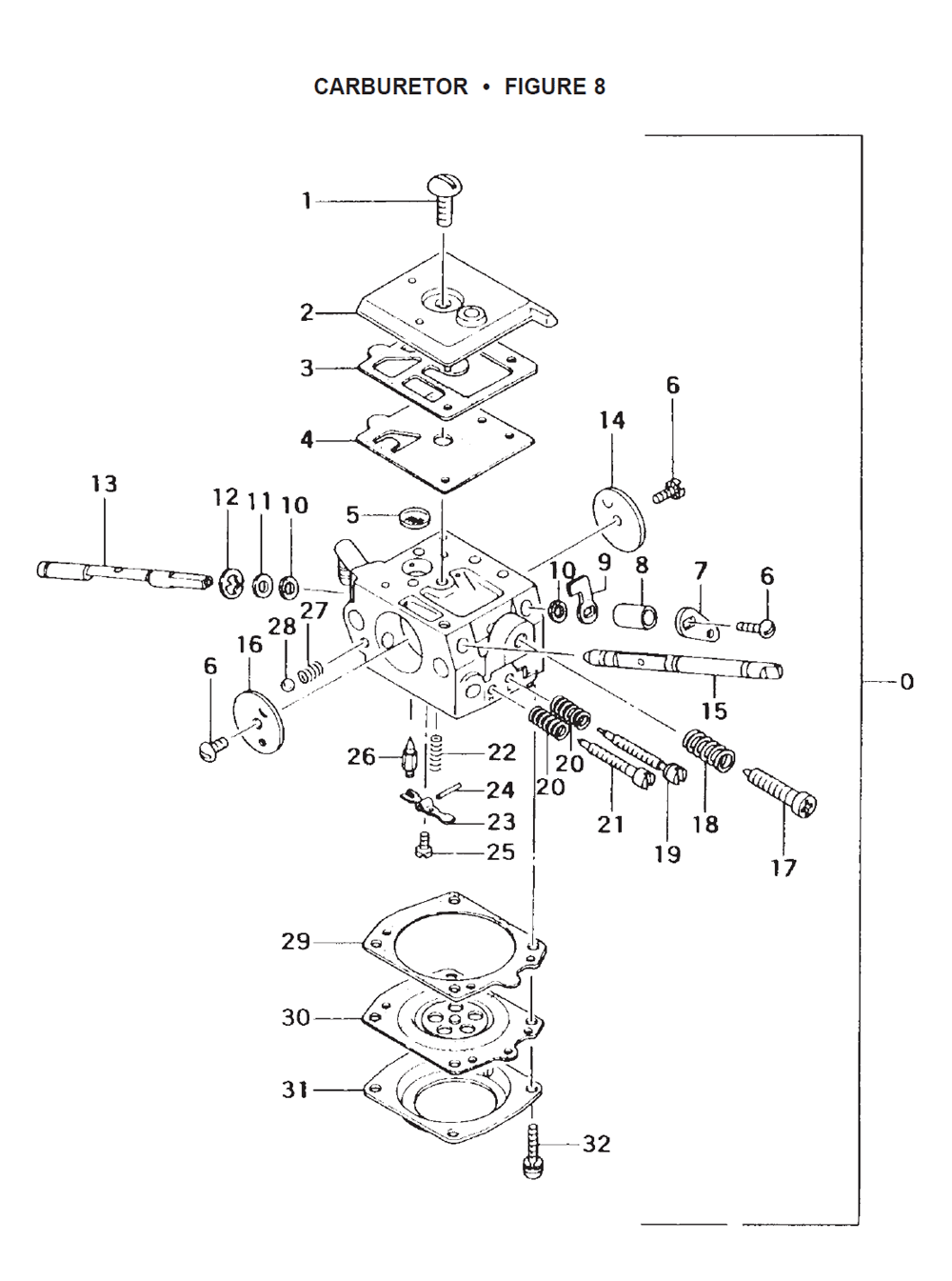

8-00. 4552530490 CARBURETOR,ASS'Y $109.09
8-00. 6690614 CARBURETOR,ASS'Y HDA-58 $115.93
8-00. 6690649 CARBURETOR,ASS'Y HDA-178 $129.53
8-00. 45525111900 CARBURETOR,ASS'Y $121.14
8-1. 6685210 SET SCREW (replaces 51425001200) $1.37
8-1. 51425001200 SCREW,SET $2.83
8-10. 50225111200 FILTER $5.34
8-10. 6691084 FILTER $0.72
8-11. 6691316 WASHER,THRUST (replaces 54925100200) $1.78
8-11. 549-25100-200 WASHER,THRUST $6.78
8-12. 6690961 RING,STOP $1.72
8-12. 48925008200 RING,STOP $2.99
8-13. 6690779 SHAFT,THROTTLE $3.82
8-13. 46425111200 SHAFT,THROTTLE $4.49
8-14. 6690921 VALVE,THROTTLE $2.80
8-14. 48825001200 VALVE,THROTTLE $5.03
8-15. 49225032200 SHAFT,CHOKE $4.28
8-15. 6690986 SHAFT,CHOKE $4.40
8-16. 6690995 VALVE,CHOKE $5.34
8-16. 49325111200 VALVE,CHOKE $4.12
