Skil 2467-02 Cordless Drilldriver Parts

Skil 2467-02 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

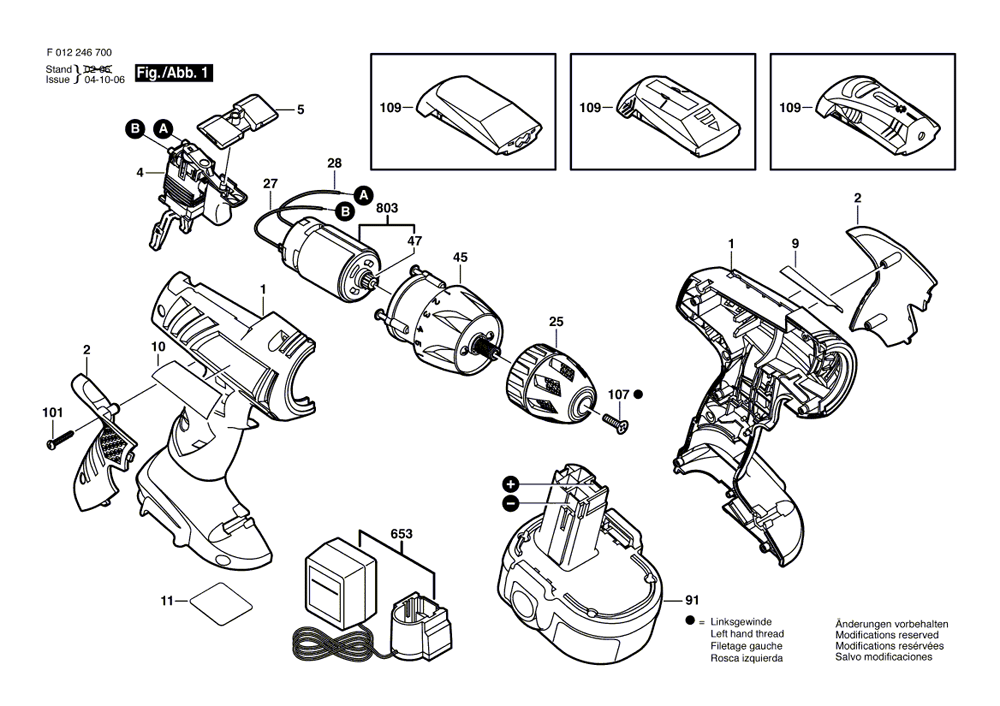

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	2609100156	HOUSING COVER	$12.80
2	2609100149	CAP-HANDLE	$5.26
4	2607200464	ON-OFF SWITCH	$22.70
5	2609100167	REVERSE-TRANSFER LEVER	$1.91
9	2609130457	REFERENCE PLATE	$2.79
10	2609130475	NAMEPLATE	$2.79
11	2609130460	PLATE	$2.79
25	1619X00090	CHUCK	$6.91
27	2609120085	CONNECTING CABLE	$1.34
28	2609120086	CONNECTING CABLE	$1.34
45	2609110194	PLANETARY GEAR TRAIN	$16.59
47	2609110097	PINION	$1.57
91	2607335511	BATTERY PACK	$24.95
101	2609110201	TORX FLAT-HEAD SCREW	$0.89
107	2609110721	COUNTERSUNK-HEAD SCREW	$1.34
109	2609100190	SUPPORT	$3.17
109	2610916434	METAL DETECTOR	$29.17
109	2610924650	SPIRIT LEVEL	$18.08
653	2607225367	CHARGER	$14.23
803	2609120083	DC MOTOR	$22.70
