3520B 20-Swing 35-Inch between Centers 2 Horsepower Wood Turning Lathe, 230-Volt 1 Phase
Time to buy a new tool?

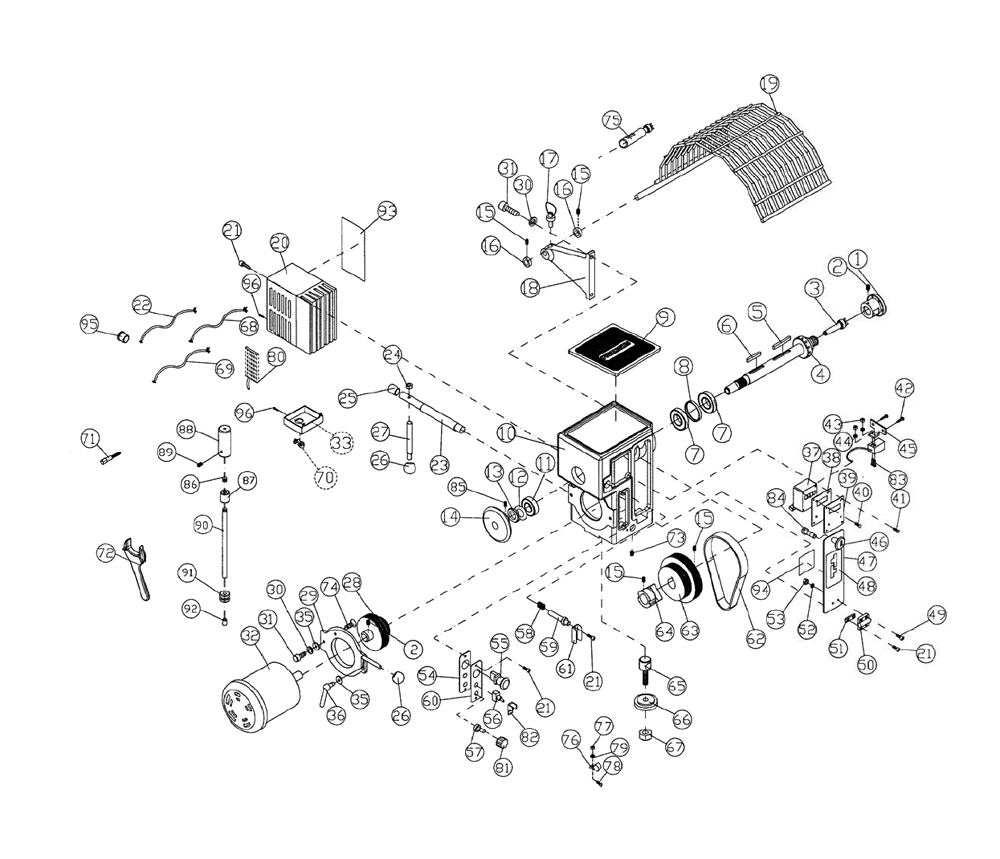

http://www.toolpartspro.com/image/1352001/1352001-powermatic-PB Breakdown Diagram
Page-1

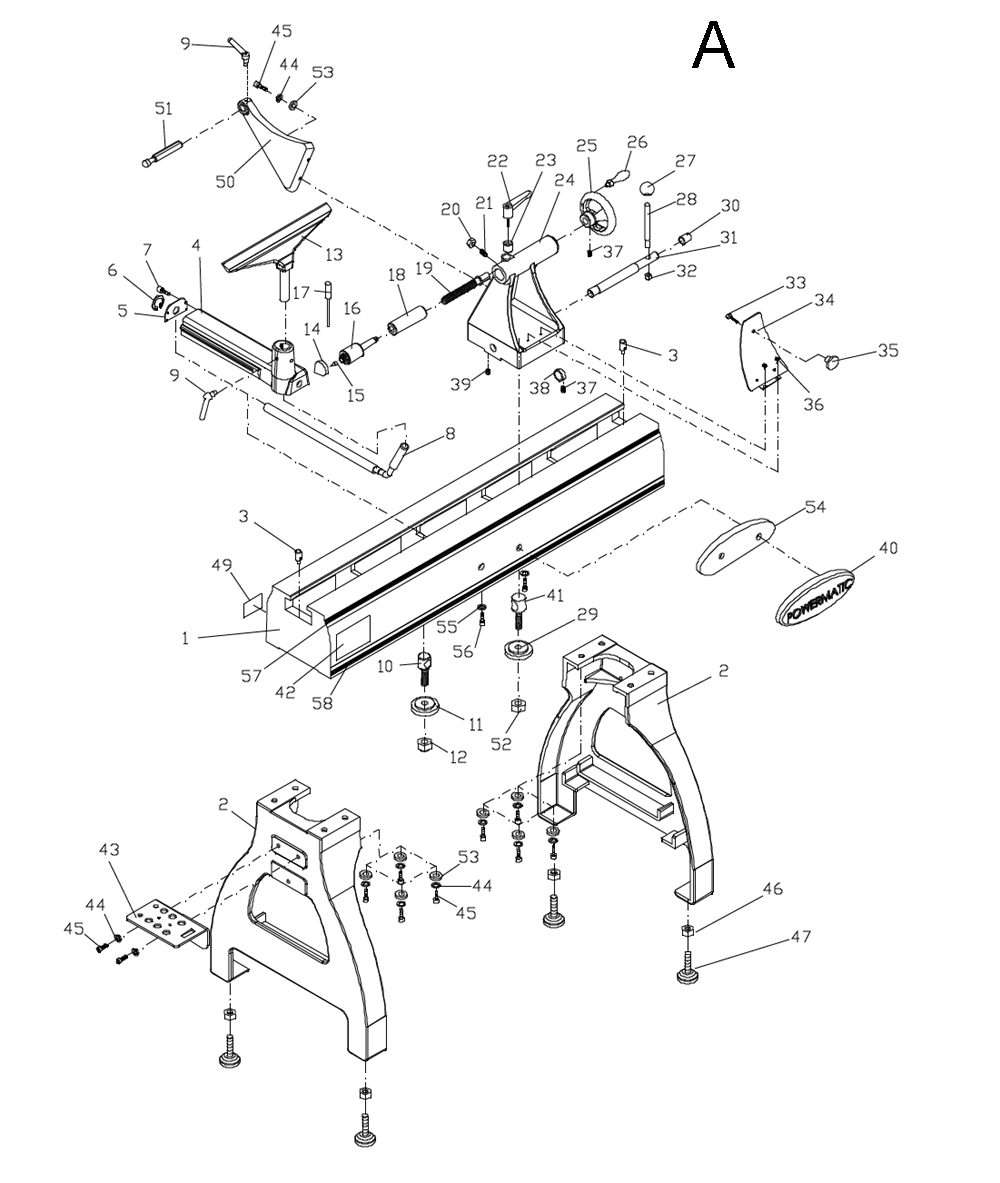

1352001-powermatic-PB-1 Breakdown Diagram
Page-2

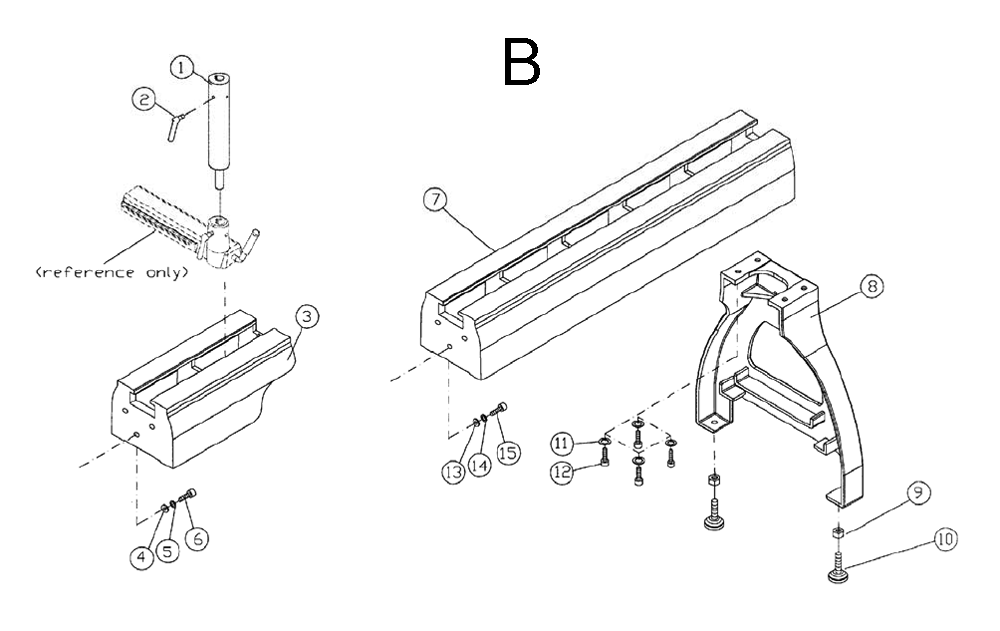

1352001-powermatic-PB-2 Breakdown Diagram
Page-3

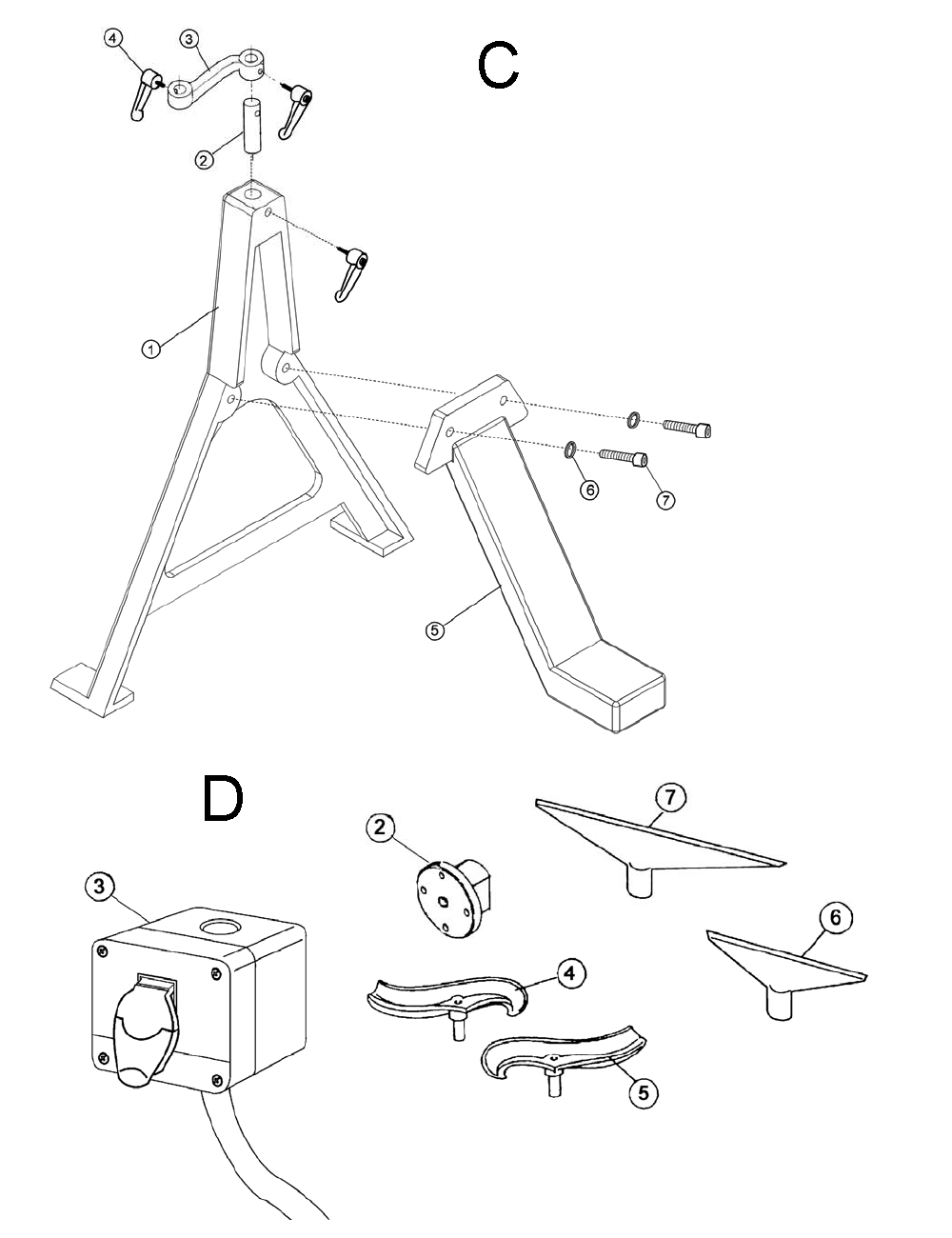

1352001-powermatic-PB-3 Breakdown Diagram
Page-4
Tool Diagram    (Click image to Zoom in) View larger Image
ToolspartsPro
Fig.Part #ImgPart NamePriceQty.
1 6294736 Faceplate with set screws $103.99

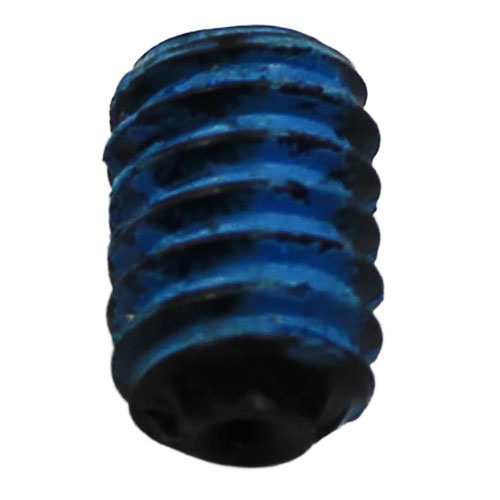

2 6295796 Nylon Insert Socket Set Screw $42.02

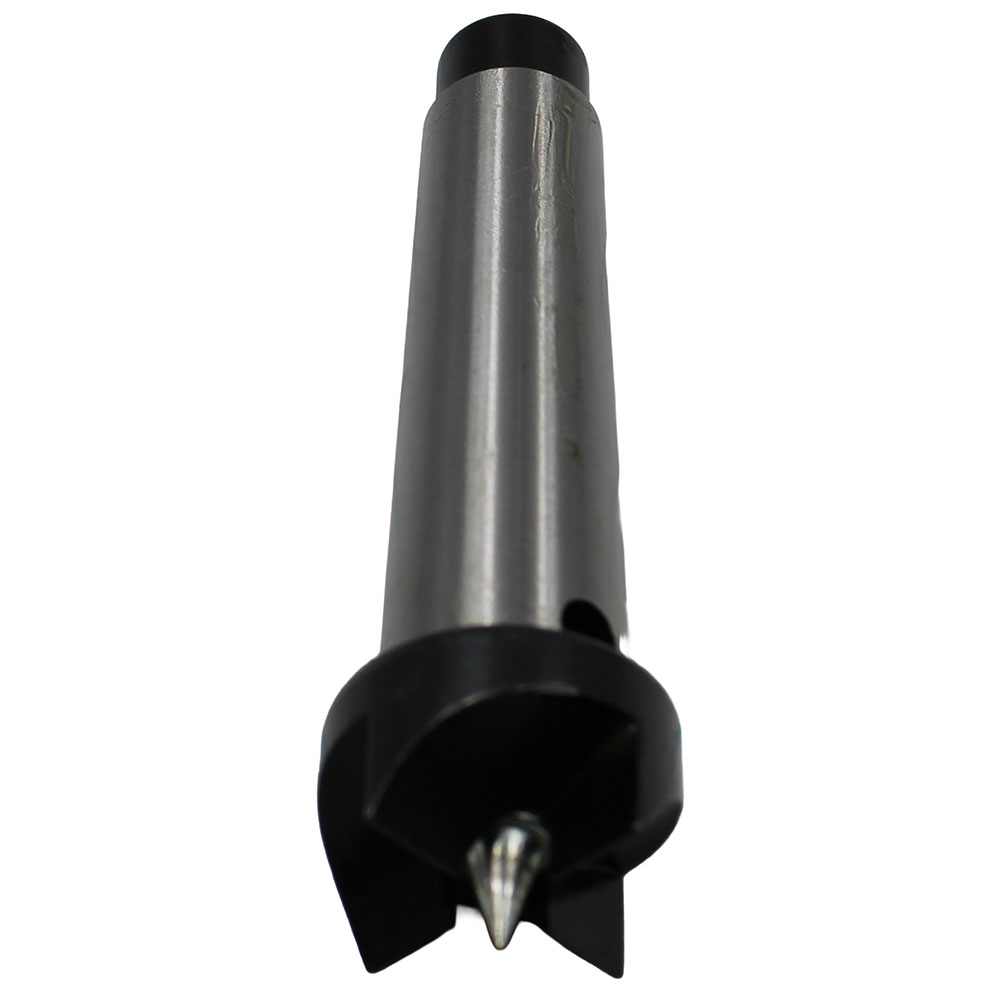

3 6294725 Spur Center $16.48
4 3520B-204 Spindle $110.63
5 3520B-205 Key $4.59
6 3520B-206 Key $4.59
7 BB-6207ZZ Bearing $35.90
8 3520B-208 Bushing $13.65

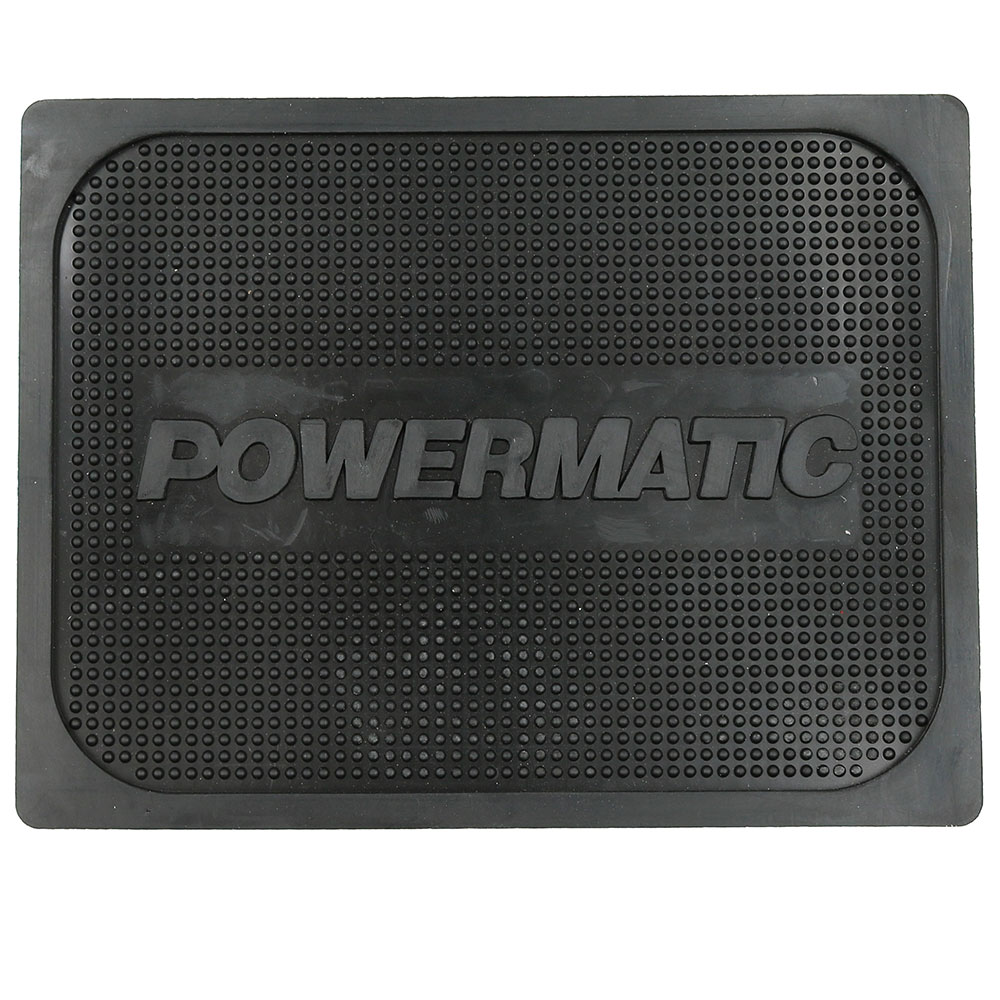

9 3520B-209 Headstock Mat $22.20
10 3520B-210 Headstock $485.19
11 BB-6206VV Ball Bearing6206LLU $41.55
12 6864006 Bearing Lock Washer $4.15
13 6549006 Bearing Nut $9.83
14 3271081 Handwheel $53.00
15 TS-0270011 Set Screw $3.45
16 6143004 Retaining Collar $7.63
17 6644005 Plunger $21.10
18 3064711 Lathe Guard Bracket $55.20
19 6294728 Safety Guard $121.11
20 JWL1642-164A "Inverter $485.19
21 6710015 Socket Head Cap Screw $15.60
22 JWL1642-170 Signal Cord $10.23
23 3520B-223 Headstock Clamping Shaft $30.80
24 TS-0640091 Nylon Nut $6.80
25 6095038 Bushing $15.05
26 6430045 Knob $3.45
27 3268219 "Handle $6.36
28 3719189 Motor Sheave $95.71
29 2595036 Motor Assembly Plate $58.20
30 TS-0720091 Lock Washer $3.45
31 TS-0209061 Socket Head Cap Screw $3.45
32 3520B-232 Motor $460.95
00 PM2000-MF Motor Fan $12.30
00 70-4101-2 Motor Fan Cover $15.88
33 JWL1642-166 Bottom Cover $16.70
35 TS-0680042 Flat Washer $0.00Disc
36 6350031 Motor Plate Locking Handle $32.84
37 JWL1642-130A Digital Readout (DRO) $100.60
38 3520B-238 DRO Mounting Plate $17.80
39 3520B-239 DRO Cover Plate $15.60
40 JWL1642-127 Pan Head Self-Tapping Screw $3.45
41 TS-0253031 Socket Head Button Screw $3.45
42 JWL1642-134 Pan Head Self-Tapping Screw $3.45
43 TS-1540011 Hex Nut $3.45
44 TS-2361031 Lock Washer $3.45
45 JWL1642-135 Bracket $7.35
46 6295717 Knob $3.45
47 3520B-247 Door Panel $27.74
48 3520B-248 Speed Label $3.45
49 6708019 Socket Head Cap Screw $15.60
50 6365012 Door Hinge $19.70
51 6295911 Pad $9.00
52 6860704 Lock Washer $8.98
53 6508007 Nut $3.45
54 3520B-254 Control Panel $14.50
55 6295839 Push/Pull Switch $43.04
56 6821492 Switch Fwd/Rev $12.30
57 6295915 Potentiometer with wiring leads $64.50
58 6813062 Spring $8.98
59 3601006 Spindle Lock Plunger $11.11
60 3520B-260 Control Label $3.78
61 6294786 Spindle Lock Guard $7.63
62 6077228 Micro V-Belt $82.70
63 3719188 Spindle Sheave $166.12
64 3520B-264 Locking Collar $29.27
65 3058001 Clamp Bolt $13.99
66 3092095 Clamp $29.58
67 6520009 Nylon Nut $4.33
68 6294787 Power Cord $27.74
69 6294790 Motor Cord $24.40
70 JWL1642-165 Strain Relief $6.25
71 3520B-271 Index Pin $10.65
72 6294744 Face Plate Wrench $22.64
73 3520B-273 Set Screw $3.45
74 6716139 Flat Head Socket Screw $46.10
75 3520B-275 Spindle Comparator Spur Center $27.74
76 JWL1642-183 Air Line Clamp $3.45
77 TS-0560071 Hex Nut#10-24 $3.45
78 TS-081C082 Phillips Pan Head Machine Screw #10-24x1-1/2 $3.50
79 TS-069204 Flat Washer $3.45
80 JWL1642-169 Braking Resistor $39.63
81 6430047 Knob $17.76
82 3520B-282 Bracket $12.30
83 6295838 Phillips Round Head Machine Screw $3.50
84 TS-1490021 Hex Cap Screw $3.45
85 TS-0267021 Set Screw $3.45
00 6294754 Knockout Rod Assembly (includes index # 86 thru ... $78.20
86 TS-0270031 Set Screw $3.45
87 3520B-287 Slide Hammer $18.90
88 3520B-288 Slide Hammer $23.96
89 6295796 Nylon Insert Socket Set Screw $42.02
90 3520B-290 Rod $15.60
91 3520B-291 Collar $12.30
92 3520B-292 Brass Tip $5.70
93 3520B-293 Inverter Caution Label $4.60
94 3520B-294 Warning Label - Belt Adjustment $5.70
95 3520B-295 Cord Snap Ring $3.45
96 3520B-296 Phillips Pan Head Machine Screw $3.45
1 -A 3520B-101 Bed $1,052.72
2 -A 3520B-102 Leg $458.19
3 -A 6295754 Stop Bolt $12.05
00 6294797 Tool Rest Support Assembly (includes index #4 th... $189.35
4 -A 3520B-104 Tool Rest Support Base $207.54
5 -A 3520B-105 End Cover $18.90
6 -A 3520B-106 C-Ring $3.45
7 -A 6710015 Socket Head Cap Screw $15.60
8 -A 3520B-108 Tool Support Rod $93.20
9 -A 6294763 Lock Handle $16.69
10 -A 3520B-110 Clamp Bolt $30.80
11 -A 6294770 Cam Locking Disc $29.78
12 -A TS-0650081 Nylon Lock Hex Nut $3.45
13 -A 6294742 Tool Support $104.96
00 6295902 Live Center Assembly (includes #14 thru 17) $88.20
14 -A 6295905 Live Center Cap $15.88
15 -A 6295904 Live Center Tip $4.33
16 -A 6295903 Live Center Body $65.20
17 -A 6295906 Live Center Rod $7.35
18 -A 3520B-118 Quill $47.63
19 -A 6295909 Lead Screw $18.35
20 -A TS-0560071 Hex Nut#10-24 $3.45
21 -A 3520B-121 Set Screw $4.60
22 -A 6295910 Lock Handle $10.55
23 -A 3728005 Quill Lock Sleeve $11.19
24 -A 3520B-124 Tailstock $366.86
25 -A 3520B-125 Tailstock Handwheel $33.35
26 -A 3520B-126 Swivel Handle $16.50
27 -A 6430045 Knob $3.45
28 -A 3268217 Handle $6.53
29 -A 3092095 Clamp $29.58
30 -A 6095038 Bushing $15.05
31 -A 3708012 Tailstock Clamping Shaft $22.75
32 -A TS-0640091 Nylon Nut $6.80
33 -A TS-1490021 Hex Cap Screw $3.45
34 -A 3520B-134 Storage Cover Plate $49.16
35 -A 6295717 Knob $3.45
36 -A TS-081C022 Phillips Pan Head Machine Screw#10-24x3/8 $6.25
37 -A TS-0270011 Set Screw $3.45
38 -A 3096003 Collar $12.30
39 -A 6760102 Set Screw $3.45
40 -A 3520B-140 Powermatic Nameplate $27.26
41 -A 3058001 Clamp Bolt $13.99
42 -A 6294773 Warning Label $3.45
43 -A 3520B-143 Shelf $27.70
44 -A TS-0720091 Lock Washer $3.45
45 -A TS-0209061 Socket Head Cap Screw $3.45
46 -A TS-0570031 Hex Nut $3.45
47 -A 6442000 Adjustable Leveler $7.63
49 -A 3520B-149 ID Label $7.90
50 -A 3520B-150 Comparator Rear Bracket $66.20
51 -A 3520B-151 Comparator Dead Center $20.94
52 -A 6520009 Nylon Nut $4.33
53 -A TS-0680042 Flat Washer $0.00Disc
54 -A 3520B-154 Backer Plate $7.35
55 -A TS-0680021 Flat Washer $3.45
56 -A TS-0207061 Socket Head Cap Screw $1.58
57 -A 3520B-157 Upper Stripe $4.59
58 -A 3520B-158 Lower Stripe $5.47
00 6294727B "18"" Bed Extension Assembly (includes items 1 t... $0.00Disc
1 -B 3520B-310 Extension Post $90.20
2 -B 6294763 Lock Handle $16.69
3 -B 3520B-311 "18"" Bed Extension " $660.29
4 -B TS-0680042 Flat Washer $0.00Disc
5 -B TS-0720091 Lock Washer $3.45
6 -B TS-0209081 Socket Head Cap Screw $3.45
00 6294726B "50"" Bed Extension Assembly (includes items 7 t... $0.00Disc
7 -B 3520B-101 Bed $1,052.72
8 -B 3520B-102 Leg $458.19
9 -B TS-0570031 Hex Nut $3.45
10 -B 6442000 Adjustable Leveler $7.63
11 -B TS-0720091 Lock Washer $3.45
12 -B TS-0209061 Socket Head Cap Screw $3.45
13 -B TS-0680042 Flat Washer $0.00Disc
14 -B TS-0720091 Lock Washer $3.45
15 -B TS-0209081 Socket Head Cap Screw $3.45
00 6294732 Heavy Duty Outboard Turning Stand Assembly (incl... $0.00Disc
1 -C 3042503 Turning Stand Base $452.77
2 -C 6295897 Offset Tool Support Pin $43.04
3 -C 6295898 Offset Tool Support Casting $73.20
4 -C 2695026 Screw Lock Assembly $30.80
5 -C 3423055 Turning Stand Leg $177.17
6 -C 6861700 Lock Washer $4.05
7 -C 6769002 Socket Head Cap Screw $5.91
1 -D 6295902 Live Center Assembly (includes #14 thru 17) $88.20
2 -D 6294736 Faceplate with set screws $103.99
3 -D 6294733 "Remote Switch Assembly (Includes #100 $96.20
4 -D 6294740 Bowl Turning Tool Support (RH) $0.00Disc
5 -D 6294751 Bowl Turning Tool Support (LH) $0.00Disc
6 -D 6294739 "6"" Tool Support" $0.00Disc
7 -D 6294742 Tool Support $104.96
