Porter Cable PCB330BS Electric Saw Parts

Porter Cable PCB330BS Electric Saw Parts Image

Porter Cable PCB330BS Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Tool Diagram    (Click image to Zoom in) View larger Image

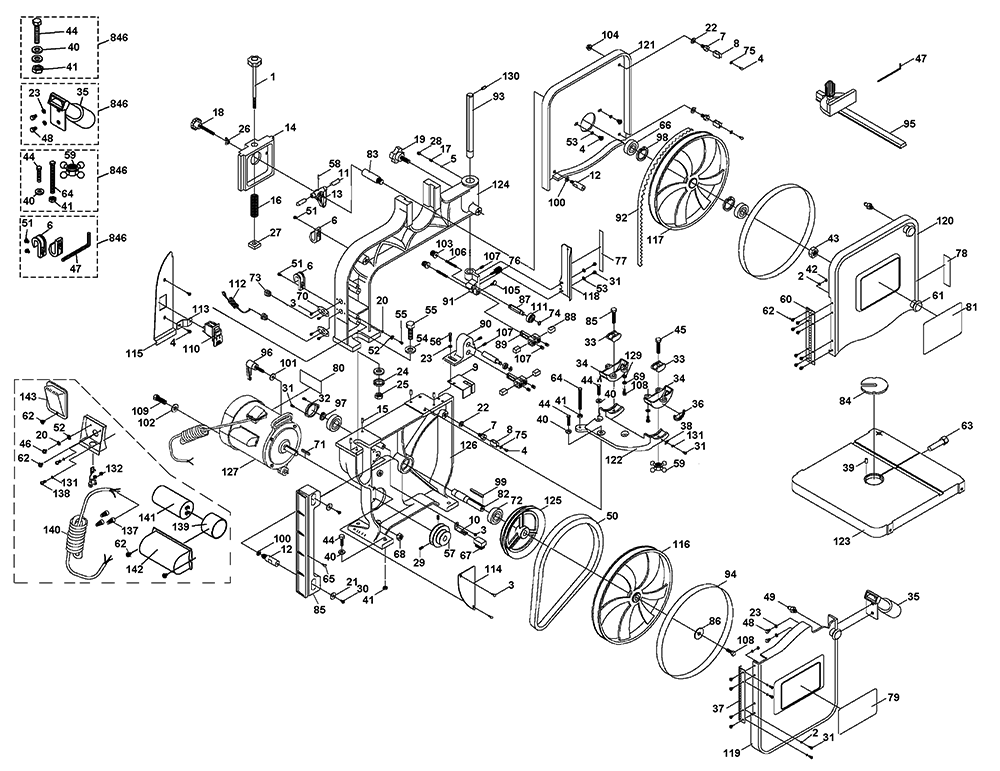

Porter Cable PCB330BS Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 5140074-41 KNOB ASSY. $9.35
2 5140074-42 SPRING WASHER $1.03
3 5140074-43 SCREW W/WASHER $1.03
4 5140074-44 SCREW $1.03
5 5140074-45 STEEL BALL $1.16
6 5140074-46 CORD WRAP $1.48
7 5140074-47 HEX BOLT $1.66
8 5140074-48 CLIP $3.38
9 5140074-49 LOWER BLADE GUARD $4.52
10 5140074-50 BRUSH HOLDER $1.48
11 5140101-03 HINGE ASSEMBLY $28.43
12 5140074-52 HEX BOLT $2.81
13 5140101-03 HINGE ASSEMBLY $28.43
14 5140101-03 HINGE ASSEMBLY $28.43
15 5140074-55 PIN $1.16
16 5140074-56 SPRING $1.48
17 5140074-57 SPRING $1.16
18 5140074-58 ADJ KNOB $2.24
19 5140074-59 KNOB $5.85
20 5140074-60 TOOTH WASHER $1.03
21 5140074-61 FLAT WASHER $1.16
22 5140074-62 FLAT WASHER $1.03
23 5140074-63 FLAT WASHER $1.03
24 5140074-64 SPRING WASHER $1.16
25 5140074-65 SQUARE NUT $1.16
26 5140074-66 WING NUT $1.16
27 5140074-67 HEX NUT $1.16
28 5140074-68 SET SCREW $1.16
29 5140074-69 SET SCREW $1.16
30 5140074-70 SCREW $1.03
31 5140074-71 SCREW $1.03
32 5140074-72 BEARING COVER $1.73
33 5140074-73 CLAMP SHOE $2.55
34 5140074-74 TRUNNION $5.10
35 5140074-75 DUST COLLECTION PORT $3.76
36 5140074-76 SCALE $1.16
37 5140074-77 HINGE $6.56
38 5140074-78 POINTER $1.16
39 5140074-79 SPRING PIN $1.73
40 5140074-80 FLAT WASHER $1.03
41 5140074-81 HEX NUT $1.03
42 5140074-82 HEX NUT $57.98
43 5140074-83 HEX NUT $1.16
44 5140074-84 HEX SCREW $1.16
45 5140074-85 HEX SCREW $1.16
46 5140074-86 SCREW W/WASHER $1.03
47 5140074-87 HEX WRENCH (3MM) $1.48
48 5140074-88 HEX SCREW $1.03
49 5140074-89 SPRING CLIP $2.24
50 5140074-90 V-BELT $5.60
51 5140074-91 SCREW W/WASHER $1.03
52 5140074-92 COPPER WASHER $1.16
53 5140074-93 WASHER $1.16
54 5140074-94 FLAT WASHER $1.16
55 5140074-95 HEX SCREW $2.81
56 5140074-96 HEX SCREW $1.03
57 5140074-97 PULLEY $14.82
58 5140101-03 HINGE ASSEMBLY $28.43
59 5140074-99 KNOB $1.03
60 5140075-00 HINGE $6.56
61 5140075-01 KNOB $1.48
62 5140075-02 SCREW W/WASHER $1.03
63 5140075-03 PIN $2.24
64 5140075-04 HEX SCREW $1.16
65 5140075-05 SCREW $47.35
66 5140075-06 BALL BEARING $9.10
67 5140075-07 BRUSH $2.24
68 5140075-08 NYLON NUT $1.16
69 5140075-09 SPRING WASHER $1.03
70 5140075-10 PLATE $1.16
71 5140075-11 KEY $2.24
72 5140075-12 BALL BEARING $8.46
73 5140075-13 BUSHING STRAIN RELIE $1.16
74 5140075-14 RING $1.03
75 5140075-15 SPRING WASHER $1.03
76 5140075-16 KNOB $3.38
77 5140075-17 SCALE $1.48
78 5140075-18 WARNING LABEL $1.48
79 5140075-19 WARNING LABEL $4.08
80 5140075-20 LABEL $3.38
81 5140075-21 NAME PLATE $4.33
82 5140075-22 SHAFT $18.64
83 5140101-03 HINGE ASSEMBLY $28.43
84 5140075-24 INSERT,TABLE $7.19
85 5140075-25 GUARD $6.56
86 5140075-26 FLAT WASHER $1.16
87 5140075-27 BEARING SHAFT $3.38
88 5140075-28 BLADE GUIDE $4.02
89 5140075-29 GUIDE $8.46
90 5140075-30 LOWER GUIDE $17.36
91 5140075-31 POST SEAT $18.00
92 5140075-32 BLADE $29.68
93 5140075-33 GUIDE POST $22.39
94 5140075-34 WHEEL $15.01
95 5140075-35 MITER GAUGE ASSY $2.81
96 5140075-36 KNOB $11.65
97 5140075-37 RING $1.16
98 5140075-38 RING $1.16
99 5140075-39 KEY $3.38
100 5140075-40 FLAT WASHER $1.16
101 5140075-41 FLAT WASHER $1.16
102 5140075-42 FLAT WASHER $1.16
103 5140075-43 ADJUSTING NUT $2.61
104 5140075-44 NUT $1.16
105 5140075-45 SCREW $1.16
106 5140075-46 SCREW $1.16
107 5140075-47 SCREW $1.16
108 5140075-48 HEX SCREW $1.16
109 5140075-49 HEX SCREW $2.05
110 5140075-50 SWITCH $12.28
111 5140075-51 BALL BEARING $7.82
112 5140075-52 CORD SET $19.33
113 5140075-53 GUARD $2.10
114 5140075-54 COVER,LOWER $7.82
115 5140075-55 COVER,UPPER $12.28
116 5140075-56 LOWER WHEEL $67.23
117 5140075-57 UPPER WHEEL $71.27
118 5140075-58 GUARD $6.05
119 5140075-59 LOWER DOOR $75.32
120 5140075-60 UPPER DOOR $49.71
121 5140075-61 UPPER COVER $45.05
122 5140075-62 TRUNNION BRACKET $27.21
123 5140075-63 TABLE $212.07
124 5140075-64 UPPER ARM $177.31
125 5140075-65 PULLEY $21.31
126 5140075-66 BASE $172.26
127 5140075-67 MOTOR $403.75
129 5140075-69 FLAT WASHER $1.16
130 5140075-70 SPRING PIN $1.16
131 5140075-71 SPRING WASHER $1.03
132 5140075-72 COVER $1.03
137 5140075-77 TERMINAL $1.16
138 5140075-78 SCREW $1.16
139 5140075-79 CAPACITOR $2.05
140 5140075-80 CORD $11.57
141 5140075-81 CAPACITOR $21.87
142 5140075-82 COVER $7.19
143 5140075-83 UPPER COVER $2.81
200 5140074-43 SCREW W/WASHER $1.03
201 5140075-01 KNOB $1.48
202 5140075-88 CARRIAGE BOLT $1.03
204 5140075-90 HEX NUT $1.16
205 5140075-91 PAD $1.48
206 5140075-92 SPRING WASHER $1.16
207 5140075-93 HEX NUT $1.16
208 5140075-94 LABEL $3.38
209 5140075-95 HEX SCREW $1.48
210 5140075-96 SELF TAPPING SCREW $1.16
211 5140075-97 MAGNETIC IRON SET $6.05
212 5140075-98 RIGHT SIDE COVER $75.32
213 5140075-99 LEFT SIDE COVER $75.32
214 5140076-00 DOOR PLATE $57.06
215 5140076-01 BACK PLATE $46.88
216 5140076-02 TOP PLATE $75.32
217 5140076-03 TOOL TRAY $44.52
846 5140075-89 HARDWARE BAG $5.60
846 5140076-04 HARDWARE BAG $11.01
846 5140076-05 HARDWARE BAG $3.63
846 5140075-87 HARDWARE BAG $4.52
846 5140075-84 HARDWARE BAG $6.56
846 5140075-85 HARDWARE BAG $20.89
846 5140075-86 HARDWARE BAG $13.55
