Porter Cable PC85TRSOK Electric Saw Parts

Porter Cable PC85TRSOK Parts

Download Schematic

Time to buy a new tool?

Porter Cable PC85TRSOK

8.5 Amp Tigersaw Orb...

$81.99

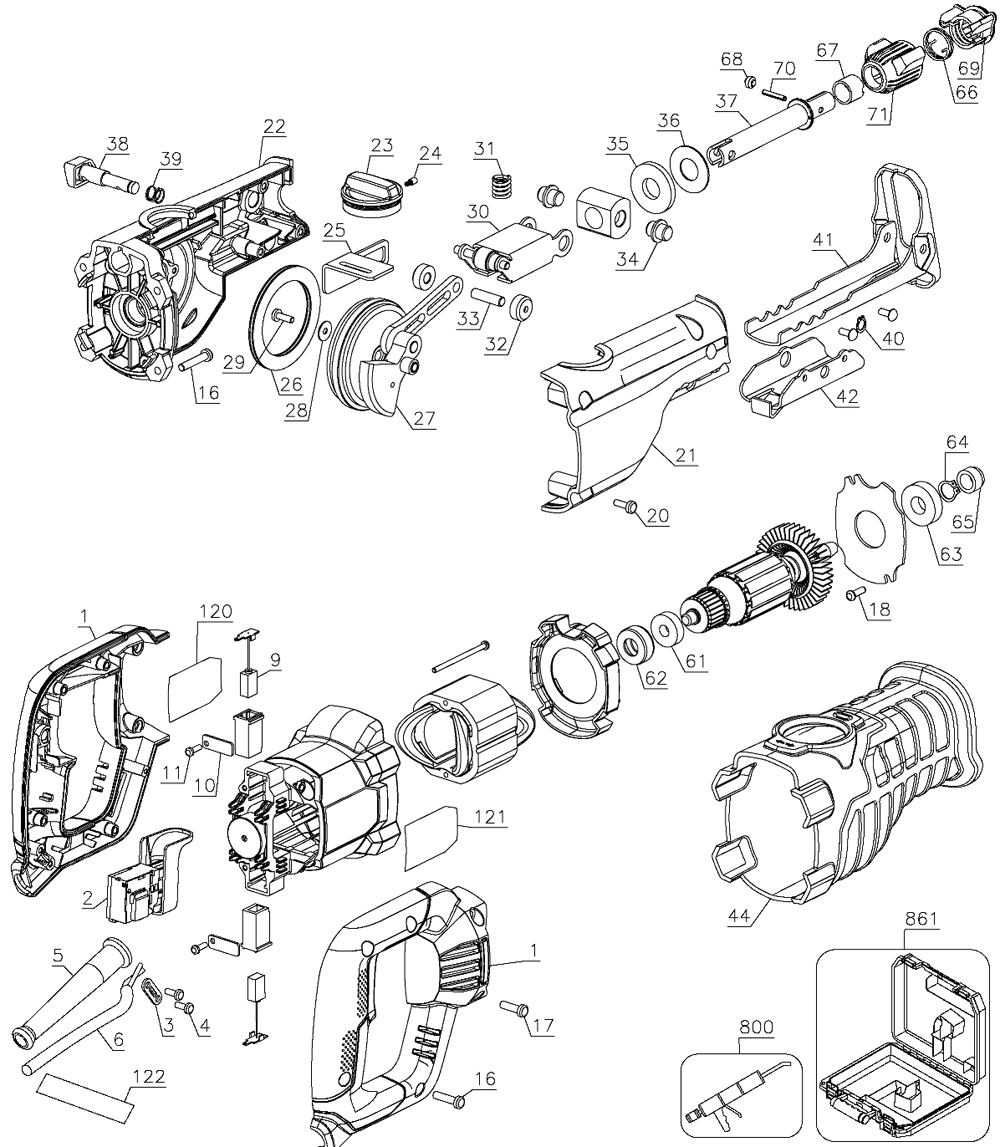

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	90563185	HANDLE ASSY.	$6.56
2	90561404	SWITCH	$16.41
3	329301-00	CLAMP, CORD	$1.24
4	330019-01	SCREW, TORX HD	$1.23
5	330005-01	PROTECTOR, CORD	$4.63
5	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
6	90536723-06	CORDSET	$9.73
9	90562908	BRUSH & SPRING	$2.10
10	90561435	BRUSH HOLDER	$1.48
11	330019-41	SCREW	$1.21
16	330019-13	SCREW, M4X19	$1.24
17	330019-12	SCREW	$1.24
18	90563040	SCREW	$1.16
20	330045-06	SCREW	$1.24
21	90563561	GEAR CASE ASSY	$15.39
22	90563560	GEARCASE & BRG.	$25.17
23	90562810	KNOB ASSEMBLY	$1.41
24	326467-00	DETENT	$1.24
25	90562299	ACTUATOR	$2.10
26	90563562	THRUST BEARING	$7.77
27	90563563	GEAR ASSY.	$26.13
28	90563044	WASHER	$1.16
29	90563040	SCREW	$1.16
30	90563564	TRACK ASSY.	$7.82
31	90562319	COMPRESSION SPRING	$1.48
32	90562303	ROLLER	$1.48
33	90562304	ROLLER PIN	$1.16
34	90562296	RECIP BEARING	$4.02
35	90562320	FELT SEAL	$1.16
36	90562321	SCRAPER	$1.48
37	90563568	RECIP. SHAFT ASSY.	$19.27
38	90562313	SHOE BUTTON ASSY	$2.55
39	618427-00	SPRING	$1.10
40	90552725	C CLIP	$1.16
41	90563570	SHOE ASSY.	$7.77
42	90562309	PLATE SUPPORT	$3.31
44	90562329	RUBBER COVER	$12.16
61	574853-08	BEARING	$2.85
62	90565402	BEARING CUP	$1.48
63	488950-00	BALL BEARING	$2.36
64	696060-00	SNAP RING	$1.24
65	90562523	COLLAR,DEFLECTOR	$1.48
66	90562333	TORSION SPRING	$1.48
67	90562334	SLEEVE	$1.16
68	90562314	BLADE PIN	$2.10
69	90562332	BL CLAMP COLLAR	$7.19
70	90563707	SPIRAL PIN	$1.16
71	90562315	BLADE CLAMP BOOT	$1.16
120	90561359	ID LABEL	$1.48
121	90561362	NAME PLATE	$1.48
122	90564194	WARNING LABEL	$1.48
861	90563205	KIT BOX	$27.52
