Porter Cable PC250MTK

36 Piece 2.5 Amp Too...

$126.99

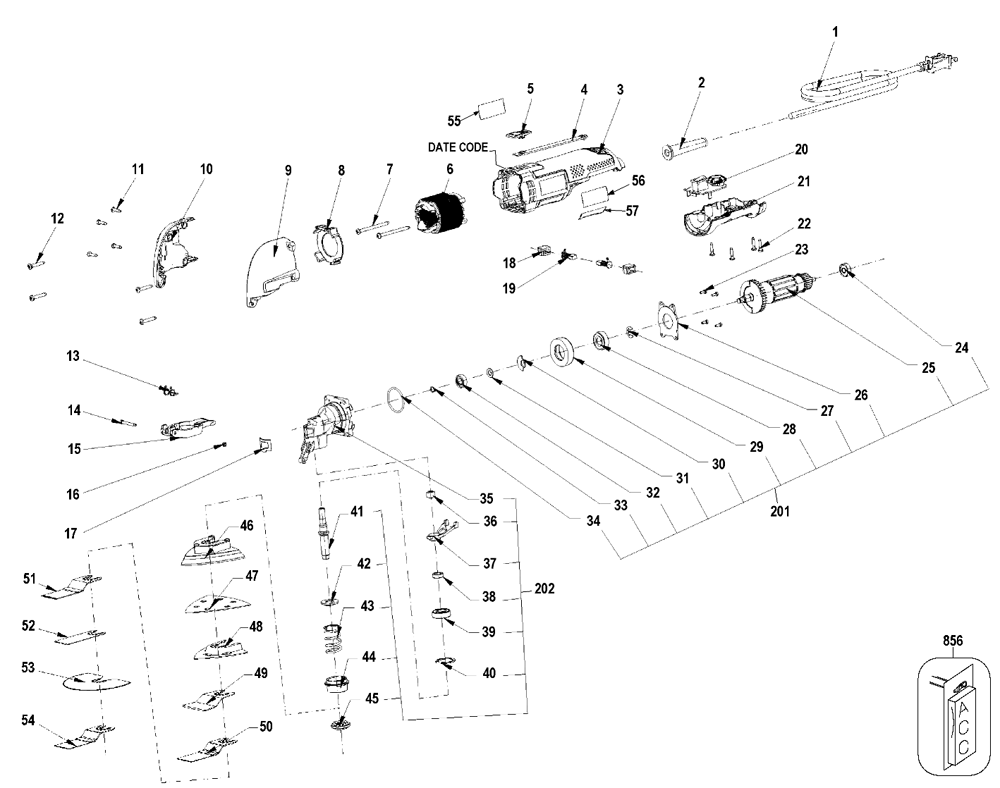

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	5140034-15	CORD	$30.16
2	5140108-77	CORD PROTECTOR	$1.20
3	5140108-78	MOTOR HOUSING	$11.73
4	5140108-79	SWITCH ACTUATOR	$1.20
5	5140108-80	SWITCH BUTTON	$1.20
6	5140108-81	FIELD	$20.31
7	5140033-75	SCREW	$1.23
8	5140108-82	FAN BAFFLE	$1.20
9	5140108-83	HOUSING,LEFT	$3.75
10	5140108-84	RIGHT HOUSING	$2.57
12	5140071-90	SCREW	$1.28
13	5140108-86	TORSION SPRING	$1.20
14	5140108-87	HEX.SOC.HD.SCREW	$1.20
15	5140108-88	WRENCH ASSY	$3.16
16	5140108-89	NUT	$1.20
17	5140108-90	DUST COVER	$1.20
18	5140108-91	BRUSH HOLDER	$1.20
19	5140108-92	BRUSH CARBON	$1.39
20	5140108-93	PCB ASSEMBLY	$14.98
21	5140108-94	LOWER HOUSING	$7.24
24	5140108-98	BALL BEARING	$3.75
25	5140108-97	ARMATURE ASSY.	$44.06
26	5140109-00	BEARING PLATE	$1.39
27	5140109-01	E RING	$1.20
28	5140033-67	BEARING	$4.04
29	5140109-02	BEARING SUPPORT	$4.63
30	5140109-03	COUNTER WEIGHT	$1.20
31	5140109-04	WASHER	$1.20
32	5140109-05	BALL BEARING	$6.40
34	5140109-07	O-RING	$1.20
35	5140109-08	SPINDLE ASSY.	$49.55
36	5140109-08	SPINDLE ASSY.	$49.55
37	5140109-08	SPINDLE ASSY.	$49.55
38	5140109-08	SPINDLE ASSY.	$49.55
39	5140033-67	BEARING	$4.04
40	5140109-08	SPINDLE ASSY.	$49.55
41	5140109-08	SPINDLE ASSY.	$49.55
42	5140109-15	STOP WASHER	$3.75
43	5140109-16	COMPRESSION SPRING	$1.39
44	5140109-17	CLAMP	$10.78
45	5140109-18	DRIVE WASHER	$7.30
46	5140109-19	BASEPLATE ASSY	$12.92
47	5140109-20	SAND PAPER	$9.61
48	5140109-21	CARBIDE RASP	$15.28
49	5140109-22	RIGID SCRAPER BLADE	$4.34
50	5140109-23	PLUNGE BLADE	$9.96
51	5140109-24	PLUNGE BLADE	$7.89
52	5140109-25	FLEXIBLE SCRAPER	$3.75
53	5140109-26	FLUSH CUT BLADE	$14.98
54	5140109-27	PLUNGE BLADE	$6.12
55	90571621	RATING PLATE	$1.39
56	90571620	ID LABEL	$1.39
57	90571622	WARNING LABEL	$1.39
201	5140108-97	ARMATURE ASSY.	$44.06
202	5140109-08	SPINDLE ASSY.	$49.55
