Porter Cable PC15TCS Electric Saw Parts

Porter Cable PC15TCS Electric Saw Parts Image

Porter Cable PC15TCS Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

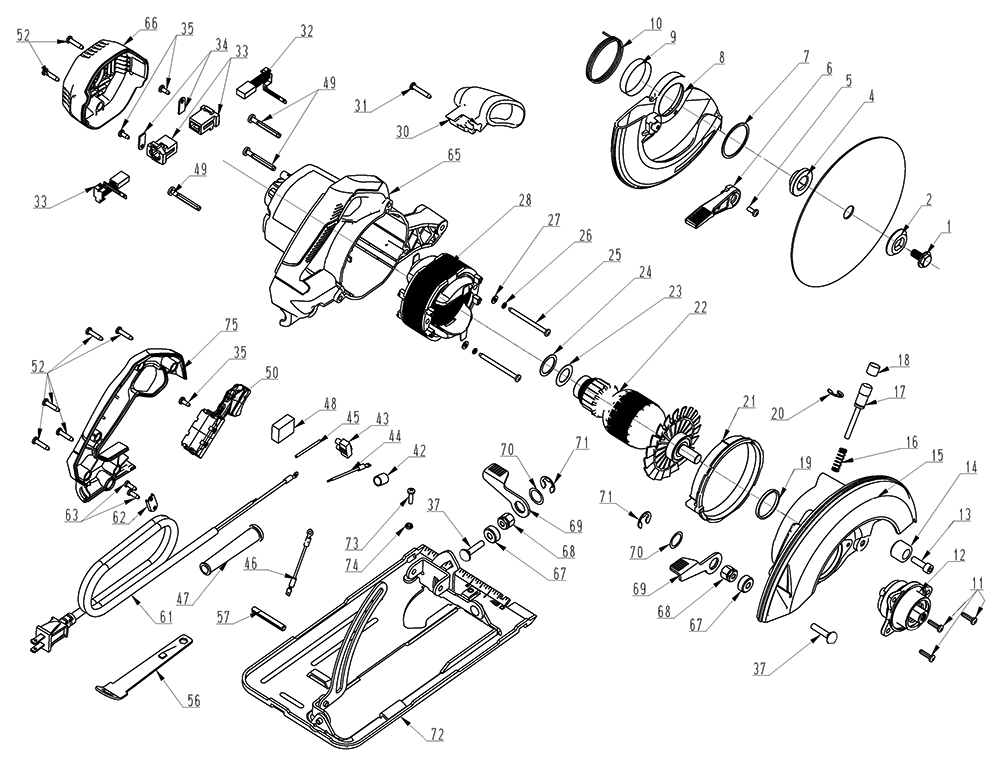

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	5140071-59	ARBOR BOLT	$1.92
2	5140034-36	CLAMP	$4.28
4	5140034-34	INNER FLANGE	$4.12
5	5140034-04	SCREW	$1.23
6	5140071-63	L GUARD LEVER	$1.41
7	5140034-02	CIRCLIP	$1.77
8	5140071-65	LOWER GUARD	$22.26
9	5140033-99	BUSHING	$1.23
10	5140034-00	TORSION SPRING	$1.23
11	5140071-69	SCREW	$1.16
12	5140071-70	GEAR ASSY.	$31.44
13	5140071-71	HEX SOC HD SCR	$1.16
14	5140071-72	STOPPER	$1.28
15	5140071-73	GEAR CASE ASSY.	$38.27
16	5140033-93	SPRING	$1.23
17	5140033-92	SPINDLE LOCK	$2.16
18	5140033-91	BUTTON	$1.23
19	5140033-71	RUBBER RING	$2.09
20	5140034-18	E-RING	$1.23
21	5140071-80	FAN BAFFLE	$2.05
22	5140071-81	ARMATURE	$68.96
23	5140033-66	WASHER	$1.23
24	5140033-65	SPRING	$1.23
25	5140033-75	SCREW	$1.23
26	5140033-74	SPRING WASHER	$1.23
27	5140033-73	PLAIN WASHER	$1.23
28	5140071-87	FIELD	$43.05
30	5140071-89	FRONT HANDLE	$6.56
31	5140071-90	SCREW	$1.28
32	5140033-62	BRUSH	$9.53
33	5140033-63	BRUSH HOLDER	$2.00
34	5140033-61	BRUSH HOLDER PLATE	$1.23
35	5140071-94	SCREW	$1.16
37	5140071-96	BOLT	$1.28
42	5140076-37	TUBE	$1.16
43	5140034-10	CONNECTOR	$1.93
44	5140076-39	ASSY WIRE	$2.69
45	5140076-40	SLEEVE	$1.16
46	5140076-41	ASSY WIRE	$2.69
47	5140034-12	CORD PROTECTOR	$1.23
48	5140034-11	SPONGE	$1.23
49	5140033-76	SCREW	$1.23
50	5140076-45	SWITCH	$11.01
52	5140076-47	SCREW	$1.28
56	5140034-39	WRENCH	$1.77
57	5140076-52	SPRING PIN	$1.28
61	5140076-56	CORD SET	$22.44
62	5140034-13	CORD CLAMP	$1.23
63	5140034-14	SCREW	$1.23
65	5140076-60	MOTOR HOUSING	$32.03
66	5140076-61	END COVER	$5.23
67	5140076-62	SPACER	$1.28
68	5140076-63	LOCK NUT	$1.60
69	5140076-64	LEVER	$1.48
70	5140076-65	WASHER	$1.03
71	5140076-66	E-RING	$1.16
72	5140076-67	SHOE ASSY.	$55.09
73	5140076-68	SCREW	$1.03
74	5140034-27	NUT	$1.23
75	5140076-70	HANDLE COVER	$14.12
